Deryan 14-inch Kids' Bicycle Instruction Manual

1. הקדמה

This manual provides essential information for the safe assembly, operation, and maintenance of your Deryan 14-inch Kids' Bicycle. Please read all instructions carefully before use to ensure your child's safety and the longevity of the product. The Deryan 14-inch Kids' Bicycle is designed as a versatile 3-in-1 bicycle, adaptable for different stages of a child's development, functioning as a balance bike, a pedal bike with training wheels, or a standard pedal bike.

Image: The Deryan 14-inch Kids' Bicycle demonstrating its three configurations: balance bike, pedal bike with training wheels, and standard pedal bike.

2. מידע בטיחות

• ודאו תמיד שהילד חובש קסדה וציוד בטיחות מתאים.
• Supervise children at all times while riding.
• Regularly check all bolts, nuts, and quick releases to ensure they are securely fastened.
• ודא שהבלמים פועלים כראוי לפני כל נסיעה.
• The steering limiter is designed for added safety, helping the child maintain control.
• The fully enclosed chain guard prevents clothing from getting caught and protects from moving parts.

3. התקנה והרכבה

The Deryan 14-inch Kids' Bicycle comes partially assembled. Follow these steps for final assembly and configuration.

3.1. Handlebar Installation and Adjustment

Insert the handlebar stem into the fork tube. Adjust the handlebar height to a comfortable position for the rider, ensuring the minimum insertion mark is not visible. Tighten the handlebar clamp bolt securely. The handlebar features soft rubber grips for comfort and a secure hold.

Image: Detail of the adjustable handlebar, showing the height adjustment mechanism.

3.2. התאמת גובה המושב

Adjust the saddle height to ensure the child can comfortably touch the ground with their feet. Loosen the seat post clamp, adjust the seat to the desired height, and then securely tighten the clamp. The synthetic leather saddle with soft padding provides maximum comfort.

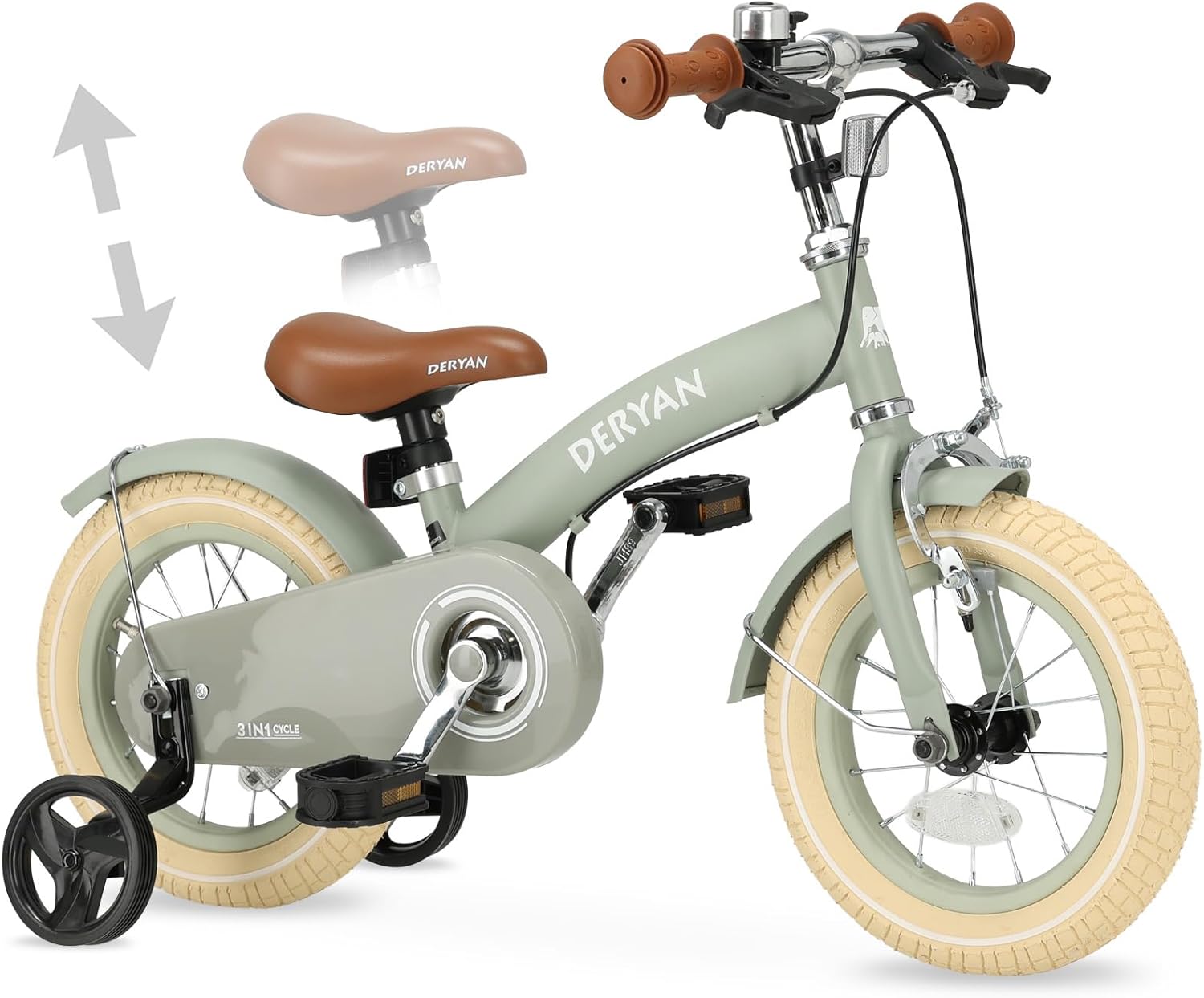

Image: Detail of the adjustable seat, illustrating how to raise or lower it for proper fit.

3.3. Pedal Installation (for Pedal Bike Mode)

Identify the left (L) and right (R) pedals. The right pedal screws in clockwise, and the left pedal screws in counter-clockwise. Ensure pedals are fully tightened to prevent loosening during use.

3.4. Training Wheel Installation/Removal (Optional)

For beginners, attach the extra-large training wheels to the rear axle. Ensure they are securely fastened and provide stable support. As the child gains confidence, the training wheels can be removed to transition to a standard pedal bike.

Image: A child riding the Deryan bicycle with training wheels, demonstrating its use for learning.

3.5. משמר השרשרת

The bicycle features a fully enclosed chain guard for enhanced safety, preventing clothing entanglement and protecting the chain from debris.

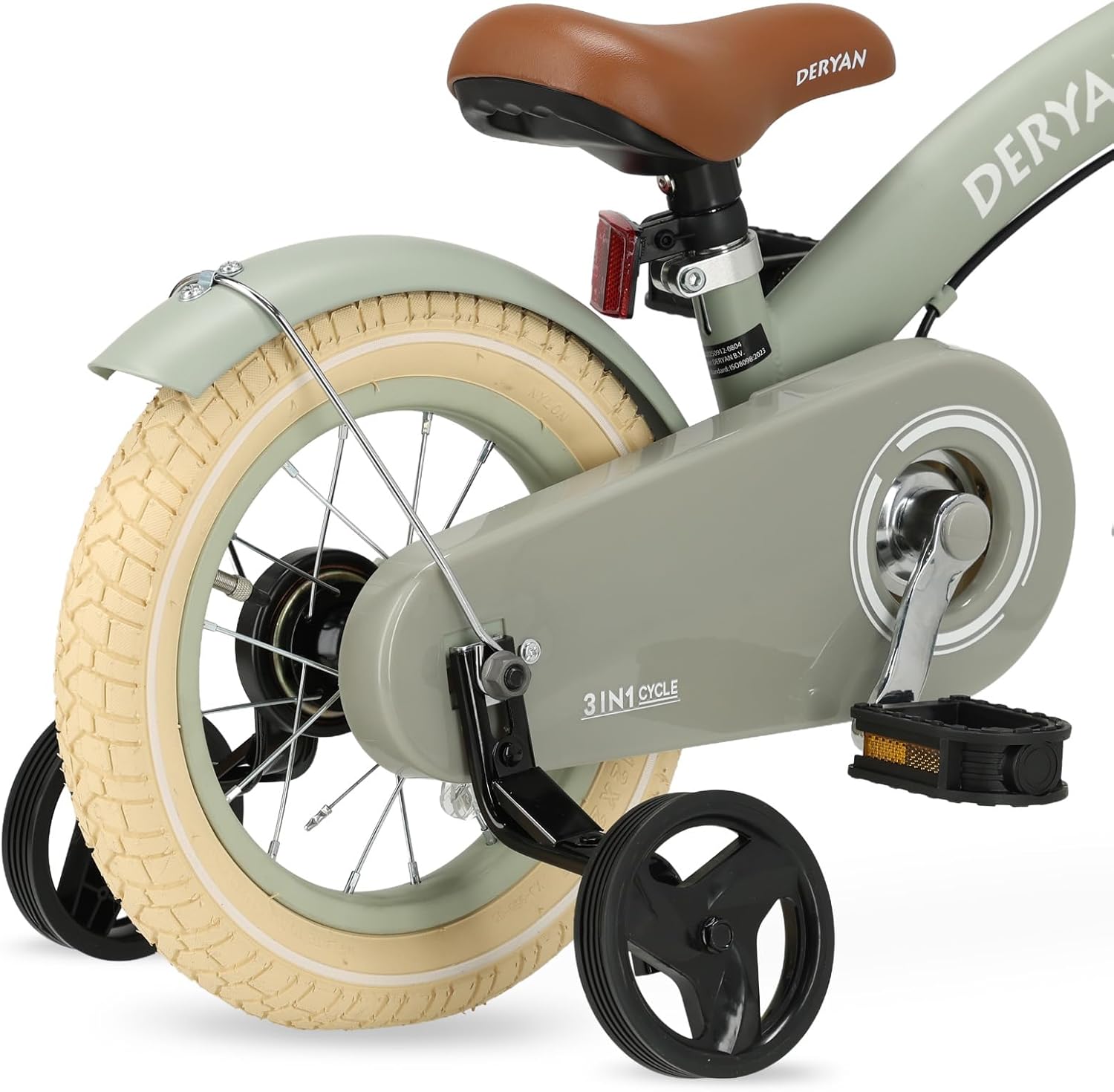

Image: Detail of the fully enclosed chain guard, highlighting its protective design.

4. הוראות הפעלה

לפני כל רכיבה, בצעו בדיקת בטיחות מהירה:

• בַּלָמִים: Squeeze both brake levers to ensure they engage smoothly and stop the wheels effectively.
• צמיגים: Check tire pressure. The 14-inch pneumatic tires are suitable for asphalt and dirt roads, offering stability and comfort.
• היגוי: Ensure the handlebar turns freely without excessive play and that the steering limiter functions as intended.
• Seat & Handlebar: Confirm that the seat and handlebar are at the correct height for the rider and are securely tightened.
• Pedals & Chain: Ensure pedals are securely attached and the chain is clean and lubricated (if applicable for pedal mode).

Encourage your child to practice riding in a safe, open area away from traffic. Start with the balance bike mode if they are new to cycling, then introduce training wheels, and finally transition to a standard pedal bike as their skills develop.

Image: A child enjoying a ride on the Deryan bicycle with training wheels in an outdoor setting.

5. תחזוקה

• ניקוי: נקו את האופניים באופן קבוע עם מודעהamp cloth and mild soap. Avoid high-pressure washers.
• סִיכָה: Periodically lubricate the chain (if in pedal mode) and other moving parts with bicycle-specific lubricant.
• לחץ אוויר בצמיגים: Maintain recommended tire pressure as indicated on the tire sidewall.
• כוונון בלמים: If brakes feel loose or too tight, adjust the brake cable tension at the lever or caliper. Consult a bicycle mechanic if unsure.
• אִחסוּן: אחסנו את האופניים במקום יבש, הרחק מאור שמש ישיר וטמפרטורות קיצוניות, כדי למנוע חלודה ופגיעה בחומר.

6. פתרון תקלות

להלן מספר בעיות נפוצות והפתרונות שלהן:

If you encounter issues not listed here or cannot resolve a problem, please contact Deryan customer support or a qualified bicycle mechanic.

7. מפרטים

• מותג: דריון
• דֶגֶם: 14-inch Kids' Bicycle
• צֶבַע: יָרוֹק
• גודל גלגל: 14 אינץ'
• משקל מוצר: 8.9 ק"ג
• סגנון בלם: קליפר
• סוג השעיה: קָשִׁיחַ
• מאפיינים מיוחדים: Adjustable seat, Lightweight, Adjustable handlebar, Portable, Steering limiter, Fully enclosed chain guard
• טווח גילאים: פָּעוֹט

8. מה בקופסה

Your Deryan 14-inch Kids' Bicycle package includes:

• Deryan 14-inch Kids' Bicycle (partially assembled)
• רפלקטורים
• Training Wheels (for optional installation)
• פַּעֲמוֹן
• Assembly Tools (e.g., Allen key, wrench)
• מדריך הוראות

9. אחריות ותמיכה

Deryan products are manufactured to high-quality standards. For warranty information, product support, or to purchase replacement parts, please refer to the contact details provided with your purchase or visit the official Deryan webאתר. שמור את הוכחת הרכישה שלך לצורך תביעות אחריות.
