1. הוראות בטיחות חשובות
Read all safety warnings and instructions before using this product. Failure to follow these instructions may result in electric shock, fire, or serious injury.
- Always wear appropriate personal protective equipment, including safety glasses, gloves, and protective clothing.
- ודא שאזור העבודה מאוורר היטב ונקי מחומרים דליקים.
- Do not operate the spot welder in damp או תנאים רטובים.
- הרחיקו ילדים ואנשים לא מורשים מאזור ההפעלה.
- Do not touch the welding electrodes or work piece immediately after welding, as they will be hot.
- השתמשו רק באביזרים המסופקים או המומלצים.
- נתק את אספקת החשמל לפני ביצוע כל תחזוקה או ניקוי.
- אל תנסה לתקן או לשנות את המכשיר בעצמך. פנה לאנשי שירות מוסמכים.
- This device contains a lithium battery. Do not expose to high temperatures or direct sunlight.
2. המוצר נגמרview
The TOOLTOP Awithz UK3 is a portable, high-power spot welder designed for DIY nickel sheet welding, particularly for 18650 lithium battery packs. It features a compact design, Type-C charging, and multiple welding modes for precise and efficient operation.
תכונות עיקריות:
- עיצוב קומפקטי: Small body with Type-C charging for portability.
- Multiple Welding Modes: Knob control for preheating, intermittent welding, gear position, and trigger time adjustments.
- תפוקת כוח גבוהה: 13860W for fast, precise welding.
- Three Welding Modes: Manual, automatic, and foot pedal welding options.
- צריכת חשמל נמוכה במיוחד: פעולה חסכונית באנרגיה.
- Detachable Soldering Pen: Allows for easy replacement of welding needles without changing the entire rod.
- High Conductivity Copper Bar: Ensures stable current and strong welds.
איור 2.1: Awithz UK3 Portable Spot Welder with its main components and highlighted features.
This image displays the Awithz UK3 spot welder unit, two welding pens, a foot pedal, and several 18650 battery cells. Key features such as "Detachable and replaceable needle soldering pen" and "Intelligent Handheld Pen" are highlighted, along with the device's ability to "Weld firmly with 0.25 pure nickel and 0.4 nickel plating."
איור 2.2: UK3 Knob style spot welder with icons representing its core functionalities.
This image showcases the UK3 spot welder and lists its innovative features through icons: "Brand new A-grade battery cells," "Weldable 0.4mm/0.0157inch," "Intelligent Handheld Pen," "Ten thousand precise adjustments," "Powerful dual pulse," "Science has a positive impact," "Automatic/manual/foot pedal," and "Multiple protection."
3. תכולת החבילה
ודא שכל הפריטים המפורטים להלן נמצאים בחבילה שלך:
- 1 x TT-Awithz-UK3-10000mAh Spot Welder Unit
- 1 x Pedal board (Foot Pedal)
- 1 x Nickel coil
- 1 x כבל טעינה (סוג C)
- 1 pair of spare soldering pins
- 1 x נייר זכוכית

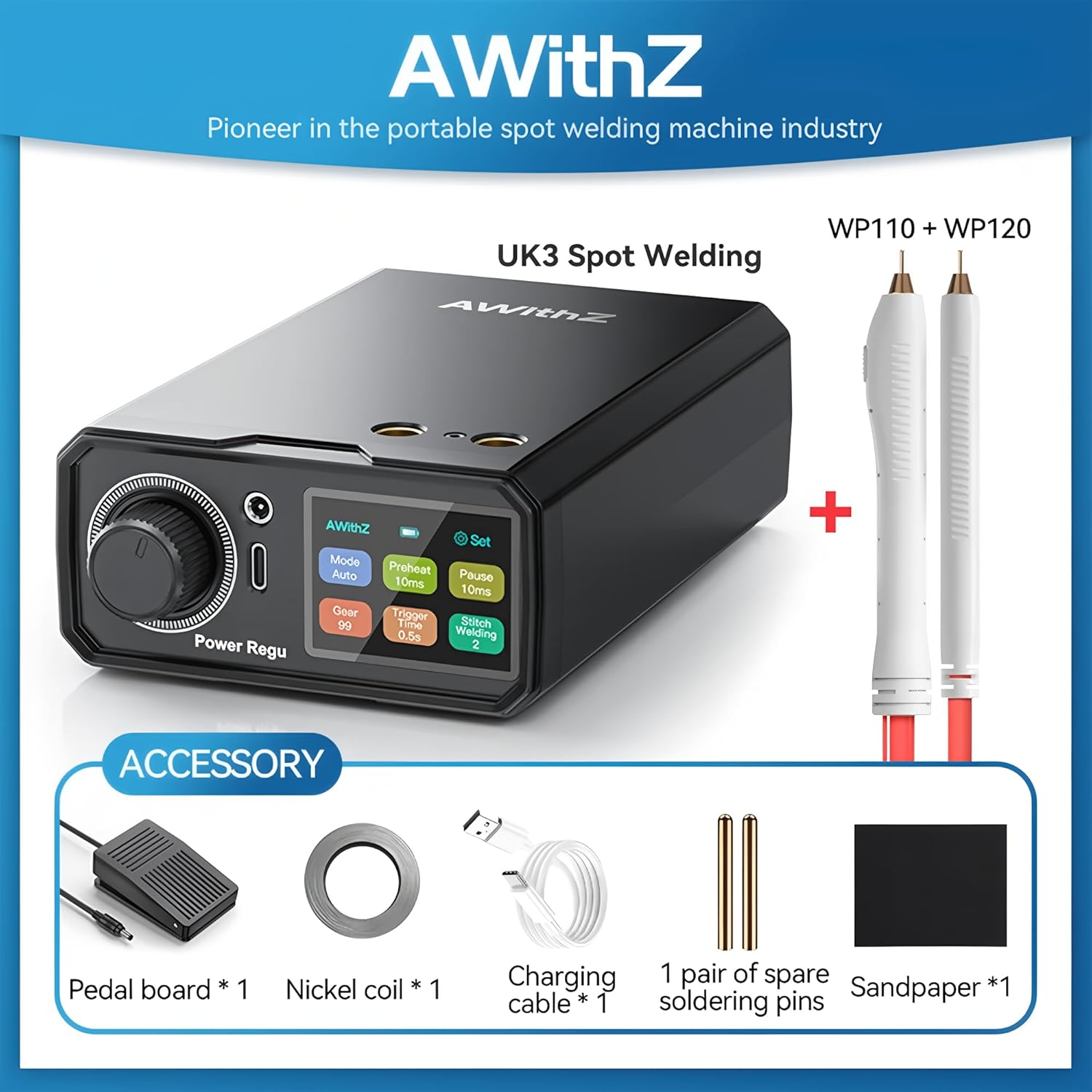

איור 3.1: All accessories included with the Awithz UK3 Spot Welder.
This image clearly displays the main spot welding unit along with its accessories: a foot pedal, a roll of nickel strip, a Type-C charging cable, a pair of spare welding pins, and a piece of sandpaper.
4. הוראות התקנה
- טען את המכשיר: Connect the spot welder to a Type-C charger using the provided charging cable. Ensure the device is fully charged before first use.
- Connect Welding Pens: Insert the welding pens securely into the designated ports on the front of the spot welder. Ensure a firm connection.
- חיבור דוושת רגל (אופציונלי): If using the foot pedal welding mode, connect the foot pedal to its dedicated port.
- Prepare Nickel Strip: Cut the nickel strip to the required length for your welding application.
- הכנת חומר עבודה: Ensure the surfaces to be welded (e.g., battery terminals, nickel strip) are clean and free from oxidation. Use the included sandpaper if necessary.

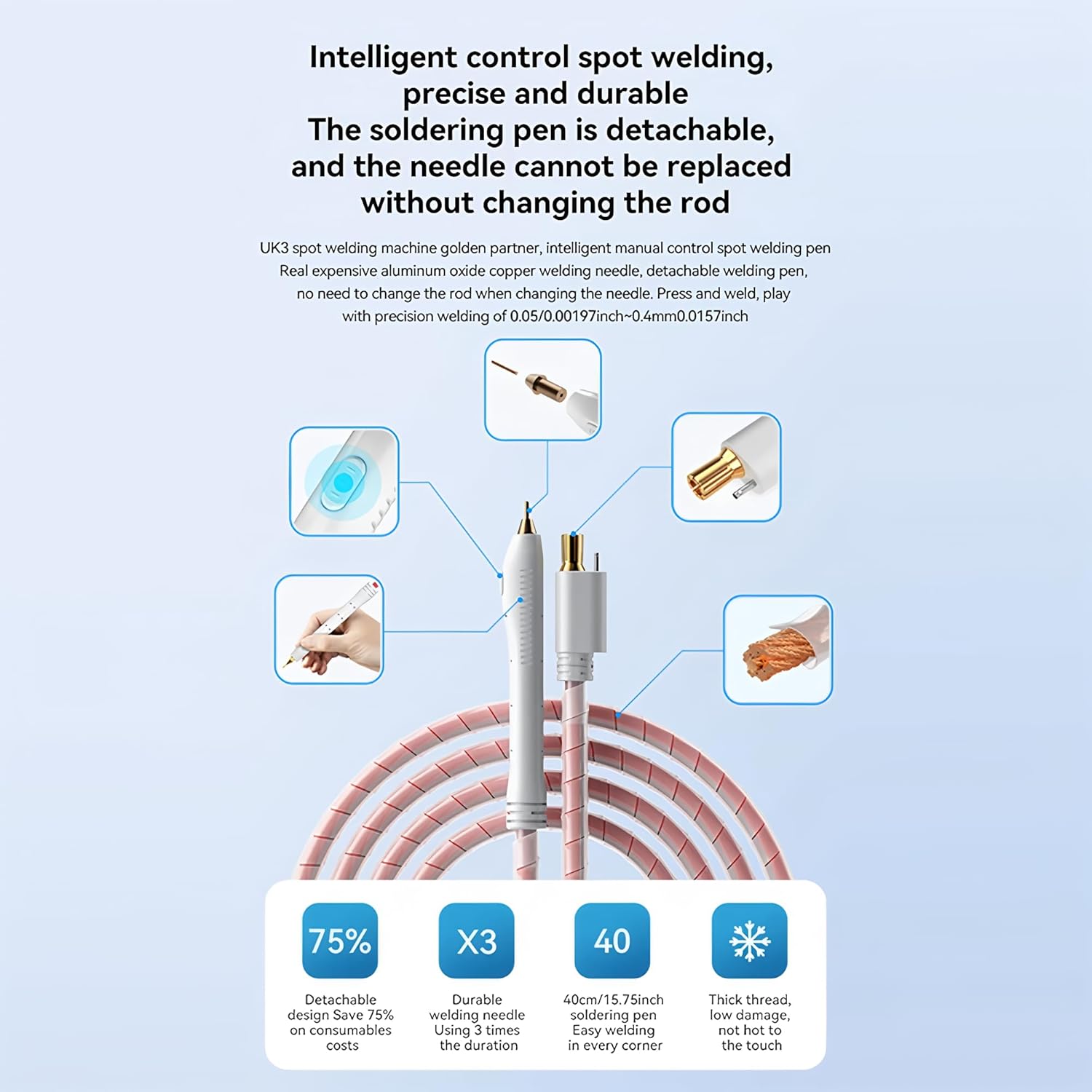

איור 4.1: Illustration of the intelligent control spot welding pen with detachable needle.
This image highlights the intelligent control spot welding pen, emphasizing its detachable and replaceable needle design. It shows how the needle can be easily changed without replacing the entire pen rod, contributing to cost savings and durability. The image also illustrates the internal high conductivity copper bar for stable current.
5. הוראות הפעלה
The Awithz UK3 offers multiple welding modes and adjustable settings for optimal performance.
5.1 הפעלה/כיבוי
- כדי להפעיל, לחץ והחזק את לחצן ההפעלה עד שהתצוגה תידלק.
- כדי לכבות, לחץ והחזק את לחצן ההפעלה עד שהתצוגה תכבה.
5.2 Mode Selection and Adjustments
Use the knob and buttons on the device's control panel to navigate and adjust settings.
איור 5.1: Close-up of the Awithz UK3 control panel and Type-C charging port.
תמונה זו מספקת תמונה מפורטת view of the spot welder's control panel, showing the adjustment knob, display screen, and buttons for settings like "Mode," "Preheat," "Pause," "Gear," "Trigger Time," and "Switch Welding." It also highlights the Type-C fast charging port and the device's minimalist design.
- Mode (Manual/Automatic/Foot Pedal): Select the desired welding trigger mode.
- ידני: Trigger welding by pressing a button on the welding pen.
- אוֹטוֹמָטִי: Welding triggers automatically when both pen tips make contact with the workpiece.
- דוושת רגל: Welding triggers when the foot pedal is pressed.
- מחממים: Adjust the preheating time for better weld quality, especially on thicker materials.
- Intermittent/Pause: Set the pause time between welding pulses for controlled heat distribution.
- מיקום הילוך: Adjust the welding power level (e.g., 1-99) to suit the thickness of the nickel strip and battery type. Start with lower settings and increase gradually.
- זמן טריגר: Fine-tune the duration of the welding pulse.
5.3 Welding Procedure
- Place the nickel strip firmly onto the battery terminal or workpiece.
- Position the tips of the welding pens onto the nickel strip, ensuring good contact and even pressure.
- Initiate the weld according to your selected mode (manual button, automatic contact, or foot pedal).
- Observe the weld quality. Adjust "Gear Position," "Preheat," and "Trigger Time" as needed to achieve a strong, clean weld.
- Allow the welded area to cool before handling.
6. תחזוקה
- ניקוי: Regularly clean the welding pen tips and the device casing with a dry, soft cloth. Ensure no metal dust or debris accumulates.
- החלפת אלקטרודה: If the welding pen tips become worn or damaged, replace them with new ones. The detachable design allows for easy replacement.
- אִחסוּן: Store the spot welder in a cool, dry place away from direct sunlight and moisture.
- טיפול בסוללה: For optimal battery life, avoid fully discharging the device frequently. Charge it periodically if not used for extended periods.
7. פתרון תקלות
| בְּעָיָה | סיבה אפשרית | פִּתָרוֹן |
|---|---|---|
| אין חשמל/המכשיר לא נדלק | Low battery; Power button not pressed long enough; Device fault. | Charge the device; Press and hold the power button for 3-5 seconds; Contact support. |
| ריתוכים חלשים או לא עקביים | Low power setting (Gear); Dirty or worn welding tips; Poor contact with workpiece; Insufficient preheat/trigger time. | Increase Gear setting; Clean/replace welding tips; Ensure firm contact and pressure; Adjust Preheat/Trigger Time. |
| Excessive sparks or burning | Too high power setting (Gear); Overlapping welds; Incorrect material. | Decrease Gear setting; Avoid overlapping welds; Ensure correct nickel strip thickness. |
| Welding pens get hot quickly | Continuous use; High power setting; Poor contact. | Allow device to cool; Reduce power setting; Ensure good contact. |
8. מפרטים
| תכונה | פְּרָט |
|---|---|
| מספר דגם | TT-Awithz-UK3-10000mAh |
| מותג | TOOLTOP |
| קיבולת סוללה | 10000mAh (Integrated Lithium Battery) |
| יציאת טעינה | סוג-C |
| כוח ריתוך מקסימלי | 13860W |
| Weldable Nickel Thickness | Up to 0.4mm (0.0157 inch) nickel plating, 0.25mm pure nickel |
| מצבי ריתוך | ידני, אוטומטי, דוושת רגל |
| מידות | מידות בקירוב: 10.05 x 15.8 x 4.8 ס"מ (3.96 x 6.22 x 1.89 אינץ') |
| מִשׁקָל | משוער. 300 גרם (0.66 פאונד) |
| הסמכות | CE, RoHS |
איור 8.1: Detailed dimensions of the Awithz UK3 Spot Welder in centimeters and inches.
This image provides precise measurements of the Awithz UK3 spot welder, showing its length, width, and height in both centimeters and inches, illustrating its compact and portable form factor.
9. אחריות ותמיכה
This product comes with a 1-year EU Spare Part Availability Duration as per manufacturer specifications. For technical support, warranty claims, or service inquiries, please contact your retailer or the manufacturer directly. Please have your model number (TT-Awithz-UK3-10000mAh) and purchase information ready.
Manufacturer: TOOLTOP
