IFANNY Twin Over Full Bunk Bed with Stairs and Storage (Model 10918-HU) - Instruction Manual

1. מידע בטיחות חשוב

Please read all instructions carefully before assembly and use of this bunk bed. Failure to follow these warnings and instructions could result in serious injury or death.

• קיבולת משקל מקסימלית: The upper bunk is designed to support up to 200 פאונד. The lower bunk is designed to support up to 250 פאונד.
• עובי המזרן: The recommended mattress thickness for both upper and lower bunks is 6 אינץ' (mattresses not included). Ensure the mattress on the upper bunk does not exceed the guardrail height.
• מעקות בטיחות: The upper bunk is equipped with full-length guardrails to prevent accidental falls. Always ensure guardrails are properly installed and secured.
• מדרגות: Use the integrated stairs for climbing to and from the upper bunk. Do not use chairs or other items for climbing.
• ללא קפיצה: אל תאפשרו קפיצה על המיטה.
• אוורור: יש לוודא אוורור נאות סביב המיטה.
• בדיקות רגילות: Periodically check and ensure that all connections are tight and secure. Retighten as necessary.
• יְלָדִים: ילדים מתחת לגיל 6 לא צריכים להשתמש בדרגש העליון.
• הַרכָּבָה: ההרכבה צריכה להתבצע על ידי לפחות שני מבוגרים.

2. המוצר נגמרview

The IFANNY Twin Over Full Bunk Bed with Stairs and Storage is designed to maximize space and provide comfortable sleeping arrangements. Crafted from solid pine wood, this bunk bed features a sturdy frame, safety guardrails, and a convenient staircase with integrated storage compartments.

תמונה: מלא view of the IFANNY Twin Over Full Bunk Bed with Stairs and Storage in Grey.

תכונות עיקריות:

• Staircase Storage: Features a wide, deep 3-step side staircase with integrated storage compartments for books, toys, and essentials.
• עיצוב חוסך מקום: At 50.5 inches high, this low-profile bunk bed is ideal for rooms with low ceilings and maximizes vertical space.
• בנייה חזקה: Made from solid pine wood with 14 plywood slats for the upper bed and 7 slats for the lower bed, eliminating the need for a box spring.
• Safety Guardrails: Full-length 12-inch guardrails on the upper bunk ensure safety during sleep.
• Child-Friendly Low Profile: The lower-to-ground design makes it easy for children to get in and out of bed safely.

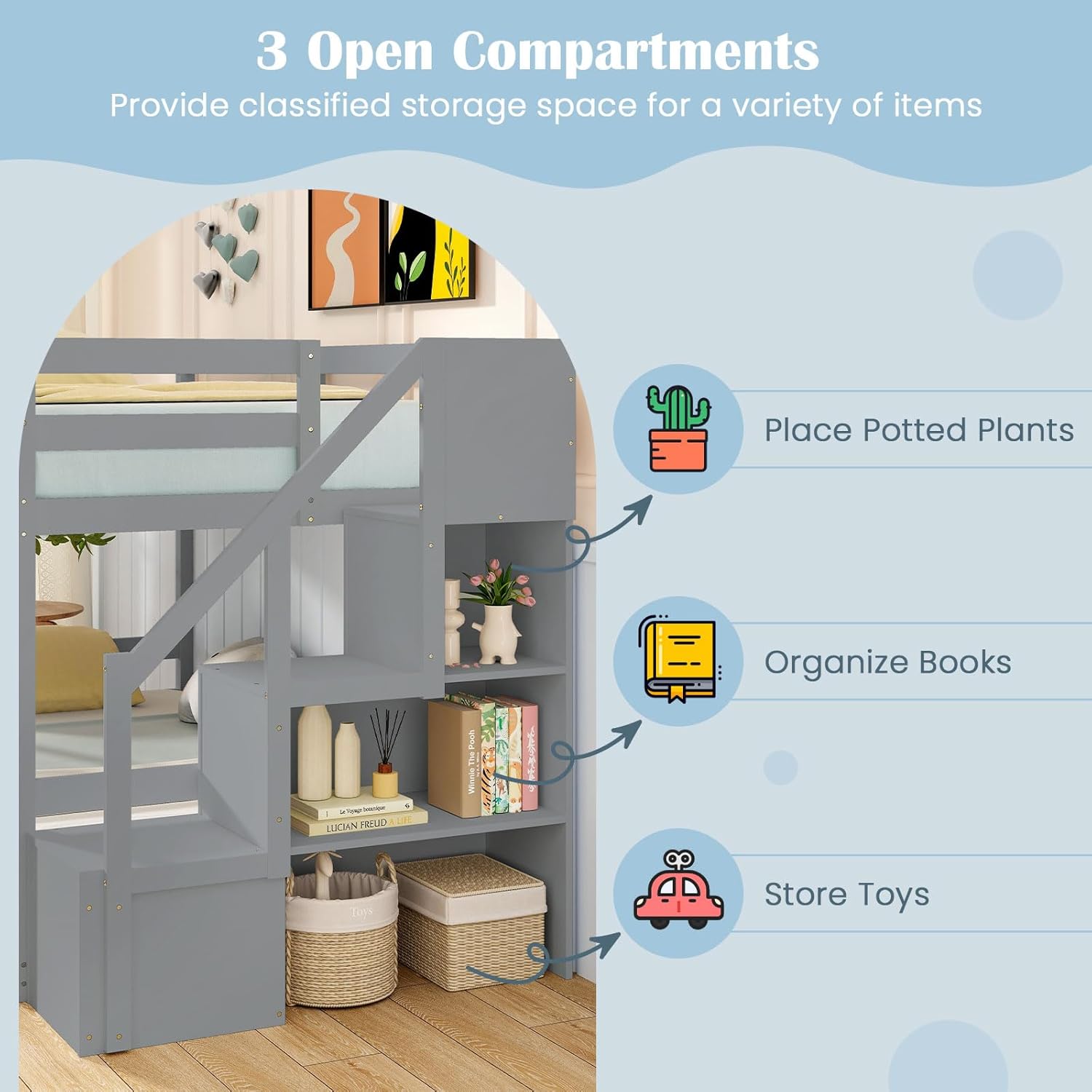

תמונה: מפורט view of the three open storage compartments within the staircase, suitable for organizing various items.

Image: The child-friendly low-profile design of the lower bed frame, highlighting the ease of access and safety guardrails.

3. הוראות הרכבה

Before you begin, ensure you have all parts and hardware as listed in the separate installation manual included with your product. We recommend assembling the bed in the room where it will be used. Two adults are recommended for assembly.

עצות כלליות:

• Clear a large, open area for assembly.
• אין להדק את הברגים לחלוטין עד שכל החלקים מורכבים באופן רופף.
• Use the provided tools or appropriate hand tools. Avoid power tools as they may overtighten and damage the wood.

הרכבה שלב אחר שלב:

1. Assemble Headboards and Footboards: Attach the top and bottom rails to the vertical posts for both the upper and lower bed headboards and footboards. Ensure all connections are secure but not fully tightened yet.
2. Construct Lower Bed Frame: Connect the side rails to the assembled lower bed headboard and footboard. Insert the wooden slats into the designated slots on the side rails. Secure the slats with screws.
3. Construct Upper Bed Frame: Similarly, connect the side rails to the assembled upper bed headboard and footboard. Insert and secure the wooden slats for the upper bed.
4. Assemble Staircase with Storage: Follow the instructions in your manual to assemble the staircase unit, ensuring all storage compartments are correctly fitted and secured.
5. חבר מעקות בטיחות: Secure the full-length guardrails to the upper bunk frame as indicated in the manual.
6. Stack Bunk Beds: Carefully lift the upper bed frame and place it onto the lower bed frame, aligning the connecting pins and holes. Secure the two frames together using the provided hardware.
7. Attach Staircase: Connect the assembled staircase unit to the bunk bed frame.
8. הידוק סופי: Once all components are in place and aligned, go back and fully tighten all screws and bolts. Do not overtighten.

Image: The bunk bed frame fully assembled, showcasing the wooden slats and the integrated staircase.

4. הוראות הפעלה

שימוש במיטת קומותיים:

• גישה למיטה העליונה: Always use the integrated staircase to climb to and descend from the upper bunk. Face the stairs when climbing or descending.
• תאי אחסון: The compartments in the stairs are designed for lightweight items such as books, small toys, or clothing. Do not overload them or store heavy objects that could cause damage or injury.
• מיקום מזרן: Ensure mattresses are properly seated within the bed frame and do not extend beyond the guardrails on the upper bunk.

5. תחזוקה וטיפול

טיפול נכון יאריך את חייה ומראהה של מיטת הקומותיים שלכם.

• ניקוי: נגב משטחים עם רך, דamp מטלית. הימנעו משימוש בכימיקלים חזקים, חומרי ניקוי שוחקים או פוליש שעלולים לפגוע בגימור.
• בדיקת חומרה: Periodically (e.g., every 3-6 months) inspect all bolts, screws, and connections to ensure they are tight. Retighten any loose hardware to maintain stability and safety.
• הימנע מלחות: יש להגן על המיטה מפני לחות מוגזמת ואור שמש ישיר, העלולים לגרום לעיוות או דהייה.
• הזזת המיטה: When moving the bed, always lift it rather than dragging it to prevent damage to the frame and floor.

6. פתרון תקלות

בעיות ופתרונות נפוצים:

• רעשי חריקה: If the bed squeaks, check all bolts and screws. Tighten any that are loose. Ensure the bed is on a level surface.
• מסגרת מתנדנדת: A wobbly frame usually indicates loose hardware. Re-check and tighten all connections. Ensure the bed is assembled correctly according to the manual.
• קושי בהרכבה: If you encounter difficulties during assembly, refer to the detailed step-by-step instructions in your included manual. Ensure all parts are correctly oriented. Contact customer support if issues persist.

7. מפרטים

Detailed product specifications for the IFANNY Twin Over Full Bunk Bed (Model 10918-HU).

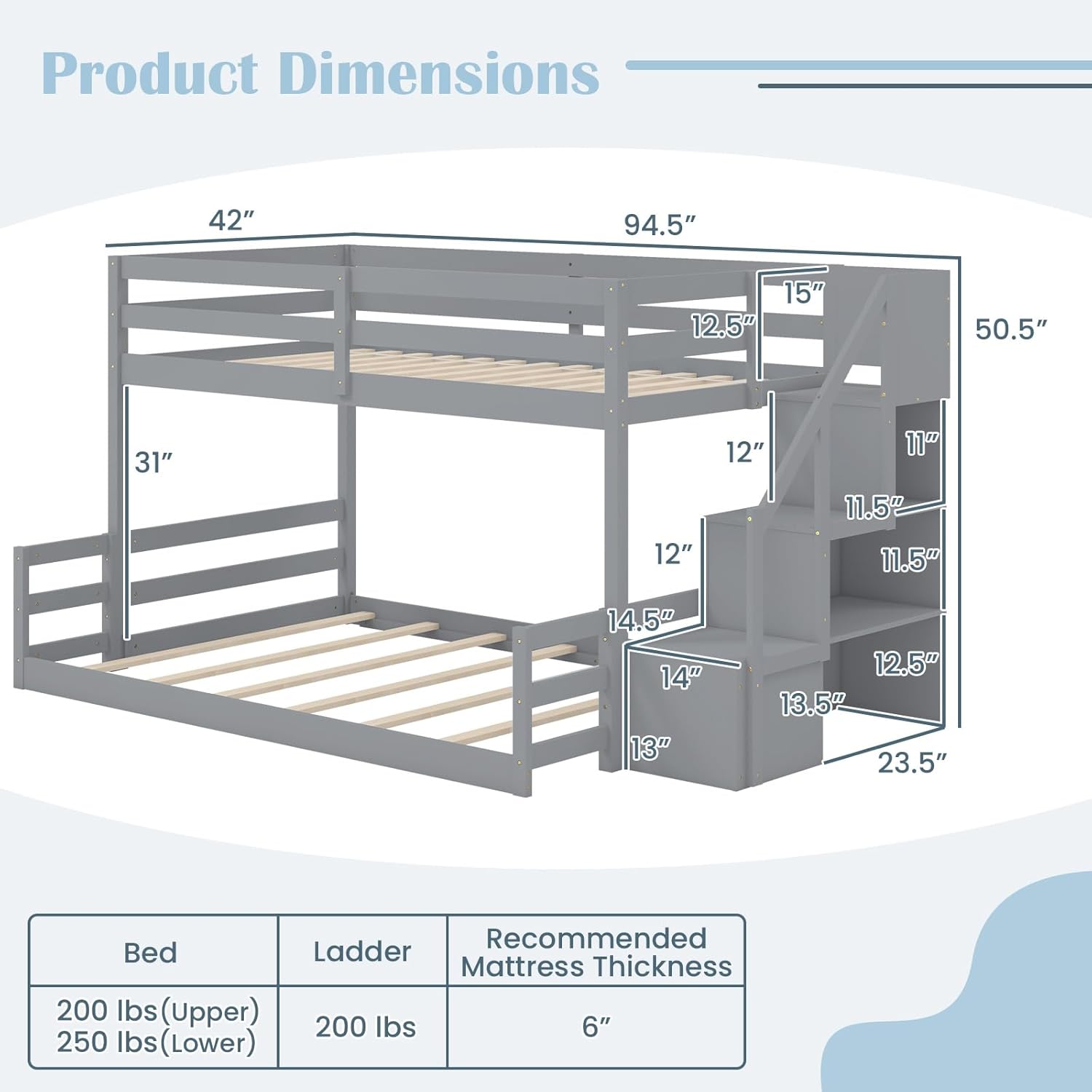

Image: Technical diagram illustrating the product dimensions and weight capacities for the upper and lower bunks, and the ladder.

8. אחריות ותמיכה

For any questions regarding assembly, missing parts, or product defects, please refer to the contact information provided in your original purchase documentation or visit the official IFANNY webאתר תמיכת לקוחות. אנא שמור את הוכחת הרכישה שלך לצורך תביעות אחריות.
