אוגרי F11 Campמדריך למשתמש של מאוורר

1. הקדמה

Thank you for choosing the OGERY F11 Camping Fan. This portable and versatile fan is designed to provide powerful airflow and illumination for various outdoor and indoor activities. With its long-lasting battery, fast charging capabilities, and multiple features, it is an essential companion for camping, travel, and everyday use.

1.1 תכולת החבילה

• אוגרי F11 Camping Fan (1 unit)
• שלט רחוק (יחידה אחת)
• כבל טעינת USB (יחידה אחת)
• מדריך למשתמש (מסמך זה)

1.2 תכונות עיקריות

• Upgraded Stronger Wind: Delivers wind speeds up to 5.3m/s with Turbocharging and PWM Control for higher wind pressure and lower noise.
• Longer Battery Endurance: Equipped with a 20000mAh battery, providing 12 to 138 hours of operation (fan/lighting dependent).
• טעינה מהירה: Supports 20W fast charging, reaching 100% in approximately 4.5 hours.
• 3-Level Eye-Protective LED Lantern: Offers soft, comfortable illumination with three brightness settings.
• עיצוב רב תפקודי: Features 30°/60°/90°/120° automatic oscillation, 270° manual rotation, remote control, folding handle, and a 360° rotatable hook.
• פונקציונליות של Power Bank: Dual outputs for charging other devices simultaneously.

2. הוראות בטיחות חשובות

Please read and understand all safety instructions before using the OGERY F11 Camping Fan. Failure to follow these instructions may result in electric shock, fire, or serious injury.

• אין לטבול את המאוורר במים או בנוזלים אחרים.
• הרחק מהישג ידם של ילדים וחיות מחמד.
• אין להכניס אצבעות או חפצים אחרים לתוך סורג המאוורר בזמן שהוא פועל.
• Use only the provided charging cable or a compatible 20W (or higher) adapter/power bank for charging.
• Do not attempt to disassemble, repair, or modify the fan. Contact qualified service personnel for assistance.
• Avoid exposing the fan to extreme temperatures, direct sunlight, or high humidity.
• ודאו שהמאוורר ממוקם על משטח יציב ושטוח כדי למנוע התהפכות.
• Turn off and unplug the fan before cleaning or when not in use for extended periods.

3. המוצר נגמרview

3.1 רכיבים

Figure 3.1: OGERY F11 Camping Fan showing the main unit and remote control.

ה-OGERY F11 Camping Fan consists of a main fan unit with an integrated LED light and a sturdy base that houses the battery and control panel. It also includes a detachable remote control for convenient operation.

3.2 לוח בקרה

איור 3.2: מפורט view of the fan's control panel, indicating various buttons and indicators.

The control panel on the fan's base features a power indicator, fan speed indicator, rocking head indicator, and timer indicator. Buttons include Sleep, Lighting, Fan Speed Control Knob (OFF to MAX), Oscillation, and Timer.

שלט רחוק 3.3

Figure 3.3: The remote control for the OGERY F11 fan, showing buttons for power, fan speed, lighting, timer, and oscillation settings.

The remote control allows for convenient operation of all fan functions from a distance. It includes buttons for Power on/off, Increase/Decrease Fan Speed, Lighting Increase/Decrease, Timer Setting, Sleep Mode, and Oscillation Setting.

4. התקנה

4.1 טעינה ראשונית

Before first use, fully charge the OGERY F11 Camping Fan. Connect the provided USB charging cable to the fan's input port and a compatible power source (e.g., >18W adapter or power bank). The battery indicator lights on the control panel will show charging progress. A full charge takes approximately 4.5 hours.

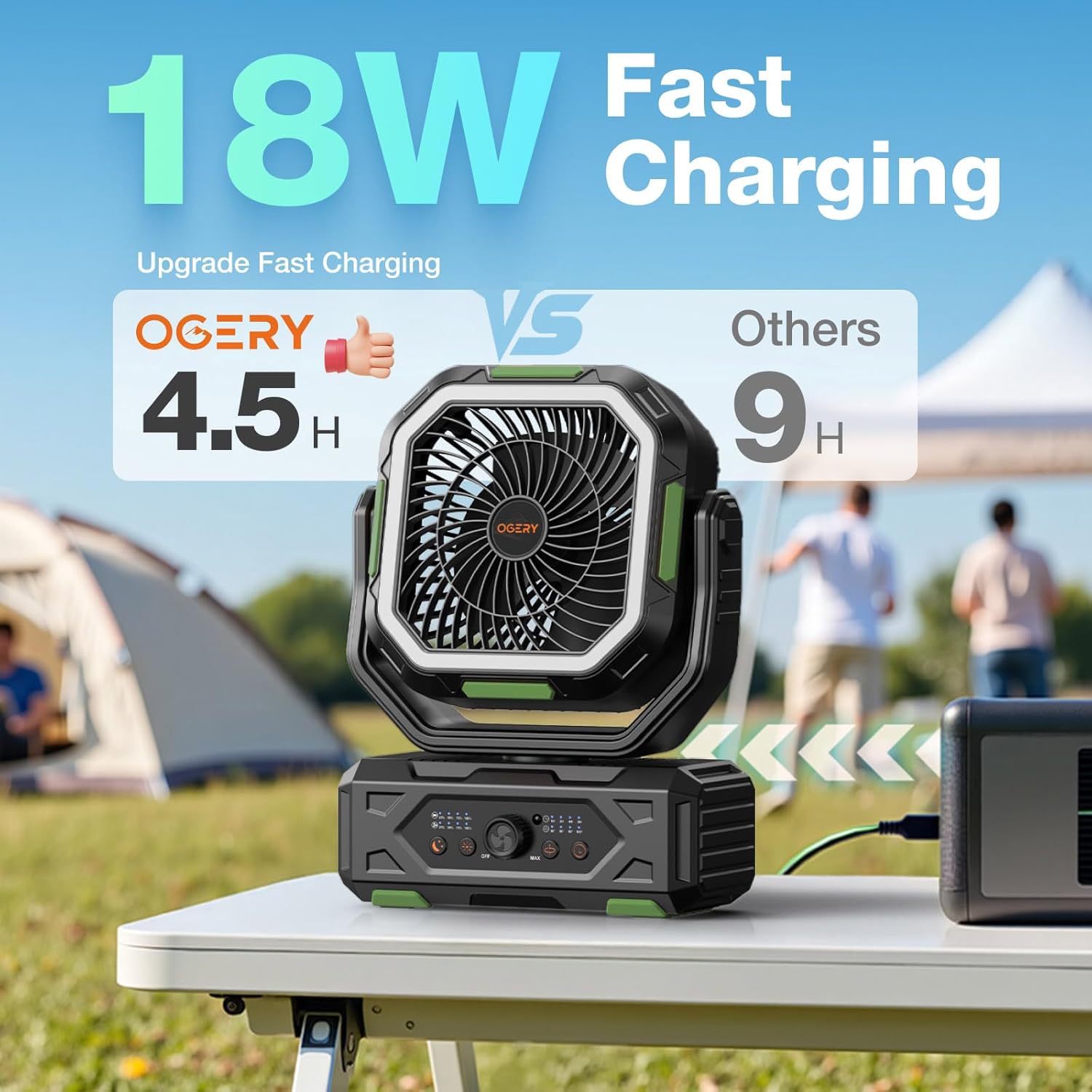

Figure 4.1: The fan's fast charging capability, demonstrating connection to an external power source.

4.2 אפשרויות מיקום

The OGERY F11 fan offers versatile placement options:

• Tabletop/Ground: Place the fan on any stable, flat surface.
• תְלִיָה: Utilize the integrated 360° rotatable hook on the top handle to hang the fan inside a tent, from a branch, or other suitable points.
• מתקן חצובה: The fan base may include a standard tripod screw hole for mounting on compatible tripods (tripod not included).

Figure 4.2: The fan positioned on a table, suitable for various outdoor activities.

5. הוראות הפעלה

5.1 הפעלה/כיבוי

כדי להפעיל את המאוורר ON, rotate the Fan Speed Control Knob from "OFF" towards "MAX" on the control panel, or press the Power button on the remote control. To turn the fan כבוי, rotate the knob to "OFF" or press the Power button on the remote again.

5.2 כוונון מהירות המאוורר

The OGERY F11 features stepless speed regulation. Rotate the Fan Speed Control Knob on the control panel to precisely adjust the airflow from minimum to maximum. Alternatively, use the "Increase Fan Speed" and "Decrease Fan Speed" buttons on the remote control.

Figure 5.2: Adjusting fan speed using the control knob on the base unit.

5.3 בקרת תנודות

Press the "Oscillation" button on the control panel or remote to activate automatic oscillation. The fan supports 30°, 60°, 90°, and 120° oscillation angles. Press the button repeatedly to cycle through the available angles or turn oscillation off. The fan head can also be manually rotated 270° vertically to direct airflow.

Figure 5.3: The fan's omnidirectional airflow capabilities, including automatic oscillation and manual tilt.

5.4 LED Lantern Operation

Press the "Lighting" button on the control panel or remote to turn on the LED lantern. Press repeatedly to cycle through the three brightness levels (Low, Medium, Strong). The ring light design is eye-protective. Press a fourth time to turn the light off.

Figure 5.4: The fan's integrated LED lantern with three adjustable brightness levels, providing illumination for various settings.

5.5 פונקציית טיימר

Press the "Timer" button on the control panel or remote to set an automatic shut-off timer. Available settings are 1 hour, 2 hours, 4 hours, and 8 hours. The corresponding indicator light will illuminate. The fan will automatically turn off after the selected time period.

5.6 פונקציונליות של סוללת הכוח

The OGERY F11 fan can also serve as a power bank to charge other electronic devices. Locate the dual output ports (USB and Type-C) on the side of the fan's base. Connect your device using an appropriate charging cable. The fan supports 22.5W super fast charging for connected devices.

Figure 5.6: The fan's power bank feature, showing it charging multiple devices simultaneously.

5.7 מצב שינה

Press the "Sleep" button on the control panel or remote to activate Sleep Mode. In this mode, the fan operates at its lowest, quietest setting (less than 23dB), and all indicator lights on the control panel will turn off to ensure an undisturbed sleep environment.

Figure 5.7: The fan's quiet operation in Sleep Mode, ideal for use during rest.

5.8 סרטון מוצר רשמי

6. תחזוקה

6.1 ניקוי

• ודא שהמאוורר כבוי ומנתק מהחשמל לפני הניקוי.
• השתמש רך, דamp מטלית לניגוב המשטחים החיצוניים של המאוורר.
• For dust accumulation on the fan blades or grille, use a soft brush or a vacuum cleaner with a brush attachment. Do not use abrasive cleaners or solvents.
• Do not spray water directly onto the fan.

6.2 אחסון

When storing the fan for an extended period, ensure it is fully charged and then turn it off. Store it in a cool, dry place away from direct sunlight and extreme temperatures. It is recommended to recharge the fan every 3-6 months to maintain battery health.

7. פתרון תקלות

If you encounter any issues with your OGERY F11 Camping Fan, please refer to the following table for common problems and solutions:

If the problem persists after trying these solutions, please contact OGERY customer support.

8. מפרטים

9. אחריות ותמיכה

ה-OGERY F11 Camping Fan comes with a standard manufacturer's warranty. Please refer to the product packaging or the official OGERY webבאתר לקבלת תנאי האחריות הספציפיים.

For product support, technical assistance, or warranty claims, please contact OGERY customer service through the official OGERY Store on Amazon or via the contact information provided on the product packaging.
