Andeman 10" 800W Slim Under Seat Powered Car Subwoofer Instruction Manual

מָבוֹא

This manual provides detailed instructions for the installation, operation, and maintenance of your Andeman 10-inch 800W Slim Under Seat Powered Car Subwoofer. Designed for optimal bass performance in a compact form factor, this subwoofer enhances your in-car audio experience. Please read this manual thoroughly before installation and use to ensure proper function and safety.

תכונות המוצר

• 800W Stereo Surround Sound: This 10-inch under-seat car subwoofer delivers up to 1000W peak power, providing deep and powerful bass to enhance your music experience.
• פיזור חום מעולה: The enclosure is constructed from cast aluminum, an alloy known for stable performance, high strength, corrosion resistance, and superior heat dissipation, ensuring reliable and long-lasting operation.
• Blue LED Ambient Lighting: Features dynamic ring ambient lighting that adds a visually appealing and dynamic element to your car's interior, synchronizing with your audio.

מפרטים

מה יש בקופסה

• 1x 800W Car Subwoofer

Note: Additional wiring and accessories may be included depending on the specific package. Refer to your product packaging for a complete list.

התקנה והתקנה

התקנה נכונה היא קריטית לביצועים ובטיחות אופטימליים. אם אינך בטוח לגבי שלב כלשהו, ​​מומלץ לפנות לעזרה מקצועית.

בחירת מיקום הרכבה

The slim design of this subwoofer allows for flexible placement. Common locations include under the front seats or in the car trunk. Ensure the chosen location provides adequate ventilation and does not obstruct any vehicle controls or passenger movement.

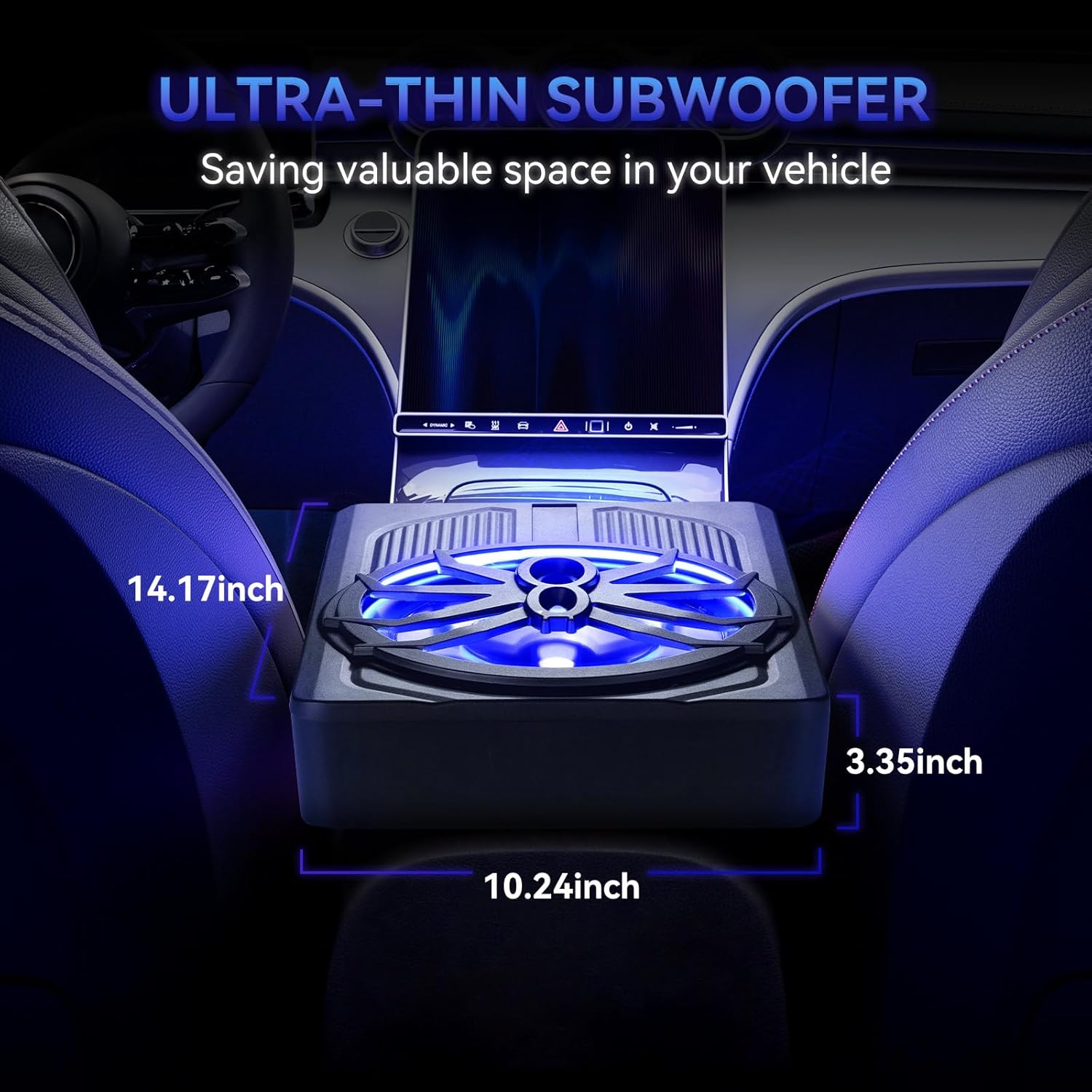

Figure 1: Subwoofer dimensions for placement reference.

איור 2: דוגמהample of subwoofer placement under a car seat with blue LED lighting.

חיבורי חיווט

Follow these general steps for wiring. Always ensure the vehicle's battery is disconnected before making any electrical connections.

1. חיבור חשמל: Connect the red power cable (V+) to the car battery's positive terminal. Ensure an inline fuse (15A-25A, as specified) is installed close to the battery.
2. חיבור הארקה: Connect the black ground wire (GND) to a clean, unpainted metal surface on the vehicle chassis. Ensure a secure connection for proper grounding.
3. הפעלה מרחוק: Connect the blue remote wire (REM) to your car stereo's remote output. This wire signals the subwoofer to turn on/off with your stereo.
4. קלט שמע:
   • RCA Input (Low Level): If your car stereo has RCA pre-outs, connect them to the subwoofer's RCA input ports (CH1 to red, CH2 to black).
   • קלט ברמה גבוהה: If your car stereo does not have RCA pre-outs, use the high-level input by connecting the speaker wires from your car stereo directly to the subwoofer's high-level input terminals.

מדריך וידאו להתקנה

הוראות הפעלה

Once installed, adjust the subwoofer settings to match your audio preferences and vehicle acoustics.

Figure 3: Subwoofer control panel for adjusting settings.

• בקרת שלב: Adjust the phase (0° or 180°) to ensure the subwoofer's output is in sync with your main speakers, preventing cancellation and improving bass impact.
• מסנן מעבר נמוך (LPF): Set the LPF to control the upper frequency limit of the subwoofer. A common range is 50Hz-150Hz. Adjust this to blend the subwoofer seamlessly with your main speakers.
• Boost Boost: Use the bass boost control (0 to +12dB) to increase the intensity of low frequencies. Use sparingly to avoid distortion.
• רווח קלט: Adjust the input gain (Min to Max) to match the output level of your car stereo. Start with minimum gain and slowly increase until the desired volume is achieved without distortion.
• שְׁלַט רָחוֹק: Utilize the wired remote control for convenient adjustment of the subwoofer's volume from your driving position.

תַחזוּקָה

To ensure the longevity and optimal performance of your subwoofer, follow these maintenance guidelines:

• ניקוי: נגבו באופן קבוע את החלק החיצוני של הסאב-וופר בעזרת מטלית רכה ויבשה. הימנעו משימוש בכימיקלים חזקים או בחומרי ניקוי שוחקים.
• בדיקת חיבור: Periodically inspect all wiring connections (power, ground, remote, audio) to ensure they are secure and free from corrosion. Loose connections can lead to poor performance or damage.
• אוורור: Ensure the subwoofer's enclosure is not obstructed, allowing for proper airflow and heat dissipation.

פתרון בעיות

אם אתם נתקלים בבעיות עם הסאב-וופר שלכם, עיינו בבעיות הנפוצות ובפתרונות הבאות:

• אין כוח:
  • Check the power and ground connections for tightness and proper contact.
  • Verify the inline fuse near the battery is not blown.
  • Ensure the remote turn-on wire is correctly connected and receiving a signal from the stereo.
• אין צליל:
  • Confirm all audio input cables (RCA or high-level) are securely connected.
  • Check the input gain setting on the subwoofer; it might be set too low.
  • Ensure the car stereo's volume is up and not muted.
• סאונד מעוות:
  • Reduce the input gain on the subwoofer or the volume on your car stereo.
  • Adjust the bass boost and low pass filter settings to prevent over-driving the subwoofer.
  • Check for loose wiring or damaged speaker cones.

אחריות ותמיכה

For warranty information or technical support, please refer to the documentation included with your purchase or contact Andeman customer service directly. Keep your purchase receipt as proof of purchase for any warranty claims.
