מדריך למשתמש למדיח כלים עומד Indesit IN2FD14BNP80W

מָבוֹא

This manual provides essential information for the safe and efficient use of your Indesit IN2FD14BNP80W freestanding dishwasher. Please read these instructions carefully before installation and operation, and keep them for future reference.

תמונה: חזית view of the Indesit IN2FD14BNP80W freestanding dishwasher, showing the control panel and door.

התקנה והתקנה

The Indesit IN2FD14BNP80W is a freestanding dishwasher designed for easy placement in your kitchen. Ensure the appliance is level and securely positioned before connecting to water and power supplies.

מידות ומיקום:

• רוֹחַב: 60 ס"מ
• עוֹמֶק: 59 ס"מ
• גוֹבַה: 85 ס"מ
• מִשׁקָל: 43.1 ק"ג

Allow adequate space around the dishwasher for ventilation and door opening. Connect the water inlet hose to a cold water tap and the drain hose to a suitable drain point, ensuring no kinks. The appliance requires a 220 Volt power supply.

תמונה: צד view of the Indesit IN2FD14BNP80W dishwasher, illustrating its freestanding design and dimensions.

Image: The Indesit IN2FD14BNP80W dishwasher positioned within a kitchen, demonstrating its freestanding installation.

הוראות הפעלה

Your dishwasher is designed for efficient cleaning of up to 14 place settings. The control panel features a knob for program selection and buttons for additional functions.

טעינת מדיח כלים:

Proper loading ensures optimal cleaning results. Place larger items in the lower rack and smaller, more delicate items in the upper rack. Ensure spray arms can rotate freely.

Image: Interior of the dishwasher showing the upper and lower racks, ready for loading.

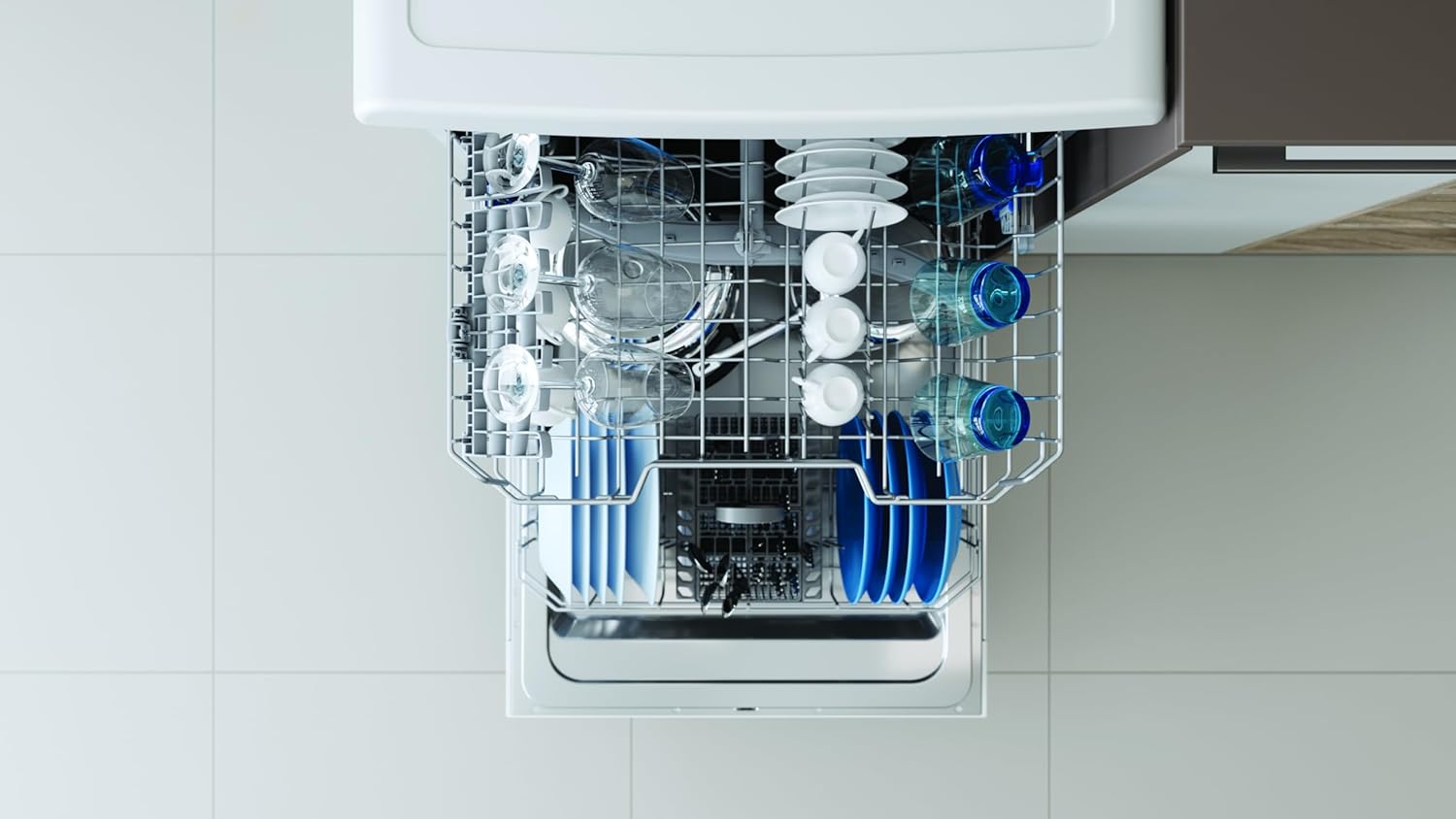

תמונה: מלמעלה למטה view of the dishwasher's interior, demonstrating how dishes can be arranged in the racks for effective washing.

תוכניות זמינות:

• Eco 50°: The most efficient program for normally soiled dishes in terms of water and energy consumption.
• Intensive 65°: לכלים מלוכלכים מאוד.
• Mixed 55°: For mixed loads with varying soil levels.
• Fast and Clean 28' 45°: A quick wash cycle for lightly soiled dishes without dried-on food residues. No drying phase.
• כביסה מראש: A short rinse cycle for dishes to be washed later.
• דחיפה וסע: A short wash and dry cycle for clean and shiny dishes with a single button press, no pre-washing required.

פונקציות מיוחדות:

• התחלה מאוחרת: Allows you to delay the start of the wash program by 2, 4, or 8 hours.

תחזוקה וטיפול

תחזוקה שוטפת מבטיחה את אורך חייו וביצועיו האופטימליים של מדיח הכלים שלכם.

ניקוי מערכת הסינון:

The dishwasher features a removable filter system that should be cleaned regularly to prevent blockages and ensure effective washing. Refer to the detailed instructions in the full user manual for proper removal and cleaning procedures.

Image: Close-up of the dishwasher's interior base, highlighting the removable filter system for maintenance.

מלח ונוזל הברקה:

Check and refill dishwasher salt and rinse aid dispensers as needed. These are crucial for preventing limescale and ensuring streak-free drying.

ניקוי חיצוני:

נגב את המשטחים החיצוניים עם רך, דamp בַּד. הימנע מחומרי ניקוי שוחקים.

פתרון בעיות

If your dishwasher is not functioning correctly, consult the following common issues before contacting service.

• מדיח הכלים לא מתחיל לפעול: Check if the door is fully closed, the power cord is plugged in, and the circuit breaker has not tripped.
• הכלים לא נקיים: Ensure proper loading, check detergent dispenser, clean filters, and verify spray arm rotation.
• מים לא מתנקזים: בדוק אם יש סתימות בצינור הניקוז או במערכת המסנן.
• רעשים חריגים: May indicate improper loading or foreign objects in the pump area.

For more detailed troubleshooting steps or persistent issues, refer to the comprehensive user manual provided with your appliance or contact Indesit customer support.

מפרט טכני

מידע על אחריות

For specific warranty terms and conditions, please refer to the official documentation provided with your Indesit IN2FD14BNP80W dishwasher at the time of purchase. Manufacturer warranties typically cover defects in materials and workmanship for a specified period.

Regarding returns and defective products purchased through Amazon, please consult Amazon's return policy pages:

• Amazon Return Policy (General returns within 30 days)
• מוצרים פגומים או פגומים
• Marketplace Purchases Information

Note: The provided links are placeholders for Amazon's help pages. Please verify the exact URLs on Amazon's webהאתר למידע העדכני ביותר.

תמיכת לקוחות

For further assistance, technical support, or to inquire about spare parts, please contact Indesit customer service or visit their official webאֲתַר.

• Indesit Official Webאֲתַר: www.indesit.com (General placeholder, specific country site may vary)
• Indesit Store on Amazon: Visit the Indesit Store

When contacting support, please have your appliance model number (IN2FD14BNP80W) and serial number ready.
