AGPTEK Register Booster Fan (Model APRGF1W1-US) User Manual

1. הקדמה

Thank you for choosing the AGPTEK Register Booster Fan. This device is designed to improve air circulation from your existing HVAC system by boosting airflow through 4x10 inch floor, wall, or ceiling vents. Featuring a smart thermostat, 10 adjustable speeds, a quiet brushless motor, and an innovative aroma diffuser, it helps maintain comfortable temperatures and enhance your living environment efficiently.

2. הוראות בטיחות

• קרא את כל ההוראות לפני השימוש ושמור לעיון עתידי.
• ודא את אספקת החשמל כרךtage matches the fan's requirements (100-240V AC).
• Do not operate the fan with a damaged cord or plug. If damaged, contact customer support.
• הרחיקו אצבעות וחפצים זרים מלהבי המאוורר במהלך הפעולה.
• אין לטבול את יחידת המאוורר במים או בנוזלים אחרים.
• Place the fan on a stable surface or securely install it in a vent opening.
• Avoid blocking the air intake or exhaust vents to ensure proper operation and prevent overheating.
• מוצר זה מיועד לשימוש פנימי בלבד.

3. תכולת החבילה

אנא בדקו את החבילה עבור הפריטים הבאים:

• AGPTEK Register Booster Fan Unit
• שְׁלַט רָחוֹק
• Wall Power Adapter (with 3.7m / 144-inch cable)
• מדריך למשתמש (מסמך זה)

4. תכונות מוצר

• Innovative Aroma Diffuser Design: Features a dedicated spot for an aroma pad to infuse your space with essential oils.
• פעולה חיסכון באנרגיה: Optimizes HVAC efficiency by circulating residual warm or cool air, reducing energy waste.
• Smart and Manual Control: Equipped with a high-precision temperature sensor for automatic operation. Includes an on-board control panel and a remote control for manual adjustments.
• Quiet and Powerful Brushless Motor: Operates below 18 dB with a maximum speed of 3600 RPM and 10 adjustable fan speeds.
• Compact and Hassle-Free Setup: Designed to fit standard 4 x 10 inch vent openings. Plug-and-play installation.
• תצוגה חכמה: Automatically dims after one minute of inactivity to avoid disturbing your sleep.

5. התקנה והתקנה

The AGPTEK Register Booster Fan is designed for easy installation in standard 4 x 10 inch vent openings.

1. אימות גודל האוורור: Ensure your existing duct opening measures 4 x 10 inches. Remove the old vent cover before measuring the duct opening itself, not the overall size of the old cover. The booster fan's face will extend past the duct opening.
2. מיקום: Carefully place the booster fan into the 4 x 10 inch duct opening. It can be installed in floor, wall, or ceiling vents.
3. חיבור חשמל: Connect the power adapter to the fan unit, then plug the adapter into a standard 100-240V AC electrical outlet.

6. הוראות הפעלה

The fan can be controlled via the on-board panel or the included remote control.

6.1. On-Board Control Panel

לוח הבקרה כולל תצוגה דיגיטלית וכפתורים למגוון פונקציות:

• לחצן הפעלה: לחץ כדי להפעיל או לכבות את המאוורר.
• כוונון מהירות (+/-): Use these buttons to increase or decrease the fan speed (1-10 levels).
• לחצן מצב: Cycle through different operating modes (e.g., Smart Thermostat Mode, Manual Mode).
• תצוגה דיגיטלית: Shows current temperature, fan speed, and operating mode. The display will dim automatically after 1 minute of inactivity.

6.2. שלט רחוק

השלט רחוק מספק גישה נוחה לכל פונקציות המאוורר מרחוק.

• לחצן הפעלה: מדליק/מכבה את המאוורר.
• כוונון מהירות (+/-): Adjusts fan speed from 1 to 10.
• לחצן מצב: Switches between Summer Mode (30-80°F) and Winter Mode (80-80°F) for smart temperature control.
• כפתור טיימר: Sets an operating timer (e.g., 1H, 2H, 4H).

6.3. Smart Thermostat Operation

The fan's intelligent sensor automatically activates or deactivates based on your desired temperature settings.

• מצב קיץ: Set a desired temperature range (e.g., 30-80°F). The fan will turn on when the room temperature exceeds the upper limit of your set range, boosting cool air.
• מצב חורף: Set a desired temperature range (e.g., 80-80°F). The fan will turn on when the room temperature falls below the lower limit of your set range, boosting warm air.
• Adjust the temperature settings using the remote control or on-board buttons.

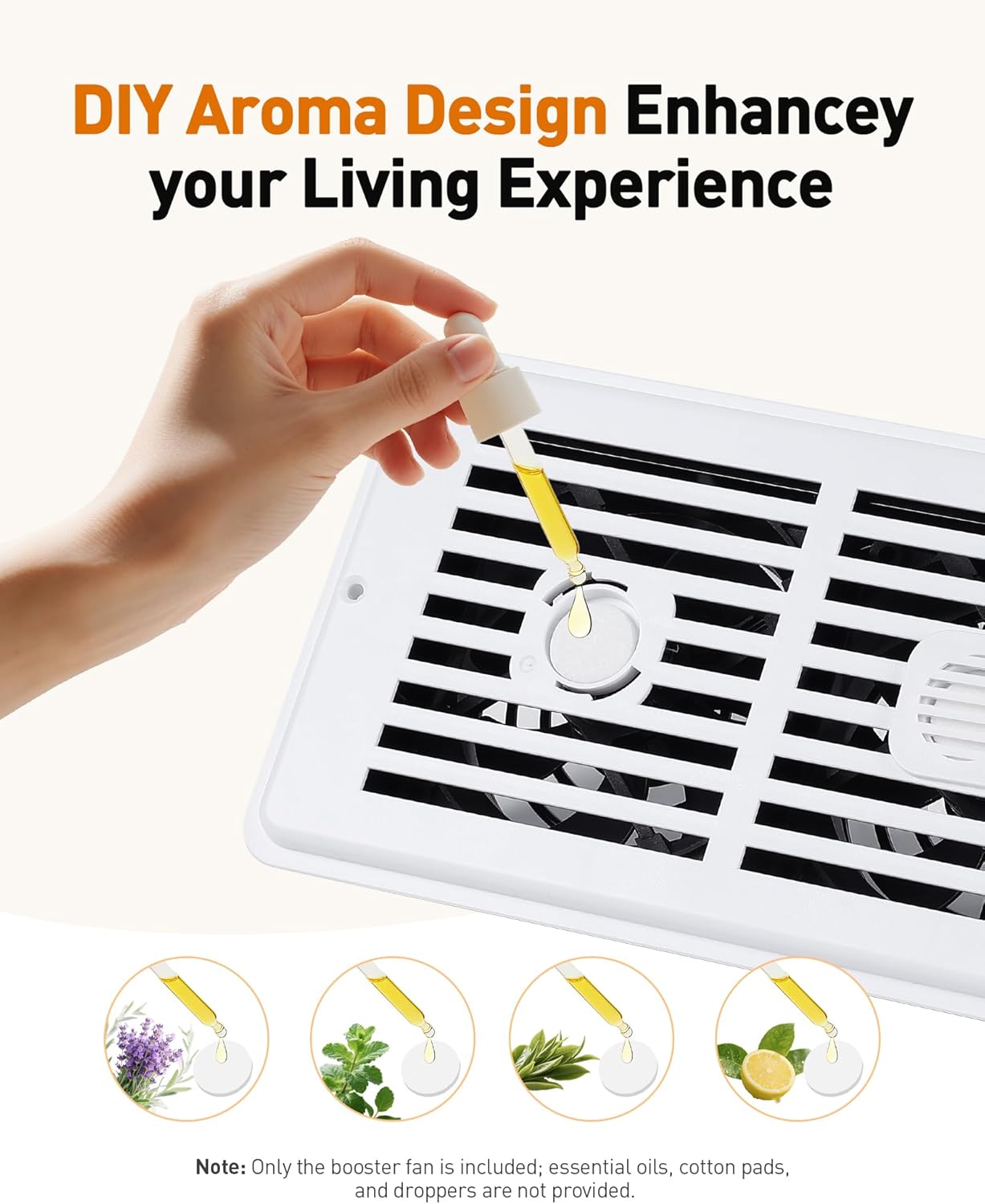

6.4. Aroma Diffuser Usage

Enhance your environment with your favorite essential oils.

1. Locate the aroma pad slot on the fan grille.
2. Place a few drops of your preferred essential oil onto an aroma pad (not included).
3. Insert the aroma pad into the designated slot.
4. As the fan operates, the gentle breeze will diffuse the fragrance into the room.

7. תחזוקה

תחזוקה שוטפת מבטיחה ביצועים אופטימליים ואורך חיים של מאוורר הבוסטר שלכם.

• ניקוי המאוורר: Disconnect the power adapter before cleaning. Use a soft, dry cloth to wipe the exterior of the fan. For the grilles, a soft brush or vacuum cleaner with a brush attachment can be used to remove dust. Do not use abrasive cleaners or immerse the unit in water.
• Aroma Pad Replacement: Replace aroma pads regularly to maintain fragrance effectiveness and hygiene.

8. פתרון תקלות

If you encounter issues with your AGPTEK Register Booster Fan, refer to the following common problems and solutions:

9. מפרטים

10. אחריות ותמיכה

The AGPTEK Register Booster Fan comes with a manufacturer's warranty. For specific warranty details, please refer to the documentation included with your purchase or contact AGPTEK customer support.

If you have any questions, require technical assistance, or need to report an issue, please contact AGPTEK customer service through the retailer's platform or the official AGPTEK webאֲתַר.
