Havit Gamenote F2005 CPU Cooler: Instruction Manual

1. הקדמה

The Havit Gamenote F2005 is a 120mm RGB CPU Cooler designed to provide efficient cooling for your computer's processor. It features copper pipe technology for enhanced heat dissipation and integrated RGB lighting for visual customization. This cooler is compatible with various Intel and AMD sockets, ensuring stable performance even during demanding tasks.

This manual provides essential information for the proper installation, operation, maintenance, and troubleshooting of your Havit Gamenote F2005 CPU Cooler. Please read it carefully before proceeding with installation.

תמונה 1.1: בזווית view of the Havit Gamenote F2005 CPU Cooler, showcasing the RGB fan and heatsink design.

2. התקנה והתקנה

Before beginning installation, ensure your computer is powered off and disconnected from the main power supply. Refer to your motherboard's manual for specific CPU cooler mounting instructions if needed.

2.1 תכולת החבילה

ודא שכל הרכיבים נמצאים בחבילה:

• Havit Gamenote F2005 CPU Cooler (Heatsink and Fan assembly)
• Mounting brackets for Intel sockets (LGA 1700, 1200, 115x)
• Mounting brackets for AMD sockets (AM4, AM5)
• משחה תרמית
• Screws and backplate (if applicable for your socket type)

2.2 שלבי התקנה

1. Prepare the CPU: Clean the surface of your CPU and the cooler's base plate thoroughly with isopropyl alcohol to remove any old thermal paste or residue.
2. החל משחה תרמית: Apply a small, pea-sized amount of thermal paste to the center of your CPU's integrated heat spreader (IHS). Do not spread it manually; the pressure from the cooler will distribute it evenly.
3. חבר סוגרי הרכבה: Secure the appropriate mounting brackets for your CPU socket (Intel LGA or AMD AM) to the cooler's base. Ensure they are firmly attached.
4. מיקום המצנן: Carefully align the cooler with the mounting holes on your motherboard. For Intel sockets, you may need to install a backplate behind the motherboard first.
5. אבטח את המצנן: Gently press the cooler down onto the CPU and secure it using the provided screws. Tighten screws in a diagonal pattern (e.g., top-left, bottom-right, top-right, bottom-left) to ensure even pressure. Do not overtighten.
6. Connect Fan Power: Locate the CPU_FAN header on your motherboard and connect the cooler's 4-pin fan connector. Ensure it is securely plugged in.
7. Connect RGB (Optional): If your motherboard supports RGB control, connect the cooler's RGB cable to the appropriate RGB header on your motherboard. Refer to your motherboard manual for header location.

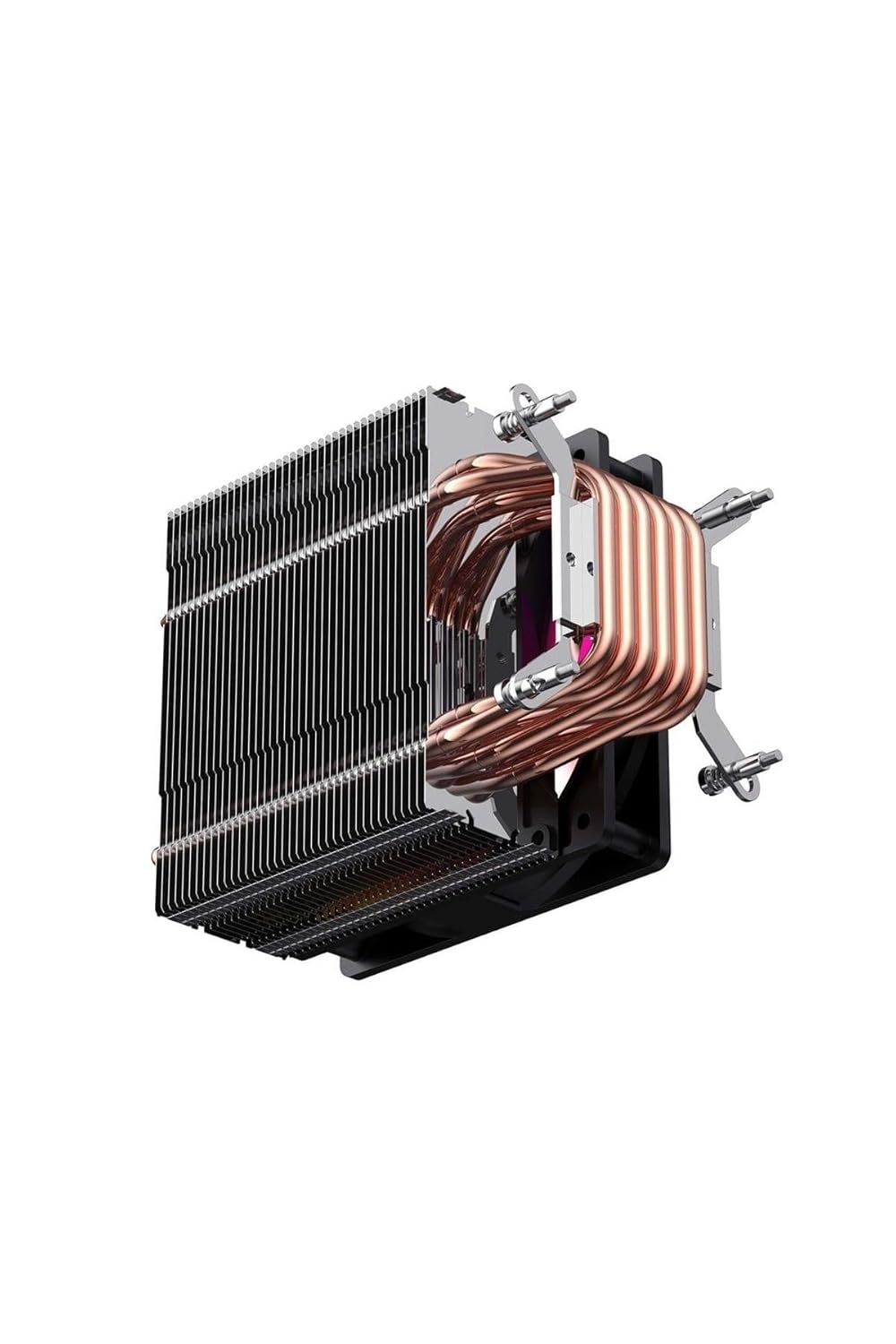

תמונה 2.1: צד view of the Havit Gamenote F2005 CPU Cooler, highlighting the copper heat pipes and aluminum fins for efficient heat transfer.

תמונה 2.2: תחתית view of the Havit Gamenote F2005 CPU Cooler, showing the direct contact copper heat pipes and the mounting bracket attachment points.

3. הוראות הפעלה

Once installed, the Havit Gamenote F2005 CPU Cooler operates automatically to maintain optimal CPU temperatures.

3.1 פעולת מאוורר

The 120mm fan's speed is controlled by your motherboard's BIOS/UEFI settings, typically adjusting automatically based on the CPU temperature. This ensures efficient cooling when needed and quiet operation during lighter loads. The Havit Gamenote F2005 is designed for quiet performance.

תאורת RGB 3.2

The integrated RGB lighting will illuminate upon system power-on. If connected to a compatible motherboard RGB header, you can control the lighting effects and colors using your motherboard's dedicated RGB software (e.g., ASUS Aura Sync, MSI Mystic Light, Gigabyte RGB Fusion, ASRock Polychrome Sync).

תמונה 3.1: מלמעלה למטה view of the Havit Gamenote F2005 CPU Cooler, showcasing the vibrant RGB lighting of the fan.

4. תחזוקה

תחזוקה שוטפת מסייעת להבטיח את אורך החיים והביצועים האופטימליים של מקרר המעבד שלכם.

• הסרת אבק: Periodically (e.g., every 3-6 months), power off your computer and use compressed air to gently blow dust out of the heatsink fins and fan blades. Hold the fan blades to prevent them from spinning rapidly during cleaning, which can damage the bearings.
• בדוק חיבורים: Ensure all power and RGB cables remain securely connected to the motherboard.
• Thermal Paste (Advanced): After several years, or if you notice a significant increase in CPU temperatures, consider reapplying thermal paste. This involves carefully removing the cooler, cleaning both surfaces, and applying new thermal paste. This is an advanced procedure and should only be performed if you are comfortable with it.

5. פתרון תקלות

If you encounter issues with your Havit Gamenote F2005 CPU Cooler, refer to the following common problems and solutions:

• טמפרטורות מעבד גבוהות:
  • ודא שהמצנן מותקן היטב ויוצר מגע תקין עם המעבד.
  • ודא שהמשחה התרמית הונחה כהלכה והיא לא יבשה.
  • Check if the fan is spinning.
  • Clean any dust buildup from the heatsink fins.
  • ודא זרימת אוויר מספקת בתוך מארז המחשב שלך.
• המאוורר לא מסתובב:
  • Check if the 4-pin fan connector is securely plugged into the CPU_FAN header on the motherboard.
  • Verify BIOS/UEFI settings to ensure the CPU fan control is enabled and not set to a very low RPM profile.
• תאורת RGB לא עובדת:
  • Ensure the RGB cable (if present) is correctly connected to a compatible RGB header on your motherboard.
  • Check your motherboard's RGB software for lighting control settings.
  • Verify that the RGB header on your motherboard is enabled in BIOS/UEFI.
• רעש חריג מהמאוורר:
  • בדוק אם יש כבלים או חסימות הפוגעים בלהבי המאוורר.
  • Ensure the fan is securely mounted and not vibrating.
  • Dust buildup can sometimes cause imbalance; clean the fan.

6. מפרטים

7. אחריות ותמיכה

For detailed warranty information regarding your Havit Gamenote F2005 CPU Cooler, please refer to the official Havit webאתר או צור קשר עם נקודת הרכישה שלך. תנאי האחריות עשויים להשתנות בהתאם לאזור ולקמעונאי.

For technical support or further assistance, please visit the official Havit support page or contact their customer service department.
