YIHETOP Intercooler MR404751 Instruction Manual

1. הקדמה

This manual provides essential information for the proper installation, maintenance, and troubleshooting of the YIHETOP Intercooler, part number MR404751. This intercooler is designed for specific Mitsubishi vehicles equipped with the 4M41 engine. Please read this manual thoroughly before proceeding with any installation or maintenance procedures to ensure safe and correct operation.

2. המוצר נגמרview

An intercooler is a mechanical device used to cool the air compressed by a turbocharger or supercharger before it enters the engine's intake manifold. Cooling the compressed air increases its density, which allows more oxygen to enter the engine cylinders. This results in improved combustion efficiency, increased power output, and reduced risk of engine knocking (detonation).

תמונה 1: חזית view of the YIHETOP Intercooler MR404751. This image shows the main body of the intercooler with its cooling fins and the inlet/outlet pipes.

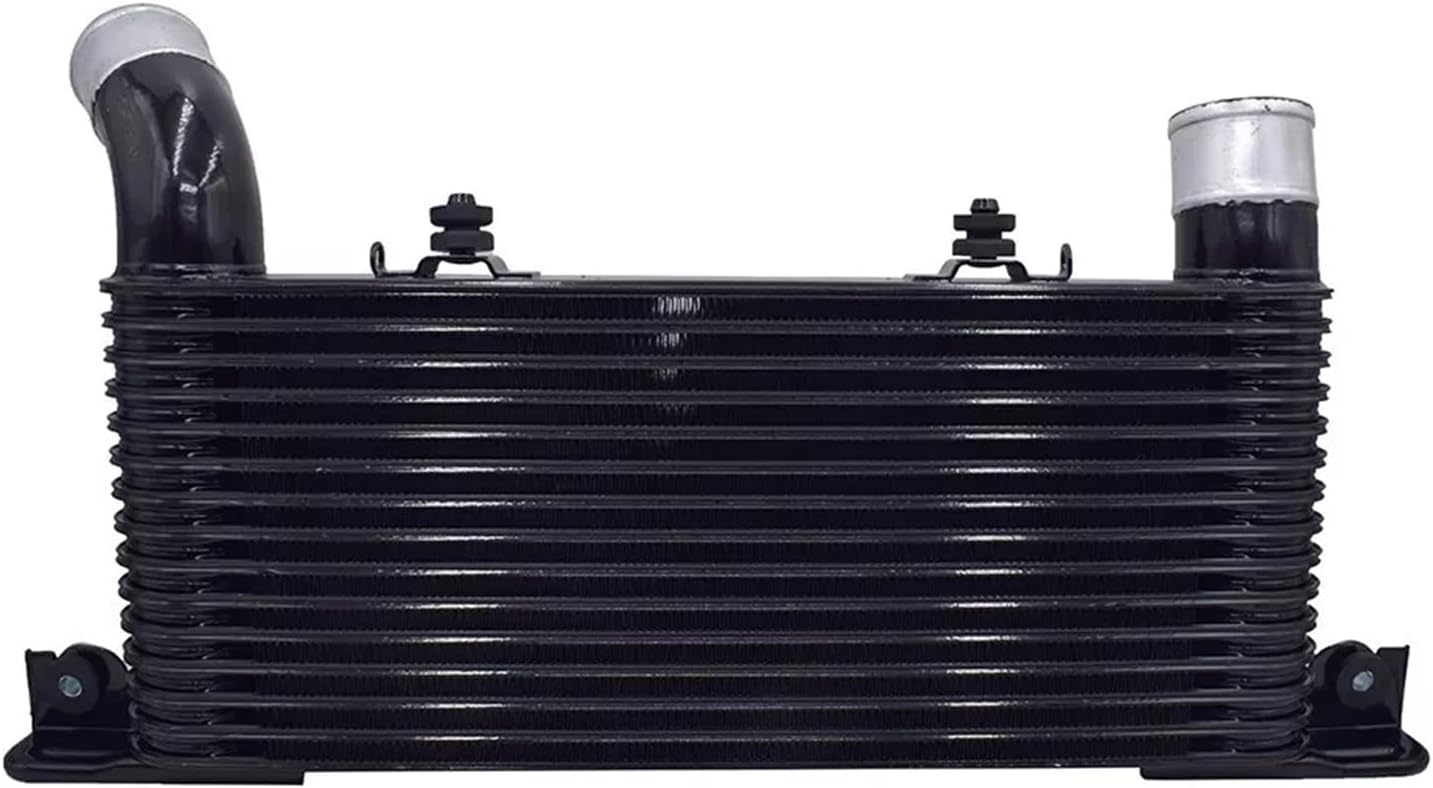

תמונה 2: אחורי view of the YIHETOP Intercooler MR404751. This image displays the opposite side of the intercooler, highlighting the mounting points and the design of the core.

3. תאימות

This YIHETOP Intercooler (Part Number: MR404751) is specifically designed for the following applications:

• סוג מנוע: Mitsubishi 4M41 Engine
• כלי רכב תואמים:
  • Mitsubishi Montero (Years: 2000-2006)
  • Mitsubishi Pajero (Years: 2000-2006)

Verify your vehicle's make, model, year, and engine type against the specifications provided to ensure proper fitment before installation.

4. תכולת החבילה

עם פתיחת האריזה, אנא ודא שכל הרכיבים קיימים ולא ניזוקו:

• 1 x YIHETOP Intercooler (Part Number: MR404751)

אם פריטים כלשהם חסרים או ניזוקים, פנו לספק שלכם מיד.

5. מידע בטיחות

Working on automotive systems can be hazardous. Always observe the following safety precautions:

• יש ללבוש תמיד ציוד מגן אישי (PPE) מתאים, כולל משקפי בטיחות וכפפות.
• Ensure the vehicle is parked on a level surface, the engine is off and cooled down, and the parking brake is engaged.
• Disconnect the vehicle's battery before beginning any work to prevent electrical hazards.
• עיין במדריך השירות של הרכב שלך לקבלת נהלים ספציפיים ומפרטי מומנט.
• אם אינך בטוח לגבי שלב כלשהו, ​​פנה לעזרה מטכנאי רכב מוסמך.

6. התקנה

Installation of an intercooler typically involves working with the vehicle's intake and cooling systems. Professional installation by a certified mechanic is highly recommended.

שלבי התקנה כלליים (עיין במדריך השירות של הרכב לקבלת פרטים):

1. הֲכָנָה: Ensure the engine is cool. Disconnect the negative terminal of the battery.
2. גִישָׁה: Gain access to the existing intercooler. This may involve removing various components such as the bumper, grille, or other engine bay accessories.
3. Removal of Old Intercooler: נתק בזהירות את כל הצינורות,amps, and mounting bolts securing the old intercooler. Be mindful of any fluids or debris.
4. בְּדִיקָה: Inspect the surrounding area, including hoses and connections, for any signs of wear or damage. Replace worn components as necessary.
5. Installation of New Intercooler: Position the YIHETOP Intercooler MR404751 in its designated location. Secure it using the appropriate mounting hardware.
6. חבר צינורות: Reconnect all intake hoses and clamps to the new intercooler. Ensure all connections are tight and secure to prevent boost leaks.
7. הרכבה מחדש: התקן מחדש את כל הרכיבים שהוסרו כדי לקבל גישה.
8. בדיקות סופיות: חבר מחדש את המצבר. התנע את המנוע ובדוק אם יש דליפות או רעשים חריגים. עקוב אחר טמפרטורת המנוע וביצועיו.

פֶּתֶק: Incorrect installation can lead to engine damage or reduced performance. Always follow manufacturer's guidelines and torque specifications.

7. תפעול

The intercooler is a passive component of the engine's induction system. It operates continuously whenever the engine is running and the turbocharger/supercharger is active, cooling the intake air. No direct user operation is required for the intercooler itself.

Ensure that the engine's cooling system is functioning correctly, as this indirectly affects the intercooler's efficiency, especially in air-to-water intercooler systems (though this product appears to be air-to-air).

8. תחזוקה

Regular inspection and maintenance can prolong the life and efficiency of your intercooler.

• בדיקה חזותית: Periodically inspect the intercooler fins for damage, bent fins, or blockages from debris (leaves, insects, dirt).
• ניקוי: If the fins are dirty, carefully clean them using compressed air or a soft brush and mild detergent solution. Avoid high-pressure washers directly on the fins, as this can bend them.
• צינור וקלוריותamp לִבדוֹק: Inspect all intake hoses connected to the intercooler for cracks, tears, or loose clamps. Tighten or replace as needed to prevent boost leaks.
• איתור דליפות: Check for any signs of oil residue around the intercooler connections, which could indicate a boost leak or an issue with the turbocharger.

9. פתרון תקלות

If you experience issues after intercooler installation or during its use, consider the following:

עבור בעיות מתמשכות, פנו לטכנאי רכב מוסמך.

10. מפרטים

11. אחריות ותמיכה

For warranty information, product support, or technical assistance, please contact the seller or YIHETOP directly through the platform where the product was purchased. Keep your purchase receipt or order number handy for faster service.
