GarveeHome 36-inch French Door Refrigerator User Manual

1. הקדמה

Thank you for choosing the GarveeHome 36-inch French Door Refrigerator. This appliance is designed to provide efficient and versatile food storage with its generous 21 cubic feet capacity, dedicated wine cabinet, and advanced cooling features. This manual provides essential information for the safe installation, operation, and maintenance of your new refrigerator. Please read all instructions carefully before using the appliance and retain this manual for future reference.

2. מידע בטיחות

כדי להפחית את הסיכון לשריפה, התחשמלות או פציעה בעת השימוש במקרר שלך, פעל על פי אמצעי הזהירות הבסיסיים הבאים:

• בטיחות חשמל: ודאו שהמקרר מחובר לשקע חשמלי מוארק כראוי של 115 וולט, 60 הרץ. אין להשתמש בכבלים מאריכים או במתאמים שאינם מוארקים.
• אוורור: Maintain adequate clearance around the refrigerator for proper air circulation and heat dissipation. Refer to the placement guidelines in the Setup section.
• בטיחות ילדים: Do not allow children to play with, operate, or crawl inside the refrigerator. Old refrigerators must be properly disposed of to prevent child entrapment.
• חומרים דליקים: אין לאחסן או להשתמש בבנזין או באדים ובנוזלים דליקים אחרים בקרבת מכשיר זה או אחר.
• שֵׁרוּת: Do not attempt to repair or replace any part of your refrigerator unless specifically recommended in this manual. All other servicing should be referred to a qualified technician.

3. המוצר נגמרview

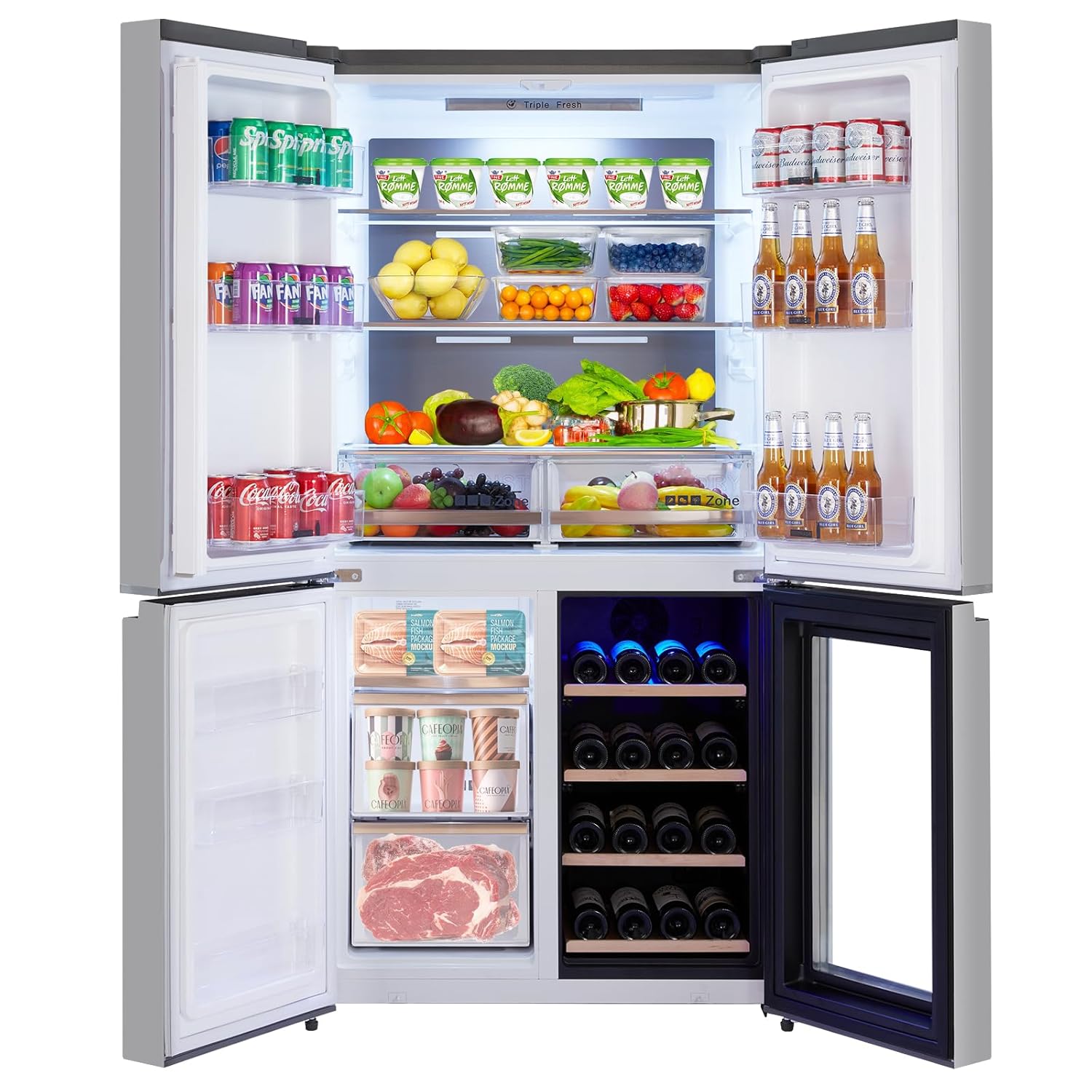

The GarveeHome French Door Refrigerator features a sophisticated design with multiple compartments for optimized storage.

מרכיבי מפתח:

• תא מזון טרי: Upper section with adjustable glass shelves and crisper drawers.
• תא הקפאה: Lower left section for frozen goods, includes an ice maker.
• Wine Cabinet: Lower right section with wooden shelves for wine storage.
• לוח בקרה דיגיטלי: Located on the upper left door for temperature adjustments and mode selection.
• תאורת LED: Illuminates the interior of all compartments.

4. התקנה

4.1 פירוק

Carefully remove all packaging materials, including foam and adhesive tape. Dispose of packaging responsibly. Ensure no parts are missing or damaged. Keep the plastic film away from children.

4.2 מיקום ויישור

Place the refrigerator on a flat, stable surface away from direct sunlight, heat sources, and moisture. Allow at least 4 inches (10 cm) of space behind and on the sides of the refrigerator for proper ventilation. Use the adjustable bottom feet to level the appliance. Proper leveling ensures efficient operation and prevents door misalignment.

4.3 חיבור לחשמל

לפני חיבור לחשמל, ודאו שהעוצמהtage and frequency indicated on the rating plate match your household power supply. Connect the refrigerator to a dedicated, grounded 115V, 60Hz electrical outlet. Do not use multi-sockets or extension cords.

4.4 הפעלה ראשונית

After placement, wait at least 2-4 hours before plugging in the refrigerator to allow refrigerants to settle. Once plugged in, the refrigerator will begin cooling. Allow 24 hours for the appliance to reach its optimal operating temperature before loading with food.

5. הוראות הפעלה

Your GarveeHome refrigerator features an intuitive digital control panel for easy management of settings.

5.1 לוח בקרה דיגיטלי

The control panel, located on the upper left door, allows you to adjust temperatures for the fresh food, freezer, and wine cabinet sections, as well as activate special functions.

5.2 התאמת טמפרטורה

Press the 'Zone Select' button to cycle through the fresh food, freezer, and wine cabinet zones. Use the 'Temperature Up' and 'Temperature Down' buttons to set your desired temperature for the selected zone. The digital display will show the current and set temperatures.

5.3 Using the Fresh Food Zone

The fresh food compartment offers 13.6 cubic feet of storage. It includes three adjustable glass shelves and two crisper drawers. Adjust shelves to accommodate items of various sizes. The crisper drawers are ideal for maintaining the freshness of fruits and vegetables.

5.4 Using the Freezer Compartment

The freezer compartment provides 3.71 cubic feet of storage. It features a quick-freeze setting for rapidly freezing newly added items. The built-in ice maker automatically produces ice. Ensure the water supply line is connected and turned on for ice production.

5.5 Using the Wine Cabinet

The dedicated wine cabinet can accommodate up to 34 standard wine bottles on its wooden shelves. Adjust the temperature to your preferred setting for optimal wine preservation. The internal fan ensures even cooling throughout the cabinet.

5.6 תכונות מיוחדות

• Soft Door Alarm: An audible alarm will sound if a door is left open for an extended period, helping to conserve energy and maintain internal temperatures.
• Economic Mode (Eco): Press the 'Eco' button on the control panel to activate energy-saving mode. The 'Eco' icon will illuminate, indicating reduced power consumption. Press again to deactivate.

6. תחזוקה

ניקוי ותחזוקה קבועים יבטיחו את אורך החיים וביצועיו האופטימליים של המקרר שלכם.

6.1 ניקוי הפנים

Unplug the refrigerator before cleaning. Wash interior surfaces with a solution of mild soap and warm water. Rinse thoroughly and dry. Remove shelves and drawers for easier cleaning. Avoid abrasive cleaners or solvents.

6.2 ניקוי החלק החיצוני

נגב את החלק החיצוני עם מטלית רכה דampened with mild soap and water. The fingerprint-proof stainless steel finish requires minimal effort to keep clean. Avoid harsh chemicals or abrasive pads that could scratch the surface.

6.3 הפשרה

This refrigerator features an automatic defrost system, eliminating the need for manual defrosting of the fresh food and freezer compartments.

6.4 Power Outage

במקרה של כוח outagה., שמרו על דלתות המקרר סגורות כדי לשמור על הטמפרטורה הפנימית למשך זמן רב ככל האפשר. הימנעו מפתיחת הדלתות שלא לצורך.

6.5 טיפול בחופשה

For short vacations, leave the refrigerator operating normally. For long vacations, unplug the appliance, empty all contents, clean thoroughly, and leave the doors slightly ajar to prevent odors and mold growth.

7. פתרון תקלות

Review קרא את הסעיף הזה לפני שתפנה לשירות. זה עשוי לחסוך לך זמן והוצאות.

8. מפרטים

Technical details for the GarveeHome 36-inch French Door Refrigerator, Model PHO_121H0NER.

9. אחריות ותמיכה

For warranty information, please refer to the documentation provided with your purchase or contact your retailer. For technical support, parts, or service inquiries, please contact GarveeHome customer service through the official GarveeHome website or your point of purchase. Please have your model number (PHO_121H0NER) and purchase date available when contacting support.
