1. מבוא ומעלהview
The Retekess T130P Wireless Tour Guide System is designed to facilitate clear communication in various environments, including factory tours, conferences, and educational settings. This system features advanced noise reduction technology, extended transmission range, and user-friendly controls to ensure an optimal listening experience for all participants. This manual provides detailed instructions for the setup, operation, and maintenance of your T130P system.
Figure 1: Retekess T130P Wireless Tour Guide System (1 Transmitter, 15 Receivers)
סרטון 1: נגמרview of Retekess T130P Wireless Tour Guide System features.
2. תכולת החבילה
אנא ודא שכל הפריטים המפורטים להלן כלולים בחבילה שלך:
- 1 x משדר
- מקלטי 15 x
- 1 x Lavaliere Microphone
- 1 x אוזניות אלחוטיות
- 15 x Over-Ear Headphones
- 16 x שרוכים
- 16 x USB Type-C Cables
- 1 x 16-Port USB Charging Base
- 1 x מדריך הוראות
Figure 2: Included components in the Retekess T130P package.
3. תכונות מוצר
3.1 Noise Reduction Technology
The T130P system incorporates graded noise reduction technology, allowing for clearer audio by filtering out ambient noise. This feature is particularly beneficial in loud environments such as factories, ensuring that the speaker's voice is easily understood.
Figure 3: Noise reduction feature with adjustable levels.
Video 2: Comparison of T130Pro with T130, highlighting upgrades including noise reduction.
3.2 Extended Transmission Distance
The system offers a long working distance, covering up to 150 meters (approximately 328 feet) in open areas. This ensures reliable communication in large venues, outdoor events, or extensive facility tours.
Figure 4: Transmission distance capability of the system.
3.3 Long Battery Life and Dual Charging Methods
Both the transmitter and receivers are equipped with lithium batteries, providing extended operating times of 16 hours for the transmitter and 40 hours for the receivers. Charging can be done individually via Type-C ports or collectively using the included 16-slot charging base, which supports contact charging for convenience and durability.
Figure 5: Battery power and working duration.
Figure 6: Contact and Type-C charging options.
Figure 7: 16-port USB charging base for simultaneous charging.
3.4 Over-Ear Headphones
The system includes full over-ear headphones, offering comfort and improved audio isolation. Users can also opt for D-shaped single-sided ear hooks based on preference.
Figure 8: D-shaped ear hooks for comfortable wear.
3.5 מיקרופון אוזניות אלחוטיות
An additional wireless microphone is provided, enhancing clarity and eliminating cable limitations associated with lavalier microphones.
3.6 AUX and MIC Input
The transmitter features two standard 3.5mm jacks for AUX and MIC input, allowing for background music playback or clear delivery of explanations.
3.7 All-Plastic Material
The devices are constructed from all-plastic material to minimize interference with wireless signals, which can occur with metal components.
3.8 User-Friendly Operations
The system supports one-key power off, one-key mute, and one-key frequency binding, simplifying operation for users of all technical levels.

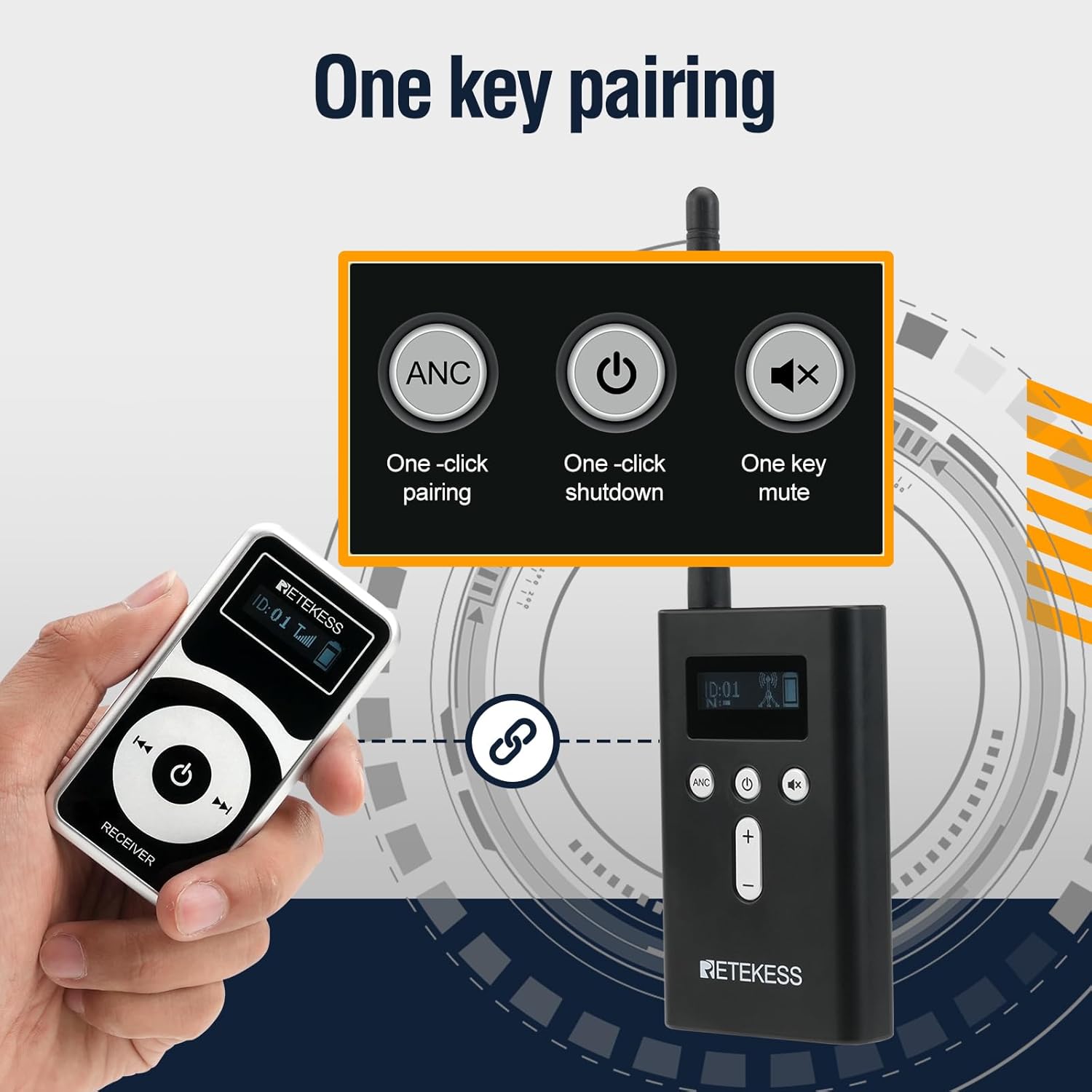

Figure 9: One-key functions for ease of use.
Video 3: Demonstration of various functions of the T130Pro tour guide system.
3.9 Automatic Shut-Down
Receivers automatically shut down after 20 minutes of not receiving a signal, conserving energy.
4. הוראות התקנה
- טעינת התקני: Before first use, fully charge all transmitters and receivers using the provided Type-C cables or the 16-port charging base. Ensure the charging base is connected to a power source.
- חיבור מיקרופון: Plug the lavalier microphone or wireless headset microphone into the MIC jack on the transmitter.
- חבר אוזניות: Plug the over-ear headphones or D-shaped ear hooks into the 3.5mm jack on each receiver.
- הפעלה: Press and hold the power button on the transmitter and each receiver to turn them on.
- Pairing (One-Key): To pair the receivers with the transmitter, press the 'ANC' button on the transmitter. The receivers will automatically search for and connect to the transmitter. Confirm that the channel ID on the receivers matches the transmitter.
Video 4: Instructions on how to pair Retekess T130Pro tour guide system headsets.
5. הוראות הפעלה
5.1 הפעלה/כיבוי
Press and hold the power button (usually marked with a power icon) on both the transmitter and receivers to turn them on or off.
5.2 התאמת עוצמת הקול
Use the '+' and '-' buttons on the receivers to adjust the listening volume to a comfortable level. The system supports 10 levels of volume adjustment.
5.3 פונקציית השתקה
On the transmitter, press the mute button (speaker icon with a cross) to temporarily silence the audio transmission. Press it again to unmute.
5.4 בחירת ערוצים
The system supports up to 49 channels. During pairing, the system automatically selects an available channel. If interference occurs, you may need to re-pair or manually select a different channel if the feature is available on your specific model.
5.5 AUX Input Usage
To play background music or pre-recorded audio, connect an external audio source to the AUX input jack on the transmitter using a 3.5mm audio cable.
6. תחזוקה
- ניקוי: השתמשו במטלית רכה ויבשה לניקוי המכשירים. הימנעו משימוש בכימיקלים חזקים או בחומרים שוחקים.
- אִחסוּן: יש לאחסן את המערכת במקום קריר ויבש כאשר אינה בשימוש.
- טיפול בסוללה: To prolong battery life, avoid fully discharging the batteries frequently. Charge them regularly, even if not in constant use.
- אַנטֶנָה: Handle the transmitter's antenna with care to prevent damage.
7. פתרון תקלות
- No Sound from Receivers:
- Ensure both transmitter and receivers are powered on.
- Verify that the receivers are paired to the correct channel as the transmitter.
- Check headphone connections and volume levels on receivers.
- Ensure the transmitter is not muted. - Short Transmission Range or Interference:
- Ensure the transmitter's antenna is fully extended.
- Check for obstacles or other wireless devices that might cause interference.
- Try changing the channel if available.
- Ensure devices are fully charged. - מכשירים שאינם נטענים:
- Verify that the charging base or Type-C cable is properly connected to a power source.
- Ensure devices are correctly seated in the charging base or the Type-C cable is fully inserted. - כיבוי אוטומטי:
- This is a normal energy-saving feature. Receivers will shut down after 20 minutes without a signal. Power them back on and re-pair if necessary.
8. מפרטים
| תכונה | מִפרָט |
|---|---|
| שם הדגם | T130P |
| מותג | רטקס |
| טכנולוגיית קישוריות | אַלחוּט |
| מרחק שידור | עד 150 מטרים (328 רגל) בשטחים פתוחים |
| בקרת רעש | Active Noise Cancellation (Graded Noise Reduction) |
| סוללת משדר | Lithium Ion, 4200mAh (approx. 20 hours working time) |
| סוללת מקלט | Lithium Ion, 1200mAh (approx. 36 hours working time) |
| שיטות טעינה | Type-C, Contact Charging (via 16-port base) |
| שקע אוזניות | 3.5 מ"מ ג 'ק |
| חוֹמֶר | פּלָסטִי |
| צֶבַע | שָׁחוֹר |
| מידות המוצר | 13.58 x 13.58 x 9.25 אינץ' (חבילה) |
| משקל פריט | 7.83 pounds (package) |
| מספר פריטים | 16 (1 Transmitter, 15 Receivers) |
9. אחריות ותמיכה
Retekess provides a אחריות לשנה עבור מוצר זה. בנוסף, א מדיניות החזרה ללא סיבה תוך 30 יום is offered. Beyond the warranty period, maintenance services are available, with buyers responsible for associated costs.
For any inquiries or support needs, please contact Retekess directly on Amazon. Our support team aims to reply within 12 hours.
