מדריך למשתמש של מנעול אבטחה חכם AYR V_LOCK

1. המוצר נגמרview

The AYR V_LOCK is an advanced smart security lock designed for light commercial vehicles, caravans, and motorhomes. It utilizes ultra-secure NFC-UF technology for keyless operation, replacing traditional mechanical key cylinders. This system is engineered for enhanced security, efficiency, and ergonomic use.

Key features include a robust mechanical and electronic design, an automatic programmed closing system (AUTOLOCK), and versatile adaptability to various vehicle types and door configurations.

Image 1.1: The AYR V_LOCK smart security lock unit.

2. רכיבים כלולים

The AYR V_LOCK package contains the following components:

• חומרת הרכבה: 6 M6 threaded studs, 6 washers, 6 growers, 6 M6 nuts.
• Exterior Unit Components: 1 outer shell, 1 lockable bridge, 1 silicone seal, 2 shims, 1 stencil.
• Interior Unit Components: 1 battery cover, 1 battery, 1 interior unit, 1 pairing tool, cable ties, 1 charging cable.
• Access Keys: 1 Master card, 1 NFC bracelet, 1 NFC keychain.

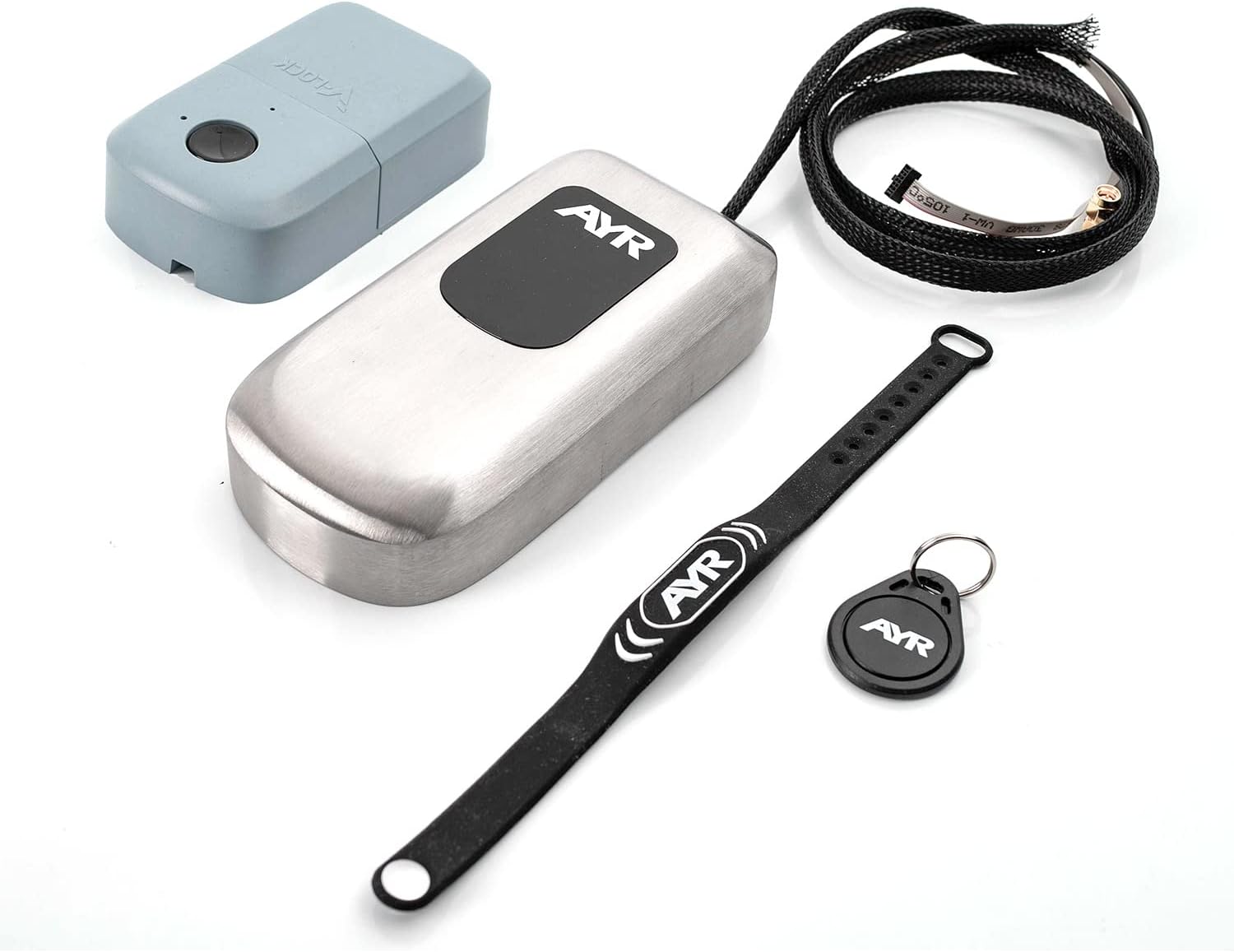

Image 2.1: All components included in the AYR V_LOCK package.

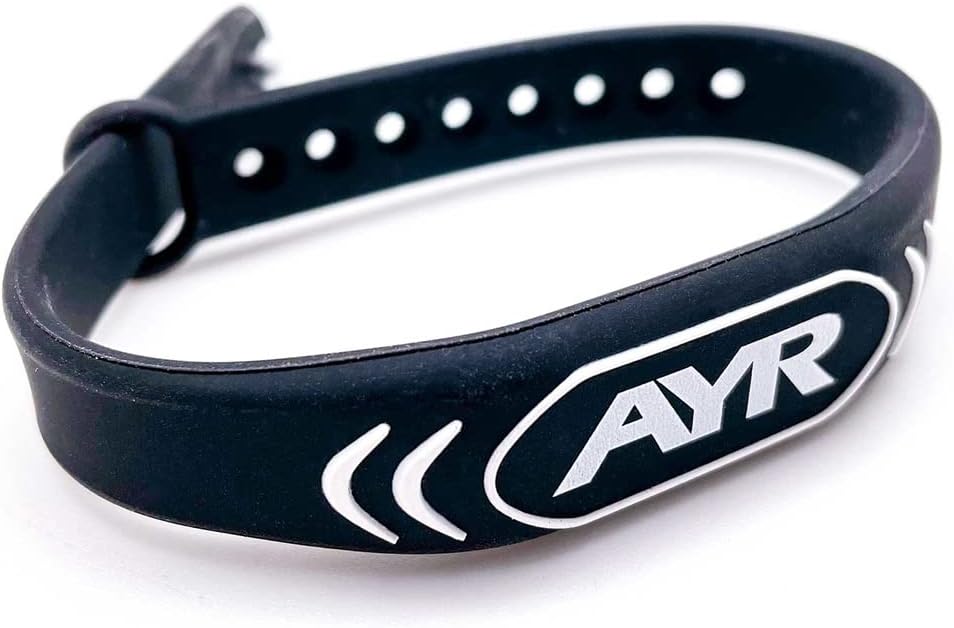

Image 2.2: The NFC bracelet for keyless access.

Image 2.3: The NFC keychain for keyless access.

3. התקנה והתקנה

The AYR V_LOCK is designed for straightforward installation on light commercial vehicles and motorhomes. It can be adapted to various door types, including rear and side doors.

3.1 שלבי התקנה (הנחיות כלליות)

1. הכן את משטח ההרכבה: Use the provided stencil to mark the drilling points on the vehicle door. Ensure the surface is clean and free of obstructions.
2. Mount the Exterior Unit: Secure the outer shell and lockable bridge to the marked positions using the M6 threaded studs, washers, growers, and nuts. Apply the silicone seal for weather protection. Use shims if necessary to ensure proper alignment.
3. Install the Interior Unit: Attach the interior unit to the inside of the door, aligning it with the exterior unit. Connect any necessary wiring (if applicable, though this is a keyless system, internal power connection might be needed).
4. הכנס סוללה: Open the battery cover on the interior unit and insert the included Lithium-polymer battery.
5. Pair Access Devices: Use the pairing tool to link the NFC bracelet, NFC keychain, and Master card with the lock. Follow the specific pairing instructions provided in the detailed installation guide (not included in this general overview).
6. פעולת בדיקה: Verify that the lock opens and closes correctly using the NFC devices and that the AUTOLOCK feature functions as expected.

Image 3.1: Visual representation of AYR V_LOCK features, including easy installation.

4. הוראות הפעלה

The AYR V_LOCK offers a seamless and efficient way to secure your vehicle.

4.1 Keyless Opening with NFC

To unlock the AYR V_LOCK, simply bring your paired NFC bracelet or NFC keychain close to the designated sensor area on the lock's exterior unit. The lock will disengage, allowing you to open the vehicle door. This process is designed to be quick and ergonomic, keeping your hands free for other tasks.

Image 4.1: Demonstrating the use of the NFC bracelet for quick access.

Image 4.2: Ergonomic operation allowing hands-free access.

4.2 AUTOLOCK Programmed Closing System

The AYR V_LOCK features an intelligent AUTOLOCK system. Once the vehicle door is closed, the lock automatically engages after a pre-configured time. This eliminates the need for manual locking, significantly saving time and increasing operational efficiency. The automatic locking feature ensures your vehicle is secured without additional user intervention.

4.3 Master Card Functionality

The Master card is used for managing and pairing new NFC access devices (bracelets, keychains) with the lock. Keep this card in a secure location.

5. תחזוקה

Proper maintenance ensures the longevity and reliable operation of your AYR V_LOCK.

5.1 ניהול סוללה

The AYR V_LOCK is powered by a rechargeable Lithium-polymer battery, designed for extended use (approximately 8 months per charge under normal conditions). The charging time for the battery is typically 3-4 hours.

• אזהרת סוללה חלשה: The system provides audible and visual warnings when the battery charge reaches 20%. This allows sufficient time to recharge or replace the battery.
• Critical Battery Level: When the battery level drops to 10%, the device will no longer automatically close, but it will still allow opening. This ensures you are not locked out of your vehicle due to a completely depleted battery.
• טְעִינָה: Each unit includes a USB-C cable for charging the battery. You can charge the battery using the vehicle's 12V socket or a standard 1.5A charger (charger not included).

תמונה 5.1: פנימי view of the AYR V_LOCK showing battery compartment and robust design.

5.2 ניקיון וטיפול

The AYR V_LOCK is constructed from stainless steel and features anti-corrosion properties. Clean the exterior surfaces with a soft, damp מטלית. הימנעו משימוש בחומרי ניקוי שוחקים או ממסים שעלולים לפגוע בגימור או ברכיבים האלקטרוניים.

6. פתרון תקלות

If you encounter issues with your AYR V_LOCK, refer to the following common troubleshooting steps:

• Lock Not Responding to NFC:
  • Ensure your NFC device (bracelet/keychain) is properly paired with the lock. Refer to the pairing instructions in your detailed manual.
  • Check the battery level of the lock. If the battery is low (20% warning or 10% critical), recharge it.
  • Ensure the NFC device is held directly over the sensor area on the lock.
• Automatic Locking (AUTOLOCK) Not Engaging:
  • Verify that the vehicle door is fully closed and latched.
  • Check the battery level. The AUTOLOCK feature is disabled when the battery reaches 10% charge.
  • Ensure no obstructions are preventing the lock mechanism from engaging.
• Lock Opens or Closes Unexpectedly:
  • This could indicate a low battery. Recharge the battery fully.
  • Ensure the lock is securely mounted and no external forces are interfering with its mechanism.
  • אם הבעיה נמשכת, צור קשר עם תמיכת הלקוחות.
• Inability to Lock from Inside (for Motorhomes/Caravans):
  • The AYR V_LOCK is primarily designed for external security and automatic locking upon door closure. It does not feature a manual internal locking mechanism for situations like sleeping inside the vehicle. Consider additional internal security measures if this functionality is required.

For persistent issues or problems not covered here, please refer to the support contact information.

7. מפרטים

8. תמיכה ויצירת קשר

For further assistance, technical support, or inquiries, please contact AYR customer service:

• WhatsApp: +34 661 708 342
• טֵלֵפוֹן: +34 966 554 249

Please note that information regarding spare parts availability is currently not provided.
