מָבוֹא
The Peg Perego Gaucho PRO Realtree is an all-terrain 24-volt ride-on vehicle designed for children aged 6 and up. It features a rugged design, two-speed operation with reverse, extreme traction rubber wheels, and a working FM radio. This manual provides essential information for assembly, safe operation, and maintenance to ensure the longevity and performance of your vehicle.
מידע בטיחות
WARNING: Adult supervision is required at all times when the vehicle is in use.
- Always ensure children wear appropriate safety gear, including a helmet.
- Do not operate the vehicle near streets, motor vehicles, steep inclines, swimming pools, or other bodies of water.
- Ensure the vehicle is used on level ground or slight inclines only.
- The 2nd speed lockout feature should be engaged for beginners to prevent excessive speed.
- Regularly inspect the vehicle for any loose parts, damage, or wear before each use.
מה יש בקופסה
עם פתיחת האריזה, יש לוודא שכל הרכיבים נמצאים:
- Gaucho PRO Realtree Ride-on Vehicle (unassembled)
- סוללה נטענת 24 וולט
- טעינת סוללה
- Toolbox with Play Tools
- מדריך הוראות
התקנה והרכבה
Follow these general steps for assembly. Refer to the detailed diagrams in the printed manual for specific part identification and connection points.
- פרק רכיבים: הוציאו בזהירות את כל החלקים מהאריזה והניחו אותם על משטח נקי וישר.
- הרכבת גלגלים: Attach the extreme traction rubber wheels to the axles as per the instructions, ensuring they are securely fastened.
- Steering Column and Dashboard: Assemble the steering column and connect it to the rack and pinion steering mechanism. Install the dashboard components, including the FM radio.
- התקנת מושב: Secure the adjustable seats into position. Ensure the seat belts are properly installed and functional.
- חיבור סוללה: Connect the 24-volt rechargeable battery. Ensure the battery is fully charged before first use (refer to charging instructions). The battery compartment is located under the hood.
- בדיקות סופיות: Before operation, double-check all connections, screws, and safety features.
Image: The Peg Perego Gaucho PRO Realtree 24 Volt Ride On, showcasing its robust design and seating for two children.

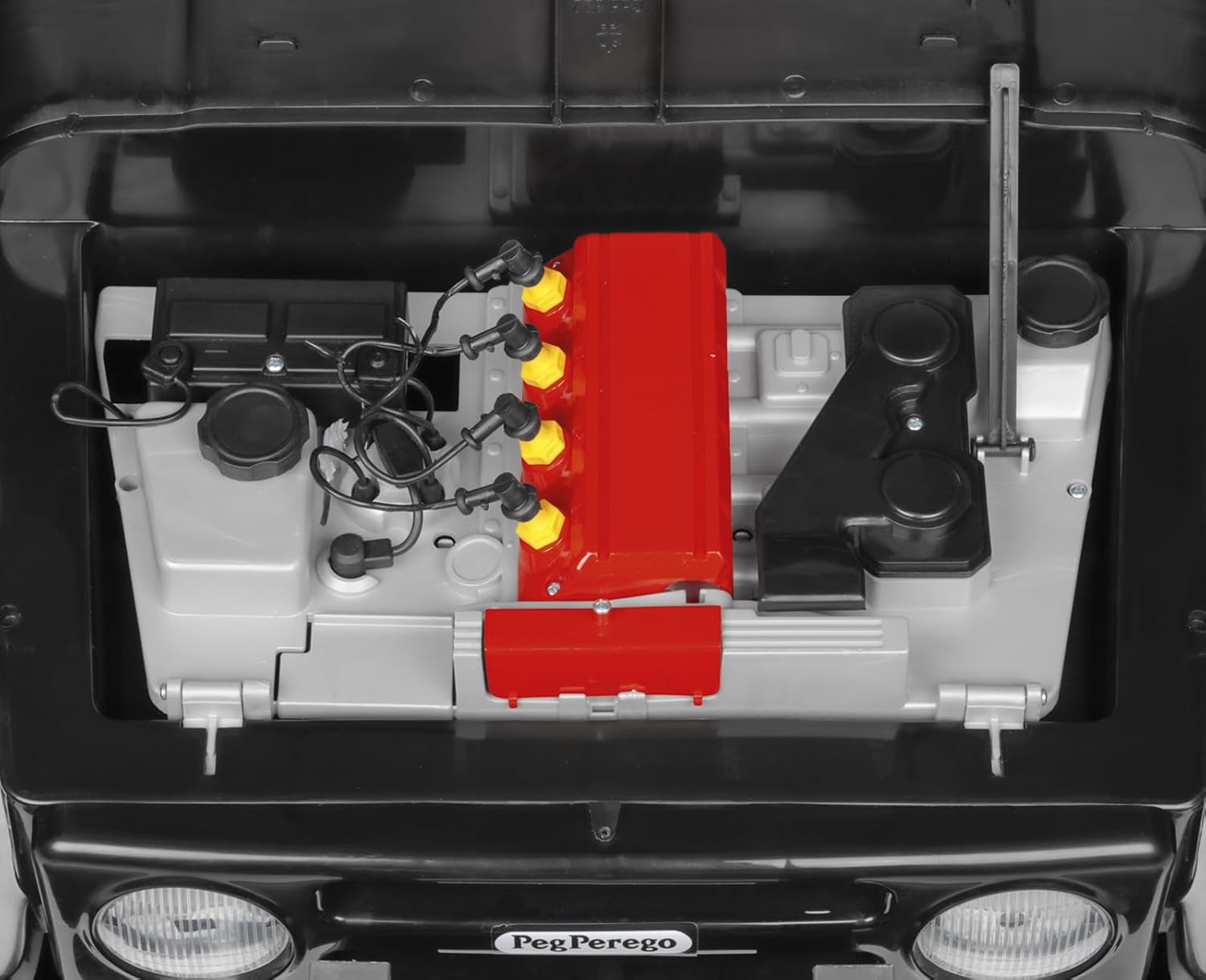

תמונה: מפורט view of the engine compartment, where the battery is housed, accessible by removing screws.
הוראות הפעלה
Familiarize yourself with the controls and features before operating the vehicle.
- הפעלה/כיבוי: Use the designated start button on the dashboard to turn the vehicle on or off.
- בחירת מהירות: The vehicle features a 2-speed shifter. Speed 1 operates at approximately 3.5 mph, and Speed 2 operates at up to 7.5 mph. A reverse gear is also available.
- 2nd Speed Lockout: For younger or less experienced drivers, engage the 2nd speed lockout feature to limit the vehicle to the lower speed.
- היגוי: The rack and pinion steering provides easy and responsive control.
- רדיו FM: The integrated FM radio allows for entertainment during rides. Tune to your preferred stations.
- פנסים: The vehicle is equipped with working headlights for enhanced visibility.

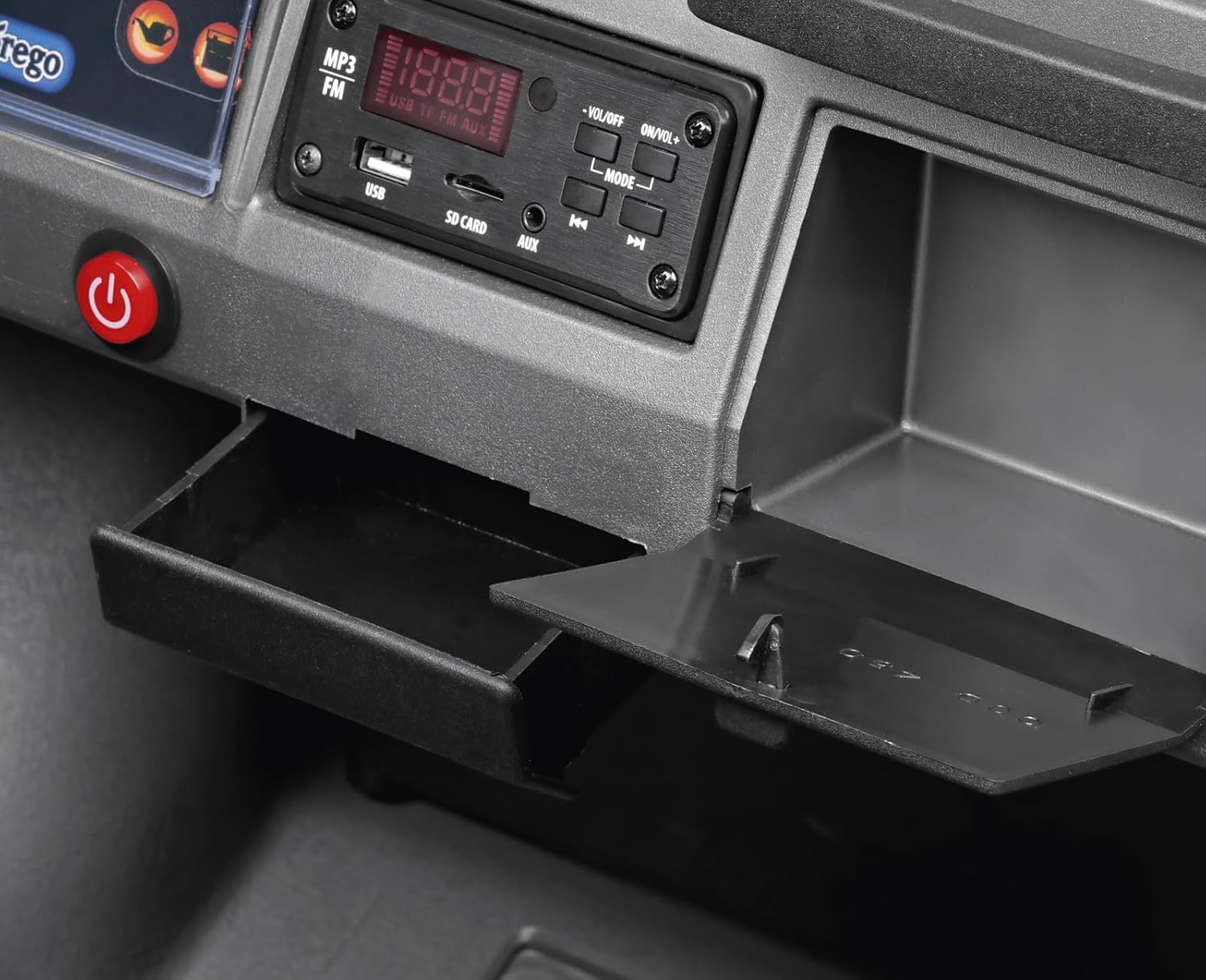

Image: The vehicle's dashboard, featuring the FM radio, various media inputs, and the power button.
Video: An official product video from Peg Perego showcasing the Gaucho PRO Realtree Camo in action, demonstrating its all-terrain capabilities and features.
תַחזוּקָה
Regular maintenance will help prolong the life of your Peg Perego Gaucho PRO Realtree.
- טעינת סוללה: Always charge the 24-volt battery fully after each use. Do not overcharge. Store the battery in a cool, dry place.
- ניקוי: נקה את הרכב עם מודעהamp cloth. Avoid using harsh chemicals or abrasive cleaners. Do not hose down the vehicle.
- בדיקת צמיגים: Periodically check the extreme traction rubber wheels for wear or damage.
- בדיקה כללית: Regularly inspect all nuts, bolts, and screws to ensure they are tight. Check for any cracks or damage to the plastic body.
- אִחסוּן: Store the vehicle indoors in a dry area when not in use to protect it from the elements.
פתרון בעיות
If you encounter issues with your vehicle, refer to the following common troubleshooting steps:
| בְּעָיָה | סיבה אפשרית | פִּתָרוֹן |
|---|---|---|
| הרכב לא זז | Battery is not charged or connected; Thermal fuse tripped; Loose wire connection. | Charge battery; Allow vehicle to cool down; Check all electrical connections. |
| הרכב נוסע לאט | Battery low; Overloaded vehicle; Operating on rough terrain. | Recharge battery; Reduce weight; Operate on smoother surfaces. |
| רדיו FM לא עובד | Not powered on; Out of range; Volume too low. | Ensure vehicle is on; Try different location; Increase volume. |
If problems persist after attempting these solutions, please contact Peg Perego customer support.
מפרטים
- מספר דגם: IGOD0602
- מידות המוצר: 51.5 x 35.5 x 39.5 אינץ'
- משקל פריט: 121.7 פאונד
- סוֹלְלָה: 24 Volt Rechargeable
- מהירויות: 2-Speeds (3.5 - 7.5 mph) plus Reverse
- גיל מומלץ: 6 - 12 שנים
- תכונות: Working FM Radio, Headlights, Toolbox with Tools, Rack and Pinion Steering, Rear Suspension Springs, Extreme Traction Rubber Wheels
אחריות ותמיכה
מוצרי Peg Perego מיוצרים בסטנדרטים גבוהים של איכות. לפרטים ספציפיים על האחריות, אנא עיינו בכרטיס האחריות המצורף לרכישה או בקרו באתר הרשמי של Peg Perego. website. For technical support, replacement parts, or further assistance, please contact Peg Perego customer service directly.
מידע ליצירת קשר: Please refer to the contact details provided in your product packaging or on the official Peg Perego webאתר (www.pegperego.com).
