SmooSat MAX Electric Scooter User Manual

מָבוֹא

Welcome to the SmooSat MAX Electric Scooter User Manual. This guide provides comprehensive instructions for the safe and efficient operation, maintenance, and care of your new electric scooter. The SmooSat MAX is designed for adult commuting, featuring a powerful 500W brushless motor, front suspension, and durable 10-inch solid tires for a comfortable and reliable ride. Please read this manual thoroughly before your first use to ensure optimal performance and safety.

Image: The SmooSat MAX Electric Scooter, showcasinהעיצוב החלקלק שלו והאפליקציה הסלולרית הנלווית לשליטה חכמה.

הגדרה

Your SmooSat MAX scooter comes largely pre-assembled. Follow these steps to complete the setup and prepare for your first ride.

1. Unboxing ובדיקה ראשונית

Carefully remove all components from the packaging. Inspect the scooter for any signs of damage during transit. Ensure all included components are present: MAX Electric scooter, MAX Owner's Manual, Quick Start Guide, Warranty Card, Charger, 3mm Allen Wrench, M5 x 14mm Screw x 4.

2. התקנת כידון

Attach the handlebar to the main stem. Use the provided 3mm Allen wrench and M5 x 14mm screws to securely fasten the handlebar. Ensure all screws are tightened firmly to prevent wobbling during operation.

Video: "SMOOSAT MAX Electric Scooter Unboxing & Installation" - This video demonstrates the unboxing process and how to install the handlebar, providing a visual guide for initial setup.

3. מנגנון קיפול

The scooter features a one-step folding design for easy transport and storage. To fold, locate the folding latch on the stem, release it, and fold the stem down until it clicks into place with the rear fender hook. To unfold, release the hook and lift the stem until it locks upright.

Image: A user demonstrating the compact folding mechanism of the SmooSat MAX scooter, highlighting its portability.

4. טעינת הסוללה

Before first use, fully charge the scooter's 12Ah automotive-grade battery. Connect the charger to the charging port located on the scooter's deck and then to a power outlet. The charging time is approximately 6 hours. The battery packs are located under the foot platform, contributing to a low center of gravity for stability.

תמונה: פנימי view illustrating the placement of the battery cells within the scooter's deck, ensuring a low center of gravity.

הוראות הפעלה

1. הפעלה/כיבוי

Press and hold the power button on the handlebar to turn the scooter ON or OFF. The display will illuminate when powered on.

2. רכיבה על הקטנוע

To engage the motor, push off with your foot to reach a speed of at least 3 MPH, then press the accelerator. The 500W brushless motor provides strong power for climbing hills up to 15° and reaching a maximum speed of 18.6 MPH.

Video: "SmooSat MAX Electric Scooter - The Ideal for City Commuting" - This video showcases the scooter's performance, including its powerful motor and ability to handle inclines, demonstrating typical riding scenarios.

תמונה: מפורט view of the 500W brushless motor, emphasizing its power, longevity, and low maintenance requirements.

3. מערכת בלימה

The SmooSat MAX is equipped with a dual braking system for enhanced safety: a front drum brake and a rear electric brake. Apply the brake lever on the handlebar to slow down or stop. When braking, the rear LED red light on the fender will illuminate, serving as a safety feature to alert others.

Image: An illustration highlighting the dual braking system, including the front drum brake and rear electric brake, for reliable stopping power.

4. בקרת אפליקציה חכמה

Download the SmooSat App to connect to your scooter via Bluetooth. The app allows you to: lock/unlock the scooter, review ride history, control speed mode, turn headlights on/off, and more. This provides a comprehensive solution for managing your ride.

Image: The SmooSat mobile application interface, showing options for locking/unlocking, speed control, headlight operation, and trip monitoring.

5. בקרת שיוט

Activate cruise control via the SmooSat App with a single click, or by pressing the on/off button five times in a row without the app. Once activated, the scooter will maintain its current speed, reducing rider fatigue on longer rides.

6. תאורה

The scooter features a front headlight and a rear brake light for visibility. The headlight can be controlled via the app or the scooter's controls. The rear brake light automatically illuminates when braking.

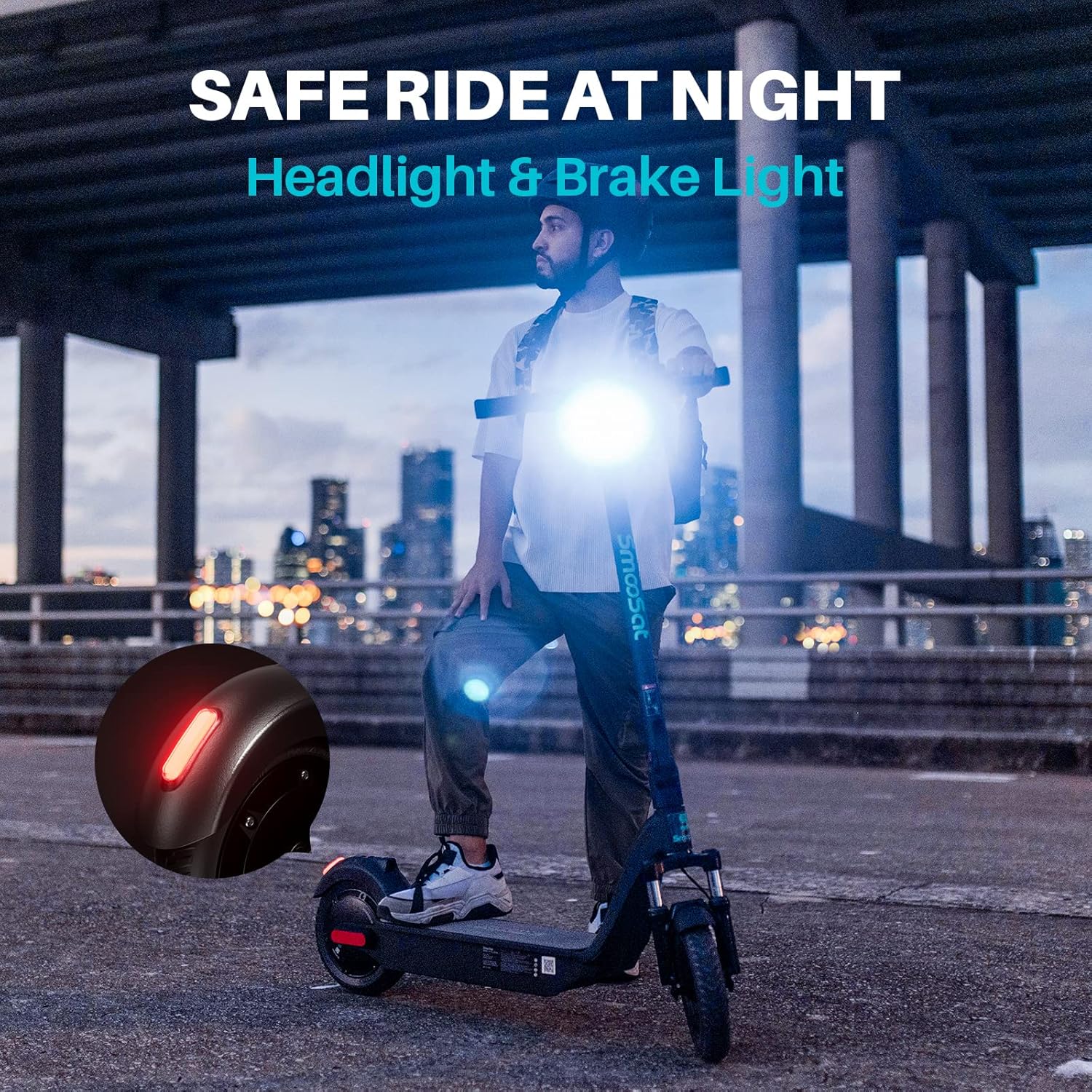

Image: The SmooSat MAX Electric Scooter shown with its headlight and brake light active, emphasizing safety during night rides.

תַחזוּקָה

Regular maintenance ensures the longevity and safe operation of your SmooSat MAX scooter.

1. טיפול בצמיגים

The scooter is equipped with 10-inch solid tires, which do not require inflation and are puncture-proof. Regularly inspect the tires for any signs of wear or damage. While solid, they should still be kept clean for optimal grip.

Image: A close-up of the front wheel and suspension system, highlighting the durable 10-inch solid tires and front-dual-suspension for a smooth ride.

2. ניקיון

נגב את הקטנוע עם מודעהamp cloth after use. Avoid using high-pressure water jets or harsh chemicals, as these can damage electronic components. Ensure the charging port cover is securely closed when not charging to prevent water ingress.

3. אחסון

Store the scooter in a cool, dry place away from direct sunlight and extreme temperatures. If storing for an extended period, ensure the battery is charged to approximately 50-70% to preserve battery health.

פתרון בעיות

If you encounter any issues with your SmooSat MAX scooter, please refer to the following common troubleshooting tips:

• הקטנוע לא נדלק: Ensure the battery is fully charged. Check the power button for proper function.
• מנוע לא משתלב: Remember to push off to at least 3 MPH before pressing the accelerator. Check for any error codes on the display.
• טווח או מהירות מופחתים: This could indicate a low battery charge or a need for battery recalibration. Riding conditions (e.g., uphill, heavy load, cold weather) can also affect performance.
• בעיות קישוריות לאפליקציות: Ensure Bluetooth is enabled on your smartphone and the scooter is powered on and within range. Try restarting both the app and the scooter.

For more complex issues or if the problem persists, please contact SmooSat customer support.

מפרטים

אחריות ותמיכה

The SmooSat MAX Electric Scooter comes with a אחריות ל-180 יום and lifetime services. SmooSat is committed to providing a great shopping experience and friendly customer service. For any inquiries, technical assistance, or warranty claims, please feel free to contact us at any time.

אתה יכול גם לבקר את הרשמי SMOOSAT Store on Amazon למידע נוסף ומשאבי תמיכה.
