1. הקדמה
This manual provides essential information for the safe and efficient installation, operation, and maintenance of the Ebm Papst G1G170-AB31-03 Centrifugal Fan. This fan is designed for specific applications such as condensate low nitrogen boilers and fireplaces. Please read this manual thoroughly before installation or operation to ensure proper function and to prevent potential hazards.

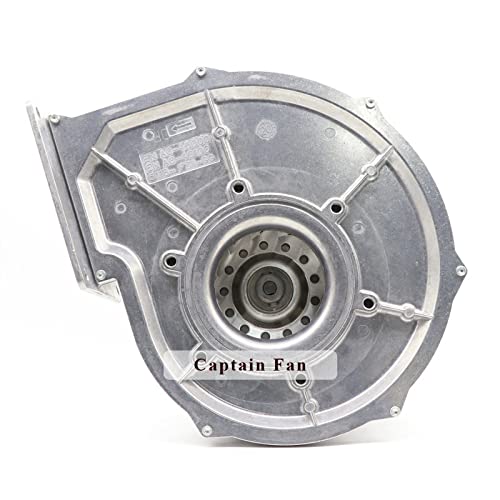

איור 1: בסך הכל view of the Ebm Papst G1G170-AB31-03 Centrifugal Fan.
2. מידע בטיחות
אַזהָרָה: Improper installation, operation, or maintenance can lead to serious injury or equipment damage. Always adhere to local electrical codes and safety regulations.
- Ensure power is disconnected before performing any installation, maintenance, or repair work.
- Installation and electrical connections should only be performed by qualified personnel.
- Do not operate the fan if it is damaged or if any components are missing.
- הרחיקו ידיים וחפצים זרים מחלקים נעים במהלך הפעולה.
- ודא הארקה נכונה כדי למנוע התחשמלות.
- The fan operates at high speeds; avoid contact with the impeller.
3. המוצר נגמרview ותכונות
The Ebm Papst G1G170-AB31-03 is a high-performance centrifugal fan designed for demanding industrial applications, particularly in condensate low nitrogen boilers and fireplaces. It features a robust aluminum impeller and a high-temperature protected motor.
תכונות עיקריות:
- דֶגֶם: G1G170-AB31-03
- סוג מנוע: M1G074-CF
- קוטר להב: 170 מ"מ
- סוג מיסבים: מֵסַב כַדוּרִיוֹת
- כרך ידtage: זרם חילופין 230 וולט
- נפח זרימת אוויר: 370 מ"ר לשעה
- מְהִירוּת: 5650 דקות⁻¹ (סל"ד)
- סוג הגנה: IP20
- מאפיינים טכניים: PWM control input, high-temperature protected motor
- Material of Impeller: יריעת אלומיניום

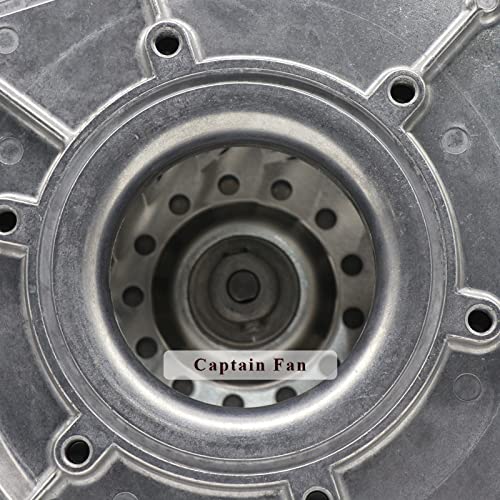

Figure 2: Close-up of the fan's intake, showing the impeller blades.
4. התקנה והתקנה
Installation of the G1G170-AB31-03 fan requires careful attention to electrical connections and mechanical mounting. It is strongly recommended that installation be performed by a certified technician.
4.1 התקנה מכנית
- Ensure the mounting surface is stable and capable of supporting the fan's weight (approximately 4.5 kg).
- Mount the fan securely using appropriate fasteners through the designated mounting holes. Refer to the product diagram for mounting points.
- Ensure adequate clearance around the fan for proper airflow and heat dissipation.

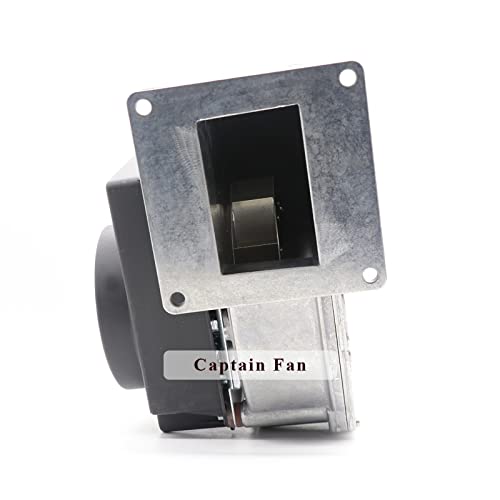

Figure 3: Exhaust port and mounting flange for integration into a system.
4.2 חיבור לחשמל
The fan operates on AC 230V. Connect the fan to a power source that matches its voltage and frequency specifications (50 Hz). The fan uses a 2-Pin power connector type.
- Verify that the power supply is off before making any connections.
- Connect the power cables to the fan's designated terminals. Observe correct polarity if applicable.
- ודא שכל החיבורים מאובטחים ומבודדים כדי למנוע קצר חשמלי.
- If PWM control is utilized, connect the control input according to the system's requirements.
איור 4: מפורט view of the electrical connectors on the fan unit.
5. הוראות הפעלה
Once properly installed and connected, the fan is ready for operation. The fan is designed for continuous operation within its specified ambient temperature range of -25°C to +55°C.
- הפעלה ראשונית: After installation, apply power to the unit. The fan should start operating.
- ניטור: Observe the fan for any unusual noises, vibrations, or overheating during initial operation.
- PWM Control (if applicable): If connected to a PWM control system, adjust the control input to achieve the desired fan speed and airflow. The fan supports variable speed operation via PWM.
- פעולה רגילה: The fan will maintain the set speed and airflow, providing consistent performance for its intended application.

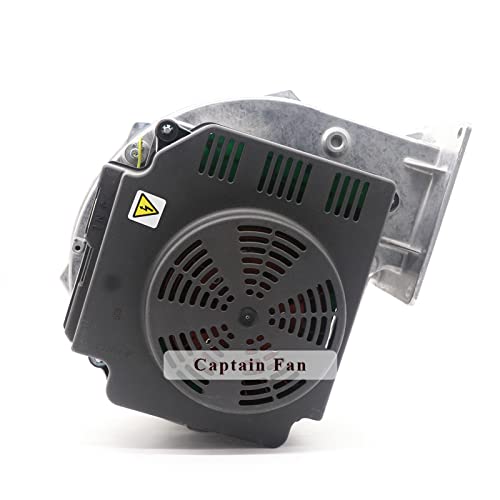

איור 5: צד view illustrating the integrated motor and control electronics of the fan.
6. תחזוקה
Regular maintenance ensures the longevity and optimal performance of your Ebm Papst centrifugal fan. Always disconnect power before performing any maintenance.
- ניקוי: Periodically inspect the fan impeller and housing for dust, debris, or obstructions. Clean gently with a soft brush or compressed air. Do not use liquids that could damage electrical components.
- בְּדִיקָה: Check for any signs of wear, damage, or loose connections. Pay attention to the impeller for any signs of imbalance or damage.
- בדיקת מיסב: The fan uses ball bearings, which are generally maintenance-free. However, listen for unusual noises that might indicate bearing wear.
- חיבורי חשמל: ודא שכל החיבורים החשמליים יישארו הדוקים וחופשיים מקורוזיה.

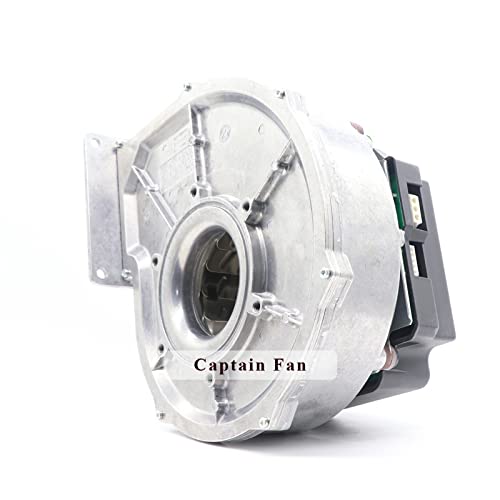

איור 6: צד view of the fan, highlighting the motor housing and its protective cover.
7. פתרון תקלות
סעיף זה מספק פתרונות לבעיות נפוצות. עבור בעיות שאינן מופיעות כאן, פנו לאנשי שירות מוסמכים.
| בְּעָיָה | סיבה אפשרית | פִּתָרוֹן |
|---|---|---|
| המאוורר לא מופעל | No power supply; Loose electrical connection; Motor fault | Check power source and circuit breaker; Secure all connections; Consult a technician for motor inspection |
| רעש או רטט מוגזם | Loose mounting; Debris in impeller; Worn bearings | Tighten mounting bolts; Clean impeller; Contact a technician for bearing replacement |
| זרימת אוויר מופחתת | Obstruction in air path; Incorrect PWM setting; Motor running slow | Clear obstructions; Adjust PWM control; Check power supply voltage |
| התחממות יתר | Insufficient ventilation; Motor overload; High ambient temperature | Ensure proper airflow around the fan; Verify fan is suitable for application load; Operate within specified ambient temperature range |
8. מפרט טכני
The following table details the technical specifications for the Ebm Papst G1G170-AB31-03 Centrifugal Fan.
| פָּרָמֶטֶר | עֵרֶך |
|---|---|
| דֶגֶם | G1G170-AB31-03 |
| מותג | אבם פאפסט |
| סוג מנוע | M1G074-CF |
| קוטר להב | 170 מ"מ |
| סוג מיסבים | מֵסַב כַדוּרִיוֹת |
| כרך ידtage | זרם חילופין 230 וולט |
| שָׁלָב | 1 פאזות |
| תדר חשמל | 50 הרץ |
| קלט כוח | 315 W |
| הגרלה נוכחית | 2.15 א |
| מְהִירוּת | 5650 דקות⁻¹ (סל"ד) |
| נפח זרימת אוויר | 370 מ"ק לשעה |
| Pressure Increase Total psf | 1601 פאה |
| סוג הגנה | IP20 |
| טמפרטורת סביבה | -25 מעלות צלזיוס עד +55 מעלות צלזיוס |
| Material of Impeller | יריעת אלומיניום |
| סוג מחבר חשמל | 2 פינים |
| מכשירים תואמים | Desktop (Note: This seems to be a miscategorization from Amazon, the primary application is Boiler/Fireplace) |
| UPC | 768681955797 |
9. אחריות ותמיכה
For warranty information and technical support, please refer to the documentation provided with your purchase or contact the seller directly. Ensure you have your product model number (G1G170-AB31-03) and purchase details available when seeking support.
The product is supplied by "Captain Fan" as per the seller information. For specific warranty terms, please consult their policies.
