פאנל סולארי FAFCO Baby Bear: מדריך הוראות לחימום בריכה עילי

1. המוצר נגמרview

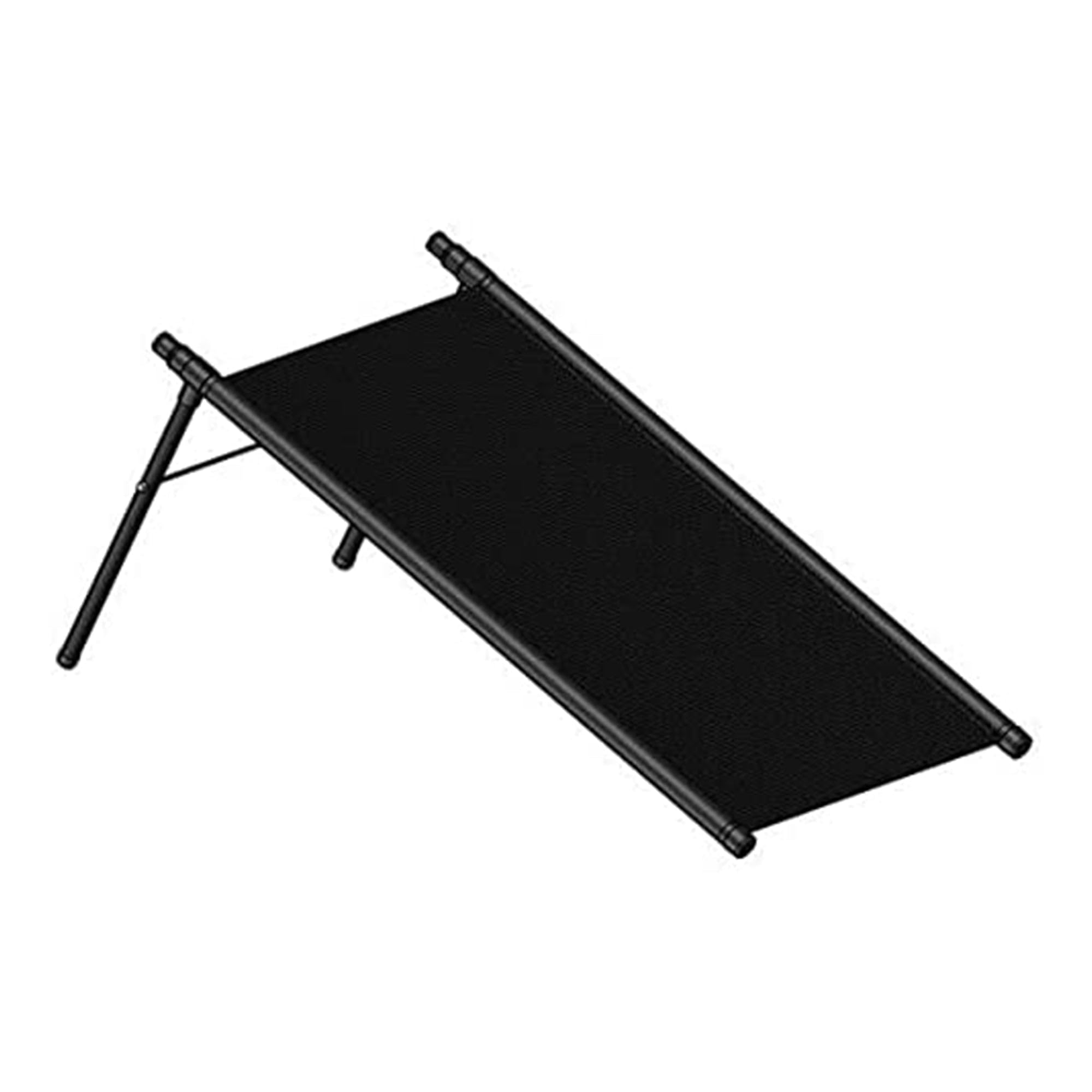

The FAFCO Baby Bear Solar Panel is designed to efficiently heat above-ground swimming pools, extending your swimming season and ensuring comfortable water temperatures. This unit utilizes solar energy, offering a cost-effective and renewable heating solution. Manufactured in the USA, the Baby Bear features a connected tube design for optimal heating efficiency and extra-large manifolds to maximize water flow through your pump and filter system. It includes a 3-year warranty and is built from UV-stabilized polyolefin material for durability in direct sunlight.

תכונות עיקריות:

• Effective Solar Heating: Harnesses solar energy to warm above-ground pools.
• תוצרת ארה"ב: Produced by FAFCO, a leading solar pool heating manufacturer.
• Top-Tier Quality: Constructed from UV-stabilized polyolefin for lasting performance.
• עיצוב אוניברסלי: Compatible with most above-ground pools, pumps, and filters.
• Integrated Manual Control Valve: Allows easy temperature regulation.

2. התקנה והתקנה

The FAFCO Baby Bear Solar Panel is designed for easy DIY installation. For detailed visual guidance, refer to the "How To" videos available on the official FAFCO webאֲתַר.

הנחיות מיקום:

• הִתמַצְאוּת: For best performance, panels should face south.
• הטיה: Tilt the panel between 10 to 30 degrees for optimum solar heat. Pre-assembled legs are included for ideal tilt. The panel can also be positioned flat on the ground if necessary.
• חשיפה לאור השמש: Ensure the panel has unobstructed sunlight exposure.
• שעות פעילות: The system should operate between 10 a.m. and 4 p.m. on sunny days for maximum efficiency.

Connecting to Your Pool:

The Baby Bear comes with hose attachments for direct connection to your pool's pump and filter system. Ensure all connections are secure to prevent leaks.

ההתקנה הסתיימהview וִידֵאוֹ:

Ground Rack Installation Guide:

3. הוראות הפעלה

The FAFCO Baby Bear Solar Panel operates by circulating pool water through its heated tubes. The integrated manual bypass valve provides control over the water flow, allowing you to manage the pool's temperature.

בקרת טמפרטורה:

• The manual bypass valve can be used to shut off the system when the pool reaches the desired temperature.
• Adjust the valve to direct water through the solar panel for heating or bypass it when sufficient heat is achieved or not desired.

Solar Heating System Diagram:

4. תחזוקה

Regular maintenance ensures optimal performance and longevity of your FAFCO Baby Bear Solar Panel. Keep the panel surface clean and free from debris to maximize sun exposure. Periodically inspect hoses and connections for any signs of wear or leaks. In colder climates, proper winterization is crucial to prevent damage from freezing.

Winterization Guide:

5. פתרון תקלות

If your FAFCO Baby Bear Solar Panel is not performing as expected, consider the following common issues:

• חימום לא מספיק: Check panel orientation and tilt. Ensure there is no obstruction blocking sunlight. Verify the system is operating during peak sun hours (10 a.m. - 4 p.m.).
• בעיות זרימת מים: Inspect hoses and connections for kinks or blockages. Ensure your pool pump is functioning correctly and providing adequate flow.
• דליפות: Examine all connections and the panel surface for any visible leaks. Tighten hose clamps לפי הצורך.

For persistent issues, consult the detailed troubleshooting section on the FAFCO webאתר או צור קשר עם תמיכת הלקוחות.

6. מפרטים

7. אחריות ותמיכה

The FAFCO Baby Bear Solar Panel comes with a אחריות לשנה, ensuring peace of mind regarding its quality and performance. For any questions, technical assistance, or warranty claims, please visit the official FAFCO webאתר או צור קשר ישירות עם תמיכת הלקוחות שלהם.

For additional resources and support, you may also visit the FAFCO Store on Amazon.
