1. הקדמה
Thank you for choosing the Globo 12369-15 LED Ceiling Light. This manual provides essential information for the safe installation, operation, and maintenance of your new lighting fixture. Please read these instructions carefully before installation and retain them for future reference.

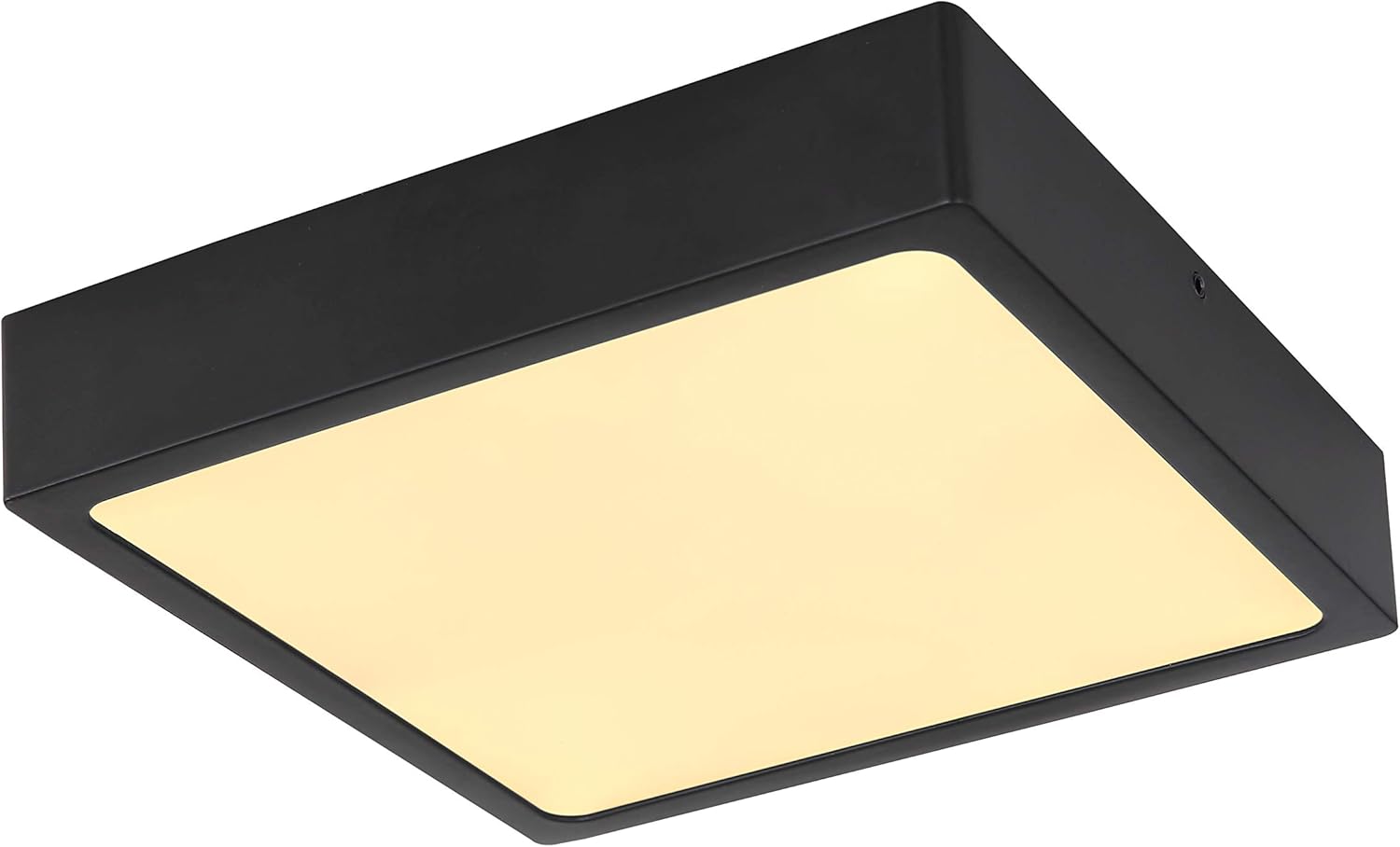

Image 1.1: The Globo 12369-15 LED Ceiling Light, shown illuminated.
2. הוראות בטיחות
יש להקפיד תמיד על אמצעי הזהירות הבאים כדי למנוע פגיעה או נזק:
- בטיחות חשמל: Installation must be performed by a qualified electrician or competent person in accordance with local wiring regulations.
- ניתוק חשמל: Always disconnect the main power supply at the circuit breaker or fuse box before commencing any installation, maintenance, or cleaning.
- כרך ידtage: ודא את כרך האספקהtage תואם לדרישות גוף התאורה (230V).
- טיפול: Handle the fixture with care. Do not drop or subject it to impact.
- סְבִיבָה: גוף תאורה זה מיועד לשימוש פנימי בלבד. אין לחשוף אותו ללחות או לטמפרטורות קיצוניות.
- LED משולב: The LED light source is integrated and not user-replaceable. Do not attempt to open or modify the LED module.
3. תכולת החבילה
ודא שכל הרכיבים קיימים ולא ניזוקו לפני שתמשיך בהתקנה:
- 1x Globo 12369-15 LED Ceiling Light fixture (with integrated LED)
- חומרת הרכבה (ברגים, תקעים לקיר)
- מדריך הוראות
4. התקנה והתקנה
4.1 התקנה מוקדמת
- לִבדוֹק: Carefully unpack the fixture and inspect it for any damage. Do not install if damaged.
- כלים נדרשים: Gather necessary tools, which typically include a screwdriver, wire strippers, drill, and voltagבודק e.
- כיבוי: ודא שאספקת החשמל לאזור ההתקנה מנותקת לחלוטין במפסק הראשי.
4.2 הרכבת המתקן
- איתור נקודת הרכבה: Choose a suitable location on the ceiling, ensuring it can support the weight of the fixture and has access to electrical wiring.
- סמן חורים לקדוח: Use the mounting bracket (if separate) or the fixture itself as a template to mark the drill holes on the ceiling.
- חורים לקדוח: Drill holes of appropriate size for the provided wall plugs. Insert the wall plugs flush with the ceiling surface.
- תושבת הרכבה מאובטחת: חברו את תושבת ההרכבה לתקרה באמצעות הברגים המצורפים.

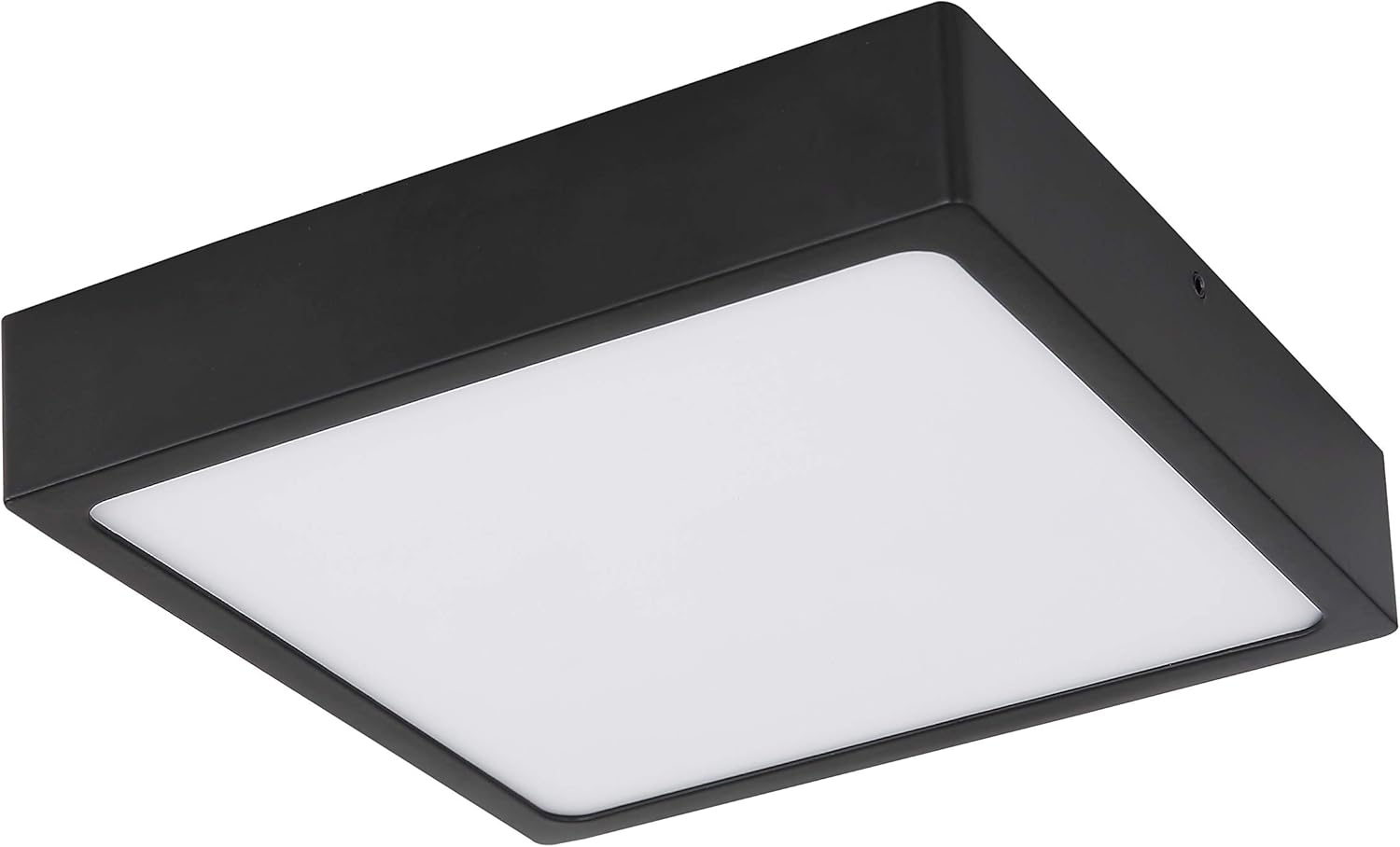

Image 4.1: The Globo 12369-15 LED Ceiling Light, unlit, highlighting its matte black metal frame and acrylic diffuser.
4.3 חיבור לחשמל
- זיהוי חוטים: Carefully identify the live (L), neutral (N), and earth (E) wires from your ceiling supply and the fixture.
- חיבור חוטים: Connect the corresponding wires using appropriate terminal blocks. Ensure all connections are secure and insulated.
- חיבור כדור הארץ: Always connect the earth wire for safety.
4.4 הרכבה סופית
- צרף מתקן: Carefully attach the main body of the fixture to the mounting bracket, securing it with the provided screws or clips.
- החזר כוח: לאחר שהמתקן מותקן היטב וכל החיבורים נבדקו, יש להחזיר את החשמל למפסק הראשי.
- מִבְחָן: Turn on the light switch to test the fixture.

תמונה 4.2: חזית view of the ceiling light, showing the even light distribution from the acrylic diffuser.
5. הוראות הפעלה
The Globo 12369-15 LED Ceiling Light is designed for straightforward operation.
- הפעלה/כיבוי: Operate the light using a standard wall switch connected to the fixture.
- פונקציונליות עמעום: This fixture is suitable for dimming. If you wish to use a dimming function, ensure you have a compatible dimmer switch installed by a qualified electrician. Refer to the dimmer switch manufacturer's instructions for proper operation.

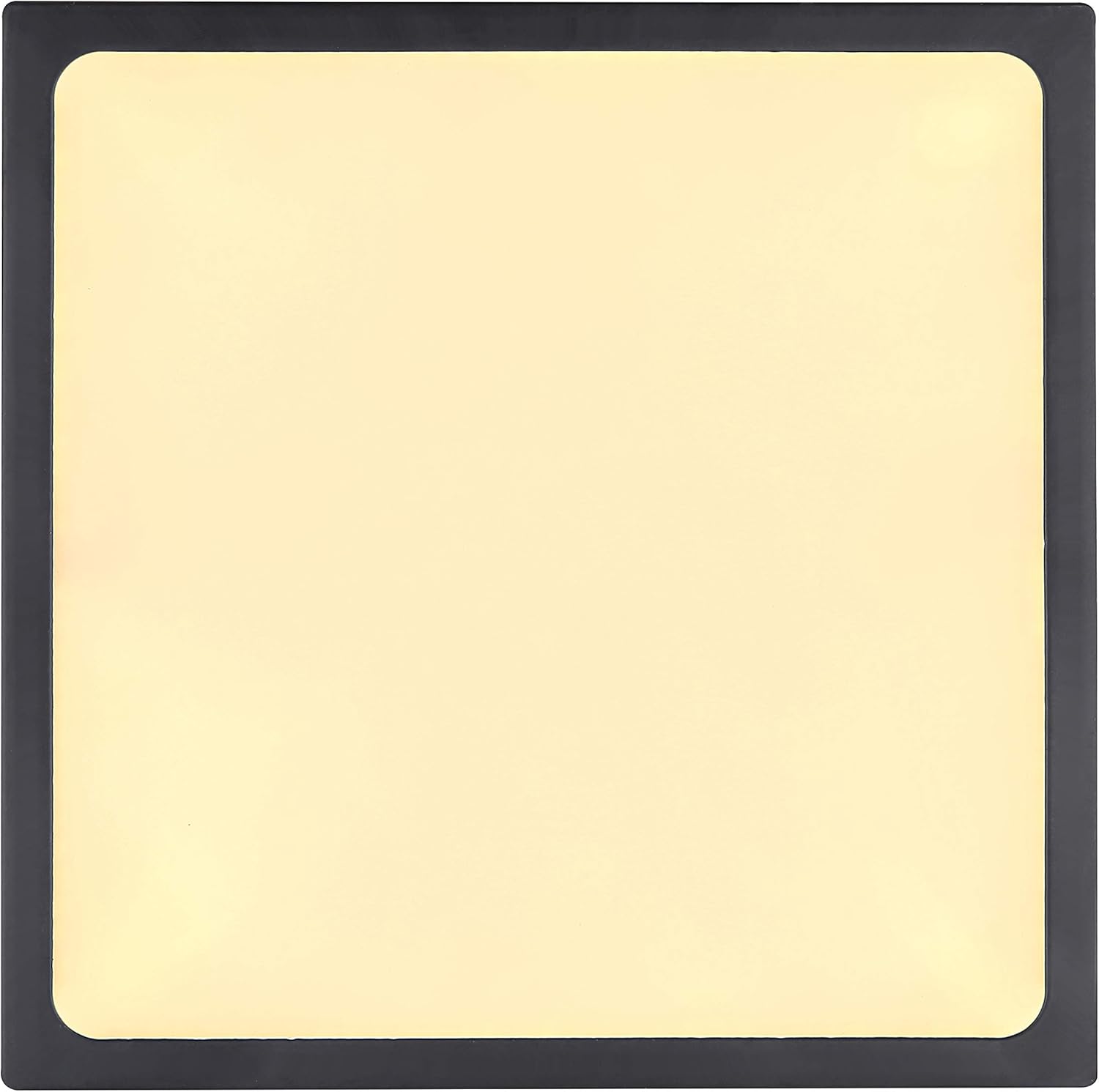

תמונה 5.1: מלמעלה למטה view of the ceiling light, demonstrating its square form factor and uniform light output.
6. תחזוקה
The Globo 12369-15 LED Ceiling Light requires minimal maintenance.
- ניקוי: Before cleaning, ensure the power supply is disconnected. Wipe the fixture with a soft, dry, or slightly damp cloth. Do not use abrasive cleaners, solvents, or harsh chemicals, as these can damage the finish or acrylic diffuser.
- החלפת LED: מקור האור LED משולב ומתוכנן למשך חיים ארוכים. אינו ניתן להחלפה על ידי המשתמש. אם ה-LED נכשל, ייתכן שיהיה צורך להחליף את גוף התאורה כולו.

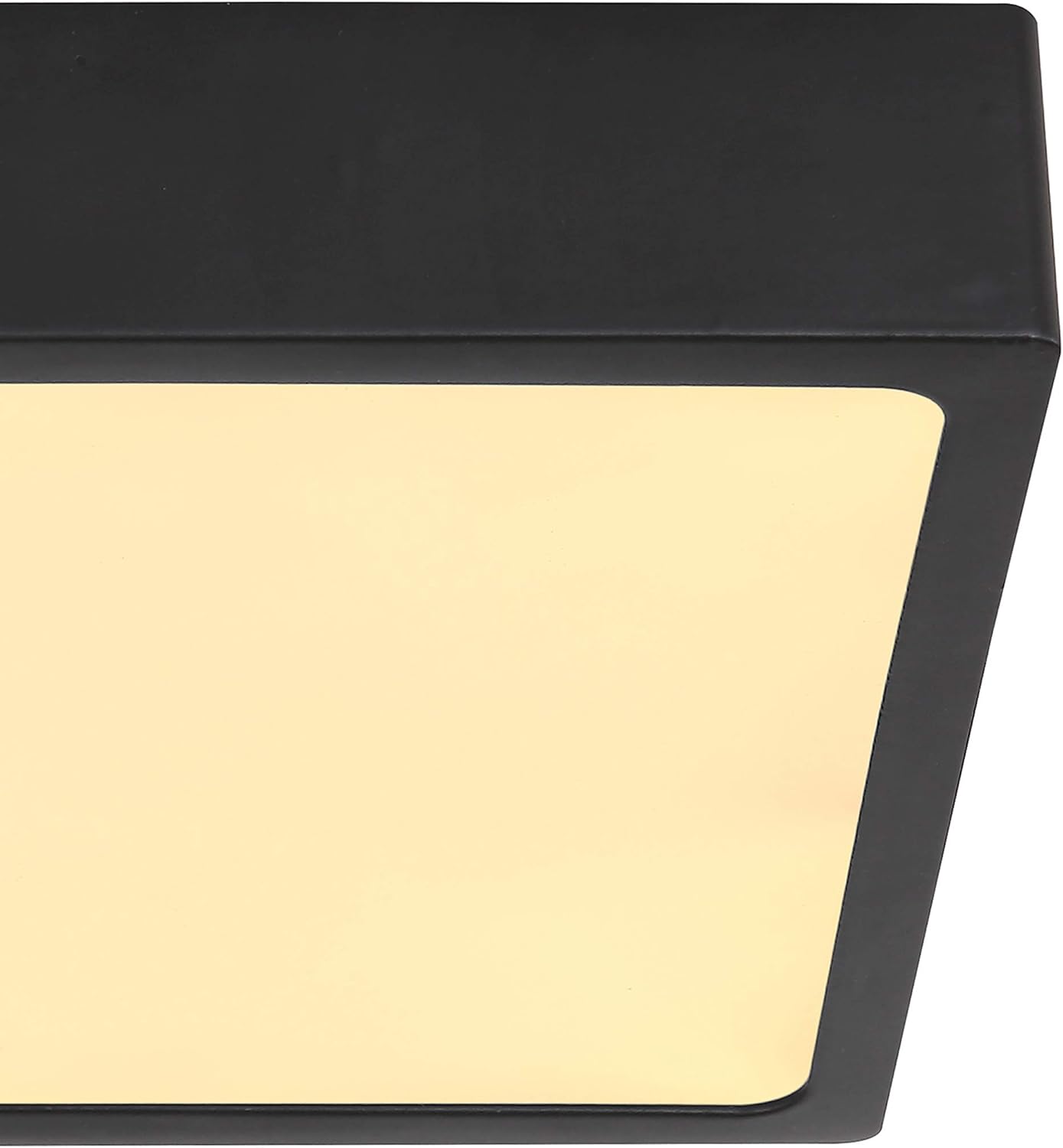

Image 6.1: Close-up side view, מציג את ה-slim profile and matte black finish of the fixture.
7. פתרון תקלות
אם אתם נתקלים בבעיות עם גוף תאורה בתקרה שלכם, עיינו בבעיות הנפוצות ובפתרונות הבאות:
| בְּעָיָה | סיבה אפשרית | פִּתָרוֹן |
|---|---|---|
| האור לא נדלק. | אין אספקת חשמל; חיווט רופף; מתג פגום. | Check circuit breaker/fuse. Ensure power is on. Verify wiring connections (with power off). Test the switch. |
| האור מהבהב או מתעמעם באופן בלתי צפוי. | דימר לא תואם; חיווט רופף; תנודות מתח. | Ensure dimmer is LED-compatible. Check wiring connections (with power off). Consult an electrician if power fluctuations are suspected. |
| האור אינו בהיר כצפוי. | Dimmer setting too low; incorrect installation. | Adjust dimmer to maximum setting. Re-check installation steps. |
אם הבעיה נמשכת לאחר ניסיון פתרונות אלה, אנא פנו לתמיכת הלקוחות או לחשמלאי מוסמך.
8. מפרטים
| תכונה | פְּרָט |
|---|---|
| מספר דגם | 12369-15 |
| מותג | גלובו |
| מידות (LxWxH) | 145 x 145 x 26 מ"מ |
| מִשׁקָל | 460 גרם |
| חוֹמֶר | Metal (Matte Black), Acrylic (Opal Satin) |
| מקור אור | LED משולב |
| מהtage | 15W |
| כרך ידtage | 230V |
| Luminous Flux (Source) | 1650 lm |
| שטף אור (פלט) | 1350 lm |
| טמפרטורת צבע | 4000K (לבן ניטרלי) |
| ניתן לעמעום | כן (עם דימר תואם) |
| סוג חדר | סלון (מתאים למגוון חללים פנימיים) |
| מקור אנרגיה | AC |
9. אחריות ותמיכה
Globo products are manufactured to high-quality standards. This product comes with a manufacturer's warranty against defects in materials and workmanship. Please refer to the warranty card included with your purchase or visit the official Globo webבאתר לקבלת תנאי האחריות המפורטים.
For technical support, spare parts, or warranty claims, please contact your retailer or Globo customer service directly. Ensure you have your model number (12369-15) and proof of purchase available when contacting support.
