1. הקדמה
Thank you for choosing the Master Manufacturing 40-Gallon Deluxe UTV Spot Sprayer. This manual provides essential information for the safe and efficient operation, maintenance, and troubleshooting of your new sprayer. Please read this manual thoroughly before assembly or operation to ensure proper use and to prevent injury or damage.

Figure 1.1: Master Manufacturing 40-Gallon Deluxe UTV Spot Sprayer, front view.
2. מידע בטיחות
Your safety and the safety of others are paramount. Always adhere to the following safety guidelines when operating this product:
- זְהִירוּת: This product may contain chemicals and should be handled with care.
- Wear appropriate protective clothing, including gloves and eye protection, when handling chemicals or operating the sprayer.
- Ensure proper ventilation when mixing or spraying chemicals.
- When using with UTVs or other means of transportation, securely attach the sprayer to prevent movement during operation.
- Regularly inspect all connections and hoses to prevent leaks.
- This product operates under pressure. Exercise caution to avoid injury from high-pressure spray or component failure.
- הרחיקו ילדים וחיות מחמד מהמרסס במהלך ההפעלה והאחסון.
3. המוצר נגמרview
The 40-Gallon Deluxe UTV Spot Sprayer is designed for efficient and targeted application of liquids, ideal for weed control, fertilizing, and other chemical spraying tasks. Its robust design allows for secure mounting on UTVs and similar large transportation vehicles.
תכונות עיקריות:
- קיבולת טנק: 40 Gallons, UV resistant.
- לִשְׁאוֹב: Robust Everflo 2.2 GPM (Gallons Per Minute) 12V on-demand diaphragm pump (Model: EF2200-QA).
- לחץ מקסימלי: עד 70 PSI.
- אקדח ריסוס: Deluxe adjustable spray gun (Model: SG-2218-18) capable of spraying up to 25 feet vertically and 30 feet horizontally. Features a heavy-duty brass nozzle adjustable from a steady stream to a wide mist, and a trigger lock for reduced hand fatigue.
- זַרנוּק: 15 feet of hose to the spray gun for extended reach. Includes a hook and loop hose strap (Model: HOSE-STRAP-CSK) for organization and protection.
- מִסנֶנֶת: Easy-to-maintain quick attach inline strainer to prevent debris from entering the pump.
- חיבור חשמל: Standard 12V wire harness with on/off switch and alligator clamp קֶשֶׁר.
- בִּיוּב: Accessible molded-in drain port for easy fluid removal after use.

איור 3.1: אחורי view of the 40-Gallon Sprayer, showing the tank shape and mounting points.
4. התקנה והרכבה
The sprayer comes largely pre-assembled, but some components require connection before first use.
4.1 זיהוי רכיבים:
- מיכל 40 גלון
- Everflo 2.2 GPM 12V Diaphragm Pump
- Deluxe Spray Gun with 15 ft Hose
- מסננת מוטבעת
- 12V Wire Harness with On/Off Switch and Alligator Clamps
- מכסה טנק
- מכסה פתח ניקוז
4.2 שלבי ההתקנה הראשוניים:
- הרכבה מאובטחת: Place the sprayer securely in the bed of your UTV or other suitable transportation. Ensure it is stable and will not shift during movement. Use appropriate tie-downs if necessary (not included).
- חבר חשמל: Connect the 12V wire harness to a compatible 12V power source using the alligator clamps. Ensure the on/off switch is in the 'OFF' position before connecting.
- בדוק חיבורים: Verify all hose connections are tight to prevent leaks. Check the inline strainer for proper seating.
- ניהול צינורות: Utilize the hook and loop hose strap to keep the spray gun hose neatly organized and prevent dragging or damage when not in use.

איור 4.1: תקריב view of the Everflo 2.2 GPM pump and the quick-attach inline strainer.

Figure 4.2: The hook and loop hose strap for convenient hose storage.
5. הוראות הפעלה
Follow these steps for effective and safe operation of your spot sprayer.
5.1 Filling the Tank:
- Ensure the drain port cap is securely closed.
- Remove the main tank cap.
- Carefully pour the desired liquid into the tank. The tank has molded-in volume indicators for easy measurement.
- החזר היטב את מכסה המיכל.

Figure 5.1: The main tank cap for filling the sprayer.
5.2 Spot Spraying:
- Ensure the 12V power is connected and the on/off switch is in the 'OFF' position.
- Un-holster the deluxe spray gun.
- Turn the power switch to 'ON'. The pump will activate.
- Aim the spray gun at the target area.
- Press the trigger to begin spraying.
- Adjust the heavy-duty brass nozzle by twisting it to change the spray pattern from a fine mist to a strong stream, depending on your application needs.
- For longer jobs, engage the trigger lock to reduce hand fatigue.
- When finished spraying, release the trigger (or disengage the lock) and turn the power switch to 'OFF'.

Figure 5.2: Operator using the spot sprayer from a UTV.
5.3 Pressure Regulation:
The deluxe version of this sprayer includes a pressure regulator valve on the outlet side of the pump. This valve allows liquid to return to the tank, offering control over pump operation and pressure:
- Closed Valve: If the pressure regulator valve is fully closed, all pressure is directed to the spray gun. The pump will cycle on and off as needed to maintain 70 PSI, shutting off when pressure is reached and restarting when pressure drops.
- שסתום פתוח: If the pressure regulator valve is opened partially, some liquid is returned to the tank. This allows the pump to run continuously, which can be beneficial for consistent mixing of liquids within the tank and may extend pump life by avoiding frequent stop/start cycles. Adjust the valve to achieve desired continuous flow and pressure.
5.4 Broadcast Spraying (Optional):
This spot sprayer can be converted into a broadcast sprayer. Broadcast boom or boomless kits are sold separately and can be attached to the sprayer to cover wider areas. Refer to the instructions provided with your chosen broadcast kit for installation and operation.
6. תחזוקה
תחזוקה שוטפת מבטיחה את אורך החיים והביצועים האופטימליים של המרסס שלכם.
6.1 לאחר כל שימוש:
- Drain Remaining Fluid: Use the accessible molded-in drain port to completely empty any remaining fluid from the tank.
- לשטוף היטב: Fill the tank with clean water and run the pump to flush the system, including the hose and spray gun. Repeat until all chemical residue is removed.
- ניקוי מסננת: Remove and rinse the quick attach inline strainer to clear any debris. Reinstall securely.
- חוץ נקי: Wipe down the exterior of the tank and components with a damp בַּד.

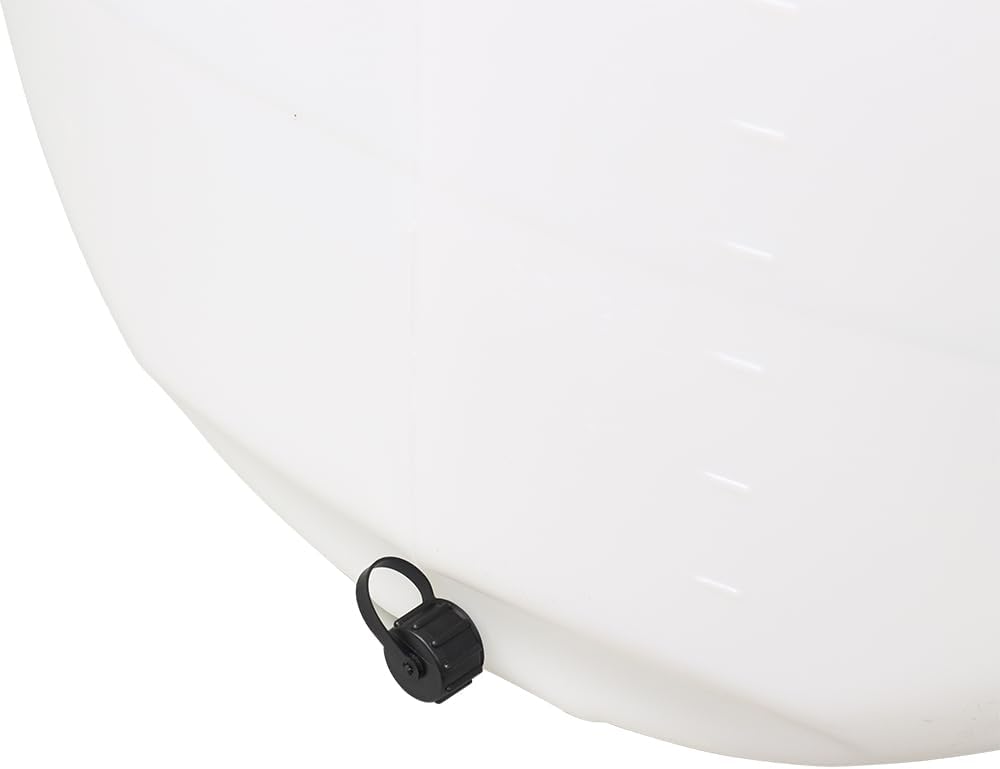

Figure 6.1: The molded-in drain port for easy emptying.
6.2 התאמת חורף:
To prevent damage from freezing temperatures, especially to the pump and spray gun, it is crucial to properly winterize your sprayer:
- Completely drain and rinse the tank, pump, hose, and spray gun as described above.
- Ensure all water is expelled from the pump and lines. You may run the pump briefly with the spray gun trigger open to clear residual water.
- Store the entire unit (tank, pump, hose, and spray gun) in a heated garage or a location where temperatures remain above freezing.
7. פתרון תקלות
This section addresses common issues you might encounter with your sprayer.
| בְּעָיָה | סיבה אפשרית | פִּתָרוֹן |
|---|---|---|
| Pump not priming or low flow | Clogged strainer; Air in system; Low voltage; Pump malfunction. | Clean inline strainer. Check all connections for air leaks. Ensure secure 12V connection and sufficient battery charge. Contact support if pump continues to malfunction. |
| Spray gun leaking | Damaged O-rings/seals; Freezing damage; Loose connections. | Inspect spray gun for cracks or damage. Check and tighten all connections. Ensure proper winterization to prevent freezing damage. The deluxe spray gun is field repairable; replacement parts may be available. |
| דפוס ריסוס לא עקבי | פיה סתומה חלקית; כוונון שגוי של הפיה. | Clean the nozzle tip. Adjust the brass nozzle by twisting to achieve the desired spray pattern. |
| המשאבה פועלת ברציפות (לא נכבית) | Pressure regulator valve open; Leak in system; Pressure switch malfunction. | Close the pressure regulator valve if continuous operation is not desired. Check for any leaks in hoses or connections. If no leaks are found and valve is closed, contact support. |
8. מפרטים
Detailed technical specifications for the 40-Gallon Deluxe UTV Spot Sprayer.
- מותג: Master Mfg
- שם הדגם: SSO-01-040D-MM
- נפח טנק: 40 ליטר
- לִשְׁאוֹב: Everflo 2.2 GPM 12V Diaphragm Pump (EF2200-QA)
- לחץ מקסימלי: 70 PSI
- אורך צינור: 180 אינץ' (15 רגל)
- חוֹמֶר: UV Resistant Plastic
- מידות המוצר: 24.5" (W) x 21" (H) (Note: Dimensions may vary slightly based on specific measurement points)
- משקל פריט: 29.6 פאונד (ריק)
- מקור כוח: 12V DC (Manual operation of spray gun)
- שימושים מומלצים: Weed Control, Chemical Spraying
9. אחריות ותמיכה
Master Manufacturing stands behind the quality of its products.
9.1 מידע על אחריות:
This 40-Gallon Deluxe UTV Spot Sprayer is backed by a אחריות לשנתיים on both the pump and other components. Please retain your proof of purchase for warranty claims.
9.2 תמיכת לקוחות:
For technical assistance, replacement parts, or warranty inquiries, please contact Master Manufacturing customer support. Refer to the contact information provided on the product packaging or the official Master Manufacturing webאתר לקבלת פרטי התמיכה העדכניים ביותר.
