SCHELINGER A51-SPD01-4P-B+C CCS Surge Protector User Manual

מָבוֹא

This manual provides essential information for the safe and effective installation, operation, and maintenance of your SCHELINGER A51-SPD01-4P-B+C CCS Surge Protector. Please read this manual thoroughly before use and retain it for future reference.

The SCHELINGER A51-SPD01-4P-B+C CCS Surge Protector is designed to protect electrical installations from transient overvoltages caused by lightning strikes or switching operations. It features a fast response time and high stability to ensure reliable protection for your electrical systems.

הוראות בטיחות

אַזהָרָה: Electrical installations should only be performed by qualified personnel. Failure to follow these instructions can result in electric shock, fire, or serious injury.

• Always disconnect power to the circuit before installing or servicing the surge protector.
• ודא הארקה נאותה בהתאם לתקנות החשמל המקומיות והארציות.
• אין להפעיל את המכשיר אם הוא נראה פגום.
• הרחק את המכשיר מלחות וטמפרטורות קיצוניות.
• This device is designed for indoor use in dry environments unless otherwise specified.

תוכן החבילה

ודא שכל הרכיבים נמצאים בחבילה:

• 1 x SCHELINGER A51-SPD01-4P-B+C CCS Surge Protector (4P 5kA class T1+T2 (B+C))
• מדריך למשתמש אחד (מסמך זה)

התקנה והתקנה

The SCHELINGER A51-SPD01-4P-B+C surge protector is designed for mounting on a standard 35 mm DIN rail within an electrical distribution board.

1. ניתוק חשמל: Before beginning installation, ensure that the main power supply to the electrical panel is completely disconnected and locked out to prevent accidental re-energization.
2. הַרכָּבָה: Snap the surge protector onto the 35 mm DIN rail. Ensure it is securely fastened.
3. תִיוּל: Connect the surge protector according to the wiring diagram provided in your electrical panel documentation or by a qualified electrician. Ensure correct phase, neutral, and ground connections. The device is a 4-pole protector.
4. הַאֲרָקָה: Verify that the grounding connection is robust and compliant with all applicable electrical codes. Proper grounding is critical for effective surge protection.
5. בְּדִיקָה: After wiring, visually inspect all connections to ensure they are tight and correct.
6. שחזור חשמל: לאחר השלמת ההתקנה ואימותה, יש להחזיר את אספקת החשמל ללוח החשמל.

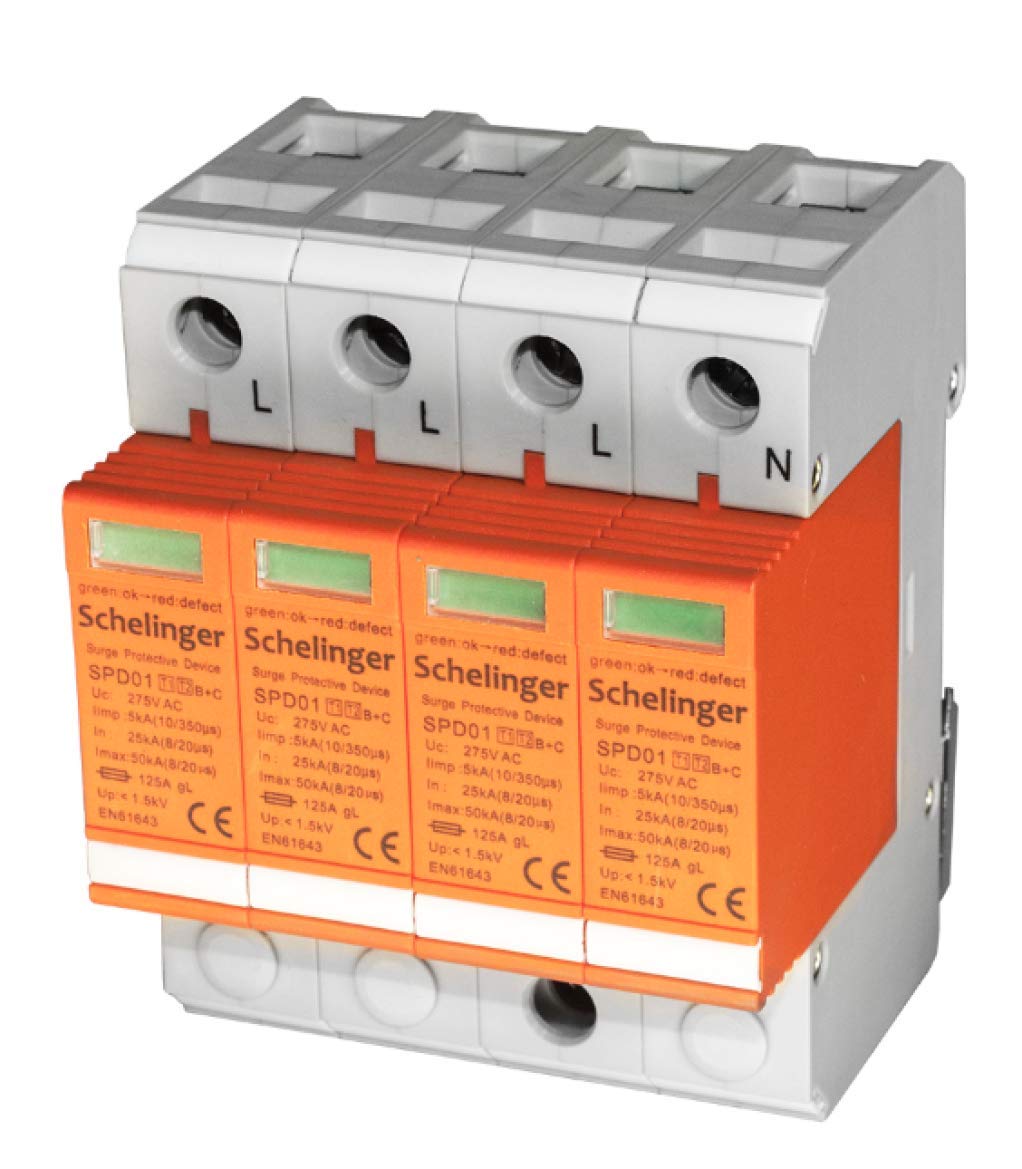

Image: The SCHELINGER A51-SPD01-4P-B+C CCS Surge Protector, typically installed on a DIN rail within an electrical panel. This image shows the device's compact form factor and connection terminals.

הוראות הפעלה

The SCHELINGER A51-SPD01-4P-B+C is an automatic surge protection device. Once correctly installed and powered, it operates continuously to protect your electrical system from transient overvoltages. There are no user-adjustable settings or controls.

• מחוון מצב: The device typically includes a visual indicator (e.g., a green/red flag or LED) to show its operational status. A green indicator usually signifies normal operation, while a red indicator or absence of light may indicate that the protection module has been activated and needs replacement. Refer to the device's specific markings for indicator interpretation.
• הגנה אוטומטית: The device automatically diverts excess voltage to the ground, protecting connected equipment.

תַחזוּקָה

Regular inspection of the surge protector is recommended to ensure its continued effectiveness.

• בדיקה חזותית: Periodically check the status indicator on the device. If the indicator shows a fault (e.g., red flag), the protection module has likely absorbed a significant surge and requires replacement.
• ניקוי: יש לשמור על המכשיר נקי מאבק ולכלוך. יש להשתמש במטלית יבשה ורכה לניקוי. אין להשתמש בחומרי ניקוי נוזליים.
• בדיקה מקצועית: It is advisable to have a qualified electrician inspect your electrical system, including surge protection devices, during routine electrical maintenance.

פתרון בעיות

If you suspect an issue with your surge protector, consider the following:

• No Power to Protected Devices:
  • Check the main circuit breaker for the electrical panel.
  • Verify that the surge protector's status indicator is green (operational). If it's red, the module may need replacement.
  • ודא שכל חיבורי החיווט מאובטחים.
• Frequent Tripping of Circuit Breakers:
  • This could indicate a fault in the electrical system or that the surge protector has been repeatedly exposed to surges. Consult a qualified electrician.
• Surge Protector Indicator is Red:
  • This indicates that the surge protector has absorbed a significant overvoltage event and its protective elements are exhausted. The module requires replacement to restore protection. Contact a qualified electrician for replacement.

For issues not resolved by these steps, contact a qualified electrician or SCHELINGER customer support.

מפרטים

אחריות ותמיכה

For warranty information and technical support, please refer to the documentation provided with your purchase or contact SCHELINGER customer service through their official webאתר או מפיצים מורשים. שמור את קבלת הרכישה כהוכחת קנייה.

יַצרָן: BEMKO SP. Z O.O.

התייחסות לדגם: A51-SPD01-4P-B+C
