מדריך הוראות לשעון יד לגברים Nixon Ascender A1208-722

1. הקדמה

Thank you for choosing the Nixon Ascender A1208-722 Men's Wristwatch. This manual provides detailed instructions for the proper setup, operation, and maintenance of your watch. Please read this manual thoroughly to ensure optimal performance and longevity of your timepiece.

2. המוצר נגמרview

The Nixon Ascender A1208-722 is a sophisticated men's wristwatch featuring a stainless steel bracelet and a Japanese Miyota quartz movement. It includes a moon phase complication and is designed for durability and precision.

תכונות עיקריות:

• תְנוּעָה: Japanese Miyota quartz movement for accurate timekeeping.
• עמידות במים: 10 bar (100 meters), suitable for swimming and snorkeling.
• חוּגָה: Features white and red hands, two silver seconds hands, Arabic numerals, a line index, and a concave dial ring with date numerals. Includes the NIXON logo.
• דִיוּר: Durable stainless steel in silver finish.
• צָמִיד: Multi-limbed stainless steel bracelet in silver.

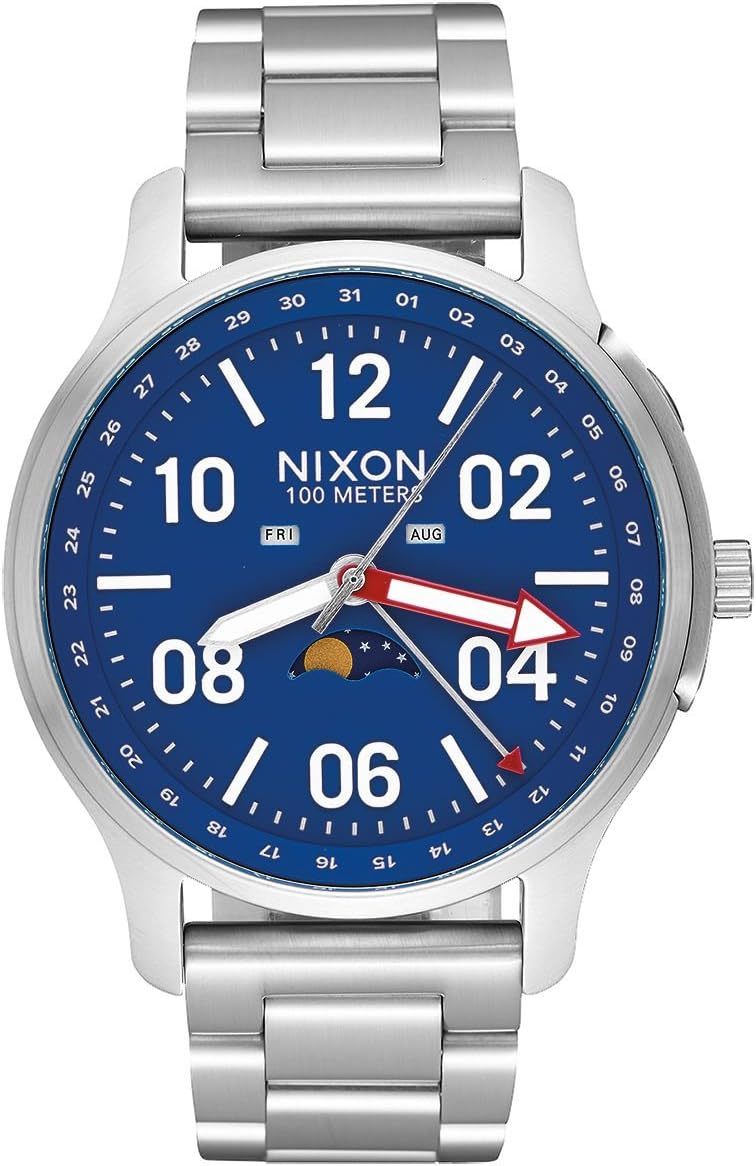

איור 1: חֲזִית view of the Nixon Ascender A1208-722 wristwatch, showcasing the blue dial, hands, numerals, and moon phase indicator.

איור 2: צַד view of the Nixon Ascender A1208-722 wristwatch, highlighting the crown and pushers, and the profile of the stainless steel bracelet.

איור 3: בְּחֲזָרָה view of the Nixon Ascender A1208-722 wristwatch, showing the case back engravings and the clasp of the stainless steel bracelet.

3. התקנה

3.1 קביעת השעה

1. משוך את הכתר החוצה למצב הקליק השני.
2. Rotate the crown to move the hands clockwise until the desired time is set. Ensure the AM/PM is correctly set if your watch has a 24-hour indicator or date change mechanism.
3. דחוף את הכתר חזרה למצב הרגיל.

3.2 הגדרת התאריך והיום

1. משוך את הכתר החוצה למצב הקליק הראשון.
2. Rotate the crown to adjust the date and day. Avoid setting the date between 9:00 PM and 3:00 AM, as this may interfere with the automatic date change mechanism.
3. Once the correct date and day are displayed, push the crown back into the normal position.

3.3 כוונון הצמיד

The stainless steel bracelet can be adjusted for a comfortable fit. It is recommended to have this adjustment performed by a professional watchmaker or jeweler to prevent damage to the links or clasp.

4. הוראות הפעלה

4.1 מדידת זמן בסיסית

Once the time, date, and day are set, your Nixon Ascender watch will accurately keep time. The second hand will move in one-second intervals. If the second hand begins to move in two-second intervals, it indicates a low battery and requires replacement.

4.2 Moon Phase Complication

The moon phase indicator displays the current phase of the moon. This complication is typically set in conjunction with the date and time. Refer to the specific instructions for your movement if detailed moon phase setting is required, as it often involves a dedicated pusher or crown position.

4.3 עמידות במים

Your watch has a water resistance rating of 10 bar (100 meters). This means it is suitable for everyday use, showering, swimming, and snorkeling. אין להפעיל את הכתר או את הלחיצות בזמן שהשעון רטוב או שקוע במים, as this can compromise the water resistance and lead to internal damage.

5. תחזוקה

5.1 ניקוי

כדי לשמור על מראה השעון, נגבו את המארז והצמיד באופן קבוע במטלית רכה ויבשה. עבור נירוסטה, נגבו מעטamp cloth can be used, followed by a dry cloth. Avoid using harsh chemicals or abrasive materials, which can damage the finish.

5.2 החלפת סוללה

The watch is powered by a quartz battery. When the battery is depleted, the watch will stop or the second hand may move erratically (e.g., in two-second intervals). Battery replacement should be performed by a qualified watch technician to ensure the proper sealing and water resistance are maintained.

5.3 אחסון

When not wearing your watch, store it in a cool, dry place away from direct sunlight and extreme temperatures. Keeping it in its original box or a watch case can protect it from dust and scratches.

6. פתרון תקלות

6.1 השעון לא פועל

• בדוק אם הכתר לחוץ פנימה לחלוטין.
• If the second hand is moving in two-second intervals, the battery may need replacement.
• If the watch still does not run after checking the above, it may require professional inspection.

6.2 שעה/תאריך שגויים

• עיין בסעיפים 3.1 ו-3.2 כדי לאפס את השעה והתאריך.
• ודא שהכתר לחוץ לחלוטין פנימה לאחר הקיבוע.

6.3 עיבוי בתוך הגביש

If you notice condensation under the watch crystal, this indicates a breach in the water resistance. Immediately take the watch to a professional watchmaker for inspection and repair to prevent further damage to the movement.

7. מפרטים

8. אחריות ותמיכה

8.1 מידע אחריות

Nixon watches typically come with a limited warranty covering manufacturing defects. Please refer to the warranty card included with your purchase or visit the official Nixon website for specific terms and conditions regarding your model.

8.2 תמיכת לקוחות

For further assistance, service, or repair inquiries, please contact Nixon customer support through their official website or an authorized service center. Ensure you have your watch model number (A1208-722) and proof of purchase available when contacting support.
