1. הקדמה
Thank you for choosing the iMuto SL200QC 20000mAh Quick Charge Power Bank. This manual provides essential information for the safe and efficient operation of your device. Please read it thoroughly before use and retain it for future reference.
2. המוצר נגמרview
The iMuto SL200QC is a high-capacity portable charger designed to provide fast and reliable power to your electronic devices. It features Qualcomm Quick Charge 3.0 technology and iM-Power auto-detection for optimized charging.
2.1 תכולת החבילה

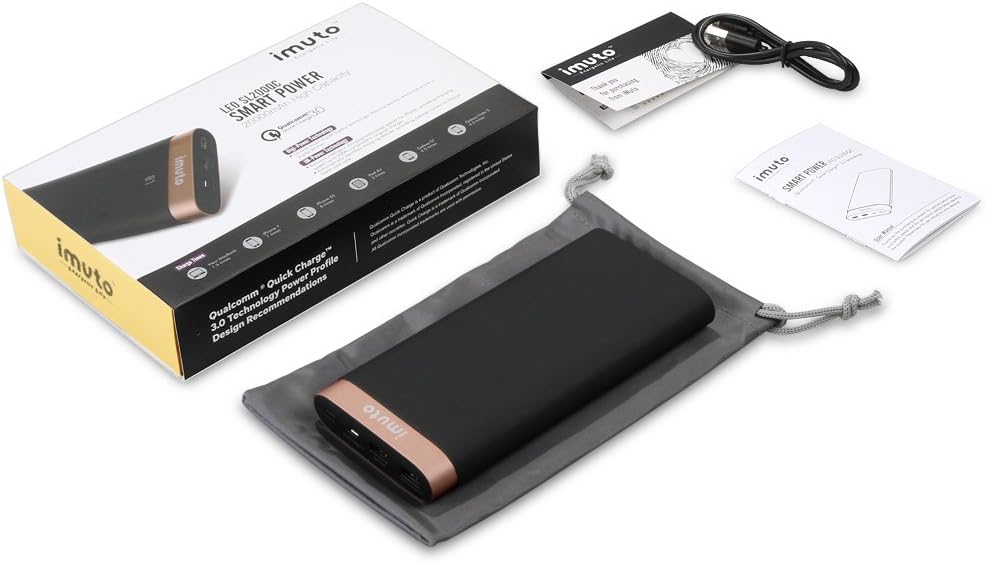

Image: The iMuto SL200QC Power Bank package contents, showing the power bank, a micro USB charging cable, a user manual, and a carrying pouch.
החבילה כוללת בדרך כלל:
- iMuto SL200QC Power Bank
- כבל טעינה מיקרו USB
- מדריך למשתמש
- נרתיק נשיאה
2.2 תכונות המכשיר
Image: The iMuto SL200QC Power Bank, highlighting its two USB output ports (USB1 with Quick Charge 3.0, USB2 with iM-Power Technology), a Micro USB input port, and the digital power display.
- Digi-Power Technology: A smart digital screen displays the remaining power level in percentage.
- יציאות USB כפולות:
- USB1: Qualcomm Quick Charge 3.0 (5-6V/3A, 6-9V/2A, 9-12V/1.5A) for compatible devices.
- USB2: iM-Power Technology (5V/1A-2.4A) for intelligent device detection and optimized charging.
- מיקרו USB קלט: Supports Quick Charge 3.0 (5V-9V/2A, 9V-12V/1.5A) for rapid recharging of the power bank.
- קיבולת גבוהה: 20000mAh Li-ion battery cells.
- הגנת בטיחות חכמה: Built-in safeguards against overcharge, overvoltagה, זרם יתר וקצר חשמלי.
3. התקנה
Before first use, it is recommended to fully charge your iMuto SL200QC Power Bank.
3.1 טעינה ראשונית של סוללת הכוח
- Connect the provided Micro USB cable to the Micro USB input port on the power bank.
- Connect the other end of the Micro USB cable to a USB wall charger (a Quick Charge 3.0/2.0 compatible charger is recommended for fastest recharging).
- The digital display will show the charging progress. The power bank is fully charged when the display shows "100".
Image: The iMuto SL200QC Power Bank connected to a wall charger via its Micro USB input, illustrating the recharging process. A full charge takes approximately 7 hours with a QC3.0/QC2.0 charger.
A full recharge using a Quick Charge 3.0/2.0 compatible charger typically takes about 7 hours. Using a standard 5V/2A charger will take longer.
4. הוראות הפעלה
4.1 Checking Remaining Power
Press the power button once to activate the digital display. The screen will show the remaining battery percentage. The display will turn off automatically after a few seconds to conserve power.

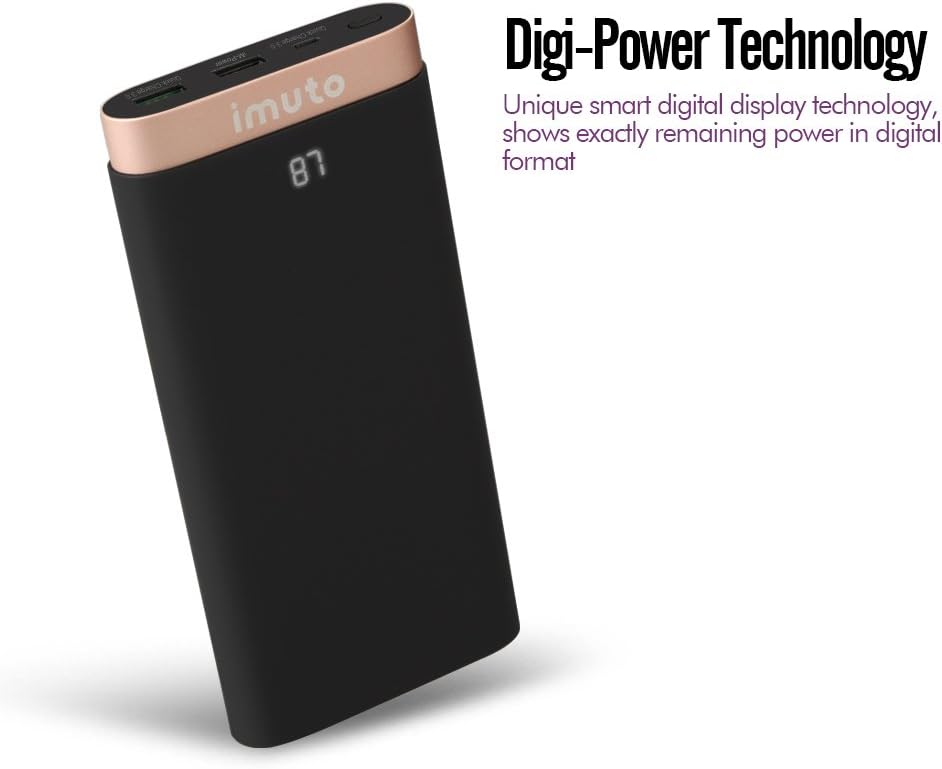

Image: The iMuto SL200QC Power Bank showing "87" on its digital display, indicating 87% remaining battery charge.
4.2 טעינת המכשירים שלך
The iMuto SL200QC can charge up to two devices simultaneously.
Image: The iMuto SL200QC Power Bank connected to a smartphone and a tablet, demonstrating its ability to charge two devices concurrently.
- חבר את כבל הטעינה של המכשיר שלך לאחת מיציאות ה-USB בסוללת הכוח.
- חבר את הקצה השני של הכבל למכשיר שלך.
- The power bank will automatically begin charging your device. The digital display will illuminate to show the remaining power.
- כדי להפסיק את הטעינה, פשוט נתק את המכשיר.
Note on Ports:
- USB1 (Quick Charge 3.0): Use this port for devices compatible with Quick Charge technology to achieve the fastest charging speeds.
- USB2 (iM-Power Technology): This port intelligently detects your device's charging requirements and delivers the optimal current up to 2.4A.

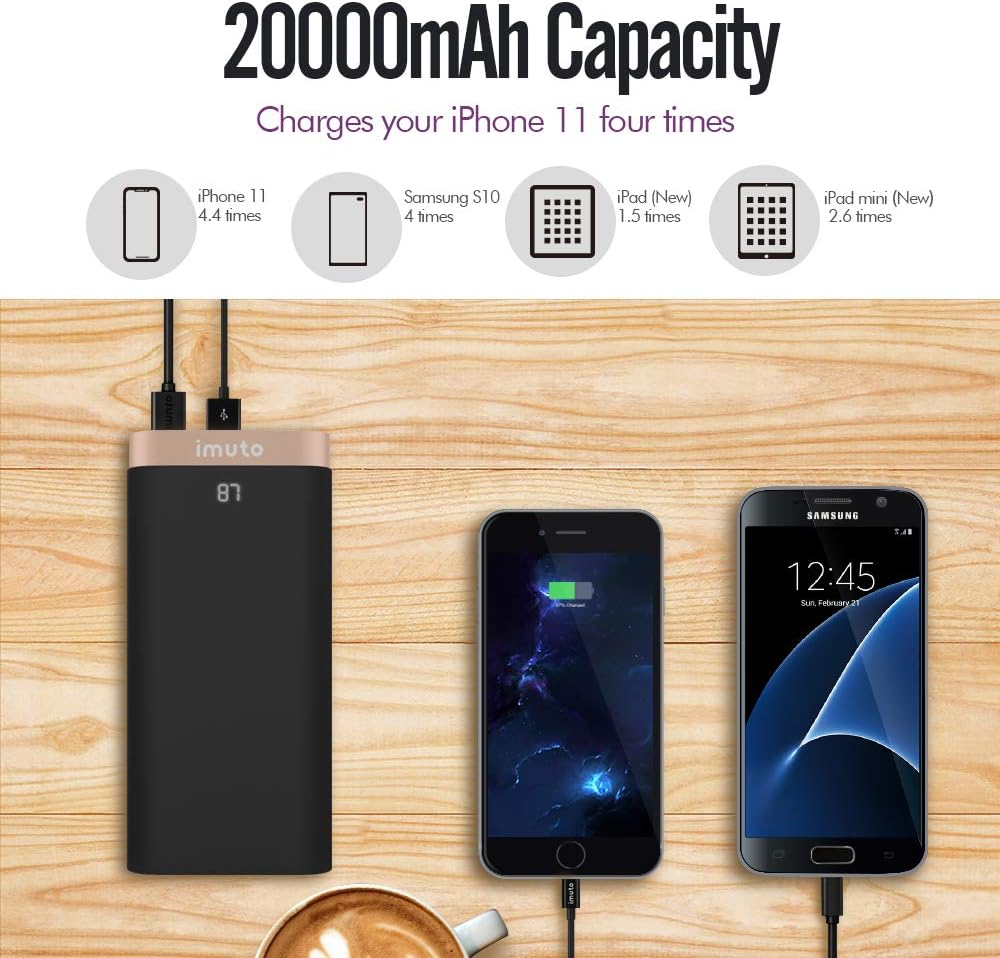

Image: The iMuto SL200QC Power Bank shown next to a smartphone and tablet being charged, with illustrations indicating its 20000mAh capacity can charge an iPhone 11 approximately 4.4 times, a Samsung S10 4 times, an iPad (New) 1.5 times, and an iPad mini (New) 2.6 times.
5. תחזוקה
- הרחיקו את סוללת הסוללה מטמפרטורות קיצוניות, אור שמש ישיר וסביבות לחות.
- אין לחשוף את בנק הכוח למים או לנוזלים אחרים.
- נקו את סוללת הכוח בעזרת מטלית יבשה ורכה. אין להשתמש בחומרי ניקוי שוחקים או ממסים.
- Store the power bank in a cool, dry place when not in use. For prolonged storage, it is recommended to charge the power bank to about 50-75% every 3 months to maintain battery health.
- הימנע מהפלה או הכפיפה של בנק הכוח לפגיעות חזקות.
6. פתרון תקלות
| בְּעָיָה | סיבה אפשרית | פִּתָרוֹן |
|---|---|---|
| סוללת גיבוי לא טוענת מכשירים. |
|
|
| בנק החשמל לא נטען. |
|
|
| מהירות טעינה איטית. |
|
|
| תצוגה דיגיטלית לא עובדת. |
|
|
7. מפרטים
| תכונה | פְּרָט |
|---|---|
| דֶגֶם | SL200QC |
| קיבולת סוללה | 20000mAh / 74Wh |
| סוג סוללה | Li-ion (8 cells) |
| Micro USB Input (QC 3.0) | 5V-9V/2A, 9V-12V/1.5A |
| USB1 Output (QC 3.0) | 5-6V/3A, 6-9V/2A, 9-12V/1.5A |
| USB2 Output (iM-Power) | 5V / 1A-2.4A |
| כוח פלט כולל | 25 וואט (מקסימום) |
| מידות | 17.2 x 8.18 x 2.24 ס"מ |
| מִשׁקָל | 650 גרם |
| מכשירים תואמים | iPhone, iPad, Samsung Galaxy, Google Nexus/Pixel, Nintendo Switch, Xperia, LG, Lumia, and other USB-powered devices. |
תמונה: פיצוץ view of the iMuto SL200QC Power Bank, illustrating its internal components including A-class Li-ion battery cells, Digi-Power technology circuit board, multiple smart protection system, power button, and aviation aluminum alloy shell.
8. אחריות ותמיכה
8.1 מידע אחריות
The iMuto SL200QC Power Bank comes with an אחריות ל-18 חודשים מתאריך הרכישה. אחריות זו מכסה פגמי ייצור ומבטיחה ביצועים אמינים תחת שימוש רגיל. אנא שמור את הוכחת הרכישה שלך לצורך תביעות אחריות.
האחריות אינה מכסה נזק שנגרם כתוצאה משימוש לרעה, תאונות, שינויים לא מורשים או אסונות טבע.
8.2 תמיכת לקוחות
For any questions, technical assistance, or warranty claims, please contact iMuto customer support. Refer to the contact information provided on the official iMuto webהאתר או מסמכי הרכישה שלך.
