AW 0.3mm Dual Action Airbrush Gun Kit Instruction Manual

1. המוצר נגמרview

The AW 0.3mm Dual Action Airbrush Gun Kit is designed for precise application in various fields such as painting, tattoo art, nail art, makeup, cake decorating, and hobby projects. This kit features a 0.3mm fine nozzle for accurate spraying and a dual-action trigger for comprehensive control over airflow and paint volume.

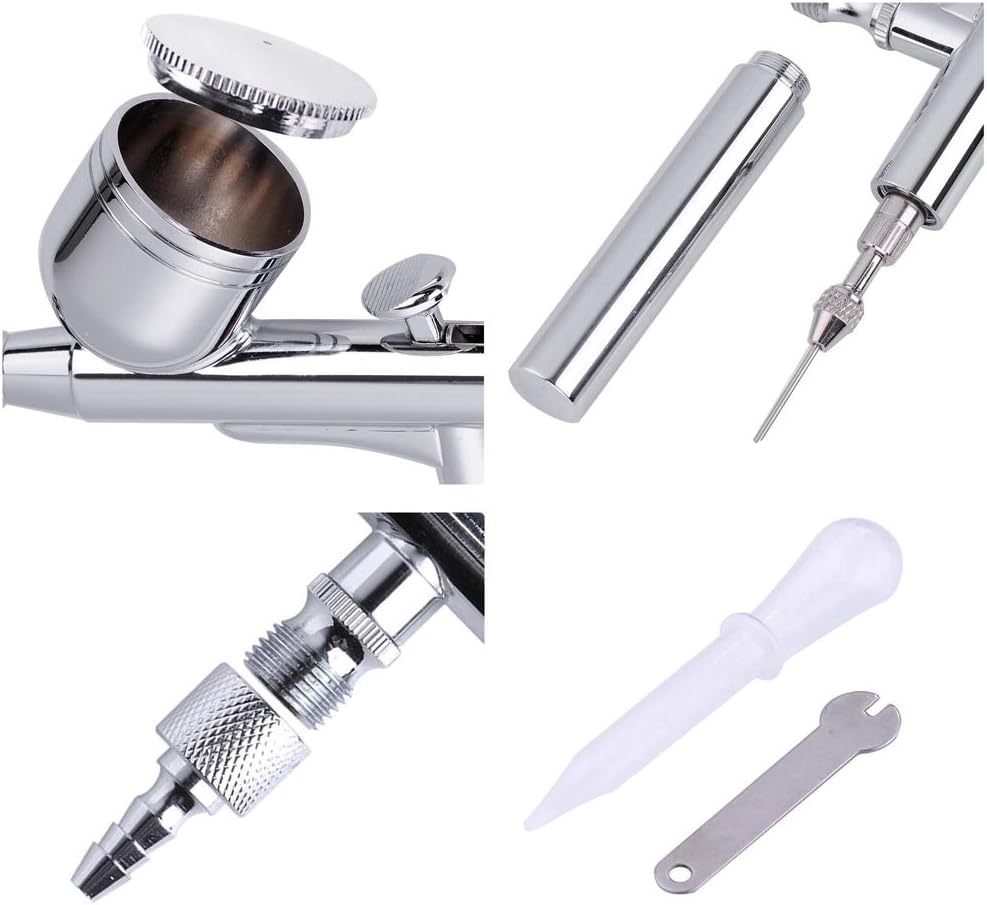

Image 1.1: The AW 0.3mm Dual Action Airbrush Gun Kit, including the airbrush, storage case, wrench, dropper, and air hose connector.

רכיבי ערכה:

• 0.3mm Dual Action Gravity Feed Airbrush: The main spraying tool with a 0.3mm nozzle for fine detail work.
• 7cc Gravity Feed Fluid Cup: Integrated cup with a lid for holding paint, designed for efficient flow at low pressures.
• Air Hose Connector: For connecting the airbrush to an air compressor hose.
• טַפטֶפֶת: For precise measurement and mixing of paints.
• מַפתֵחַ בְּרָגִים: Used for disassembling the nozzle for cleaning and maintenance.
• מארז אחסון: A protective case for organizing and transporting the airbrush and its accessories.

2. הוראות התקנה

Before using your airbrush, ensure all components are clean and properly assembled. A clean setup prevents clogs and ensures optimal performance.

2.1 Initial Inspection and Cleaning

1. Unpack all components from the storage case.
2. Inspect the airbrush for any visible damage or debris from manufacturing.
3. Perform an initial flush with water or appropriate airbrush cleaner through the airbrush to remove any manufacturing residues.

2.2 Connecting to Air Source

1. Attach the air hose connector to the air inlet at the bottom of the airbrush body. Ensure it is securely tightened.
2. Connect your air hose from a compatible air compressor to the air hose connector.
3. Ensure your air compressor is set to the recommended operating pressure for airbrushing (typically between 15-30 PSI, refer to your paint manufacturer's recommendations).

Image 2.1: Detail of the air hose connector properly attached to the airbrush.

2.3 הכנת צבע

1. Select the appropriate paint for your project. Ensure it is suitable for airbrush use.
2. Thin the paint to the consistency of milk using the recommended thinner for your specific paint type. Use the dropper for accurate mixing ratios.
3. Pour the prepared paint into the 7cc gravity feed fluid cup. Do not overfill.

3. הוראות הפעלה

The AW airbrush features a dual-action trigger, allowing for precise control over both air and paint flow.

3.1 Dual-Action Trigger Control

• בקרת זרימת אוויר: Press the trigger straight down to release air. The further you press, the more air flows.
• Paint Volume Control: While holding the trigger down for air, pull the trigger back to release paint. The further you pull back, the more paint is sprayed.
• Practice combining these two actions to achieve desired spray patterns and paint coverage.

Image 3.1: Detail of the dual-action trigger mechanism on the airbrush.

3.2 Basic Spraying Technique

1. Hold the airbrush approximately 2-6 inches (5-15 cm) from your working surface, depending on the desired spray pattern.
2. Begin by pressing the trigger down to start airflow.
3. While air is flowing, pull the trigger back to begin spraying paint.
4. Move the airbrush steadily across your surface. Release the paint trigger (push forward) before releasing the air trigger (lift up) to prevent paint from drying in the nozzle.
5. Always start and end your spray off the actual work surface to avoid splatters or heavy spots.

Image 3.2: An airbrush in operation, demonstrating the spray pattern.

4. תחזוקה וניקיון

Proper cleaning and maintenance are crucial for the longevity and performance of your airbrush. Clean your airbrush immediately after each use.

4.1 Quick Cleaning (Between Color Changes)

1. רוקנו את כל הצבע שנותר מכוס הנוזל.
2. הוסיפו כמות קטנה של נוזל ניקוי איירבראש מתאים או מים לכוס.
3. Spray the cleaner through the airbrush onto a paper towel or into a cleaning pot until the spray runs clear.
4. חזור במידת הצורך.

4.2 Thorough Cleaning (After Each Session)

1. בצעו ניקוי מהיר כמתואר לעיל.
2. Unscrew the needle chucking guide and carefully pull the needle out from the front of the airbrush. Clean the needle with a soft cloth and cleaner.
3. Use the provided wrench to carefully unscrew the nozzle cap and then the nozzle itself. Clean the nozzle thoroughly with a small brush and cleaner. Be extremely careful as the nozzle is delicate.
4. Clean the inside of the fluid cup and the airbrush body with a brush and cleaner.
5. Reassemble the airbrush in reverse order. Ensure the nozzle is tightened gently to avoid damage.

Image 4.1: Key components of the airbrush disassembled for thorough cleaning.

4.3 שימון

Occasionally, apply a tiny drop of airbrush-specific lubricant to the needle packing and trigger mechanism to ensure smooth operation. Do not use petroleum-based lubricants.

5. פתרון תקלות

This section addresses common issues you might encounter during airbrush operation.

6. מפרטים

Technical specifications for the AW 0.3mm Dual Action Airbrush Gun Kit.

• מספר דגם: AW-ABR000010
• קוטר זרבובית: 0.3 מ"מ
• קיבולת כוס נוזל: 7cc (Gravity Feed)
• סוג פעולה: טריגר פעולה כפולה
• חוֹמֶר: Nickel-plated Copper & Oxidized Aluminum
• מידות המוצר: 5.75 x 0.5 x 2.7 אינץ' (14.6 x 1.3 x 6.8 ס"מ)
• משקל פריט: 12 אונקיות (כ-340 גרם)

Image 6.1: Diagram illustrating the dimensions of the airbrush.
