Meiko Dishwasher Spool Pin Instruction Manual

1. המוצר נגמרview

This document provides essential information for the Meiko Dishwasher Spool Pin, a replacement center element designed for specific Meiko dishwasher models. This component is crucial for the proper function of your dishwasher's wash system.

דגמי מדיח כלים תואמים: DV40T, DV120T, DV80T, DV40N

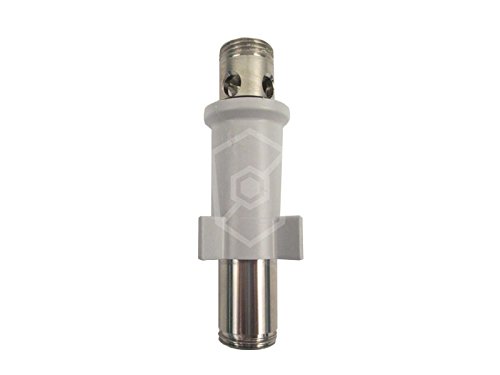

Image of the Meiko dishwasher spool pin, showing its cylindrical shape and fixing tube.

2. מידע בטיחות

Always prioritize safety when working with appliances. Failure to follow these instructions may result in personal injury or damage to the appliance.

• נתק חשמל: Before attempting any installation, maintenance, or repair, ensure the dishwasher is completely disconnected from the power supply.
• לבשו ציוד מגן: Use appropriate personal protective equipment, such as gloves, to prevent cuts or abrasions.
• התקנה מקצועית: אם אינך בטוח לגבי שלב כלשהו, ​​התייעץ עם טכנאי מוסמך.
• חלקים מקוריים: Use only genuine Meiko replacement parts to ensure compatibility and proper function.

3. התקנה / התקנה

This spool pin is designed as a replacement for the center element in compatible Meiko dishwashers. The installation position is typically at the top of the wash arm assembly.

1. ניתוק חשמל: Ensure the dishwasher is unplugged from the electrical outlet or the circuit breaker is switched off.
2. Access the Wash Arm: Open the dishwasher door and locate the upper or lower wash arm assembly, depending on where the center element is situated in your specific model.
3. Remove Old Spool Pin: Carefully detach the existing spool pin. This may involve unscrewing, twisting, or gently prying it from its mounting point. Note its orientation for correct installation of the new part.
4. Install New Spool Pin: Align the new Meiko spool pin with the mounting point. The fixing tube feature ensures a secure fit. Gently push or twist the new pin into place until it is firmly seated. Ensure it is stable and does not wobble.
5. ודא התקנה: Double-check that the spool pin is correctly installed and all connections are secure.
6. החזר כוח: Close the dishwasher door, reconnect the power supply, and test the dishwasher's operation.

For detailed instructions specific to your dishwasher model, refer to your dishwasher's primary user manual.

4. תפעול

The spool pin functions as a critical component within the dishwasher's wash arm system, directing water flow to ensure effective cleaning. Once correctly installed, no specific operational steps are required for the spool pin itself; its function is integrated into the dishwasher's normal wash cycles.

5. תחזוקה

Regular inspection and cleaning of dishwasher components, including the spool pin, can extend the life of your appliance and maintain optimal performance.

• בדיקה חזותית: Periodically inspect the spool pin for any signs of wear, cracks, or blockages.
• ניקוי: If the spool pin appears dirty or clogged with food particles, carefully remove it (following the installation steps in reverse) and clean it under running water. Use a soft brush if necessary to remove stubborn debris.
• התקנה מחדש: Reinstall the clean spool pin, ensuring it is securely in place before resuming dishwasher operation.

6. פתרון תקלות

If you experience issues with your dishwasher after replacing the spool pin, consider the following:

• Poor Washing Performance: If dishes are not getting clean, ensure the spool pin is correctly installed and not obstructed. Check for any blockages in the wash arm nozzles.
• נזילות מים: Verify that the spool pin is securely seated and that any associated seals or gaskets are properly in place and undamaged.
• רעשים חריגים: Ensure the spool pin is not loose or interfering with other moving parts within the dishwasher.

If problems persist, consult your dishwasher's main troubleshooting guide or contact a qualified service technician.

7. מפרטים

8. אחריות ותמיכה

Information regarding specific warranty terms for this Meiko spool pin is not available in this document. Please refer to your purchase documentation or contact the retailer/manufacturer directly for warranty details.

For technical support or further assistance, please contact Meiko customer service or an authorized service partner.
