מָבוֹא
This manual provides essential information for the proper installation, operation, and maintenance of the MTC 1911/11-53-7-509-227 Thermostat Assembly. Please read these instructions carefully before proceeding with installation to ensure safe and correct usage. This thermostat is designed as an OEM replacement for specific BMW models.

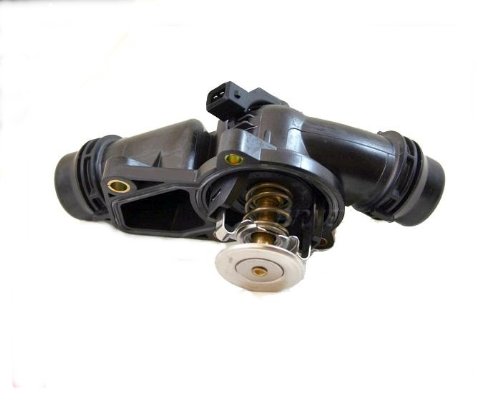

Image: MTC 1911/11-53-7-509-227 Thermostat Assembly. This image shows the complete thermostat assembly, including the housing and integrated thermostat unit.
מידע בטיחות
Always observe safety precautions when working on vehicle cooling systems. Failure to do so may result in personal injury or damage to the vehicle.
- Ensure the engine is cool before beginning any work. Hot coolant can cause severe burns.
- יש ללבוש ציוד מגן אישי (PPE) מתאים, כולל משקפי בטיחות וכפפות.
- עיין במדריך השירות של הרכב שלך לקבלת נהלים ספציפיים ומפרטי מומנט.
- יש להשליך את נוזל הקירור הישן בצורה אחראית בהתאם לתקנות המקומיות.
התקנה והתקנה
This section outlines the general steps for installing the MTC Thermostat Assembly. Specific procedures may vary by vehicle model. Always consult your vehicle's repair manual.
- הֲכָנָה:
- חנה את הרכב על משטח ישר והפעל את בלם החניה.
- הניחו למנוע להתקרר לחלוטין.
- נתק את המסוף השלילי של הסוללה.
- Drain the engine coolant into a suitable container.
- Removal of Old Thermostat:
- Locate the thermostat housing on your engine.
- Carefully disconnect any hoses and electrical connectors attached to the housing.
- Unbolt the old thermostat housing from the engine block.
- Remove the old thermostat and gasket.
- Installation of New Thermostat:
- Clean the mating surfaces on the engine block thoroughly to ensure a proper seal.
- Install the new MTC Thermostat Assembly with a new gasket. Ensure the thermostat is oriented correctly (refer to vehicle manual).
- Tighten the bolts to the manufacturer's specified torque. Overtightening can damage the housing.
- Reconnect all hoses and electrical connectors securely.
- Refilling Coolant System:
- Refill the cooling system with the appropriate coolant type for your vehicle.
- Bleed the cooling system to remove any trapped air. Follow your vehicle's specific bleeding procedure.
- חבר מחדש את הסוללה.
שיקולי תפעול
After installation, monitor the engine temperature closely during the first few drives. The thermostat is designed to regulate engine temperature to its optimal operating range (97°C for this model).
- Ensure the temperature gauge indicates normal operating temperature.
- Check for any coolant leaks around the thermostat housing.
- Periodically check coolant levels and top up as necessary.
תַחזוּקָה
The MTC Thermostat Assembly is a sealed unit and does not require specific maintenance beyond ensuring the cooling system is properly maintained.
- Regularly check coolant levels and condition.
- Follow your vehicle manufacturer's recommended coolant flush and replacement intervals.
- Inspect hoses and clamps connected to the thermostat housing for wear or leaks during routine vehicle inspections.
פתרון בעיות
If you experience issues after installing the thermostat, consider the following common problems and solutions:
| בְּעָיָה | סיבה אפשרית | פִּתָרוֹן |
|---|---|---|
| התחממות יתר של המנוע | Air in cooling system, faulty installation, low coolant, defective thermostat. | Bleed cooling system, recheck installation, top up coolant, replace thermostat if defective. |
| Engine Running Cold | Thermostat stuck open, air in cooling system. | Bleed cooling system, replace thermostat if stuck open. |
| דליפת נוזל קירור | Improperly seated gasket, loose bolts, damaged housing/hoses. | Check gasket and mating surfaces, tighten bolts to spec, inspect and replace damaged components. |
If problems persist, consult a qualified automotive technician.
מפרטים
- מותג: MTC
- דֶגֶם: 1911 / 11-53-7-509-227
- OEM Replacement #: 11-53-7-509-227
- Opening Temperature: 97 מעלות צלזיוס
- חוֹמֶר: בית פלסטיק
- משקל פריט: 454 גרם
- מידות החבילה: 12.7 x 12.7 x 12.7 ס"מ
מידע על אחריות
The MTC 1911/11-53-7-509-227 Thermostat Assembly is a "Warranty Backed Item" as per the product features. For specific details regarding warranty coverage, duration, and claims process, please refer to the official MTC product warranty documentation or contact MTC customer support directly. Keep your purchase receipt as proof of purchase.
תמיכה ויצירת קשר
For technical assistance, installation queries, or warranty claims, please contact MTC customer support. You can typically find contact information on the manufacturer's official webבאתר או על אריזת המוצר.
MTC Official Webאֲתַר: www.mtcparts.com (הערה: זהו מציין מיקום URL as no specific support link was provided in the input. Users should verify the correct URL.)
