מָבוֹא
This manual provides detailed instructions for the assembly, use, and maintenance of your Glideaway Premium Heavy Duty Bed Frame. Designed for ultimate strength and support, this frame is built with durable materials to ensure lasting comfort and protection for your box spring and mattress set.
התקנה והרכבה
Assembly of your Glideaway bed frame is designed to be quick and easy. You will need a screwdriver and pliers for the process. Please follow the steps below carefully.
כלים נדרשים:
- מַברֵג
- צְבָת
שלבי הרכבה:
Step 1: Unpack Components. הוצא בזהירות את כל הרכיבים מהאריזה. ודא שכל החלקים קיימים בהתאם לרשימת האריזה.

תמונה: מעלview of the assembled bed frame, showing the six-leg design and central support structure.
Step 2: Assemble Side Rails and Cross Arms. The T-Shaped legs interlock on both the top and bottom side rails for maximum strength. Ensure a secure connection. Use pliers to tighten any locking mechanisms if applicable.

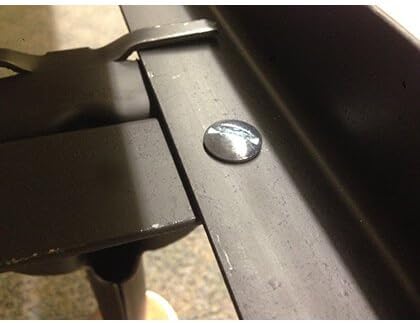

Image: Detail of a connection point on the bed frame, illustrating how components are joined.

תמונה: עוד אחת view of a leg and cross arm connection, showing the interlocking design.
Step 3: Attach Headboard and Footboard Brackets. Brackets for headboard and footboard attachment are included. Secure these to the designated points on the frame using a screwdriver for any screws.

Image: Detail of the mounting bracket for attaching a headboard or footboard.
Step 4: Install Wide Glide Feet. The wide glide foot distributes weight over the entire frame for better weight distribution. The spin glide has a 6-inch leg with a steel shaft and plastic glide that slides easily on carpet. Ensure all glides are firmly attached to the bottom of each leg.

Image: Close-up of the wide glide foot, designed for easy movement and weight distribution.
שלב 5: בדיקה סופית. Once assembled, ensure all connections are tight and the frame is stable before placing your box spring and mattress.
הוראות הפעלה
The Glideaway Premium Heavy Duty Bed Frame is designed to provide robust support for your box spring and mattress set. It can accommodate various mattress types, including softside waterbeds, due to its high weight capacity.
הנחיות שימוש:
- Place your box spring directly onto the assembled bed frame.
- Position your mattress on top of the box spring.
- If using a headboard or footboard, ensure they are securely bolted to the frame's mounting plates. This frame is specifically designed for bolt-on style headboards and footboards.
- The frame's design, including the 1-1/2" x 1-1/2" angle iron steel side rails and cross arms, provides superior strength for even the heaviest applications.
תַחזוּקָה
To ensure the longevity and continued performance of your Glideaway bed frame, follow these simple maintenance guidelines:
- ניקוי: נגבו את מסגרת המתכת עם מודעהamp מטלית להסרת אבק ופסולת. הימנעו מחומרי ניקוי שוחקים שעלולים לפגוע בגימור.
- בדיקה תקופתית: Periodically check all bolts and connections to ensure they remain tight. Re-tighten if necessary using a screwdriver and pliers.
- Glide Feet: Ensure the wide glide feet are free of obstructions and can move smoothly if the bed needs to be repositioned.
פתרון בעיות
אם אתם נתקלים בבעיות כלשהן עם מסגרת המיטה שלכם, שקלו את הפתרונות הנפוצים הבאים:
| בְּעָיָה | סיבה אפשרית | פִּתָרוֹן |
|---|---|---|
| Frame feels wobbly or unstable. | חיבורים רופפים או רצפה לא אחידה. | Check and tighten all bolts and interlocking points. Ensure the bed is on a level surface. Adjust glide feet if necessary to compensate for unevenness. |
| Difficulty attaching headboard/footboard. | Misalignment or incorrect bracket usage. | Ensure the headboard/footboard is compatible with bolt-on attachment. Align the holes carefully before inserting bolts. Do not force connections. |
| רעשי חריקה. | חיבורים רופפים או חיכוך בין חלקי מתכת. | Tighten all connections. A small amount of silicone spray or wax on contact points can reduce friction, but ensure it does not compromise stability. |
מפרטים
| תכונה | פְּרָט |
|---|---|
| גוֹדֶל | תְאוֹם |
| מידות המוצר | 74"L x 9"W x 4"H (Frame dimensions, not assembled bed) |
| תכונה מיוחדת | Supports the weight of a softside waterbed |
| צֶבַע | Headboard Footboard (referring to the frame's compatibility) |
| סוג גימור | משובץ |
| רכיבים כלולים | Headboard brackets, Shaft (for glides) |
| תואם לגודל המזרן | תְאוֹם |
| מותג | Glideaway |
| גימור רהיטים | סגסוגת פלדה |
| נדרשת הרכבה | כֵּן |
| מרחק מהקרקע לפריט | 7.5 אינץ' |
| UPC | 702840614057 |
| משקל פריט | 1 פאונד |
| חוֹמֶר | High carbon, recycled carbon railroad steel |
| רגליים | 6-Leg support with wide glide feet |
| תמיכה במרכז | 3-1 1/2" center cross supports |
מידע בטיחות
While specific safety warnings were not provided, please observe general safety practices:
- ודא שכל הרכיבים מהודקים היטב לפני השימוש.
- Do not exceed the intended weight capacity of the frame. While designed for heavy loads, extreme weights may compromise structural integrity.
- הרחק חלקים קטנים מילדים במהלך ההרכבה.
- Avoid placing the bed frame on uneven surfaces to prevent instability.
מידע על אחריות
The Glideaway Premium Heavy Duty Bed Frame comes with a אחריות מוגבלת לכל החיים. For detailed terms and conditions, please refer to the warranty documentation included with your purchase or contact Glideaway customer support.
תמיכת לקוחות
For any questions, assistance with assembly, or warranty claims, please contact Glideaway customer support. You can find more information and contact details by visiting the official Glideaway store on Amazon:
