DeskCycle 2 Adjustable Height Under Desk Pedal Exerciser User Manual

מָבוֹא

This manual provides essential information for the safe and effective use of your DeskCycle 2 Adjustable Height Under Desk Pedal Exerciser. Please read these instructions thoroughly before assembly and operation. Retain this manual for future reference.

The DeskCycle 2 Adjustable Height Under Desk Pedal Exerciser, shown in black, ready for use.

מידע בטיחות

• ודא שכל הרכיבים מחוברים היטב לפני כל שימוש.
• הנח את מכשיר הכושר על משטח יציב ושטוח.
• Maintain adequate clearance around the exerciser during use.
• התייעץ עם רופא לפני תחילת כל תוכנית אימונים חדשה.
• הפסק מיד להתאמן אם אתה מרגיש עילפון, סחרחורת או חווה כאב.
• הרחיקו ילדים וחיות מחמד מהמכשיר במהלך הפעולה.

התקנה והרכבה

The DeskCycle 2 is designed for straightforward assembly. A tool is supplied for convenience.

1. פרקו את כל הרכיבים וודאו זאת מול רשימת האריזה.
2. Attach the front and rear stabilizers to the main unit. Ensure they are firmly secured.
3. Attach the pedals to the crank arms. Note that the left pedal (marked 'L') threads counter-clockwise, and the right pedal (marked 'R') threads clockwise. Tighten securely to prevent stripping.
4. Connect the LCD display cable to the main unit.

The DeskCycle 2 features adjustable height, 8 resistance levels, and silent magnetic resistance.

הוראות הפעלה

התאמת ההתנגדות

The DeskCycle 2 offers 8 levels of magnetic resistance. To adjust the resistance, turn the tension control knob located at the front of the unit. Turn clockwise for higher resistance (more challenging workout) and counter-clockwise for lower resistance (easier workout).

The tension control knob allows selection from 8 resistance levels, from low to high.

שימוש בתצוגת LCD

The detachable LCD display tracks your workout progress. It records:

• סיבובים לדקה (סל"ד)
• מרחק שנסע
• שריפת קלוריות
• זמן שחלף

Press the button on the display to cycle through the different metrics. The display can be placed on your desk for easy viewing.

The removable LCD display provides real-time tracking of your workout data.

התאמת גובה

The DeskCycle 2 features an adjustable height mechanism, allowing it to be used with desks as low as 27 inches. The pedal height can be adjusted from 9 to 10 inches. Refer to the product diagram for specific adjustment points.

דוושות

The pedals include adjustable straps to secure your feet. The bi-directional flywheel allows for pedaling in both forward and reverse directions, engaging different muscle groups. The stay-flat pedals ensure comfort during use.

The DeskCycle 2 features comfortable, stay-flat pedals with adjustable straps and a bi-directional flywheel.

תכונות מפתח

• התנגדות מתכווננת: 8 resistance settings provide up to 39 lbs of resistance for varied workout intensity.
• High-Inertia Flywheel: Spins 14 times per pedal stroke, simulating a smooth and challenging cycling experience.
• התנגדות מגנטית שקטה: Sealed bearings and steel components ensure quiet operation, ideal for office or home use without disturbance.
• גובה מתכוונן: Pedal height adjusts from 9 to 10 inches, accommodating desks as low as 27 inches.
• מעקב בזמן אמת: Detachable LCD display monitors RPM, distance, calories, and time.

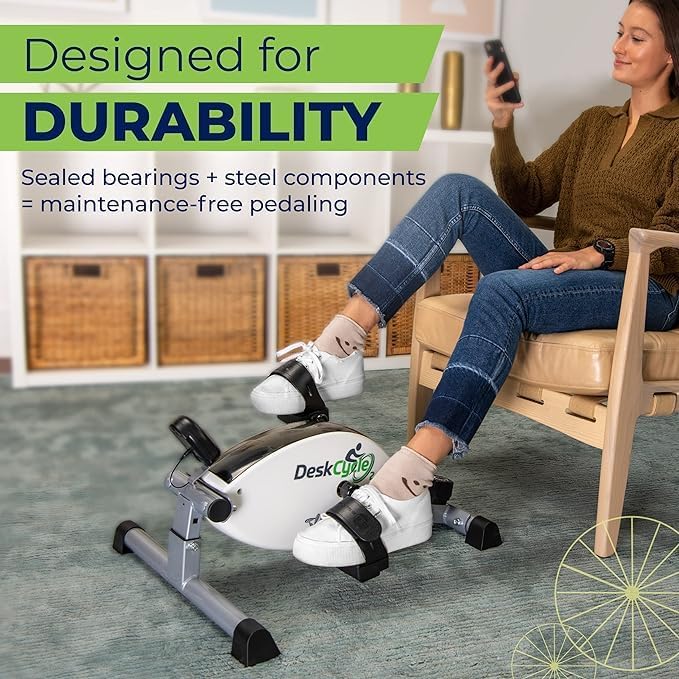

• בנייה עמידה: Designed with sealed bearings and steel components for maintenance-free pedaling.

The high-inertia flywheel provides a smooth and challenging workout with up to 39 lbs of resistance.

Engineered for silent exercise, the DeskCycle 2 allows discreet use in various environments.

The DeskCycle 2 can be used to make various activities active, including reading, gaming, and watching TV.

תַחזוּקָה

• בדקו באופן קבוע את כל הברגים והברגים כדי לוודא שהם מהודקים היטב.
• נגב את היחידה עם המודעהamp מטלית לאחר כל שימוש כדי להסיר אבק וזיעה.
• הימנע משימוש בחומרי ניקוי שוחקים או ממסים.
• Store the exerciser in a cool, dry place when not in use.

פתרון בעיות

Pedals feel loose or wobbly:

Ensure the pedals are threaded correctly and tightened securely. Left pedal is reverse-threaded.

Unit makes noise during operation:

Verify all assembly bolts are tight. If noise persists, contact customer support.

צג ה-LCD לא עובד:

Check the cable connection to the main unit. Ensure batteries (if applicable) are correctly installed and have sufficient charge.

מפרטים

אחריות ותמיכה

The DeskCycle 2 comes with a standard one-year warranty against manufacturing defects. For warranty claims or technical assistance, please contact DeskCycle customer support. Our U.S.-based support team is available to provide assistance.

For further information or to register your product, please visit the official DeskCycle webאֲתַר.
