YIYEIE 1/2-inch Digital Torque Adapter (Model Y0077) Instruction Manual

1. הקדמה

This manual provides detailed instructions for the safe and effective operation, maintenance, and troubleshooting of your YIYEIE 1/2-inch Digital Torque Adapter. Please read this manual thoroughly before using the product to ensure proper function and to prevent damage or injury. Keep this manual for future reference.

2. תכולת החבילה

• מתאם מומנט דיגיטלי
• 1/4" Adapter
• 3/8" Adapter
• מדריך הוראות
• Hex Key (for battery compartment)
• סוללות (אלקליין)

Figure 2.1: Digital Torque Adapter and included accessories in its portable carrying case.

3. המוצר נגמרview ותכונות

The YIYEIE Digital Torque Adapter is designed for precise torque measurement and application. It features a clear color display and multiple operational modes to enhance accuracy and user experience.

3.1 תכונות עיקריות

• Intuitive Display with Smart Alerts: A 1.4-inch LCD color screen offers enhanced visibility. The screen color and buzzer alerts change at 80%, 90%, and 100% of the preset torque value to prevent over-torquing.
• Multiple Modes and Units: Supports Peak, Track, and Preset Modes. Offers 5 selectable units: N·m, lb·ft, lb·in, kg·cm, kg·m.
• ניהול נתונים: Features 30 preset groups for quick setting changes and stores up to 500 data sets for review and deletion.
• Precision and Durability: Achieves ±1% accuracy clockwise and ±2% counterclockwise. Constructed from Chrome Vanadium Steel for rust and corrosion resistance. Calibrated to ASME & DIN-ISO traceable standards.
• תאימות רב-תכליתית: Equipped with a 1/2" drive head and includes 1/4" and 3/8" adapters for broad tool compatibility.

Figure 3.1: Color LCD Display and Smart Alert System.

איור 3.2: מעלview of display features and capabilities.

Figure 3.3: Detailed button and display area identification.

4. התקנה

4.1 התקנת סוללה

The Digital Torque Adapter requires Alkaline batteries. Locate the battery compartment, typically secured with a small screw. Use the provided hex key to open the compartment, insert the batteries according to the polarity indicators, and securely close the compartment.

4.2 חיבור מתאמים

The adapter comes with a 1/2" drive head. For use with 1/4" or 3/8" drive tools, attach the corresponding adapter to the 1/2" drive head. Ensure the adapter is securely seated before use.

Figure 4.1: Attaching drive adapters for versatile use.

5. הוראות הפעלה

5.1 הפעלה/כיבוי

Press the 'C' button to power on the device. The device features a 3-minute auto-shutdown to conserve battery power when inactive.

5.2 בחירת יחידות מומנט

Press the 'U' button to cycle through the available torque units: N·m, lb·ft, lb·in, kg·cm, kg·m. Select the unit appropriate for your task.

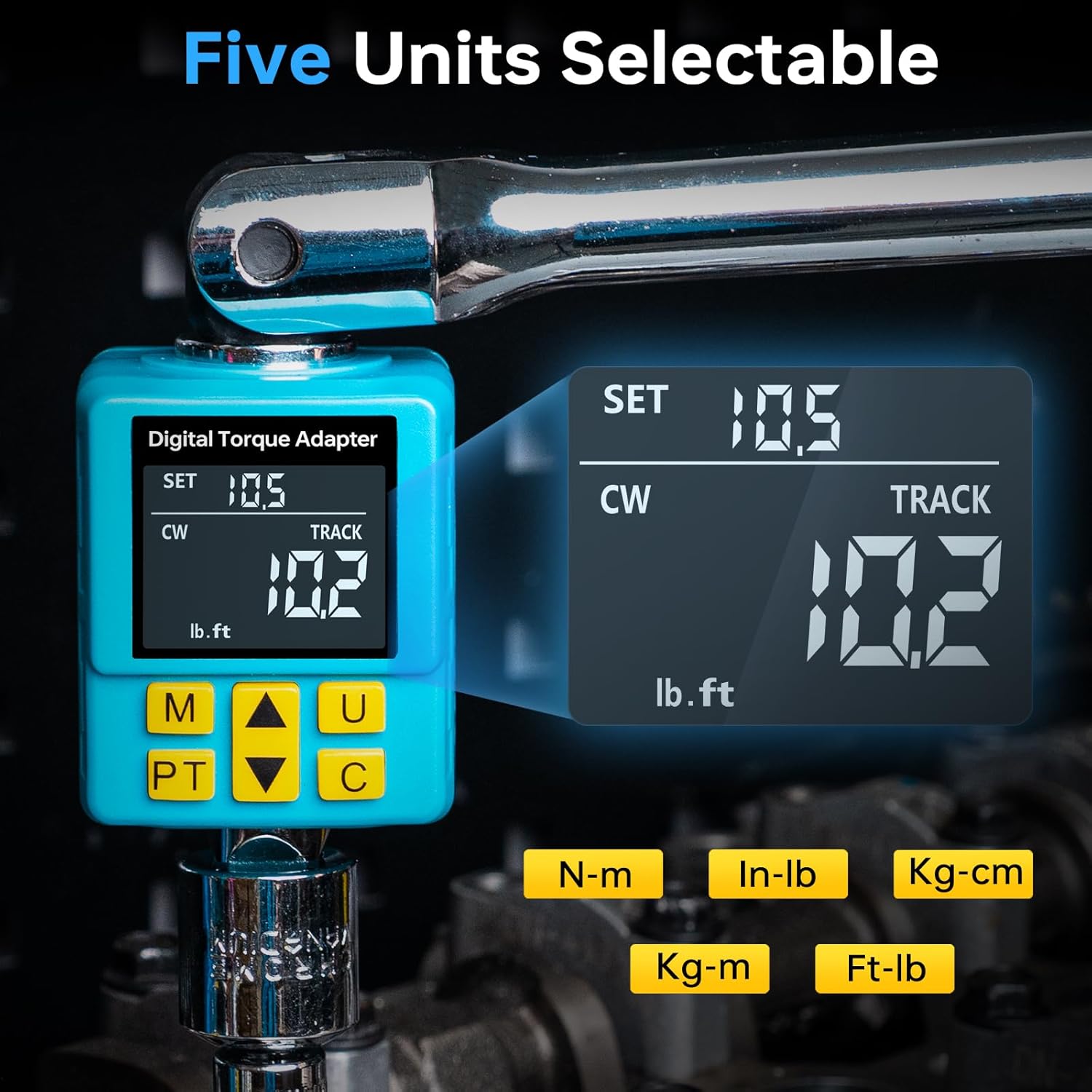

Figure 5.1: Selecting desired torque units.

5.3 Setting Torque Value (Preset Mode)

In Preset Mode, use the up and down arrow buttons to adjust the target torque value. The device allows for 30 preset groups, enabling quick switching between frequently used torque settings. The display and buzzer will provide smart alerts as you approach and reach the target torque.

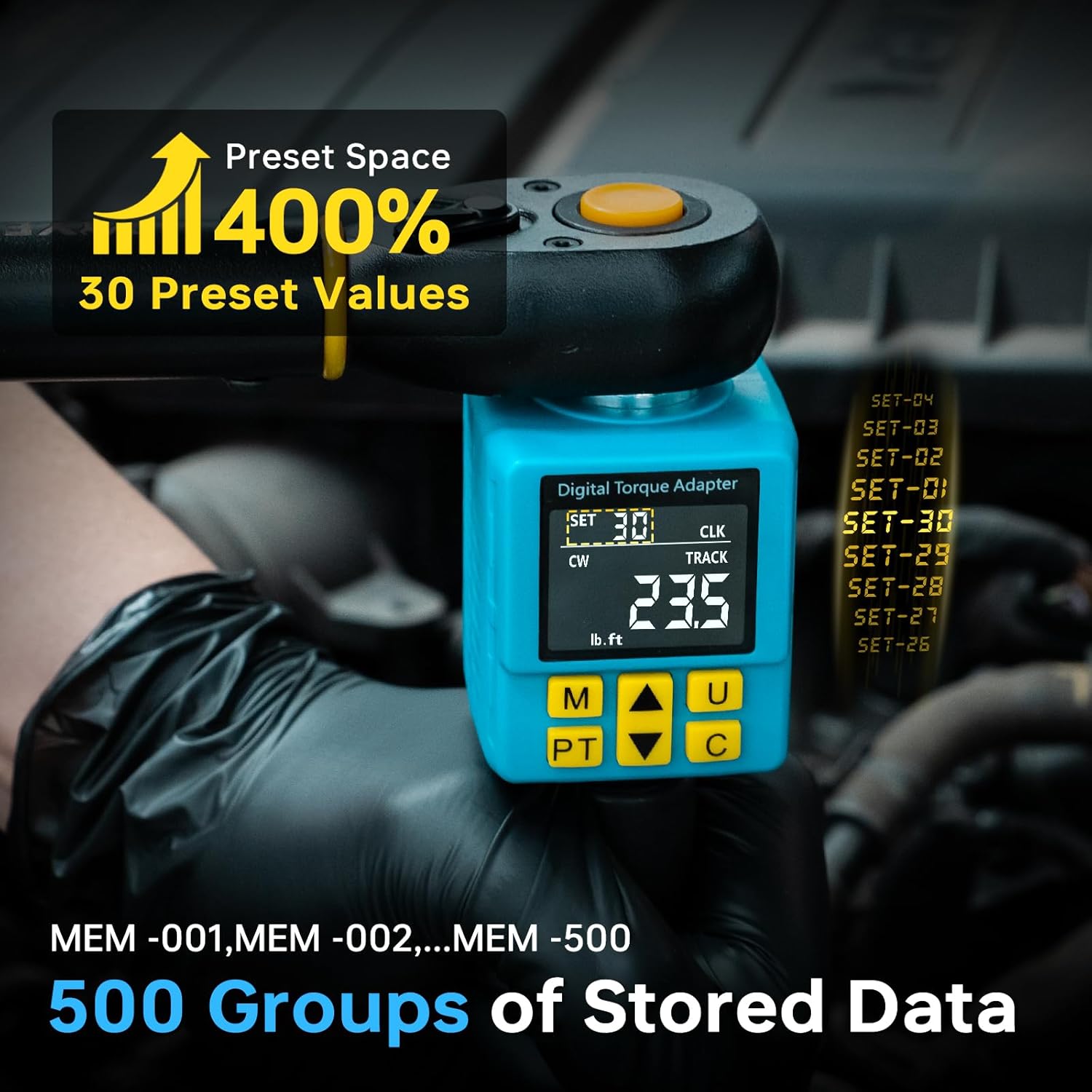

Figure 5.2: Utilizing preset values and data storage.

5.4 מצבי שיא ומסלול

Press the 'PT' button to switch between Peak and Track modes.

• מצב שיא: Displays the maximum torque value applied during the operation.
• מצב מעקב: Provides real-time display of the applied torque.

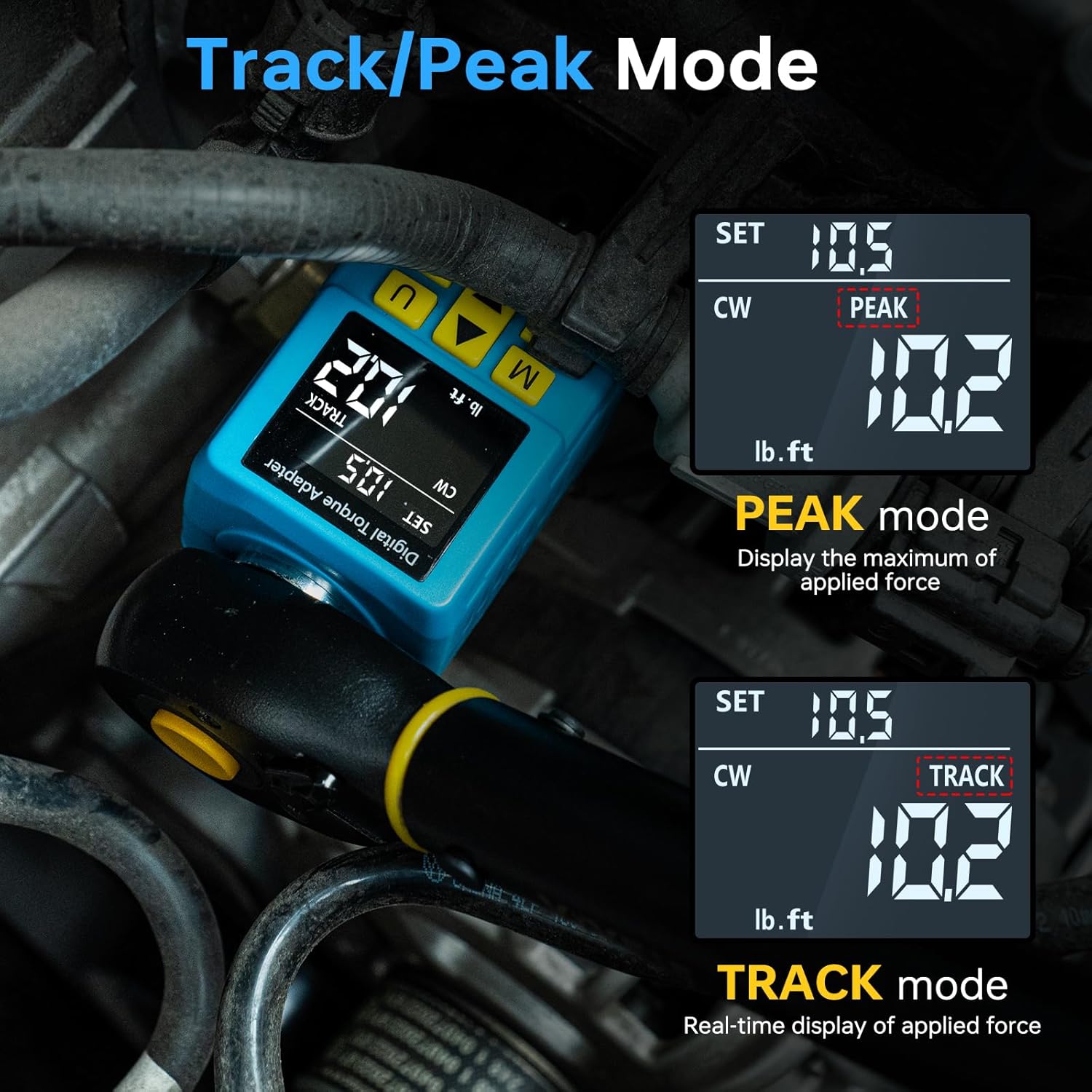

Figure 5.3: Understanding Peak and Track Modes.

5.5 ניהול נתונים

The device can store up to 500 data sets. Use the 'M' button to access and manage stored data. Follow the on-screen prompts to view or delete data sets.

6. תחזוקה

6.1 ניקוי

Wipe the device with a clean, dry cloth after each use. Avoid using abrasive cleaners or solvents that could damage the display or housing.

6.2 אחסון

Store the Digital Torque Adapter in its portable carrying case in a dry, cool place. For prolonged storage, remove the batteries to prevent leakage and potential damage to the device. Storing the adapter at its lowest torque setting is recommended to maintain spring integrity and calibration accuracy over time.

7. פתרון תקלות

7.1 בעיות נפוצות

• המכשיר לא נדלק: בדוק את התקנת הסוללה וודא שהסוללות אינן ריקות. החלף במידת הצורך.
• קריאות לא מדויקות: Ensure the adapter is properly calibrated. Refer to the calibration certificate. Avoid holding the machine directly during use, as this can affect accuracy.
• Buzzer sound low: The buzzer operates within a 30-45dB range. Ensure you are in a reasonably quiet environment to hear the alerts.
• Display confusion: Refer to Figure 3.3 for a detailed overview of button functions and display indicators.

8. מפרטים

9. אחריות ותמיכה

For warranty information and customer support, please refer to the product packaging or contact YIYEIE directly through their official website or the retailer where the product was purchased. A calibration certificate is included with each digital torque adapter, traceable to ASME & DIN-ISO standards.
