RUIXU Lithi2-16 Lifepo4 Battery Energy Storage System User Manual

1. הקדמה

Welcome to the RUIXU Lithi2-16 Lifepo4 Battery Energy Storage System. This manual provides essential information for the safe and efficient installation, operation, and maintenance of your 51.2V 314Ah 16kWh battery system. Please read this manual thoroughly before use to ensure proper handling and to maximize the lifespan and performance of your product.

2. מידע בטיחות

Always prioritize safety when handling and operating the Lithi2-16 battery system. Failure to follow these instructions may result in injury, damage to the product, or property damage.

2.1 בטיחות כללית

• Always follow local electrical codes and safety regulations during installation and operation.
• התקנה ותחזוקה צריכות להתבצע אך ורק על ידי אנשי צוות מוסמכים ומיומנים.
• Do not expose the battery to open flames, excessive heat, or corrosive substances.

2.2 בטיחות חשמל

• The Lithi2-16 features all-pole, dual protection through a fuse (negative terminal) and a micro circuit breaker (positive terminal) for enhanced safety.
• Quick plugs are designed to provide 250A continuous overcurrent capacity and ensure secure, tool-less connections. Ensure all connections are firm before operation.
• Do not attempt to open the battery casing or modify internal components unless specifically instructed for maintenance by RUIXU support.

2.3 בטיחות אש

• A perfluorohexane module is integrated within the battery pack to enhance fire protection, safeguarding both electrical lines and individual cells.
• In case of fire, use a Class D fire extinguisher. Do not use water.

2.4 בטיחות סביבתית

• The electro-coated battery case provides excellent rust prevention, making it suitable for outdoor use.
• Ensure proper ventilation around the unit, especially if installed indoors, to prevent heat buildup.

2.5 טיפול

• The battery weighs approximately 145kg (320lb). Use appropriate lifting equipment or utilize the integrated FUMA wheels for safe movement.
• הימנעו מהפלת הסוללה או מחשיפתה לפגיעות חזקות.

3. המוצר נגמרview

The RUIXU Lithi2-16 is a high-capacity 51.2V 314Ah (16.07kWh) Lifepo4 battery designed for robust energy storage applications. It offers a long cycle life of over 9,500 cycles at 80% Depth of Discharge (DOD), ensuring reliable, long-term performance.

3.1 תכונות עיקריות

• מסך מגע קיבולי בגודל 5 אינץ': Provides real-time battery information and allows intuitive adjustment of settings.
• פונקציית חימום עצמי: Ensures optimal performance and charging in cold temperatures.
• Intelligent Balancing: A double equilibrium approach calculates capacity differences and extends balancing time for efficient cell balancing.
• FUMA Wheels and Wall Mounted Fixation: Four concealed heavy-duty wheels for mobility and an anti-tipping mount for secure wall anchoring.
• Electro-Coating Battery Case: Provides superior rust prevention for outdoor installations.
• Inspection Port: Located on the side for access to the BMS and fuse for maintenance.

איור 3.1: The RUIXU Lithi2-16 battery unit, highlighting its dimensions (W543*H924*D250 mm) and net weight (319.67 LB). It also shows several units connected, emphasizing high energy density and support for up to 32 parallel connections.

איור 3.2: This diagram visually explains the intelligent balancing mechanism, which optimizes the internal cell capacity differences for improved battery efficiency and longevity.

איור 3.3: This image demonstrates the self-heating feature, indicating that heating starts below 41°F (5°C) and stops when the temperature reaches 53.6°F (12°C), allowing normal charging in cold environments.

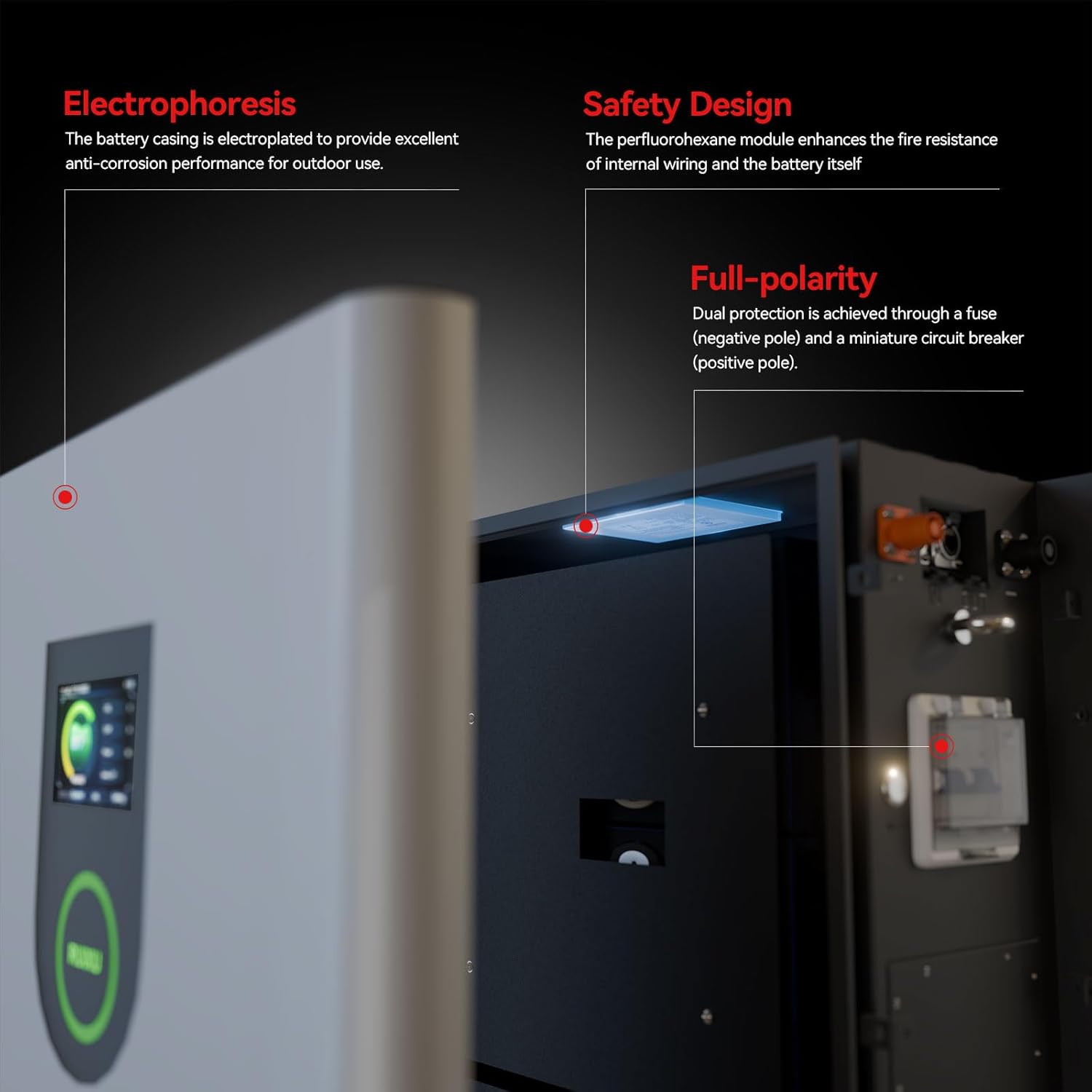

איור 3.4: This image highlights two key aspects: the electro-coating (electrophoresis) on the battery casing for anti-corrosion performance, and the internal safety design, including the perfluorohexane module for fire resistance and full-polarity protection via fuse and circuit breaker.

4. התקנה

Proper setup is crucial for the safe and efficient operation of your Lithi2-16 battery system.

4.1 פריקה ובדיקה

• הוציאו בזהירות את הסוללה מאריזתה.
• Inspect the unit for any visible damage that may have occurred during shipping. Contact your supplier immediately if damage is found.

4.2 מיקום

• The battery can be easily moved using its four concealed heavy-duty FUMA wheels.
• For permanent installation, utilize the anti-tipping mount on the back to securely anchor the battery to a wall.
• Ensure adequate ventilation around the unit to prevent overheating. Avoid direct sunlight and extreme temperatures.

4.3 חיבורי חשמל

• כבל תקשורת RS485: Connect the provided RS485 Communication Cable to your compatible inverter or monitoring system.
• כבל הארקה: Connect the Ground Cable to a suitable and verified ground point.
• חיבורים מקבילים: If multiple units are used, connect them in parallel using the provided set of 1/0 AWG OP140 cables. Refer to the system diagram for correct parallel wiring.
• כבלי חשמל: The quick plugs facilitate easy, tool-less connection for main power cables. Ensure these connections are fully seated and secure.

4.4 הפעלה ראשונית

• Once all physical and electrical connections are complete, follow the instructions displayed on the 5-inch touch screen for initial setup and configuration.
• Ensure all circuit breakers are in the correct position before powering on.

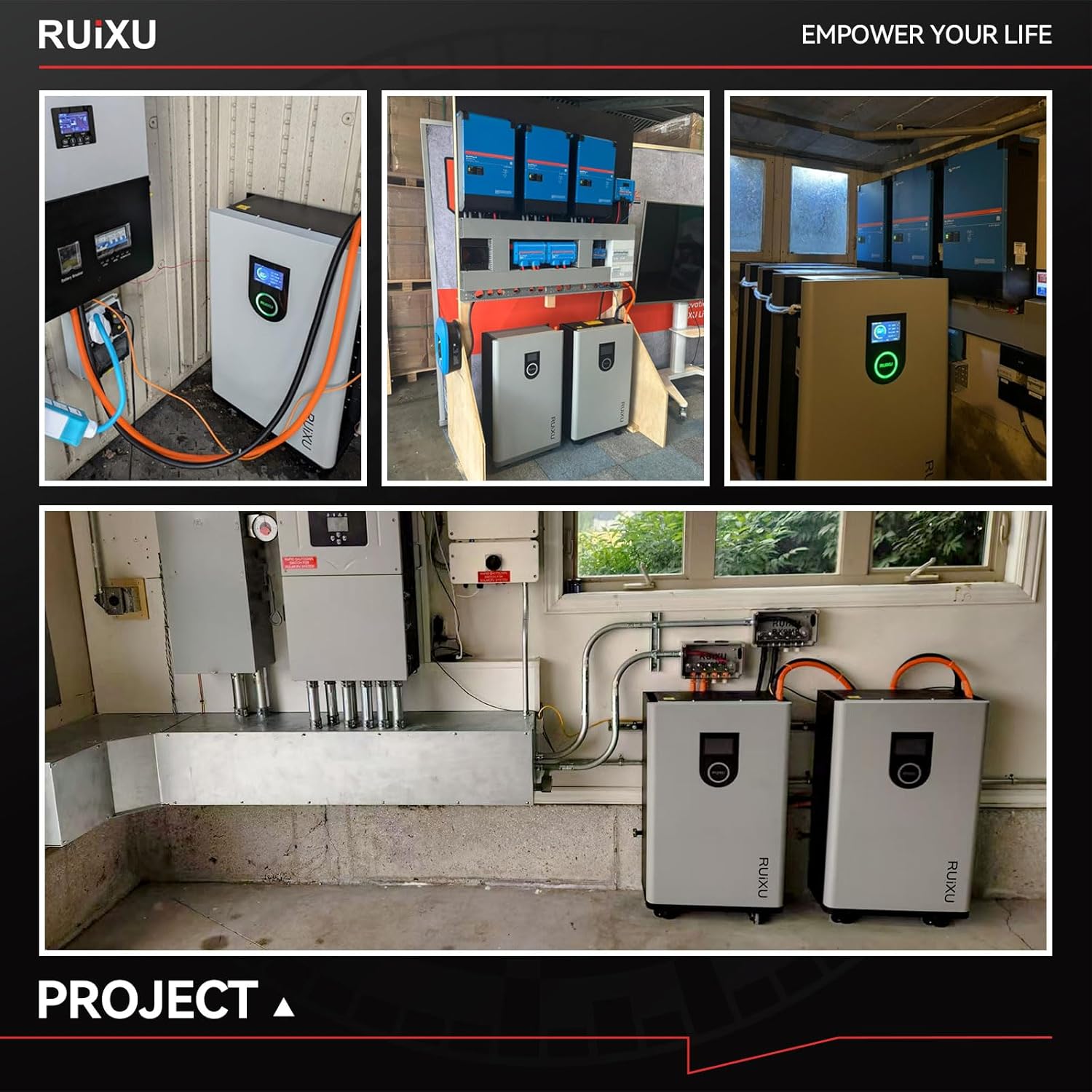

איור 4.1: This image displays several real-world installations of the RUIXU Lithi2-16 battery, demonstrating its versatility in different energy storage projects, including single and multiple unit setups.

5. הוראות הפעלה

This section details how to operate your Lithi2-16 battery system and utilize its intelligent features.

5.1 ממשק מסך מגע

• The 5-inch capacitive touch screen serves as the primary interface for monitoring and controlling the battery.
• It displays critical battery information such as voltage, current, state of charge (SOC), temperature, and cycle count.
• נווט בין תפריטים כדי view detailed data, adjust operational parameters, and check system status.

5.2 פרוטוקולי תקשורת

The Lithi2-16 supports various communication protocols for integration with different inverter brands:

• קנבוס: Compatible with Victron, SMA, Studer Innotec, Sofar, Solark, Solis, Goodwe, Deye, Growatt, SAJ, LUXPOWER, Megarevo, INVT, Sermatec, TBB, MUST, Sunsynk, Schneider.
• RS485: Compatible with MPP, Voltronic, RCT, Alpha Outback.
• Refer to your specific inverter's manual for detailed communication setup procedures and ensure compatibility settings are correctly configured.

5.3 Self-Heating Function

• The battery automatically activates its self-heating feature when internal temperatures drop below 41°F (5°C).
• Heating deactivates once the temperature reaches 53.6°F (12°C), allowing for efficient charging and optimal performance even in cold climates.
• This function ensures the battery operates within its safe temperature range, protecting its lifespan and efficiency.

6. תחזוקה

Regular maintenance helps ensure the longevity and optimal performance of your Lithi2-16 battery system.

6.1 בדיקות שגרתיות

• בדיקה חזותית: בדוק את הסוללה מעת לעתasing for any signs of physical damage, corrosion, or unusual swelling.
• בדיקות חיבור: Ensure all cable connections (power, communication, ground) are secure, clean, and free from corrosion. Loose connections can lead to poor performance or safety hazards.
• אוורור: Verify that ventilation openings are not obstructed and that there is adequate airflow around the battery.

6.2 Inspection Port

• An inspection port located on the side of the battery provides access to the Battery Management System (BMS) and fuse.
• אַזהָרָה: Access to these internal components should only be performed by qualified personnel following RUIXU's service guidelines. Unauthorized access may void your warranty and pose safety risks.

6.3 ניקוי

• Clean the exterior of the battery with a soft, dry cloth.
• Do not use abrasive cleaners, solvents, or harsh chemicals, as these can damage the electro-coating or other components.

7. פתרון תקלות

This section provides guidance for common issues you might encounter. For problems not listed here or if issues persist, please contact RUIXU customer support.

7.1 הסוללה לא נטענת

• בדוק חיבורים: Ensure all power cables between the battery and the charger/inverter are securely connected.
• Inverter/Charger Status: Verify that your inverter or charger is functioning correctly and is configured for Lifepo4 batteries.
• הודעות שגיאה: Check the battery's touch screen for any error messages or fault codes. Consult the manual for specific code meanings.
• טֶמפֶּרָטוּרָה: Ensure the ambient temperature is within the battery's operating range. The self-heating function should activate in cold conditions.

7.2 הסוללה לא מתרוקנת

• חיבור עומס: Verify that the load is properly connected to the inverter and functioning.
• Protective Shutdown: The battery may have entered a protective shutdown state due to low voltage, overcurrent, or high/low temperature. Check the touch screen for indicators.
• סטטוס ממיר: Ensure the inverter is active and requesting power from the battery.

7.3 בעיות תקשורת

• שלמות כבל: Check the RS485 or Canbus communication cable for damage and ensure it is securely connected at both ends.
• Settings Mismatch: Verify that the inverter's communication settings (e.g., baud rate, protocol type) match the battery's requirements.
• Inverter Manual: Consult your inverter's manual for specific troubleshooting steps related to battery communication.

7.4 אזהרות טמפרטורה

• טמפרטורה גבוהה: Ensure adequate ventilation around the battery. Remove any obstructions blocking airflow.
• טמפרטורה נמוכה: Confirm the self-heating function is active if the ambient temperature is below 41°F (5°C). If it's not activating, contact support.

8. מפרטים

The following table outlines the technical specifications for the RUIXU Lithi2-16 Lifepo4 Battery.

9. מידע על אחריות

The RUIXU Lithi2-16 Lifepo4 Battery comes with a אחריות לשנה מתאריך הרכישה. אנא שמור את הוכחת הרכישה שלך עבור כל תביעות האחריות.

This warranty covers defects in materials and workmanship under normal use and service conditions. It does not cover damage resulting from:

• התקנה או חיווט לא נכונים.
• שימוש לרעה, התעללות או רשלנות.
• שינויים או תיקונים לא מורשים.
• Operating the battery outside of its specified environmental or electrical parameters.
• Natural disasters or external forces.

For detailed warranty terms and conditions, please refer to the official RUIXU webאתר או צור קשר עם תמיכת הלקוחות.

10. תמיכה

For technical assistance, warranty claims, or any further inquiries regarding your RUIXU Lithi2-16 Lifepo4 Battery Energy Storage System, please contact RUIXU customer support.

You can typically find contact information, FAQs, and additional resources on the official RUIXU website. Please have your product model and serial number ready when contacting support to expedite assistance.
