Amewi Stingray Speedboat (Model 26108) Instruction Manual

1. מידע בטיחות חשוב

אַזהָרָה: This product is not suitable for children under 3 years due to small parts that could be swallowed, posing a choking hazard.

• Always operate the speedboat in open water areas, away from swimmers, animals, and other watercraft.
• Ensure the operating area is clear of obstacles such as weeds, rocks, or debris that could interfere with the jet drive.
• Do not operate the boat in saltwater, as this can damage internal components.
• Keep fingers and loose clothing away from the jet drive intake and outlet during operation.
• Always remove the battery from the boat and the transmitter when not in use.
• יש לפקח על ילדים במהלך הפעולה.

2. מה בקופסה

אנא בדקו את תוכן החבילה שלכם מול הרשימה שלהלן:

• Amewi Stingray Speedboat Model
• 2.4GHz שלט רחוק
• Li-ion 2S 7.4V 2000mAh 15C Battery
• כבל טעינה USB
• כְּלִי
• עמדת סירות
• מדריך הוראות (מסמך זה)

אביזרים נדרשים (לא כלול): 3 x 1.5V AA batteries for the remote control.

3. מדריך התקנה

3.1. טעינת סוללת הסירה

The included Li-ion 2S 7.4V 2000mAh battery powers the speedboat.

1. Connect the Li-ion battery to the USB charging cable.
2. חברו את כבל הטעינה מסוג USB למקור מתח USB מתאים (למשל, יציאת USB של המחשב, מתאם USB לקיר).
3. מחוון הטעינה בכבל ה-USB יציג את מצב הטעינה (עיין בהתנהגות המחוון הספציפית של המטען).
4. Charging typically takes 90-120 minutes. Do not overcharge the battery.
5. לאחר טעינה מלאה, נתק את הסוללה מהמטען.

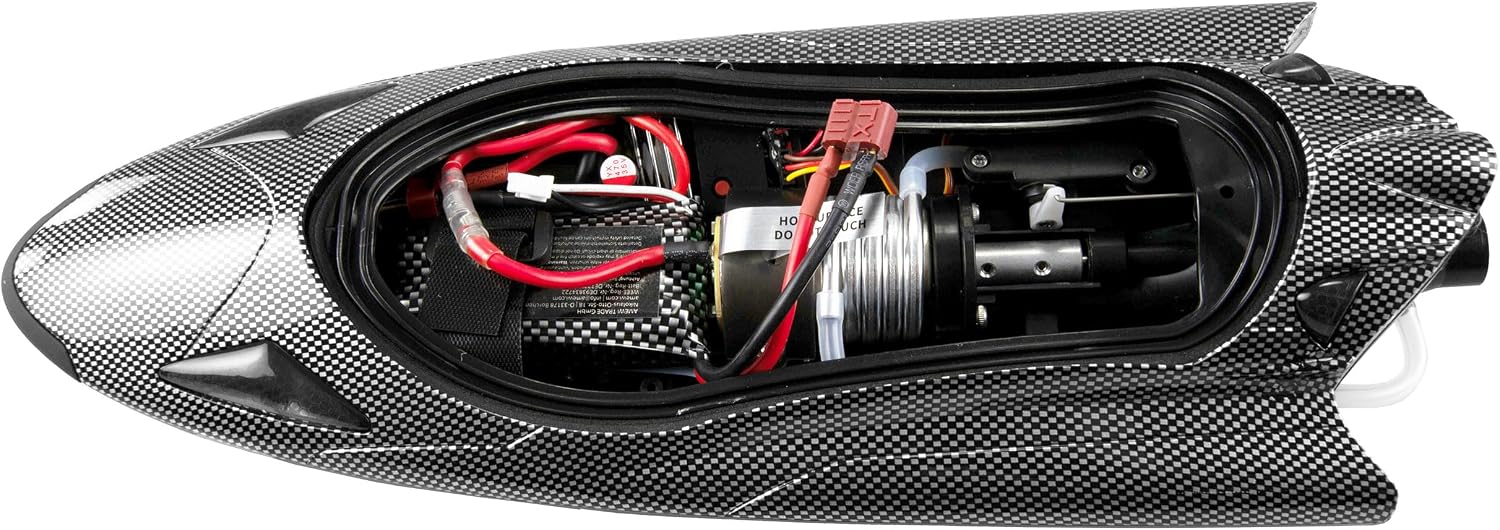

Image: Internal components of the speedboat, including the battery and motor assembly.

3.2. התקנת סוללות המשדר

The 2.4GHz remote control requires 3 x 1.5V AA batteries (not included).

1. פתח את תא הסוללות בגב השלט הרחוק.
2. הכנס 3 סוללות AA, תוך הקפדה על קוטביות נכונה (+/-).
3. סגור היטב את תא הסוללות.

Image: The 2.4GHz remote control for the speedboat.

3.3. Preparing the Speedboat

1. Carefully remove the top hull cover(s) of the speedboat. The boat features a double hull cover for water protection.
2. Connect the fully charged Li-ion battery to the boat's power connector.
3. Carefully place the battery inside the hull, ensuring wires are not pinched.
4. Securely reattach both hull covers to prevent water ingress. Ensure all latches or seals are properly engaged.

תמונה: למעלה view of the speedboat, showing the double hull cover design.

4. הוראות הפעלה

4.1. הפעלה והתאמה

1. Place the speedboat gently into the water. The boat's electronics will activate upon contact with water.
2. Turn on the remote control. The remote control and boat should automatically pair. A successful pairing is usually indicated by a solid light on both devices.
3. אם הצימוד נכשל, כבו את שני המכשירים וחזרו על התהליך.

4.2. בקרות בסיסיות

• הדק מצערת: Pull the trigger to move forward, push to reverse (if applicable). The jet drive provides strong acceleration.
• הגה: Turn the wheel left or right to steer the boat. The thrust vector control allows for high agility and maneuverability.
• התאמות גימור: Use the trim buttons on the remote control to fine-tune steering and throttle for straight running.
• Rash Limitation (Dual Rate): Adjust the sensitivity of the steering and throttle for different driving styles or conditions.

תמונה: אחורי view of the speedboat, highlighting the jet drive mechanism.

4.3. תכונות מתקדמות

• Switchable LED Lighting: The boat features front and rear LED lighting, which can be switched on/off via the transmitter. This is useful for operation at dusk.
• תחתוןtage אזהרה: The 2.4GHz transmitter system includes an undervoltage warning function to prevent the boat battery from being discharged too deeply. Pay attention to audible or visual warnings from the transmitter.
• Range Warning: The transmitter will alert you if the boat is approaching or exceeding its maximum operating range (60-80 meters). Bring the boat closer immediately if this warning activates.
• פונקציית יישור עצמי: In case of a rollover, the boat is designed to self-right, allowing it to continue operation without manual intervention.

The Amewi Stingray Speedboat can reach speeds of up to 40 km/h and offers a driving time of up to 12 minutes on a full charge.

5. תחזוקה

• לאחר כל שימוש:
  • Remove the boat from the water and immediately disconnect the battery.
  • Open the hull covers and carefully drain any accumulated water. Wipe the interior dry with a soft cloth.
  • Inspect the jet drive intake for any debris (weeds, leaves, etc.) and remove them carefully.
  • Clean the exterior of the boat with a damp בַּד. אין להשתמש בכימיקלים קשים.
  • Ensure the water cooling system's inlet and outlet are clear.
• טיפול בסוללה:
  • Store Li-ion batteries in a cool, dry place, away from direct sunlight and extreme temperatures.
  • Do not store batteries fully charged or fully discharged for extended periods. Aim for a storage charge of around 50%.
• Hull Seals: Regularly inspect the rubber seals around the hull covers for any signs of wear or damage. Damaged seals can lead to water ingress.

6. פתרון תקלות

7. מפרטים

8. אחריות ותמיכה

For warranty information, technical support, or replacement parts, please contact your retailer or the manufacturer directly. Keep your proof of purchase for warranty claims.

יצרן: אמווי
