PAL Lighting 500W Multi-Color Dual Zone Remote Control LED Controller PCR-3D-500 User Manual

1. הקדמה

This manual provides essential instructions for the safe installation, operation, and maintenance of your PAL Lighting 500W Multi-Color Dual Zone Remote Control LED Controller, model PCR-3D-500. This unit is designed to power and control multi-color LED lighting systems, typically used in pool and spa environments, offering dual-zone control for enhanced lighting customization. Please read this manual thoroughly before installation and use, and retain it for future reference.

2. מידע בטיחות

• סכנה חשמלית: Installation must be performed by a qualified electrician in accordance with all national and local electrical codes. Ensure power is disconnected at the circuit breaker before any installation or maintenance.
• מים ולחות: The controller unit has an IP65 rating, indicating protection against dust and low-pressure water jets. However, it is not designed for submersion. Ensure the unit is mounted in a location that prevents direct exposure to heavy rain or standing water.
• כרך ידtage תאימות: This unit operates with a supply voltage of 100-240V (50/60Hz) and provides a 24V DC output. Verify that your lighting system is compatible with 24V DC.
• הגנת עומס יתר: Do not exceed the maximum output power of 500 Watts. Overloading the unit can cause damage and create a fire hazard.
• אוורור: Ensure adequate ventilation around the unit to prevent overheating. Do not cover the controller.
• ילדים וחיות מחמד: Keep the unit and its remote control out of reach of children and pets.

3. תכולת החבילה

ודא שכל הפריטים נמצאים ולא ניזוקו בעת הוצאת האריזה מהאריזה:

• PAL Lighting PCR-3D-500 LED Controller Unit
• PAL PCZ-2 Color Touch 2 Zone Remote Control
• מדריך הוראות (מסמך זה)

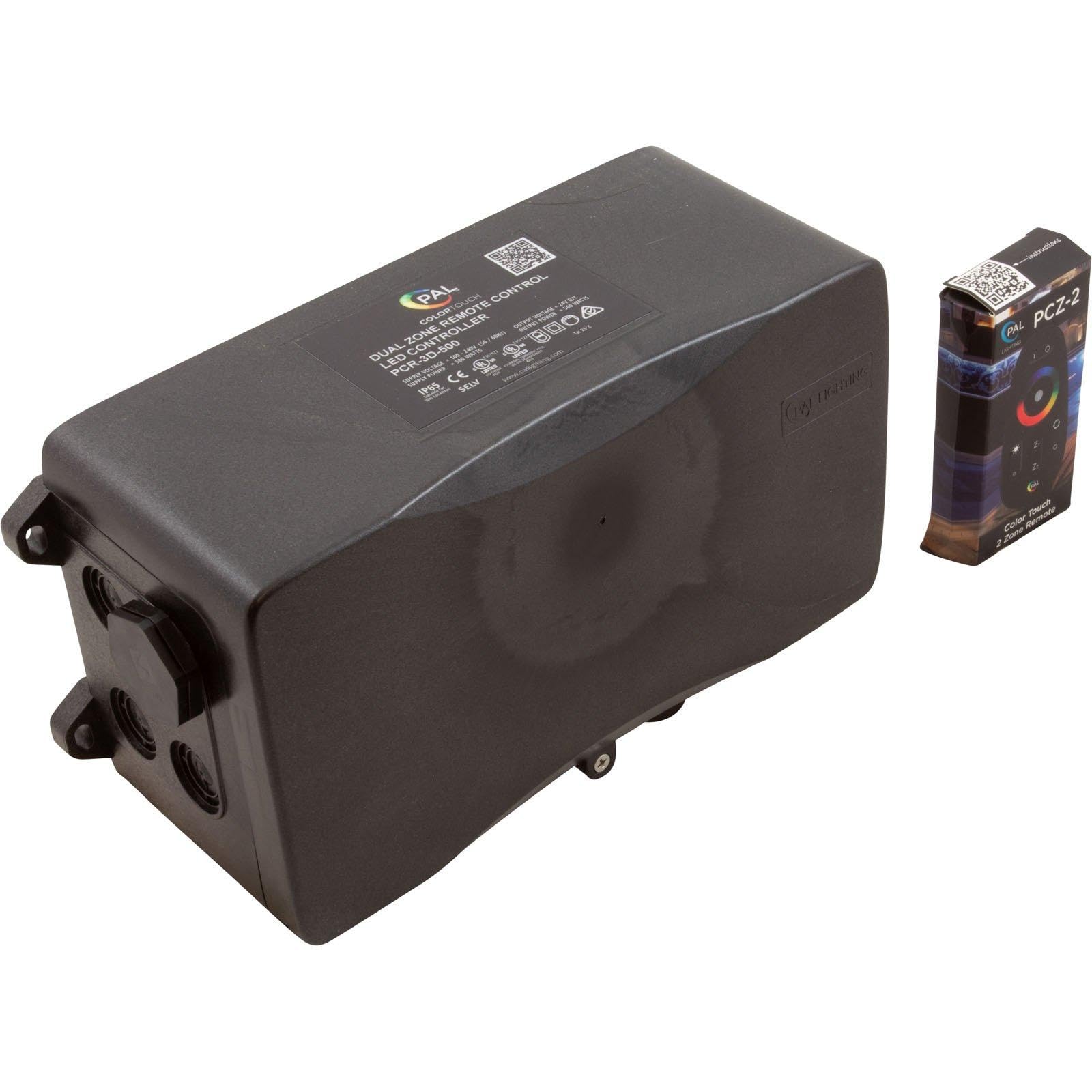

Image 1: The PAL Lighting PCR-3D-500 LED Controller unit (left) and the PAL PCZ-2 Color Touch 2 Zone Remote Control (right). The controller unit is a black rectangular box with connection ports, and the remote is a small, black, rectangular device with a color wheel and buttons.

4. מפרטים

5. התקנה והתקנה

חָשׁוּב: Installation should only be performed by a qualified professional electrician. Ensure all power is disconnected before beginning installation.

1. בחר מיקום הרכבה: Select a suitable wall-mount location that is easily accessible for wiring, protected from direct heavy weather, and allows for adequate ventilation. The IP65 rating provides protection against dust and water jets, but avoid areas prone to submersion or constant heavy water exposure.
2. הרכב את הבקר: Securely mount the PCR-3D-500 unit to a sturdy surface using appropriate fasteners. Ensure the unit is level.
3. חיווט מתח קלט: Connect the main power supply (100-240V AC, 50/60Hz) to the designated input terminals on the controller. Follow local electrical codes for wiring practices, including proper grounding.
4. Output Wiring to Lights: Connect your 24V DC multi-color LED lights to the output terminals of the controller. Ensure correct polarity (+ and -) for all connections. This unit supports dual zones; connect lights for each zone to their respective output terminals. Do not exceed the total 500W output capacity.
5. אמת חיבורים: Double-check all wiring connections for security and correctness before restoring power.
6. החזר כוח: Once all connections are verified and secure, restore power to the circuit.

תמונה 2: תקריב view of the PAL Lighting PCR-3D-500 LED Controller, highlighting the sealed wiring ports on the side, designed for secure electrical connections.

6. הוראות הפעלה

The PAL Lighting PCR-3D-500 LED Controller is operated using the included PAL PCZ-2 Color Touch 2 Zone Remote Control.

6.1 Remote Control Functions (PAL PCZ-2)

• הפעלה/כיבוי: הקש על כּוֹחַ button to turn the connected lights on or off.
• בחירת אזור: השתמש ב- אזור 1 ו אזור 2 buttons to select which lighting zone you wish to control. The selected zone will typically be indicated on the remote.
• בחירת צבע: ה Color Touch Wheel allows you to select a specific color for your lights. Simply touch the desired color on the wheel.
• התאמת בהירות: השתמש ב- הגברת בהירות (+) ו בהירות נמוכה יותר (-) buttons to adjust the intensity of the selected color or lighting mode.
• בחירת מצב: The remote may include buttons for pre-programmed lighting modes (e.g., לִדעוֹך, קְפִיצָה, סטרוב). Refer to the remote's specific instructions for detailed mode descriptions.
• התאמת מהירות: For dynamic lighting modes, לְהַאִיץ ו להאיץ Down buttons may be available to control the transition speed.

Ensure the remote control has fresh batteries and is within operational range of the controller unit for reliable performance.

7. תחזוקה

• ניקוי: Periodically clean the exterior of the controller unit with a soft, damp מטלית. אין להשתמש בחומרי ניקוי שוחקים או ממסים. יש לוודא שהיחידה כבויה לפני הניקוי.
• בְּדִיקָה: Regularly inspect the wiring connections for any signs of wear, corrosion, or damage. Ensure all connections remain secure.
• אוורור: Keep the area around the controller clear of obstructions to ensure proper airflow and prevent overheating.
• סוללות שלט רחוק: Replace the remote control batteries when performance degrades or it stops responding. Refer to the remote's specific instructions for battery type and replacement procedure.

8. פתרון תקלות

If troubleshooting steps do not resolve the issue, contact PAL Lighting customer support.

9. אחריות ותמיכה

This product is manufactured by PAL Lighting LLC. For warranty information, technical support, or service inquiries, please contact PAL Lighting directly.

יַצרָן: PAL Lighting LLC

Webאֲתַר: www.palighting.com

Please have your model number (PCR-3D-500) and purchase date available when contacting support.
