YGiTK Digital Inclinometer KTY006 User Manual

1. הקדמה

The YGiTK Digital Inclinometer KTY006 is a versatile angle measurement device designed for precision tasks in woodworking, construction, decoration, and DIY projects. This manual provides comprehensive instructions for the safe and effective use of your inclinometer, ensuring accurate measurements and optimal performance.

Image 1.1: The YGiTK Digital Inclinometer KTY006, showcasing its compact design, laser lines, and included carrying bag.

2. המוצר נגמרview

2.1. תכולת החבילה

לאחר פתיחת הקופסה, אנא ודא שכל הפריטים המפורטים להלן נמצאים ובמצב תקין:

• 1 x YGiTK Digital Inclinometer KTY006
• 1 x כבל טעינה מסוג C
• 1 x תיק נשיאה
• 1 x מדריך למשתמש

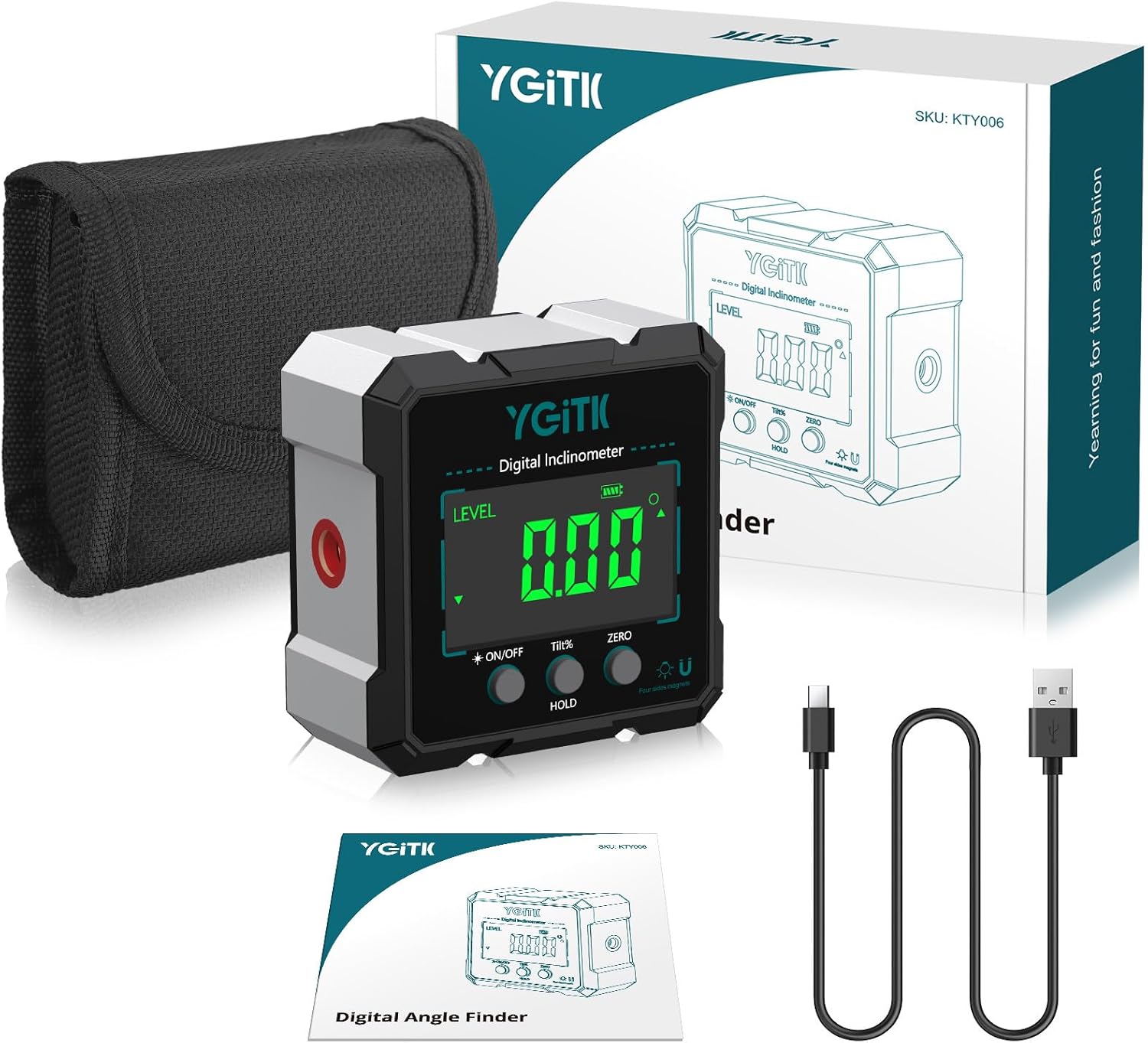

Image 2.1: The complete package contents of the YGiTK Digital Inclinometer KTY006, including the device, charging cable, carrying bag, and user manual.

2.2. תכונות עיקריות

• מדידה מדויקת: Measuring range of 4 x 90° with an accuracy of ±0.1° at 0° and 90°, and ±0.2° for other angles. Resolution of 0.05°.
• Dual Laser Function: Emits horizontal laser lines for clear marking and can be used as a laser level. Laser class 2 (IEC/EN 60825-1/2014).
• תצוגת LCD: Equipped with an LED-backlit display for clear readings in various lighting conditions.
• סוללה נטענת: Built-in 340mAh rechargeable battery with Type-C charging, providing up to 7 hours of continuous use.
• בסיס מגנטי: Features 4 built-in magnets on the left, right, bottom, and back for secure attachment to metal surfaces.
• עמידות במים: מדורג IP54 להגנה מפני אבק ומים מתזים.

Image 2.2: A detailed diagram illustrating the dimensions and key features of the YGiTK Digital Inclinometer KTY006.

3. התקנה

3.1. טעינה ראשונית

Before first use, fully charge the inclinometer. Connect the provided Type-C charging cable to the device's charging port and a compatible USB power source (e.g., PC, laptop, USB charger). A full charge takes approximately 2.5 hours.

Image 3.1: The YGiTK Digital Inclinometer KTY006 being charged via its Type-C port.

3.2. הפעלה/כיבוי

הקש על הפעלה/כיבוי button to power the device on or off. The LCD will illuminate upon activation.

4. הוראות הפעלה

4.1. Basic Angle Measurement

1. Place the inclinometer on the surface you wish to measure.
2. The LCD will display the current angle relative to the horizontal plane.

4.2. אפס כיול

To set a relative zero point:

1. Place the inclinometer on the desired reference surface.
2. הקש על אֶפֶס button. The display will show 0.00°, indicating that this surface is now the reference for subsequent measurements.

4.3. פונקציית החזק

הקש על לְהַחזִיק כדי להקפיא את המדידה הנוכחית על הצג. לחץ עליו שוב כדי לשחרר את הלחיצה ולחדש את המדידה בזמן אמת.

4.4. Unit Conversion (Tilt%)

הקש על HOLD/Tilt% button to switch between angle (degrees) and slope (percentage) display modes.

4.5. Laser Function

To activate the dual laser lines, press the הפעלה/כיבוי button briefly after the device is powered on. The laser lines will project horizontally from the sides of the device. Press the הפעלה/כיבוי button again to turn off the lasers.

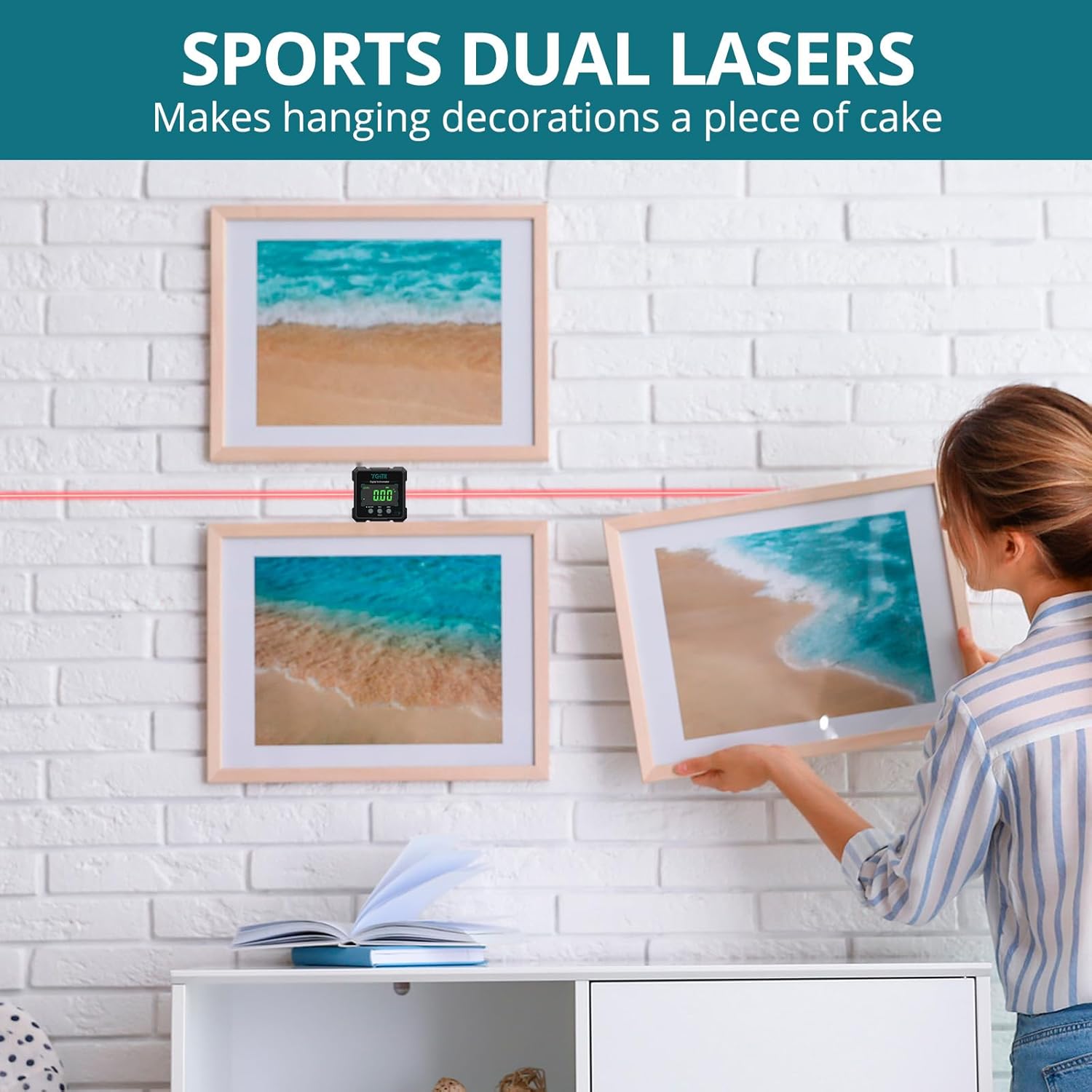

Image 4.1: The inclinometer utilizing its dual laser function to assist in aligning objects, such as picture frames.

4.6. חיבור מגנטי

The inclinometer features strong magnets on four sides, allowing it to be securely attached to ferrous metal surfaces for hands-free operation. This is particularly useful for tasks involving miter saws, band saws, or table saws.

Image 4.2: The inclinometer demonstrating its magnetic attachment capability on a window frame, showing measurements at different angles.

4.7. צג LCD מעלview

The LCD provides clear visual feedback on measurements, battery status, and mode indicators.

Image 4.3: An illustration of the LCD display and button functions on the YGiTK Digital Inclinometer KTY006.

5. תחזוקה

5.1. ניקיון

נגב את המכשיר עם רך, דamp מטלית. אין להשתמש בחומרי ניקוי שוחקים או ממסים. יש לוודא שהמכשיר יבש לפני האחסון.

5.2. אחסון

Store the inclinometer in its carrying bag in a cool, dry place away from direct sunlight and extreme temperatures. Remove the device from the carrying bag if it is accidentally powered on to prevent battery drain.

5.3. טיפול בסוללה

To prolong battery life, avoid fully discharging the battery frequently. Recharge the device regularly, especially if it has not been used for an extended period.

6. פתרון תקלות

6.1. "Err" Display

If the display shows "Err", it indicates that the device is positioned at an angle greater than 30 degrees from its intended measurement plane, or it is not stable. Ensure the inclinometer is placed firmly on a stable surface within its operational range.

Image 6.1: Visual guide for correct and incorrect measuring positions, explaining the "Err" display.

6.2. Dim Laser

If the laser appears dim, ensure the battery is fully charged. In very bright environments, the laser lines may be less visible. Consider using the device in a shaded area or adjusting ambient lighting.

6.3. קריאות לא מדויקות

If readings appear inaccurate, perform a zero calibration on a known level surface. Ensure the device is clean and free from debris that might interfere with its placement.

7. מפרטים

8. מידע בטיחות

• אל תבהה ישירות לתוך קרן הלייזר.
• הימנעו מלכוון את קרן הלייזר לעבר אנשים או בעלי חיים.
• Do not disassemble or modify the device. Unauthorized modifications may result in injury or damage to the product.
• הרחק את המכשיר מהישג ידם של ילדים.
• Use the device only for its intended purpose as an angle measurement tool.

9. אחריות ותמיכה

Information regarding product warranty and customer support was not provided in the source data. Please refer to the product packaging or the retailer's website for details on warranty coverage and how to contact customer support for your YGiTK Digital Inclinometer KTY006.
