MEADE EQM-127N Reflecting Telescope Instruction Manual

1. מבוא ומעלהview

The MEADE EQM-127N is an entry-level reflecting telescope designed for astronomical observation. Manufactured by Meade, an American company specializing in celestial products, this telescope features a large 127mm aperture reflecting optical tube, an equatorial mount, and a stable steel tripod. It is well-suited for observing a variety of celestial objects, including the Moon's craters, Jupiter's Galilean moons, Saturn's rings, and distant nebulae and star clusters.

This comprehensive set includes all necessary accessories, such as multiple eyepieces and a Barlow lens, allowing for immediate use upon purchase. Additionally, it comes with a Kenko Telescope Case SEB-02, enhancing portability for outdoor observations.

2. רכיבי המוצר

The MEADE EQM-127N telescope set includes the following components:

• Telescope Optical Tube: 127mm aperture reflecting type.
• Equatorial Mount: For tracking celestial objects.

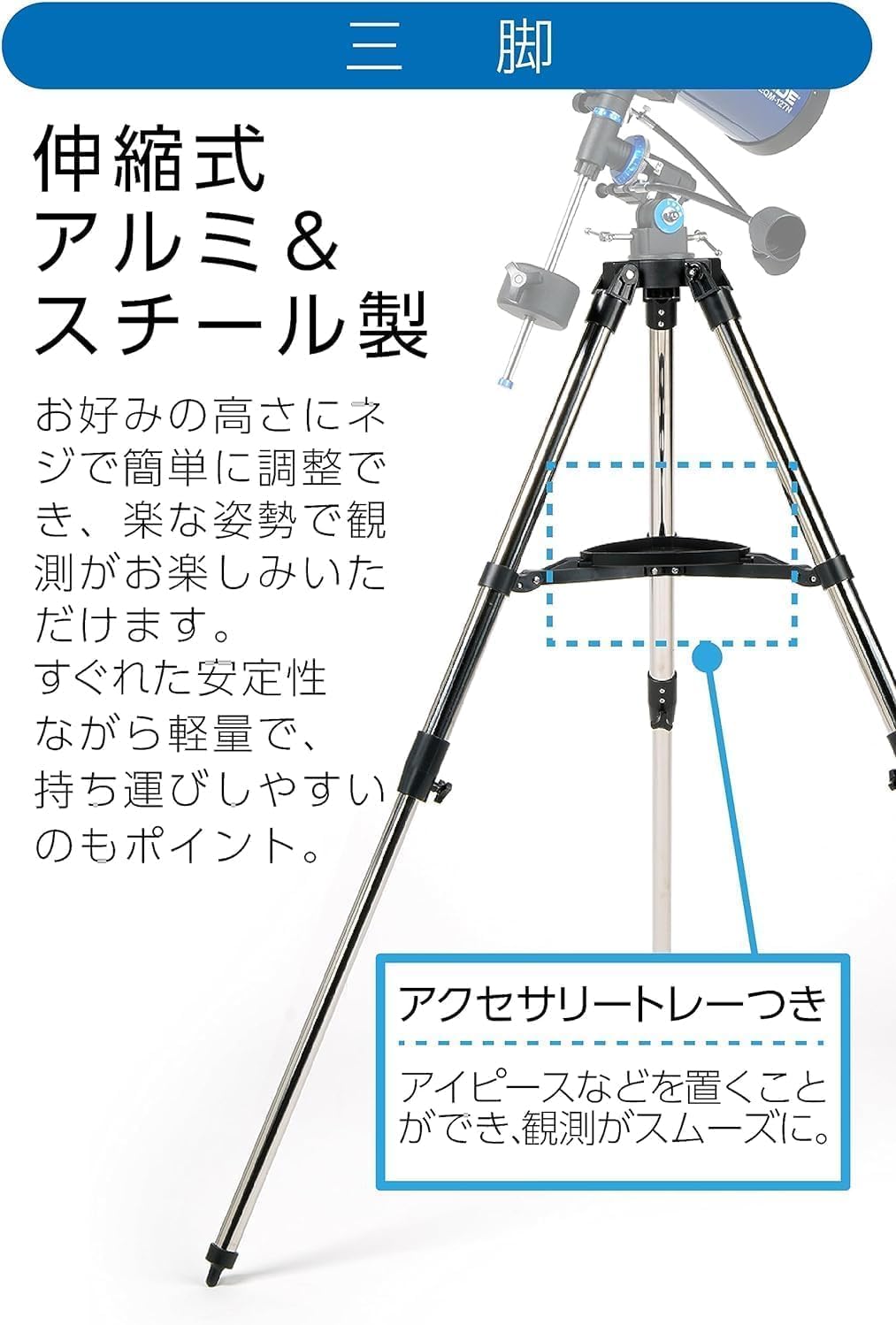

• Steel Tripod: Adjustable height for stability.
• Eyepieces (3x): 26mm, 20mm, and 9mm (American size).
• 2x Barlow Lens: Doubles the magnification of any eyepiece.
• Erecting Prism: לקרקע viewing.
• 5x24 Optical Finder Scope: Assists in locating objects.
• מדריך הוראות: המסמך הזה.
• כרטיס אחריות: Provides warranty details.
• Carrying Case (Kenko SEB-02): For transport and storage of the telescope and accessories.

3. הוראות התקנה

Follow these steps to assemble your MEADE EQM-127N telescope:

1. הרכיבו את החצובה: Extend the legs of the steel tripod to your desired height and secure them using the locking screws. Ensure the tripod is stable on a level surface.
2. חבר את תושבת המשווה: Securely attach the equatorial mount to the top of the tripod. The mount allows for precise tracking of celestial objects.
3. הרכב את הצינור האופטי: Carefully place the 127mm reflecting optical tube onto the equatorial mount. Ensure it is balanced and securely fastened to prevent accidental movement.
4. התקן את טווח החיפוש: Attach the 5x24 optical finder scope to its designated bracket on the optical tube. This will aid in locating objects before viewדרך הטלסקופ הראשי.
5. הכנסת עינית: Choose an eyepiece (e.g., the 26mm eyepiece for lowest magnification) and insert it into the focuser. Secure it with the thumbscrew.
6. Initial Alignment (Polar Alignment): For optimal tracking with the equatorial mount, it is recommended to perform a basic polar alignment. This involves aligning the mount's polar axis with the celestial pole (e.g., Polaris in the Northern Hemisphere). Refer to detailed astronomical guides for precise polar alignment procedures.

4. הוראות הפעלה

Operating your MEADE EQM-127N telescope involves several key steps to ensure clear and enjoyable observations.

4.1 Locating Celestial Objects

• שימוש בטווח Finder: The 5x24 optical finder scope provides a wide, low-magnification view of the sky. Look through the finder scope to locate your desired celestial object. Once centered in the finder scope, it should be visible in the main telescope's eyepiece.
• יישור היקף ה-Finder: Before your first observation, align the finder scope with the main telescope. Point the main telescope at a distant terrestrial object during daylight. Center the object in the main telescope's lowest power eyepiece, then adjust the finder scope's alignment screws until the same object is centered in the finder scope's crosshairs.

4.2 Adjusting Focus and Magnification

• התמקדות: ברגע שאובייקט נמצא בפנים view, use the focuser knob to achieve a sharp image. Turn the knob slowly until the object appears clear and distinct.
• Changing Eyepieces: Start with the lowest magnification eyepiece (26mm) to easily locate and center objects. Once centered, you can switch to higher magnification eyepieces (20mm, 9mm) for more detailed views.
• Using the 2x Barlow Lens: The included 2x Barlow lens doubles the magnification of any eyepiece. Insert the Barlow lens into the focuser first, then insert your chosen eyepiece into the Barlow lens. This allows for higher magnifications, but note that higher magnifications can make the image appear dimmer and more susceptible to atmospheric conditions.

Magnification Chart:

4.3 Tracking Celestial Objects with the Equatorial Mount

The equatorial mount is designed to compensate for the Earth's rotation, allowing you to keep celestial objects centered in your eyepiece with minimal adjustments. Once the mount is polar-aligned and an object is centered, you only need to turn one slow-motion control knob (the Right Ascension axis) to track the object as it moves across the sky. This is particularly useful for extended observation sessions.

5. תחזוקה

Proper maintenance ensures the longevity and optimal performance of your telescope.

• ניקוי עדשות: Use a soft, lint-free cloth specifically designed for optical surfaces to gently wipe dust from eyepieces and the objective lens. For stubborn smudges, use a specialized optical cleaning solution. Avoid touching optical surfaces with bare hands.
• ניקוי גוף הטלסקופ: נגבו את החלק החיצוני של צינור הטלסקופ והרכיבו אותו בעזרת מטלית רכהamp בַּד. הימנע משימוש בכימיקלים קשים.
• אִחסוּן: When not in use, store the telescope in a dry, dust-free environment. The included Kenko Telescope Case SEB-02 is ideal for protecting the telescope from dust and physical damage during storage and transport.
• הימנע מטמפרטורות קיצוניות: Do not expose the telescope to extreme temperatures or sudden temperature changes, as this can affect optical components.

6. פתרון תקלות

אם נתקלתם בבעיות עם הטלסקופ שלכם, עיינו בבעיות הנפוצות ובפתרונות הבאות:

• התמונה מטושטשת או לא בפוקוס:
  • Ensure you are using the focuser knob to adjust for a sharp image.
  • Check that the eyepiece is fully inserted and secured.
  • Atmospheric conditions (e.g., heat haze) can cause blurring; try observing on a clearer night.
• Cannot find celestial objects:
  • Verify that the finder scope is properly aligned with the main telescope.
  • התחל עם העינית בעלת ההגדלה הנמוכה ביותר (26 מ"מ) לקבלת שדה ראייה רחב יותר. view.
  • Ensure you are observing from a dark location away from light pollution.
• חפצים נסחפים החוצה view בִּמְהִירוּת:
  • Confirm that the equatorial mount has been adequately polar-aligned. Even a rough alignment will significantly improve tracking.
  • Ensure the slow-motion controls are engaged and being used correctly to track the object along the Right Ascension axis.
• Image appears too dark at high magnification:
  • This is normal for higher magnifications, as light is spread over a larger area.
  • Use higher magnifications only when atmospheric conditions are stable and for brighter objects like the Moon and planets.
  • Return to a lower magnification eyepiece for fainter objects like nebulae and star clusters.

7. מפרטים

Detailed technical specifications for the MEADE EQM-127N telescope:

8. אחריות ותמיכה

Your MEADE EQM-127N telescope is covered by a אחריות יצרן לשנה מתאריך הרכישה. אחריות זו מכסה פגמים בחומרים ובעבודה בשימוש רגיל.

For warranty claims, technical support, or any questions regarding the operation or maintenance of your telescope, please refer to the contact information provided on the included warranty card or the official Meade webאתר. אנא שמור את הוכחת הרכישה שלך לצורך אימות האחריות.
