מדריך למשתמש של מנוף שרשרת ידני VEVOR (1.5 טון, 10 רגל)

1. מבוא ומידע בטיחות

1.1 נגמר המוצרview

The VEVOR Manual Lever Chain Hoist is a robust and portable lifting device designed for various material handling tasks. It features a 1.5-ton (3300 lbs) lifting capacity and a 10-foot chain, constructed from G80 galvanized carbon steel for durability and corrosion resistance. The hoist incorporates a Weston style double-pawl brake system for enhanced safety and precise load control, along with a 360-degree rotating hook and an auto chain leading device to prevent jamming.

Image 1.1: The VEVOR Manual Lever Chain Hoist, showcasinהעיצוב הקומפקטי והמבנה החזק שלו.

1.2 אזהרות בטיחות כלליות

• קרא את המדריך: Always read and understand this entire manual before operating the hoist.
• קיבולת מדורגת: Never exceed the rated lifting capacity of 3300 lbs (1.5 tons). Overloading can cause severe injury or equipment damage.
• בְּדִיקָה: Inspect the hoist, chain, hooks, and brake system before each use. Do not use if any damage or wear is observed.
• קובץ מצורף מאובטח: Ensure the hoist is securely attached to a suitable anchor point capable of supporting the load plus the hoist's weight.
• יציבות עומס: Always ensure the load is balanced and stable before lifting. Avoid swinging loads.
• בטיחות כוח אדם: Keep hands, feet, and body clear of the chain and load during operation. Never stand under a suspended load.
• תנאים סביבתיים: Use the hoist in well-lit areas. Avoid using in corrosive, explosive, or extremely dusty environments.
• שינויים לא מורשים: Do not modify the hoist or its components. Use only genuine VEVOR replacement parts.
• אִחסוּן: Store the hoist in a clean, dry place when not in use.

2. רכיבי המוצר

The VEVOR Manual Lever Chain Hoist consists of several key components:

• וו עליון: For attaching the hoist to an anchor point. Features a safety latch.
• שרשרת עומס: G80 galvanized manganese steel chain for lifting the load.
• Bottom Hook: For attaching to the load. Features a 360-degree rotation and safety latch.
• ידית הפעלה: Used to manually lift or lower the load.
• Direction Selector: A switch or lever to select lifting, lowering, or neutral (free chain) mode.
• מערכת בלמים: Internal Weston style double-pawl brake for secure load holding.
• Chain Leading Device: Guides the chain smoothly to prevent jamming.

תמונה 2.1: מפורט view of the Weston style double-pawl brake system, ensuring stable and secure operation.

Image 2.2: The 360-degree rotating hook with a locking buckle design for stable and secured operation.

3. התקנה והתקנה

3.1 בדיקה לפני הפעלה

לפני כל שימוש, בצע את הבדיקות הבאות:

• Verify that the hoist's rated capacity meets or exceeds the load to be lifted.
• Inspect the load chain for kinks, twists, wear, corrosion, or damage. Replace if necessary.
• Check both the top and bottom hooks for deformation, cracks, or excessive wear. Ensure safety latches operate freely and close properly.
• Test the brake system by applying a small load and checking if it holds securely.
• Ensure the operating lever and direction selector move freely and engage positively.

3.2 הרכבת המנוף

Attach the top hook of the hoist to a secure, overhead anchor point. This anchor point must be structurally sound and rated to support at least the maximum intended load plus the weight of the hoist. Ensure the safety latch on the top hook is fully closed and engaged.

4. הוראות הפעלה

4.1 Lifting Loads

1. Set the direction selector to the 'UP' position (usually indicated by an arrow pointing upwards).
2. Attach the bottom hook securely to the load. Ensure the safety latch is closed.
3. Operate the lever with smooth, steady strokes. The load will begin to lift.
4. Monitor the load's stability throughout the lift. Avoid sudden movements.
5. To stop lifting, simply release the operating lever. The brake system will automatically hold the load in position.

4.2 Lowering Loads

1. Set the direction selector to the 'DOWN' position (usually indicated by an arrow pointing downwards).
2. Operate the lever with smooth, controlled strokes. The load will begin to lower.
3. Control the lowering speed by the rate and force applied to the lever.
4. To stop lowering, release the operating lever. The brake system will hold the load.

4.3 Free Chain Operation

For quick adjustment of the unloaded chain length, the hoist features a free chain mode:

1. Ensure there is absolutely אין עומס on the hoist. Attempting free chain operation with a load can cause serious injury or damage.
2. Set the direction selector to the 'NEUTRAL' or 'FREE' position.
3. Pull the load chain manually to adjust its length. The auto chain leading device will guide the chain smoothly.
4. Once the desired length is achieved, return the direction selector to the 'UP' or 'DOWN' position before applying any load.

Image 4.1: The auto chain leading design ensures smooth chain movement and prevents jamming during operation.

5. תחזוקה

Regular maintenance is crucial for the safe and efficient operation of your VEVOR Lever Chain Hoist.

5.1 בדיקה סדירה

• Perform a visual inspection before each use, as detailed in Section 3.1.
• Conduct a thorough inspection monthly or after heavy use, checking for wear on gears, pawls, and other internal mechanisms. If unsure, consult a qualified technician.

5.2 שימון

• Keep the load chain lightly lubricated with a suitable chain lubricant to prevent rust and reduce wear.
• Periodically lubricate internal moving parts (gears, pawls, shafts) with high-quality grease. Refer to a service manual or qualified technician for detailed lubrication points.

5.3 ניקוי ואחסון

• Clean the hoist regularly to remove dirt, dust, and debris. A closed housing design helps protect internal components.
• Store the hoist in a dry, clean environment, away from corrosive chemicals or extreme temperatures.

6. פתרון תקלות

This section addresses common issues you might encounter with your lever chain hoist.

If you encounter problems not listed here or if solutions do not resolve the issue, contact VEVOR customer support or a qualified service technician.

7. מפרטים

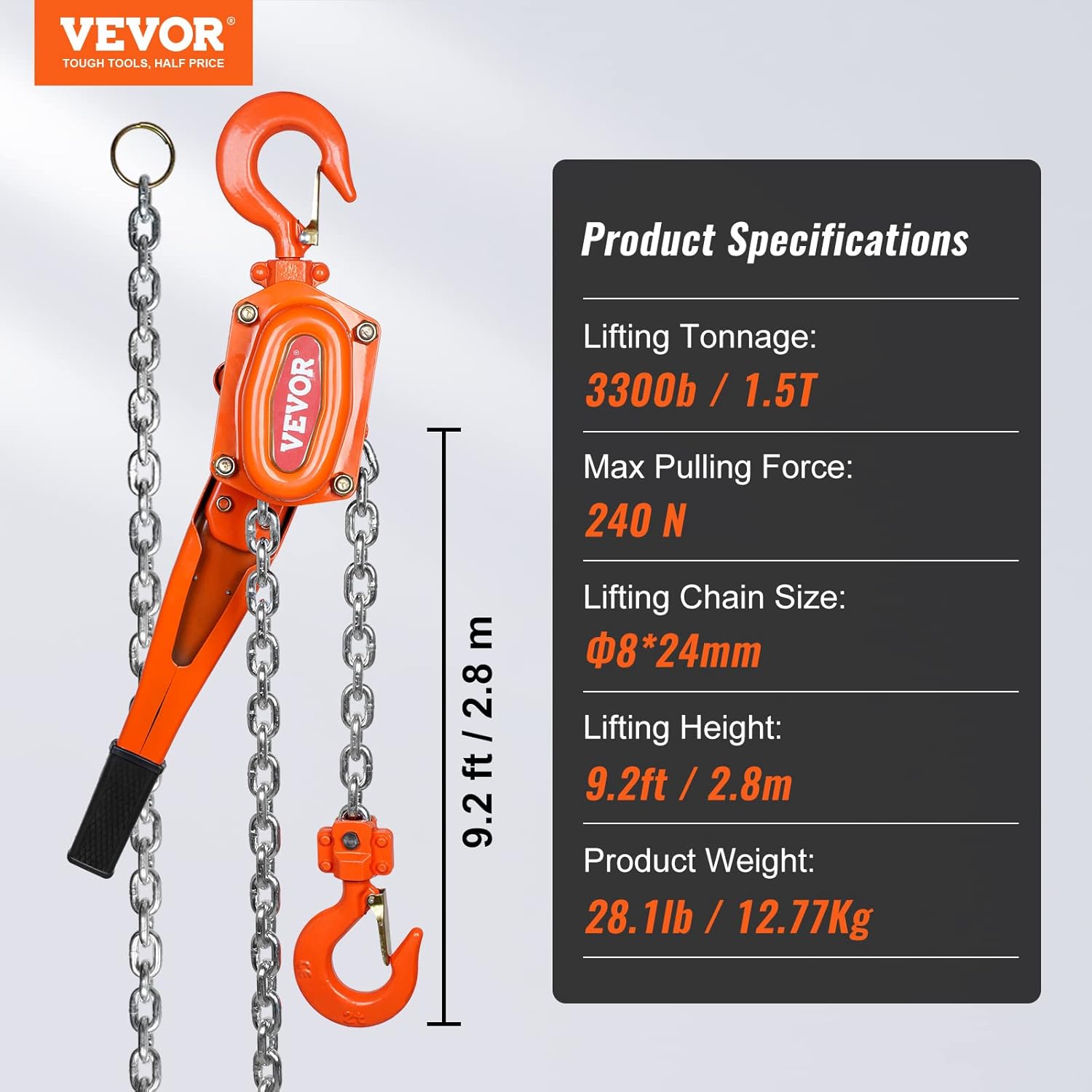

Image 7.1: Visual representation of key product specifications, including lifting tonnage and dimensions.

8. אחריות ותמיכה

מוצרי VEVOR מתוכננים לעמידות וביצועים. לפרטים ספציפיים על האחריות, אנא עיינו בכרטיס האחריות המצורף למוצר שלכם או בקרו באתר הרשמי של VEVOR. website. If you have any questions, require technical assistance, or need to report an issue, please contact VEVOR customer support through their official channels.

מידע ליצירת קשר: Refer to the contact details provided in your product packaging or on the official VEVOR webאֲתַר.
