ITOTIN ITT-S16I

ITOTIN Wireless Lavalier Microphone (ITT-S16I) User Manual

1. הקדמה

Thank you for choosing the ITOTIN Wireless Lavalier Microphone system. This compact and versatile microphone system (Model ITT-S16I) is designed for high-quality audio recording, live streaming, interviews, vlogging, and other content creation. It features intelligent noise reduction, a long working time, and a simple plug-and-play setup for seamless integration with compatible devices.

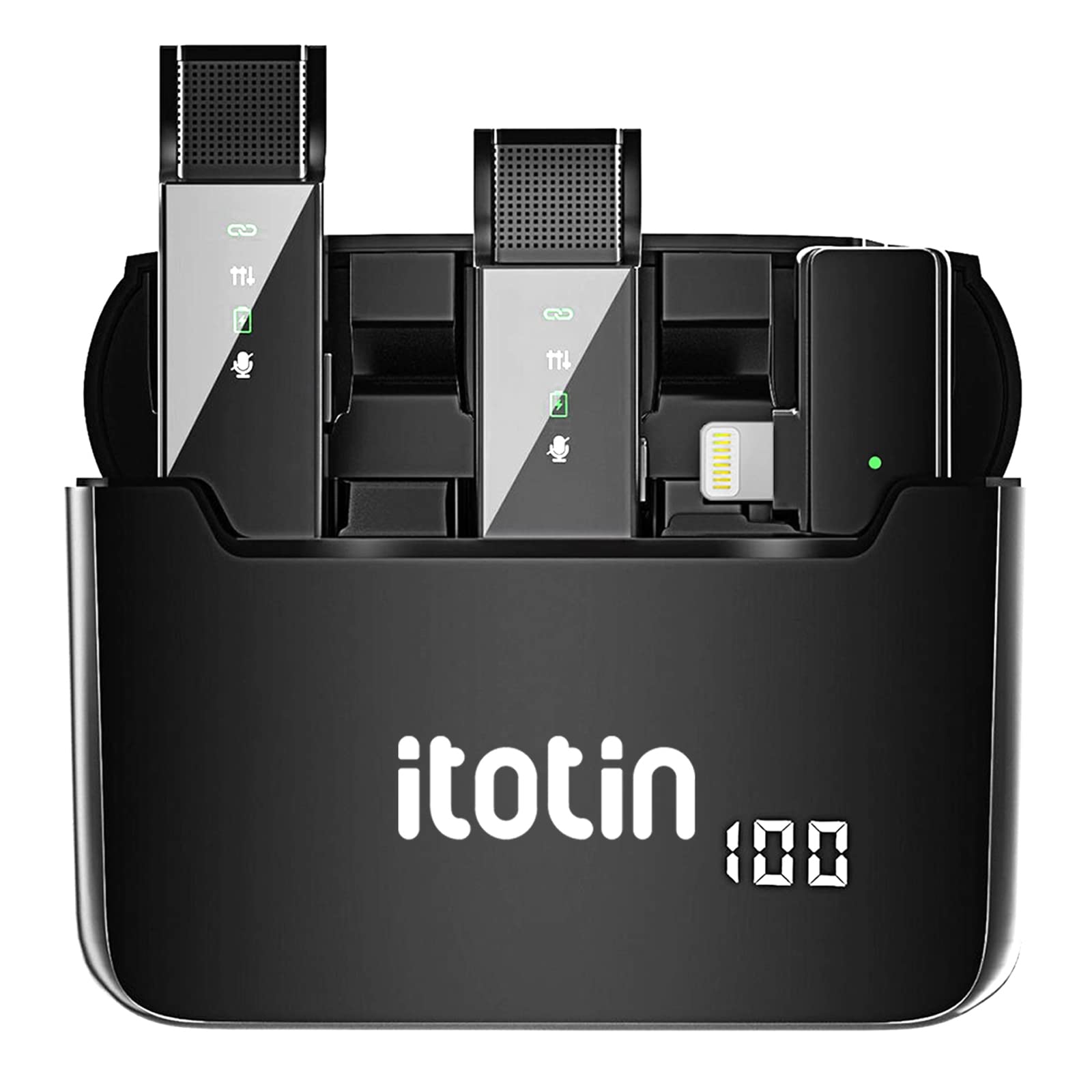

ITOTIN Wireless Lavalier Microphone system with charging case, two transmitters, and one receiver.

Figure 1: ITOTIN Wireless Lavalier Microphone System (ITT-S16I)

2. תכולת החבילה

אנא בדקו את תוכן האריזה בעת פתיחת הקופסה כדי לוודא שכל הרכיבים נמצאים:

  • 2 x Wireless Lavalier Microphone Transmitters (TX)
  • 1 x Wireless Receiver (RX)
  • 1 x נרתיק טעינה נייד
  • 1 x מדריך למשתמש
  • 1 x כבל טעינה (USB)
Contents of the ITOTIN Wireless Lavalier Microphone package, showing the charging case, two transmitters, and one receiver.

איור 2: תכולת החבילה מעלview

3. תכונות מוצר

The ITOTIN Wireless Lavalier Microphone system offers several key features to enhance your audio recording experience:

  • הפחתת רעש חכמה: Built-in DSP noise reduction chip for clear and clean voice capture.
  • חיי סוללה מורחבים: עד 6 שעות של הקלטה רציפה בטעינה אחת.
  • פעולה של "חבר והפעל": No pairing or additional apps required for quick setup.
  • 360° Sound Reception: Omnidirectional pickup pattern for comprehensive audio capture.
  • שידור אלחוטי 2.4G: קישוריות אלחוטית יציבה ואמינה.
  • מקרה טעינה נייד: Provides convenient storage and multiple recharges for on-the-go use.
Graphic illustrating key features of the ITOTIN Wireless Lavalier Microphone, including dual display, long range, clear radio reception, professional monitoring, DSP reverb effect, intelligent noise reduction, 2.4G band transmission, lightweight design, and compatibility with multiple devices.

איור 3: מאפייני מוצר עיקריים

Diagram showing sound waves before and after noise reduction, highlighting the effectiveness of the dual microphone active noise reduction feature.

Figure 4: Intelligent Noise Reduction in Action

Image showing the charging case with microphones and a battery icon indicating 6 hours of working time.

Figure 5: 6 Hours Working Time

4. מדריך התקנה

The ITOTIN Wireless Lavalier Microphone system is designed for quick and easy setup. Follow these steps to begin recording:

  1. טעינת המכשירים: Ensure both the transmitters and the receiver are fully charged using the provided charging case and USB cable. The charging case itself should also be charged.
  2. חבר את המקלט: Plug the receiver into the charging port of your smartphone or compatible device. The receiver will automatically power on.
  3. משדרי הפעלה: Take the microphone transmitters out of the charging case. They will automatically power on and attempt to pair with the receiver. A green indicator light on both the transmitter and receiver will confirm a successful connection.
  4. חבר מיקרופון: Clip the lavalier microphone transmitter to your clothing, ensuring it is positioned close to your mouth for optimal sound capture.
Two-step setup guide for the wireless lavalier microphone. Step 1 shows plugging the receiver into a smartphone. Step 2 shows pressing the microphone switch to turn it on.

Figure 6: Plug & Play Setup Steps

5. הוראות הפעלה

Once set up, operating the ITOTIN Wireless Lavalier Microphone is straightforward:

5.1 הפעלה/כיבוי

  • משדרים: Automatically power on when removed from the charging case. Press and hold the power button to manually turn off or on.
  • מַקְלֵט: Automatically powers on when plugged into a device. Unplug to power off.

5.2 הקלטה

Open your preferred recording application (e.g., camera app, voice recorder, live streaming app) on your smartphone. The system will automatically be recognized as the audio input source. Begin recording as usual.

5.3 הפחתת רעש

The intelligent noise reduction feature is active by default. For optimal performance, ensure the microphone is positioned correctly and avoid direct exposure to strong wind or excessive background noise.

5.4 תרחישי שימוש

This microphone system is suitable for various applications:

  • הקלטת וידאו
  • סטרימינג בשידור חי
  • בֵּיןviews
  • בלוגים
  • קורסים מקוונים
  • פודקאסטים
Three images showing the wireless lavalier microphone being used in different scenarios: a woman recording a podcast, people in a meeting, and a man vlogging outdoors.

Figure 7: Multi-scene Application Examples

סרטון 1: נגמרview and demonstration of the ITOTIN Wireless Lavalier Microphone system, showing its components, setup, and use in various recording environments.

6. תחזוקה

To ensure the longevity and optimal performance of your ITOTIN Wireless Lavalier Microphone, follow these maintenance guidelines:

  • ניקוי: Use a soft, dry cloth to clean the microphone transmitters, receiver, and charging case. Avoid using liquid cleaners or abrasive materials.
  • אִחסוּן: Store the system in its charging case when not in use to protect it from dust and physical damage. Keep it in a cool, dry place away from direct sunlight and extreme temperatures.
  • טְעִינָה: Regularly charge the devices, even if not in frequent use, to maintain battery health. Avoid overcharging or completely draining the battery for extended periods.
  • הימנע מלחות: Do not expose the devices to water or high humidity, as this can damage internal components.

7. פתרון תקלות

If you encounter any issues with your ITOTIN Wireless Lavalier Microphone, refer to the following troubleshooting tips:

בְּעָיָהסיבה אפשריתפִּתָרוֹן
אין קול או עוצמת קול נמוכהMicrophone not powered on; Receiver not properly connected; Device volume too low; Microphone too far from source.Ensure transmitters are powered on (green light solid); Re-plug receiver firmly into device; Increase device volume; Position microphone closer to the sound source.
חיבור לסירוגין או סטטיInterference from other wireless devices; Out of range; Low battery.Move away from other 2.4GHz devices; Ensure transmitter and receiver are within effective range; Recharge transmitters and receiver.
המשדר לא נטעןImproper placement in charging case; Charging case battery low; Faulty cable.Ensure transmitters are correctly seated in the charging slots; Charge the charging case; Try a different USB charging cable.
Device not recognizing receiverReceiver not fully inserted; Device compatibility issue.Ensure receiver is fully inserted into the device's charging port; Verify your device is compatible with external USB audio input.

8. מפרטים

Technical specifications for the ITOTIN Wireless Lavalier Microphone (Model ITT-S16I):

  • מספר דגם: ITT-S16I
  • מותג: ITOTIN
  • טכנולוגיית קישוריות: 2.4G Wireless, USB
  • סוג מחבר: USB (Lightning for iPhone/iPad models)
  • מכשירים תואמים: סמארטפון, טאבלט
  • גורם צורת מיקרופון: לאבלייר
  • דפוס קוטבי: כל-כיווני
  • מספר ערוצים: 2
  • מקור כוח: מופעל על סוללה
  • יחס אות לרעש: 70 dB
  • משקל פריט: 4.6 אונקיות
  • מידות חבילה: 5.79 x 3.15 x 1.26 אינץ'
  • UPC: 651810106859

9. אחריות ותמיכה

ITOTIN products are manufactured to high-quality standards. For warranty information, please refer to the documentation included with your purchase or contact ITOTIN customer support.

If you require further assistance or have questions not covered in this manual, please contact our customer support team through the official ITOTIN website or your retailer's support channels. Please have your model number (ITT-S16I) and purchase details ready when contacting support.
