מָבוֹא
This manual provides detailed instructions for the installation, operation, and maintenance of your Kohler T27044-4-2MB OCCASION™ Rite-Temp® shower valve trim. This trim kit is designed to be paired with a Kohler Rite-Temp pressure-balancing valve (sold separately) to ensure consistent water temperature and flow. Please read all instructions carefully before beginning installation or operation.

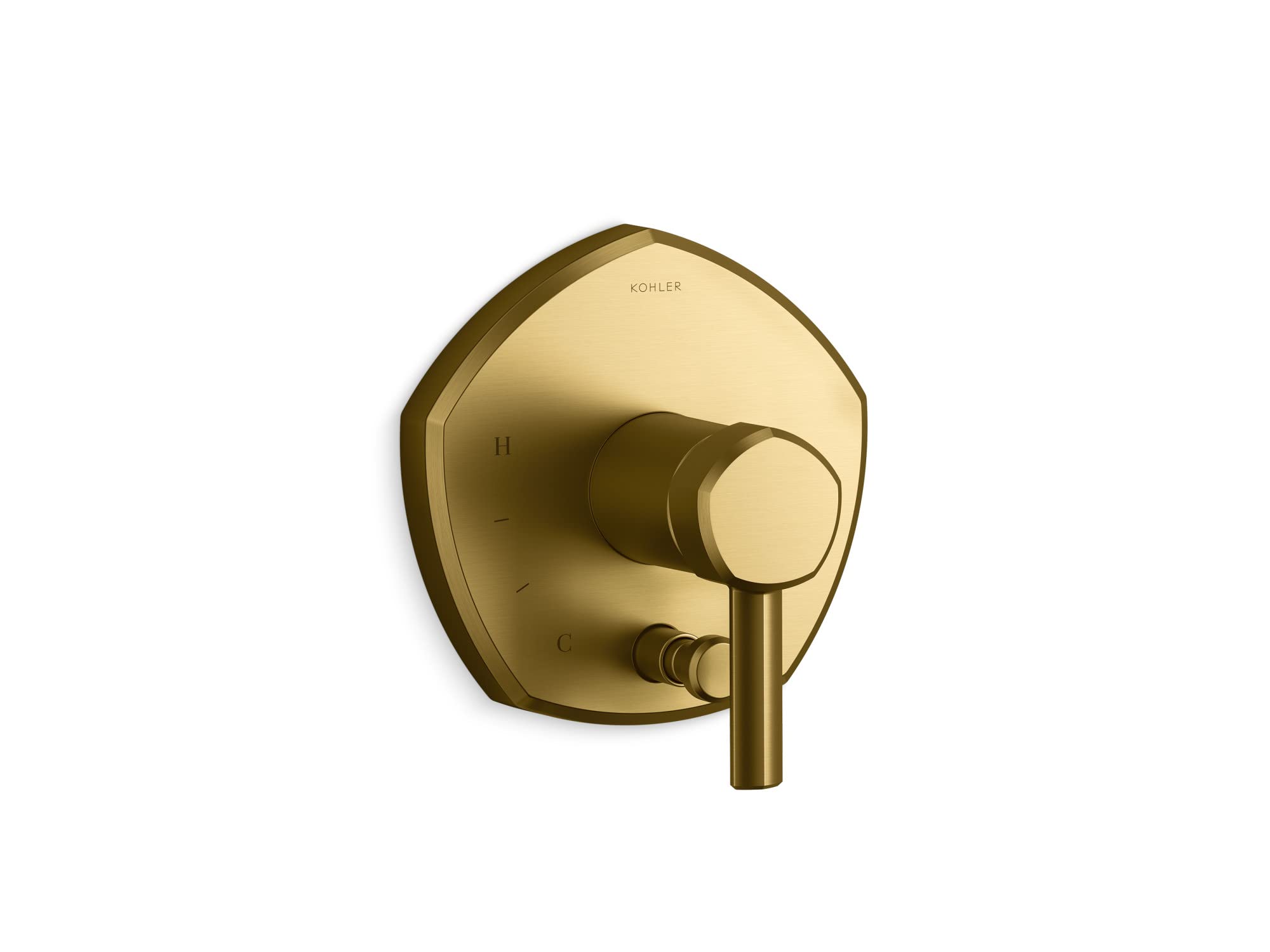

Image: Kohler T27044-4-2MB OCCASION™ Rite-Temp® Shower Valve Trim with Diverter and Lever Handle.
מידע בטיחות
- Always turn off the main water supply before installing or servicing the valve trim.
- יש ללבוש ציוד מגן אישי מתאים, כגון משקפי מגן, במהלך ההתקנה.
- אם אינכם בטוחים לגבי חלק כלשהו בתהליך ההתקנה, התייעצו עם אינסטלטור מוסמך.
- ודאו שכל החיבורים מאובטחים כדי למנוע דליפות.
תוכן החבילה
ודא שכל הרכיבים קיימים לפני תחילת ההתקנה:
- לוחית
- ידית מנוף
- Push-button Diverter
- חומרת הרכבה
- מדריך התקנה (מסמך זה)
Note: The Rite-Temp pressure-balancing valve is sold separately and is required for operation.
התקנה והתקנה
This section outlines the general steps for installing the shower valve trim. Refer to the specific instructions provided with your Rite-Temp pressure-balancing valve for valve body installation.
כלים נדרשים (לא כלול):
- מברג פיליפס
- מפתח ברגים מתכוונן
- סרט איטום (סרט טפלון)
שלבי התקנה:
- הכן את גוף השסתום: Ensure the Rite-Temp pressure-balancing valve body is correctly installed and secured within the wall, following its specific instructions. The valve body should be flushed with the finished wall surface.
- Install the Faceplate: Position the faceplate over the valve body. Ensure it sits flush against the finished wall.
- אבטח את לוח הפנים: Use the provided screws to secure the faceplate to the valve body. Do not overtighten.
- Attach the Lever Handle: Slide the lever handle onto the valve stem. Secure it with the set screw, typically located on the underside of the handle.
- Install the Diverter Button: Insert the push-button diverter into its designated opening on the faceplate. Ensure it operates smoothly.
- בדיקת דליפות ותפקוד: Turn on the main water supply. Check all connections for leaks. Operate the handle and diverter to ensure proper function and temperature control.
הוראות הפעלה
Your Kohler OCCASION™ Rite-Temp® shower valve trim is designed for intuitive control and consistent performance.
בקרת טמפרטורה וזרימה:
- The single lever handle controls both the on/off activation and the water temperature.
- To turn on the water, rotate the lever handle.
- To adjust the temperature, rotate the lever handle left for hotter water and right for colder water.
- The Rite-Temp pressure-balancing diaphragm technology maintains the outlet temperature within +/-3°F during water pressure fluctuations, providing antiscald protection.
פונקציית מפנה:
- The push-button diverter allows you to switch water flow between different shower components (e.g., showerhead and hand shower, if applicable and connected to the valve).
- Press the button to engage or disengage the diverter function.
תַחזוּקָה
Proper care and maintenance will ensure the longevity and appearance of your Kohler shower valve trim.
הוראות ניקוי:
- נקה את המוצר עם רך, דamp בַּד.
- הימנעו משימוש בחומרי ניקוי שוחקים, כימיקלים חזקים או כריות קרצוף, מכיוון שאלו עלולים לפגוע בגימור.
- For best results, use a cleaner specifically designed for faucet finishes, such as KOHLER Premium Faucet Cleaner.
- Wipe the surface dry after cleaning to prevent water spots.
Image: Care and Maintenance for Kohler Showering Products.
טיפול גימור:
The Vibrant Brushed Moderne Brass finish is designed for durability. Regular cleaning as described above will help maintain its appearance. Avoid prolonged contact with acidic or abrasive substances.
תמונה: מעלview of KOHLER® Finishes quality and testing.
פתרון בעיות
If you encounter issues with your shower valve trim, refer to the following common problems and solutions:
| בְּעָיָה | סיבה אפשרית | פִּתָרוֹן |
|---|---|---|
| Water leaks from handle base | Loose handle or worn O-rings in valve body | Tighten handle set screw. If leak persists, consult the valve body manual for O-ring replacement. |
| Difficulty turning handle | Mineral buildup or internal valve issue | Clean around the handle base. If the issue persists, the valve body may require servicing by a professional. |
| Diverter not switching flow | Debris in diverter mechanism or worn diverter components | Ensure the button is fully depressed. If necessary, remove and clean the diverter. If problem persists, replacement may be needed. |
| טמפרטורת מים לא עקבית | Issue with the Rite-Temp pressure-balancing valve | Refer to the Rite-Temp valve body manual for troubleshooting temperature issues. This trim kit does not control temperature directly beyond setting the desired mix. |
מפרטים
| תכונה | פְּרָט |
|---|---|
| מספר דגם | T27044-4-2MB |
| חוֹמֶר | Metal (Brass handle material) |
| סִיוּם | פליז מודרני מוברש תוסס |
| סִגְנוֹן | Rite-Temp w/Diverter Valve Lever Handle Trim |
| מידות פריט (L x W x H) | 6.95 x 6.91 x 4.32 אינץ' |
| משקל פריט | 3.04 פאונד |
| מספר ידיות | 1 |
| סוג הרכבה | מתקן קיר |
| מפרט נפגש | תואם ADA |
| UPC | 885612934475 |
אַחֲרָיוּת
This Kohler product is covered by a Lifetime Limited Warranty. For specific details regarding warranty coverage, terms, and conditions, please refer to the official Kohler warranty documentation or visit the Kohler webאתר. שמור את הוכחת הרכישה שלך לצורך תביעות אחריות.
תְמִיכָה
For further assistance, technical support, or to order replacement parts, please contact Kohler Customer Service. You can find contact information on the official Kohler website or within the packaging materials that came with your product.
משאבים מקוונים: לְבַקֵר www.kohler.com למידע על מוצרים, שאלות נפוצות ותמיכה.
