Samyoung Rechargeable Spotlight User Manual

מָבוֹא

Thank you for choosing the Samyoung Rechargeable Spotlight. This powerful and versatile LED flashlight is designed for various applications, offering exceptional brightness and durability. With its 6 light modes, 10000 lumens output, and IP65 waterproof rating, it is an ideal tool for camping, hiking, emergency situations, and professional use. This manual will guide you through the setup, operation, and maintenance of your new spotlight.

הגדרה

פתיחת הקופסה ובדיקה ראשונית

Carefully remove all components from the packaging. Ensure all items listed below are present and in good condition.

• Samyoung Rechargeable Spotlight (Main Unit)
• AC/DC Adapter (for home charging)
• Car Charger (for in-vehicle charging)
• רצועת כתף מתכווננת
• חצובה מתקפלת
• מדריך למשתמש (מסמך זה)

Charging the Spotlight

Before first use, fully charge the spotlight. The integrated 10000mAh rechargeable lithium-ion battery ensures long-lasting performance.

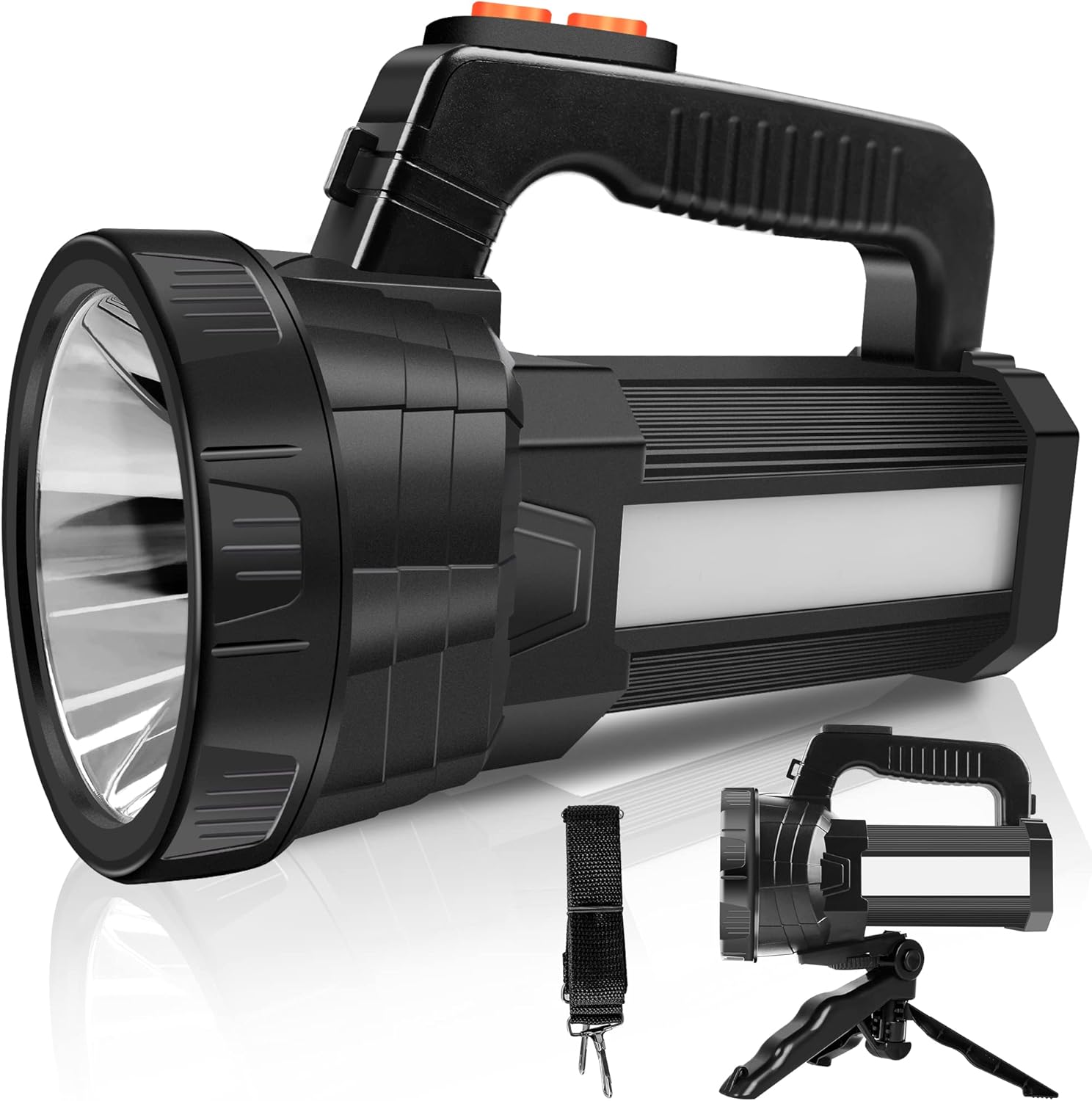

The Samyoung Rechargeable Spotlight shown with its main unit, shoulder strap, and foldable tripod.

Using the AC/DC Adapter:

Connect the AC/DC adapter to the charging port on the spotlight (located under the orange rubber cover). Plug the adapter into a standard indoor power outlet. The indicator light on the charger will show red during charging and turn green when fully charged. Charging time is approximately 10-12 hours.

שימוש במטען לרכב:

For on-the-go charging, connect the car charger to the spotlight's charging port and plug it into your vehicle's 12V cigarette lighter socket. The indicator light will function similarly to the AC/DC adapter.

The spotlight can be charged via AC/DC adapter or car charger. It also features a USB output to charge other devices.

חיבור החצובה

The spotlight includes a tripod for stable, hands-free operation. Locate the tripod hole on the bottom of the spotlight. Securely screw the tripod onto the spotlight. The tripod can be adjusted to direct the light at various angles.

The spotlight with its foldable tripod, allowing for adjustable light direction.

הוראות הפעלה

The Samyoung Spotlight features 6 distinct light modes, controlled by two main switches.

Main Spotlight Modes (Front Light)

Use Switch 1 (located on the handle) to control the main spotlight:

• לחיצה ראשונה: High Light Mode (10000 lumens, lasting 24 hours).
• לחיצה שנייה: Low Light Mode (3000 lumens, lasting 30 hours).
• עיתונות שלישית: Flash Light Mode (3000 lumens, lasting 30 hours).
• עיתונות רביעית: Turns off the main spotlight.

Visual representation of the main spotlight's three modes: High, Low, and Flash.

Side Light Modes (Lantern/Work Light)

Use Switch 2 (located on the handle) to control the side light, which functions as a lantern or work light:

• לחיצה ראשונה: High Light Mode.
• לחיצה שנייה: Low Light Mode.
• עיתונות שלישית: Red & Blue Flashing Warning Light (SOS function).
• עיתונות רביעית: Turns off the side light.

The side light provides close-range flood lighting, perfect for reading, working, or as a warning signal.

הדגמות וידאו

תכונות המוצר נגמרוview

Brightness and Functionality Demo

תַחזוּקָה

To ensure the longevity and optimal performance of your Samyoung Rechargeable Spotlight, follow these maintenance guidelines:

• ניקוי: נגבו את גוף הפנס בעזרת מטלית רכהamp בַּד. אין להשתמש בחומרי ניקוי שוחקים או ממסים.
• אִחסוּן: Store the spotlight in a cool, dry place away from direct sunlight and extreme temperatures. Avoid storing it above 115°F (46°C) to prevent battery damage.
• טיפול בסוללה: To maintain battery health, fully charge the spotlight every 3-6 months even if not in use. Avoid completely draining the battery for extended periods.
• חותם עמיד למים: Ensure the rubber cover for the charging port is securely closed to maintain its IP65 waterproof rating.

פתרון בעיות

If you encounter any issues with your Samyoung Rechargeable Spotlight, please refer to the following common solutions:

• האור לא נדלק: Ensure the battery is fully charged. Check if the charging cable is properly connected.
• פלט אור עמום: The battery might be low. Recharge the spotlight fully.
• מחוון טעינה לא עובד: Verify that the charger is correctly plugged into both the spotlight and the power source. If the issue persists, contact customer support.
• Side Light Malfunction: Ensure you are pressing Switch 2 correctly. If the red & blue warning light is not activating, try holding the button for 3 seconds.

For issues not covered here, please contact Samyoung customer support.

מפרטים

אחריות ותמיכה

Samyoung products are designed for durability and performance. For any warranty claims or technical support, please refer to the contact information provided with your purchase documentation or visit the official Samyoung webאֲתַר.

אנא שמור את הוכחת הרכישה שלך לצורך שירות האחריות.
