Skysonic R3 Acoustic Guitar Pickup System User Manual

מָבוֹא

The Skysonic R3 is an innovative acoustic guitar pickup system designed to provide reverb and chorus effects directly from your guitar, without the need for an external amplifier. It can also function as an electro-acoustic system when connected to an amplifier via a cable. This manual provides detailed instructions for the installation, operation, and maintenance of your Skysonic R3 system.

מידע חשוב על בטיחות והתקנה

כתב ויתור: This product is intended for installation by qualified professionals, such as guitar repair technicians. The installation process requires drilling holes in the guitar body, which can be complex. The manufacturer is not responsible for any malfunctions or damages resulting from self-installation.

If you are not confident in performing such modifications, it is strongly recommended to seek professional assistance.

תוכן החבילה

אנא ודא שכל הרכיבים קיימים לפני תחילת ההתקנה.

• Skysonic R3 Control Panel
• Integrated Output Terminal & Battery Box
• Piezo Pickup Sensor
• Rechargeable 3.7V Battery (approx. 67mm length)
• מטען סוללה
• חומרת הרכבה (ברגים, דיסקיות, אומים)
• כבלים ומחברים
• Instruction Leaflet (Japanese)

איור 1: מעלview of the Skysonic R3 system components. This image displays the control panel, the integrated output jack and battery compartment, the rechargeable battery, charger, and various cables and mounting hardware.

המוצר נגמרview

The Skysonic R3 system consists of a control panel for effects and volume, an integrated output jack with a battery compartment, and a piezo pickup. It allows for direct acoustic effects and can also be used as a standard electro-acoustic pickup.

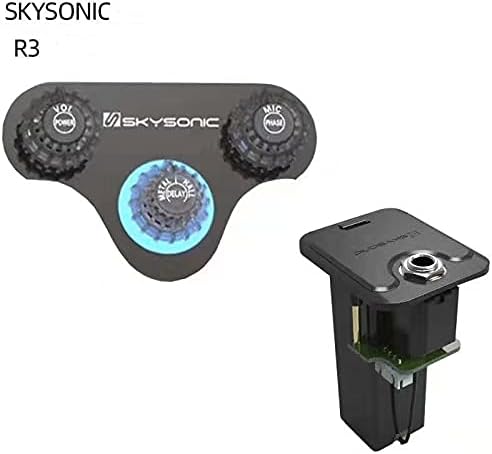

Figure 2: Close-up of the Skysonic R3 control panel and the integrated output terminal with battery box. The control panel features knobs for volume, microphone blend, and effects (reverb/chorus).

מדריך התקנה

Installation of the Skysonic R3 system requires modifications to your guitar body. Proceed with caution or seek professional installation.

1. הכינו את הגיטרה: Ensure your guitar is clean and protected. Remove strings and any existing pickup systems if necessary.
2. סמן מיקומי קידוח: Carefully determine the placement for the control panel and the integrated output terminal/battery box on the side of the guitar body. Mark the drilling points precisely.
3. חורים לקדוח: Using appropriate tools, drill the necessary holes for mounting the control panel and the larger hole for the integrated output terminal/battery box. Note: Drilling the output terminal hole can be challenging due to its size and location.
4. התקנת רכיבים פנימיים: Mount the piezo pickup under the saddle. Route the wiring inside the guitar body.
5. Mount External Components: Secure the control panel to the side of the guitar body using the provided screws. Install the integrated output terminal/battery box into its designated hole.
6. חבר חיווט: Connect all internal wiring according to the provided diagram (refer to the Japanese instruction leaflet for detailed schematics). Ensure all connections are secure.
7. הכנס סוללה: Place the fully charged 3.7V rechargeable battery into the battery compartment within the integrated output terminal.

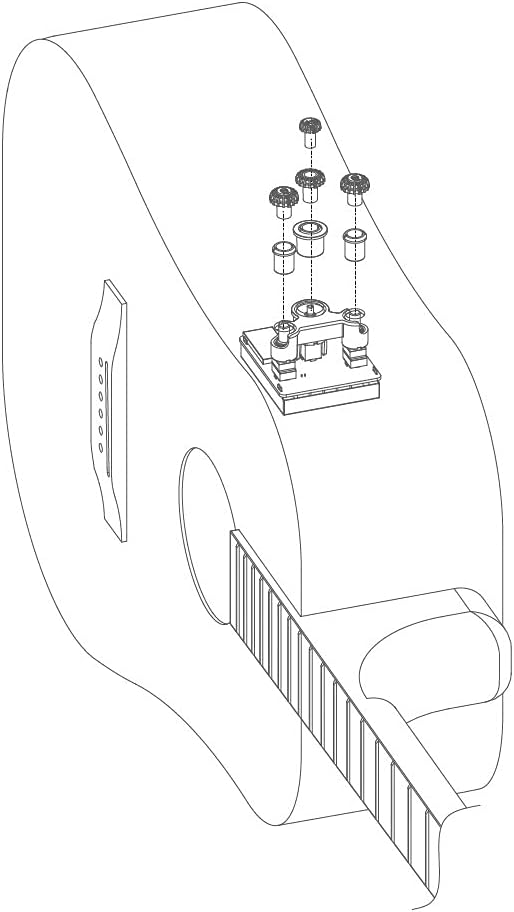

איור 3: התפוצץ view diagram illustrating the external mounting of the control panel and its components on the guitar body.

Figure 4: Internal wiring diagram showing the placement of the piezo pickup, control panel connections, and the integrated output jack/battery box inside the guitar.

הוראות הפעלה

Once installed, the Skysonic R3 system is ready for use. The control panel allows you to adjust volume, microphone blend, and activate built-in effects.

איור 5: מפורט view of the control knobs and their functions. The left knob controls volume and power, the right knob controls microphone blend and phase, and the center knob controls delay, reverb, and chorus effects.

• Power On/Off & Volume (VOL/POWER): Rotate the left knob to turn the system on and adjust the overall volume.
• Microphone Blend & Phase (MIC/PHASE): Rotate the right knob to blend the internal microphone signal with the piezo pickup. Press the knob to toggle the phase.
• Effects Control (DELAY/REVERB/CHORUS): The center knob controls the built-in effects. Rotate to select and adjust the intensity of Delay, Reverb (Metal/Hall), and Chorus.
• Electro-Acoustic Mode: To use the system as an electro-acoustic pickup, connect a standard instrument cable from the output jack to an ampמערכת ליפר או PA.

טעינת סוללה

The Skysonic R3 uses a dedicated 3.7V rechargeable battery. When the battery level is low, the system's performance may degrade, or it may cease to function.

1. הסר סוללה: Carefully open the battery compartment on the integrated output terminal and remove the rechargeable battery.
2. חיבור למטען: Insert the battery into the provided battery charger.
3. תַשְׁלוּם: Plug the charger into a suitable power source. The charger will indicate when the battery is fully charged (refer to charger instructions for specific indicators).
4. Reinstall Battery: Once fully charged, remove the battery from the charger and reinsert it into the battery compartment, ensuring correct polarity.

Note: The provided charger is specifically designed for this battery. Do not use other chargers unless explicitly stated as compatible.

תַחזוּקָה

• ניקוי: Wipe the control panel and output jack with a soft, dry cloth. Avoid using abrasive cleaners or solvents.
• טיפול בסוללה: For optimal battery life, avoid fully discharging the battery frequently. If storing the system for an extended period, ensure the battery is partially charged (around 50%) and remove it from the unit.
• חיבורים: Periodically check all internal and external connections to ensure they are secure.

פתרון בעיות

מפרטים

אחריות ותמיכה

For warranty information and technical support, please contact your retailer or the manufacturer directly. Keep your proof of purchase for warranty claims.

As noted in the important safety information, the manufacturer is not responsible for issues arising from improper self-installation.
