Jackson JS Series Warrior JS32 Electric Guitar User Manual

1. המוצר נגמרview

The Jackson JS Series Warrior JS32 is an electric guitar designed for performance. It features an all-poplar body and a bolt-on maple neck with graphite reinforcement for stability. The amaranth fingerboard has 24 jumbo frets and a 12–16-inch compound radius, facilitating both comfortable chording and rapid soloing. The guitar is equipped with two Jackson high-output humbucking pickups with ceramic magnets, providing a clear and powerful sound. Tone shaping is managed by a 3-way pickup selector, master volume, and tone controls.

• Solidbody Electric Guitar with All-poplar Body
• 2 Humbucking Pickups
• Amaranth Fingerboard
• צוואר מייפל

תמונה 1: חזית view of the Jackson JS Series Warrior JS32 electric guitar, highlighting the body shape, humbucking pickups, and Floyd Rose tremolo system.

תמונה 2: מפורט view of the guitar's body, showcasing the bridge, fine tuners, pickup selector, and control knobs.

2. התקנה

Upon unboxing, inspect the guitar for any shipping damage. Ensure all components are securely fastened.

2.1 כוונון

The Warrior JS32 features a Floyd Rose Special double-locking tremolo system. Initial tuning requires careful adjustment. Loosen the locking nuts at the headstock, tune the strings using the machine heads, then tighten the locking nuts. Fine-tune using the bridge's fine tuners.

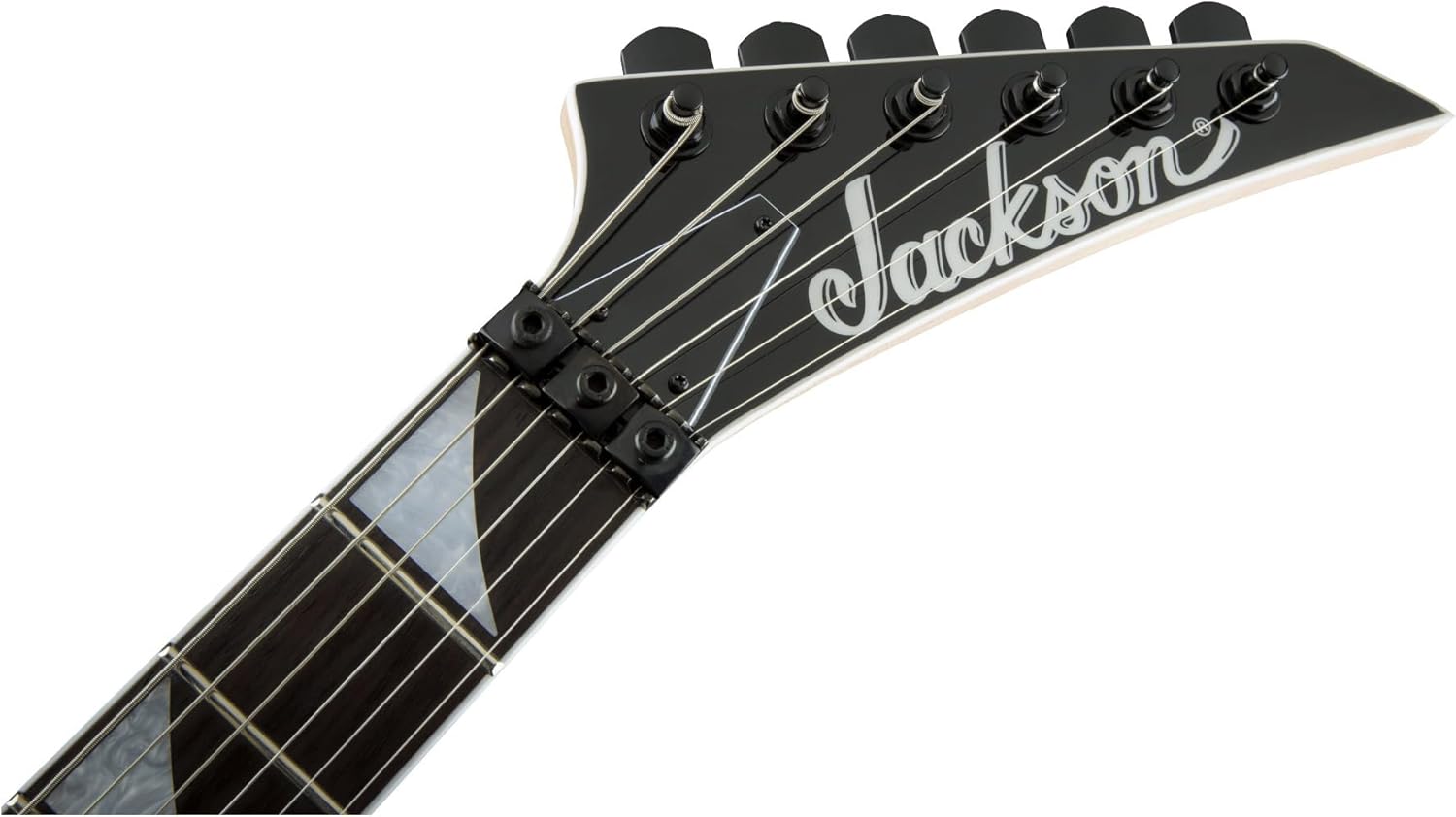

Image 3: Close-up of the Jackson headstock, displaying the tuning machines and locking nut system.

2.2 String Height (Action)

The string height can be adjusted at the bridge. Refer to standard guitar setup guides for preferred action settings.

2.3 Intonation

Proper intonation ensures notes play in tune across the fretboard. This is adjusted at the bridge saddles.

2.4 Neck Relief

The truss rod, accessible at the headstock, allows for neck relief adjustments. This should be performed by an experienced technician if you are unfamiliar with the process.

תמונה 4: אחורי view of the headstock and neck joint, showing the serial number and manufacturing details.

3. הוראות הפעלה

3.1 Pickup Selector

The 3-way toggle switch controls which pickups are active:

• Position 1 (Up): איסוף צוואר בלבד.
• עמדה 2 (אמצעית): פיקאפים לצוואר וגם לגשר.
• Position 3 (Down): איסוף מגשר בלבד.

3.2 כפתור עוצמת הקול

שולט בעוצמת השמע הכוללת של הגיטרה.

3.3 Tone Knob

Adjusts the treble response, from bright (fully clockwise) to warm (fully counter-clockwise).

3.4 Floyd Rose Tremolo System

The tremolo arm allows for pitch modulation (dive bombs, vibrato). Ensure the locking nuts are tightened for stable tuning during use.

4. תחזוקה

4.1 ניקוי

Regularly wipe down the guitar body, neck, and strings with a soft, dry cloth after use. For deeper cleaning, use guitar-specific cleaning products.

4.2 החלפת מיתרים

Strings should be replaced regularly to maintain tone and playability. When replacing strings on a Floyd Rose system, replace one string at a time to maintain bridge balance.

4.3 Fretboard Conditioning

The amaranth fretboard may benefit from occasional conditioning with a suitable fretboard oil to prevent drying.

4.4 Hardware Inspection

Periodically check all screws, nuts, and bolts for tightness, especially on the bridge and tuning machines.

5. פתרון תקלות

5.1 חוסר יציבות כוונון

• Ensure locking nuts at the headstock are tight.
• Check string installation at the bridge saddles.
• Verify that the Floyd Rose bridge is balanced and level.
• Old or worn strings can cause tuning issues.

5.2 String Buzz

• Check string height at the bridge.
• Inspect for uneven or worn frets.
• Adjust neck relief if necessary.

5.3 No Sound/Weak Output

• Verify cable connections to the guitar and ampחיים יותר.
• לִבדוֹק ampהגדרות ה-lifier.
• Inspect pickup selector switch and control knobs for proper function.
• Ensure output jack is secure and clean.

6. מפרטים

7. מידע על אחריות

This Jackson JS Series Warrior JS32 electric guitar comes with a 2-year limited warranty. Please retain your proof of purchase for warranty claims. For detailed terms and conditions, refer to the official Jackson Guitars webאתר או צור קשר עם תמיכת הלקוחות.

8. תמיכה

לסיוע נוסף, תמיכה טכנית או פניות בנוגע לשירות, אנא בקרו באתר הרשמי של Jackson Guitars website or contact their customer service department. Online resources, FAQs, and service center locators may be available.
