KOMSHINE FX37 Fiber Optic Heater Instruction Manual

1. הקדמה

The KOMSHINE FX37 Fiber Optic Heater is designed to provide efficient and reliable heating for protection sleeves used in fiber optic fusion splicing. This device ensures proper shrinking of the sleeve, protecting the spliced fiber joint from environmental factors and mechanical stress. This manual provides essential information for the safe and effective use of your FX37 Fiber Optic Heater.

2. מידע בטיחות

אנא קראו והבינו את כל הוראות הבטיחות לפני הפעלת המכשיר. אי הקפדה על הוראות אלה עלולה לגרום לפציעה או נזק לציוד.

• אזהרת טמפרטורה גבוהה: The heating element reaches high temperatures during operation. לֹא לָגַעַת the heating area or the heated sleeve immediately after the heating cycle. Allow components to cool before handling.
• ספק כוח: Use only the specified power adapter and voltage. Incorrect power supply can damage the device and pose a fire hazard.
• אוורור: Ensure adequate ventilation around the heater during operation to prevent overheating.
• חומרים דליקים: Keep the device away from flammable liquids, gases, and materials.
• לַחוּת: Do not expose the device to water or excessive moisture. Operate in a dry environment.
• ילדים וצוות לא מורשה: יש להרחיק את המכשיר מהישג ידם של ילדים ולוודא שרק אנשי צוות מיומנים יפעילו אותו.

3. המוצר נגמרview

The KOMSHINE FX37 Fiber Optic Heater is a compact unit designed for efficient heat shrinking of fiber protection sleeves.

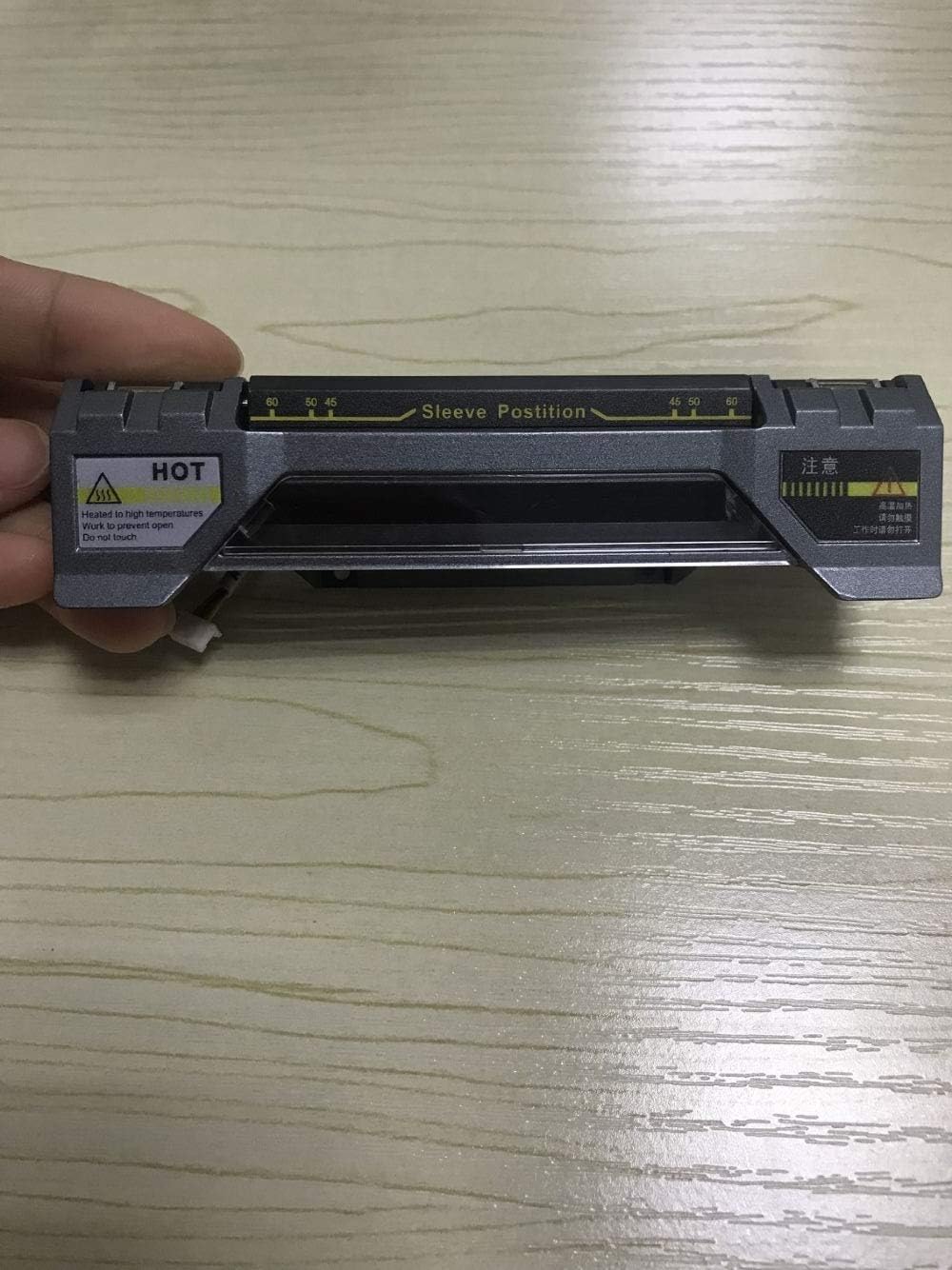

איור 3.1: רֹאשׁ view of the KOMSHINE FX37 Fiber Optic Heater. This image displays the top surface of the fiber optic heater, highlighting the designated sleeve position area with measurement markings. A clear 'HOT' warning label is visible on the left, indicating high temperatures during operation.

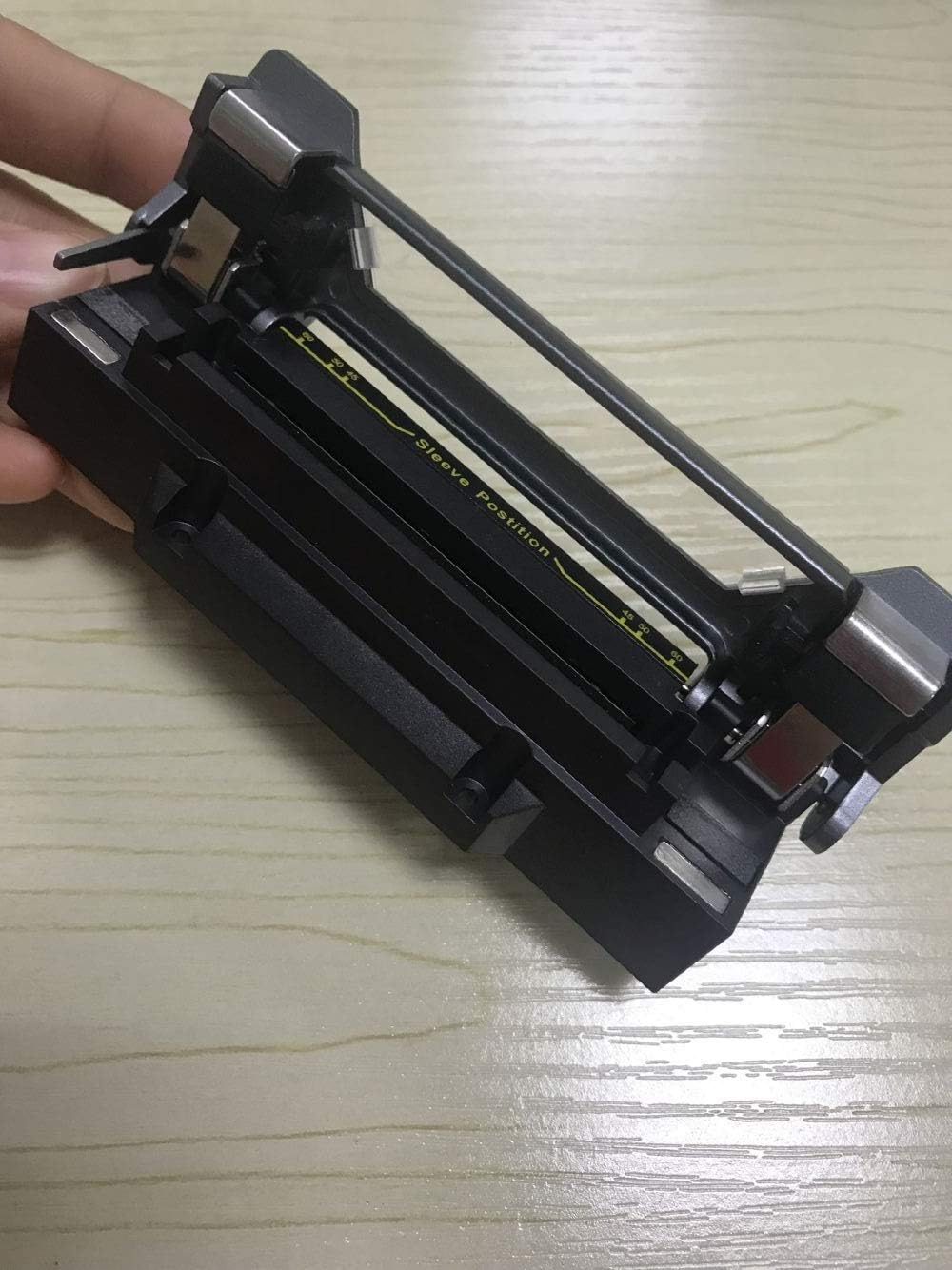

איור 3.2: לִפְתוֹחַ view of the KOMSHINE FX37 Fiber Optic Heater. This image shows the fiber optic heater with its cover open, exposing the heating chamber where the fiber protection sleeve is placed. The sleeve position guide is clearly visible within the chamber.

מרכיבי המפתח כוללים:

• תא חימום: The area where the fiber protection sleeve is placed for heating.
• Sleeve Position Guide: Markings and guides to ensure correct placement of the protection sleeve.
• יציאת כניסת חשמל: לחיבור ספק כוח חיצוני.
• תוויות אזהרה: Indicators for high temperature and safe operation.

4. התקנה

Follow these steps to set up your FX37 Fiber Optic Heater:

1. פרק את המכשיר: Carefully remove the heater from its packaging. Inspect for any visible damage.
2. מיקום: Place the heater on a stable, flat, and heat-resistant surface. Ensure there is sufficient space around the device for ventilation.
3. חבר חשמל: Connect the provided power adapter to the power input port on the heater. Plug the adapter into a suitable electrical outlet.
4. הפעלה ראשונית: The device may have an indicator light to show it is powered on. Allow a few moments for the device to stabilize.

5. הוראות הפעלה

Operating the KOMSHINE FX37 Fiber Optic Heater is straightforward:

1. Prepare the Fiber: After fusion splicing, ensure the fiber protection sleeve is correctly positioned over the splice joint.
2. Open the Heater: Gently open the heater cover to expose the heating chamber.
3. הכנס סיב: Carefully place the fiber with the protection sleeve into the heating chamber, aligning it with the sleeve position guide (refer to Figure 3.1 and 3.2). Ensure the fiber is straight and not bent.
4. Close the Heater: Close the heater cover. The heating cycle will typically begin automatically.
5. חימום צג: The device will heat the sleeve for a predetermined duration. Do not open the cover during the heating cycle.
6. Remove Heated Fiber: Once the heating cycle is complete (indicated by a light or sound, if applicable), carefully open the cover. Using appropriate heat-resistant tools (e.g., tweezers), remove the heated fiber with the shrunk sleeve. WARNING: The sleeve and surrounding area will be extremely hot.
7. לְהִתְקַרֵר: Allow the heated sleeve to cool completely before further handling or bending the fiber.

6. תחזוקה

Regular maintenance ensures the longevity and optimal performance of your FX37 Fiber Optic Heater.

• ניקוי: Always ensure the device is powered off and completely cool before cleaning. Use a soft, dry, lint-free cloth to wipe the exterior. For the heating chamber, use a cotton swab or a soft brush to gently remove any fiber debris or dust. Do not use abrasive cleaners or solvents.
• בְּדִיקָה: Periodically inspect the power cord and adapter for any signs of damage (fraying, cuts). Check the heating chamber for any obstructions or damage to the heating elements.
• אִחסוּן: When not in use, store the heater in a clean, dry, and dust-free environment.

איור 6.1: פְּנִימִי view of the KOMSHINE FX37 Fiber Optic Heater. This image provides a view of the internal components of the heater, revealing the circuit board and associated wiring. This illustrates the device's internal construction, which should only be accessed by qualified service personnel.

Note: Internal components (as shown in Figure 6.1) should only be accessed by qualified service technicians. Do not attempt to disassemble the unit yourself.

7. פתרון תקלות

If you encounter issues with your FX37 Fiber Optic Heater, refer to the following common problems and solutions:

If the problem persists after attempting these solutions, please contact KOMSHINE customer support or your local distributor for assistance.

8. מפרטים

The following specifications apply to the KOMSHINE FX37 Fiber Optic Heater:

• דֶגֶם: FX37
• יַצרָן: Komshine Technology Limited
• גוֹדֶל: קָטָן
• צֶבַע: שָׁחוֹר
• חוֹמֶר: מַתֶכֶת
• צוּרָה: מַלבֵּנִי
• כמות חבילת פריט: 1
• מספר חתיכות: 1
• חומר ידית: מַתֶכֶת
• ASIN: B07P64TZ58
• תאריך זמין ראשון: 10 במרץ, 2019

9. אחריות ותמיכה

For warranty information, please refer to the documentation provided at the time of purchase or contact your seller directly. KOMSHINE provides customer support for product inquiries, technical assistance, and service requests.

אנא שמור את קבלת הרכישה שלך לצורך תביעות אחריות.
