מָבוֹא
This manual provides detailed instructions for the setup, operation, and maintenance of your AW BM-700 Studio Recording Condenser Microphone Kit. This kit is designed to provide clear, optimized audio for various applications, including voice recording, podcasting, and studio use. Please read this manual thoroughly before using the product to ensure proper functionality and longevity.
מה יש בקופסה
Your AW BM-700 Studio Recording Condenser Microphone Kit includes the following components:

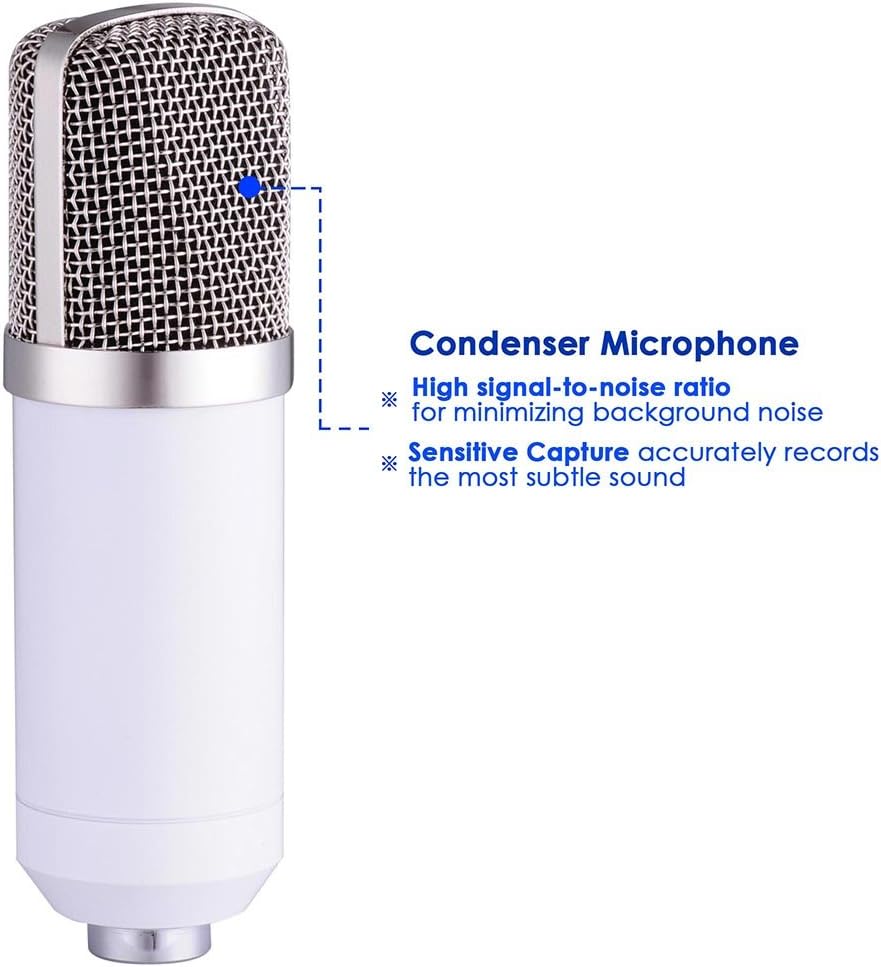

- 1x מיקרופון קונדנסר
- 1x Microphone Cap (Foam Windscreen)
- 1x הלם הר
- 1x Boom Suspension Scissor Arm Stand
- 1x Pop Filter Mask Shield
- 1x Power Cord (3.5mm audio cable)
- מדריך למשתמש אחד (מסמך זה)
הוראות התקנה
Follow these steps to assemble and set up your microphone kit:
- Attach the Arm Stand: אבטח את clamp of the boom suspension scissor arm stand to a sturdy table or desk. Ensure the table thickness is less than 1 1/2" (3.7 cm). Adjust the arm to your desired position.
- Mount the Shock Mount: Attach the solid metal anti-vibration shock mount to the end of the arm stand. Tighten securely to prevent movement.
- Insert the Microphone: Carefully place the condenser microphone into the shock mount. The shock mount holds the microphone in place and isolates it from vibrations.
- חבר את מסנן הפופ: Mount the pop filter with its 360-degree adjustable gooseneck to the arm stand or desk. Position it approximately 2-3 inches in front of the microphone to effectively eliminate popping sounds and protect the microphone from saliva.
- חבר את כבל החשמל: Plug the 3.5mm audio interface end of the power cord into the microphone's output interface. Connect the other end to your desktop PC or laptop's 3.5mm microphone input.
- דרישות חשמל: The microphone requires 5V to 9V of power, or 48V phantom power supply. It is highly recommended to use this microphone with an external audio card for optimal performance.
הוראות הפעלה
Once assembled, your microphone kit is ready for use. Follow these guidelines for optimal performance:
- מיקום: Position the microphone directly in front of the sound source (e.g., your mouth for vocals) to utilize its cardioid polar pick-up pattern, which focuses on sound from the front and minimizes side and rear noise.
- שימוש במסנן פופ: Always use the pop filter to prevent plosive sounds (like 'p' and 'b') from causing harsh audio spikes.
- התאמת רווח: If using an external audio interface, adjust the gain settings to achieve a strong signal without clipping or distortion.
- הגדרת תוכנה: Ensure your computer's audio settings recognize the microphone as the input device. Most recording software will allow you to select the microphone from a list of available inputs.
תַחזוּקָה
Proper maintenance ensures the longevity and performance of your microphone kit:
- ניקוי: Use a soft, dry cloth to wipe down the microphone body and stand. Avoid using liquid cleaners directly on the microphone.
- מסנן פופ: ניתן לנקות בעדינות את פילטר הפופ בעזרת מודעהamp מטלית במידת הצורך. ודא שהיא יבשה לחלוטין לפני חיבורה מחדש.
- אִחסוּן: When not in use, store the microphone in a clean, dry place away from dust and extreme temperatures.
- טיפול בכבלים: Avoid sharp bends or kinks in the audio cable to prevent internal damage.
פתרון בעיות
If you encounter issues with your microphone kit, refer to the following common solutions:
- אין צליל/עוצמת קול נמוכה:
- ודא שכל הכבלים מחוברים היטב.
- Verify the microphone is selected as the input device in your computer's sound settings and recording software.
- Check the gain levels on your audio interface or computer.
- Confirm that the microphone is receiving adequate power (5V-9V or 48V phantom power).
- Humming/Hissing Noise:
- ודא שכל החיבורים הדוקים.
- Try using a different USB port or power outlet for your computer/audio interface.
- Minimize other electronic devices near the microphone that might cause interference.
- Using an external audio card is highly recommended for best performance and noise reduction.
- Microphone Not Fitting Stand:
- Ensure you are using the correct adapter if the microphone's thread size does not match the stand's. Some microphones may require a thread adapter (not included in this kit) for universal compatibility.
- Incompatibility with Mobile Phones: This microphone cannot be used with mobile phones as a power supply. Do not attempt to connect it directly to a phone for power.
- Incompatibility with Apple Computers: This microphone is not directly compatible with Apple computers. An external sound card must be equipped for use with Apple computers.
מפרטים
| תכונה | מִפרָט |
|---|---|
| סוג מיקרופון | מַעֲבֶה |
| דפוס קוטבי | קרדיואיד (חד כיווני) |
| תגובת תדר | 20 הרץ עד 20 קילו-הרץ |
| רְגִישׁוּת | -32 dB ± 3 dB (0 dB = 1 V/Pa at 1 kHz) |
| עכבת פלט | ≤100 Ω |
| עכבת עומס | ≥1000 Ω |
| רמת רעש שווה ערך | ≤20 dBA (IEC 581-5) |
| יחס אות לרעש | 78 dB |
| מקסימום SPL | 130 dB (ב-1 kHz ≤ 1% THD) |
| Usage Voltage | 5V to 9V (or 48V phantom power supply) |
| זרם חשמלי | 3 mA |
| Microphone Output Interface | 3.5 מ"מ (1/8 אינץ') |
| אורך כבל | 8.2 רגל (2.5 מ') |
| Microphone Material | מַתֶכֶת |
| Scissor Arm Stand Size (LxW) | 13 3/4" x 13 3/4" (35 x 35 cm) |
| Suitable Table Thickness (Stand) | Less than 1 1/2" (3.7 cm) |
| משקל כולל נטו | 3.2 פאונד (1.4 ק"ג) |
| Item Dimensions (Product) | 19.29 x 8.23 x 3.54 אינץ' |
אחריות ותמיכה
This product does not come with a specified warranty. For any product-related inquiries or support, please refer to the retailer or manufacturer's customer service channels.
