LAFAYETTE SSD-82 SMD Soldering/Desoldering Station User Manual

1. הקדמה

Thank you for choosing the LAFAYETTE SSD-82 SMD Soldering/Desoldering Station. This manual provides essential information for the safe and efficient operation, maintenance, and troubleshooting of your device. Please read this manual thoroughly before using the station and keep it for future reference.

The SSD-82 is a versatile tool designed for precision soldering and desoldering of Surface Mount Devices (SMD) and other electronic components, offering reliable performance for various electronic repair and assembly tasks.

2. הוראות בטיחות

אזהרה: אי הקפדה על הוראות בטיחות אלה עלולה לגרום להתחשמלות, שריפה או פציעה חמורה.

• Always operate the soldering station in a well-ventilated area to avoid inhaling fumes.
• Wear appropriate personal protective equipment, including safety glasses, to protect against solder splashes.
• The soldering iron and desoldering gun tips reach very high temperatures. Avoid direct contact with skin or flammable materials.
• Always place the soldering iron and desoldering gun in their respective stands when not in use.
• Ensure the power cord is undamaged and properly grounded. Do not use the station if the cord is frayed or damaged.
• Do not expose the unit to moisture or operate it in wet conditions.
• נתקו את המכשיר משקע החשמל לפני ניקוי או ביצוע כל תחזוקה.
• הרחק מהישג ידם של ילדים.

3. המוצר נגמרview

The LAFAYETTE SSD-82 is an integrated soldering and desoldering station designed for precision work. It features a main control unit, a soldering iron, and a desoldering gun.

3.1 רכיבים עיקריים

• יחידת בקרה: Houses the power supply, temperature control circuitry, and display.
• Soldering Iron: For precise soldering tasks, with interchangeable tips.
• Desoldering Gun: Features a vacuum pump for efficient removal of solder.
• מעמד למלחם: Provides a safe resting place for the hot soldering iron.
• Desoldering Gun Stand: Provides a safe resting place for the hot desoldering gun.
• Cleaning Sponge/Brass Wool: For cleaning soldering iron tips.

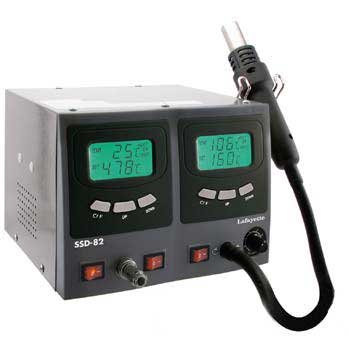

Figure 1: Main unit of the LAFAYETTE SSD-82 SMD Soldering/Desoldering Station, showing the control panel, soldering iron, and desoldering gun.

4. התקנה

4.1 פירוק

1. הסר בזהירות את כל הרכיבים מהאריזה.
2. Check for any visible damage. If any damage is found, do not operate the unit and contact your supplier.
3. ודא שכל הרכיבים המפורטים קיימים.

4.2 הרכבה

1. Place the control unit on a stable, heat-resistant surface.
2. Connect the soldering iron cable to the designated port on the control unit.
3. Connect the desoldering gun cable to its designated port on the control unit.
4. Place the soldering iron and desoldering gun in their respective stands.
5. Connect the main power cord to the control unit and then to a grounded electrical outlet.

5. הוראות הפעלה

5.1 הפעלה/כיבוי

• To power on, press the main power switch located on the front panel. The display will illuminate.
• To power off, press the main power switch again. Allow the tips to cool down completely before storing.

5.2 התאמת טמפרטורה

• Use the temperature control knobs or buttons on the control unit to set the desired temperature for the soldering iron and desoldering gun.
• The display will show the set temperature and the actual temperature. Wait for the actual temperature to reach the set temperature before beginning work.
• טמפרטורות מומלצות: Lead-free solder: 350-400°C; Leaded solder: 300-350°C. Adjust as needed for specific components and solder types.

5.3 Soldering Operation

1. Ensure the soldering iron tip is clean. Use a damp sponge or brass wool to wipe off old solder and oxidation.
2. Apply a small amount of fresh solder to the tip (tinning) to improve heat transfer and prevent oxidation.
3. Place the hot tip on the component lead and pad simultaneously.
4. Feed solder onto the joint, not directly onto the iron tip. Allow the solder to flow evenly around the joint.
5. Remove the solder wire, then remove the soldering iron. Allow the joint to cool without disturbance.

5.4 Desoldering Operation

1. Ensure the desoldering gun tip is clean and free of obstructions.
2. Place the hot desoldering gun tip over the solder joint to be removed.
3. Once the solder melts, activate the vacuum pump (usually via a button on the gun handle) to suck the molten solder into the gun's reservoir.
4. Remove the gun from the joint. Repeat if necessary until all solder is removed.
5. Regularly empty the solder reservoir and clean the filter to maintain optimal vacuum performance.

6. תחזוקה

6.1 ניקוי

• קצה מלחם: Clean frequently with a damp ספוג או צמר פליז. יש תמיד למלא מחדש את הקצה לאחר הניקוי.
• Desoldering Gun Tip: Clean the tip regularly to prevent solder buildup. Use the provided cleaning pin to clear any blockages.
• Solder Reservoir and Filter: For the desoldering gun, regularly open the reservoir, remove accumulated solder, and clean or replace the filter as needed. Refer to the specific instructions for your desoldering gun model.
• יחידת בקרה: נגבו את החלק החיצוני בעזרת מטלית רכה ויבשה. אין להשתמש בחומרי ניקוי שוחקים או ממסים.

6.2 החלפת קצה

• Ensure the unit is powered off and the tip has cooled down.
• פתחו את האום או הצווארון המחזיקים את הקצה במקומו.
• Carefully remove the old tip and insert a new, compatible tip.
• Secure the retaining nut/collar.
• Always use genuine LAFAYETTE replacement tips for optimal performance.

7. פתרון תקלות

If you encounter issues with your soldering station, refer to the table below for common problems and solutions.

If the problem persists after attempting these solutions, please contact LAFAYETTE customer support or your local service center.

8. מפרטים

9. אחריות ותמיכה

The LAFAYETTE SSD-82 SMD Soldering/Desoldering Station is covered by a standard manufacturer's warranty against defects in materials and workmanship. The specific duration and terms of the warranty may vary by region and retailer. Please retain your proof of purchase for warranty claims.

For technical support, warranty service, or to purchase replacement parts, please contact your original retailer or visit the official LAFAYETTE website for contact information. Do not attempt to repair the unit yourself, as this may void the warranty and pose safety risks.
