מדריך הוראות לחיישן פוטואלקטרי Telemecanique Sensors XUB0APSNM12

1. הקדמה

This manual provides essential information for the safe and effective use of the Telemecanique Sensors XUB0APSNM12 Photoelectric Sensor. Please read this manual thoroughly before installation, operation, or maintenance. Retain this manual for future reference.

The XUB0APSNM12 is a photoelectric sensor designed for industrial automation applications. It utilizes light to detect the presence or absence of objects.

2. מידע בטיחות

אַזהָרָה: This product may expose you to chemicals including Diisononyl phthalate (DINP), which is known to the State of California to cause cancer. For more information go to www.P65Warnings.ca.gov.

• Always disconnect power before installing, servicing, or removing the sensor.
• ודא הארקה נכונה כדי למנוע התחשמלות.
• אין לחרוג מהכרך המצויןtage ודירוגים נוכחיים.
• התקנה ותחזוקה צריכות להתבצע אך ורק על ידי אנשי מקצוע מוסמכים.
• Protect the sensor from physical damage, excessive vibration, and extreme temperatures.

3. תכונות מוצר

The Telemecanique Sensors XUB0APSNM12 Photoelectric Sensor offers the following key features:

• Photoelectric sensing technology.
• Utilizes light to detect objects.
• Operates by reflecting light from a target or through a beam that sends light to a receiver.
• PNP output type.
• Compact 18 mm cylindrical design.

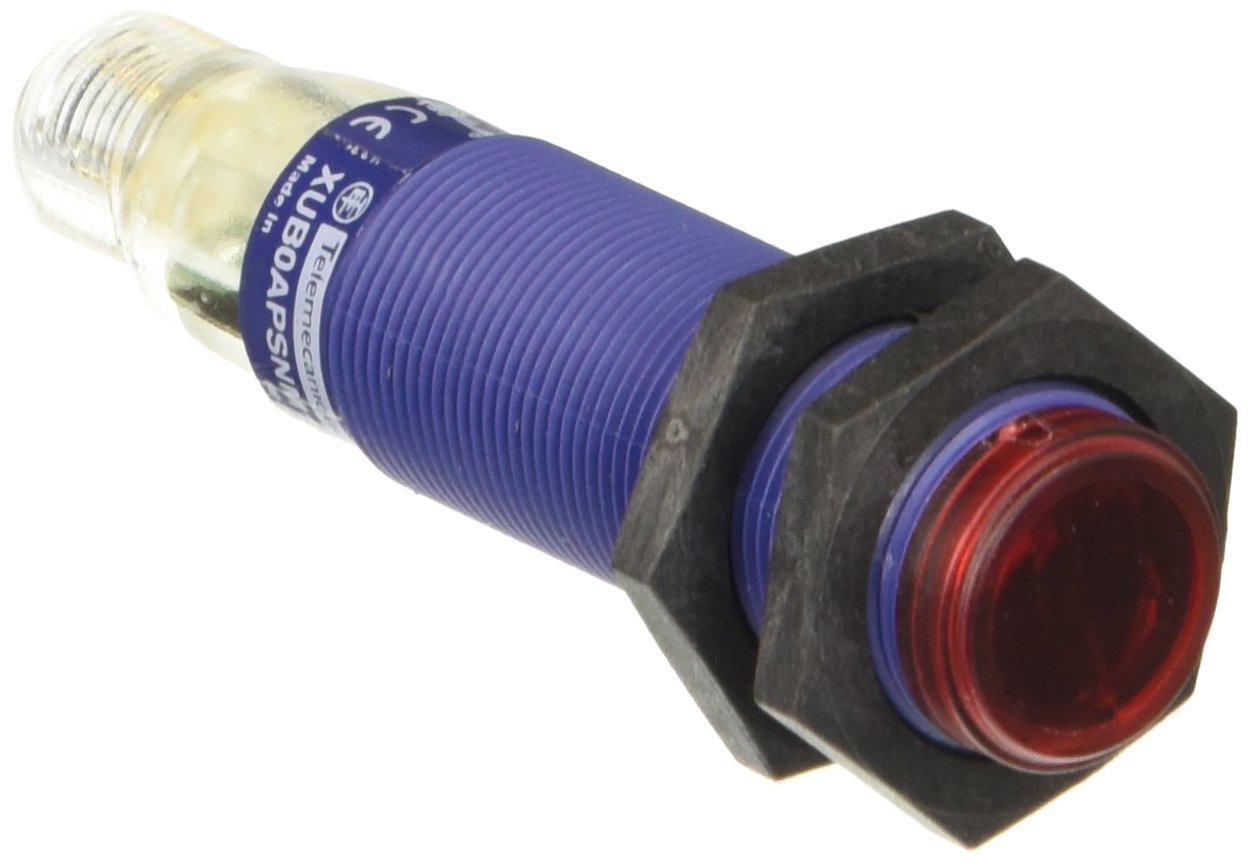

איור 3.1: חזית view of the Telemecanique XUB0APSNM12 Photoelectric Sensor. The sensor features a blue cylindrical body with a clear cap on one end and a red lens on the other, secured by a black hexagonal nut.

4. התקנה והתקנה

Follow these steps for proper setup and installation of the XUB0APSNM12 sensor:

1. הַרכָּבָה: Securely mount the sensor in the desired location using appropriate mounting hardware. Ensure the sensor's detection axis is aligned with the target path.
2. תִיוּל: Connect the sensor according to the wiring diagram provided with your specific application. Ensure correct polarity for power supply (typically +V, 0V) and proper connection for the PNP output.
3. ספק כוח: Connect the sensor to a stable power supply within the specified voltagטווח e.
4. Alignment (for thru-beam or retro-reflective types): If using a thru-beam or retro-reflective setup, align the emitter and receiver (or reflector) precisely to ensure reliable detection.

איור 4.1: צד view of the Telemecanique XUB0APSNM12 Photoelectric Sensor held in a hand, illustrating its compact size. The image indicates a length of approximately 3.2 inches (8 cm).

5. הוראות הפעלה

Once installed and powered, the XUB0APSNM12 sensor operates automatically. Its function is to detect the presence or absence of an object within its sensing range and provide a corresponding output signal.

• עקרון זיהוי: The sensor emits a light beam. When an object enters the detection area, it either reflects the light back to the sensor (diffuse reflective) or interrupts the light beam between the emitter and receiver (thru-beam), or reflects the light from a reflector (retro-reflective).
• אות פלט: The sensor's PNP output will change state (e.g., switch from low to high or vice versa) upon detection of an object, signaling its presence to a connected control system (e.g., PLC).
• נורית מחוון: Many photoelectric sensors include an indicator LED that illuminates when an object is detected, providing visual confirmation of operation. Refer to the sensor's specific datasheet for LED behavior.

6. תחזוקה

The Telemecanique XUB0APSNM12 Photoelectric Sensor is designed for low maintenance. However, regular checks can ensure optimal performance:

• ניקוי: Periodically clean the sensor lens and housing with a soft, dry cloth. Avoid abrasive cleaners or solvents that could damage the sensor.
• בְּדִיקָה: Visually inspect the sensor and its wiring for any signs of damage, wear, or loose connections.
• תנאים סביבתיים: Ensure the operating environment remains within the specified temperature and humidity ranges to prevent sensor degradation.

7. פתרון תקלות

If you encounter issues with your XUB0APSNM12 sensor, consider the following:

8. מפרטים

9. אחריות ותמיכה

For warranty information and technical support, please contact Telemecanique Sensors directly or refer to their official webאתר. שמור את קבלת הרכישה כהוכחת קנייה.

Telemecanique Sensors Official Webאֲתַר: https://www.se.com/ww/en/brands/telemecanique-sensors/

For further assistance, you may also contact the seller or distributor from whom you purchased the product.
