מדריך למשתמש של חיישן פוטואלקטרי מחזיר אור של Telemecanique Sensors RF20

1. הקדמה

This manual provides essential information for the proper installation, operation, and maintenance of the Telemecanique Sensors RF20 Photoelectric Sensor Reflector. Please read this manual thoroughly before using the product to ensure safe and efficient operation.

The RF20 reflector is designed to work in conjunction with compatible photoelectric sensors, providing a reflective surface necessary for the sensor's light beam to return to its receiver, enabling reliable object detection.

2. המוצר נגמרview

The Telemecanique Sensors RF20 is a high-quality, 2-inch diameter reflector specifically engineered for use with photoelectric sensors. Its primary function is to reflect the light emitted by a photoelectric sensor back to its receiver, allowing the sensor to detect the presence or absence of an object interrupting the light path.

איור 2.1: חזית view of the Telemecanique Sensors RF20 Photoelectric Sensor Reflector. This image shows the circular, clear reflector with its characteristic grid pattern and a central mounting hole.

3. התקנה והתקנה

Proper installation of the RF20 reflector is crucial for the accurate and reliable operation of your photoelectric sensing system. Ensure the reflector is securely mounted and correctly aligned with the photoelectric sensor.

3.1 שיקולי הרכבה

• Mount the reflector on a stable, vibration-free surface.
• Ensure the reflective surface is clean and free from obstructions.
• Position the reflector perpendicular to the sensor's light beam for optimal reflection.
• Consider the sensing range of your photoelectric sensor when determining the distance between the sensor and the reflector.

3.2 שלבי התקנה

1. Identify a suitable mounting location that allows for clear alignment with the photoelectric sensor.
2. Use appropriate fasteners (not included) through the central mounting hole of the reflector to secure it to the desired surface.
3. Carefully align the reflector so that the light beam from the photoelectric sensor hits its center and reflects directly back to the sensor's receiver. Fine-tuning may be required for optimal performance.

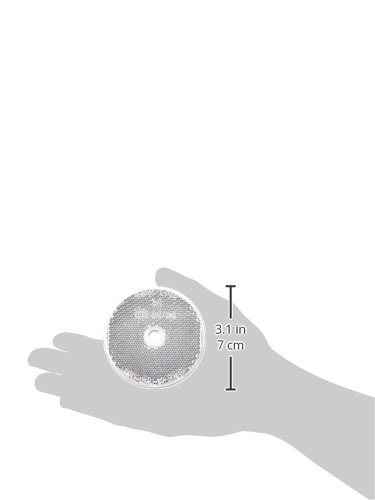

Figure 3.1: The RF20 reflector shown in hand for size comparison. This image illustrates the compact size of the reflector, aiding in understanding its physical dimensions for installation planning.

4. עקרונות פעולה

The RF20 reflector is a passive component in a retro-reflective photoelectric sensing system. In this setup, a single photoelectric sensor contains both the light emitter and the receiver. The emitter sends out a light beam, which travels to the RF20 reflector.

The reflector's specialized surface is designed to return the light beam directly back to the sensor's receiver. When an object passes between the sensor and the reflector, it interrupts this light beam, preventing it from reaching the receiver. This interruption is detected by the sensor, triggering its output. The RF20 ensures a consistent and strong return signal, critical for reliable detection.

5. תחזוקה

Regular maintenance ensures the longevity and optimal performance of your RF20 reflector and the associated photoelectric sensing system.

5.1 ניקוי

• Periodically inspect the reflective surface for dust, dirt, or other contaminants.
• Clean the surface gently with a soft, lint-free cloth dampנשטפו במים או בתמיסת ניקוי עדינה ולא שוחקת.
• Avoid using harsh chemicals or abrasive materials that could scratch or damage the reflective surface.

5.2 בדיקה

• Check for any physical damage, cracks, or discoloration on the reflector.
• Ensure the reflector remains securely mounted and properly aligned with the sensor.

6. פתרון תקלות

If your photoelectric sensing system is not performing as expected, consider the following common issues related to the reflector:

For issues not resolved by these steps, consult the manual for your specific photoelectric sensor or contact Telemecanique Sensors technical support.

7. מפרט טכני

8. אחריות ותמיכה

Telemecanique Sensors products are manufactured to high-quality standards. For specific warranty information regarding your RF20 reflector, please refer to the documentation provided with your purchase or visit the official Telemecanique Sensors webאֲתַר.

For technical assistance, product inquiries, or support, please contact Telemecanique Sensors directly through their official channels. You can find contact information and additional resources on the Telemecanique Sensors official webאֲתַר.
