Kidde 1275 Hardwire Smoke Alarm with Hush Feature and Battery Backup User Manual

מבוא ומעברview

The Kidde 1275 Lifesaver 120-Volt AC Hardwired ionization smoke alarm with battery backup and hush feature is designed to integrate directly into your household power system, providing continuous protection. The included 9-Volt battery offers backup power during outages, ensuring constant security. This twin pack includes two smoke alarms and universal adapters for compatibility with existing Firex® and First Alert/BRK® wire-in smoke alarms. A convenient test button allows for easy weekly testing, and flashing red and green LED indicators provide clear status updates on the alarm's performance. For optimal fire safety, it is recommended to replace smoke alarms every 10 years and to install both ionization and photoelectric smoke alarm technologies in your home.

This smoke detector features a Quick Connect wiring system for straightforward installation and future upgrades. Its multi-station interconnect system allows up to 24 compatible Kidde devices (18 initiating) to be linked, ensuring that when one alarm sounds, all interconnected alarms activate simultaneously.

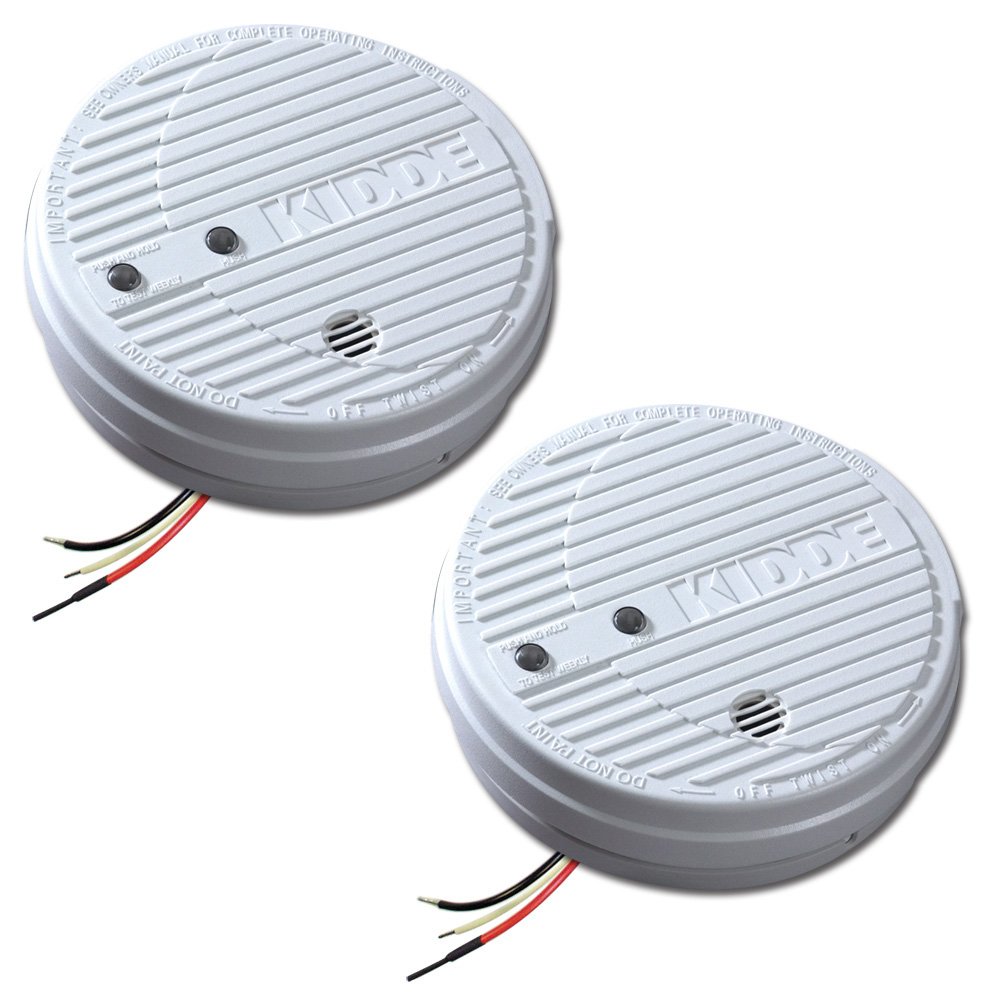

Image: Kidde 1275 Hardwire Smoke Alarm Twin Pack packaging, showing two smoke alarms, universal adapters, and key features.

תכונות מפתח

• 120V AC Hardwired with 9V Battery Backup: Ensures continuous operation even during power outages.
• Ionization Sensor: Designed to detect invisible fire particles, often produced by fast-flaming fires.
• Hush Feature: Temporarily silences nuisance alarms for approximately 8 minutes.
• Quick Connect Wiring Harness: Simplifies installation and allows for easy replacement.
• מתאמים אוניברסליים: Included for quick connection with existing Firex® and First Alert/BRK® wire-in smoke alarms.
• Multi-Station Interconnect: Connects with up to 24 compatible Kidde devices (18 initiating) for whole-home alert.
• Battery Pull Tab: Eliminates installation time for the backup battery; simply pull the tab to activate.
• Separate Trim Ring: Accommodates all standard electrical box configurations for a clean installation.
• Tamper Resistant Feature: A locking mechanism helps deter battery and alarm theft.
• UL מאושר: Certified by Underwriters Laboratories for safety and performance.

התקנה והתקנה

Proper placement and installation are crucial for the effective operation of your smoke alarm. Always refer to the detailed instructions provided in the full owner's manual for complete safety guidelines and installation procedures.

מיקום מומלץ:

• Install smoke alarms outside each separate sleeping area.
• Place an alarm in the immediate vicinity of the bedrooms.
• Install on each additional story of the family living unit, including the basement.
• Exclude crawl spaces and unfinished attics.
• In new construction, a smoke alarm should also be installed in each sleeping room.
• Mount on the ceiling or wall, following local codes and the provided instructions.

שלבי התקנה:

1. כיבוי: Before beginning installation, ensure the power to the circuit where the smoke alarm will be installed is turned off at the main fuse or circuit breaker panel.
2. הרכבה הרכבה: Secure the mounting bracket to the electrical box. The separate trim ring can be used to fit various standard electrical box configurations.
3. תִיוּל: Connect the Quick Connect wiring harness to your household 120V AC wiring. Use the provided universal adapters if connecting to existing Firex® or First Alert/BRK® systems. Ensure all connections are secure.
4. הפעלת סוללה: Insert the 9V battery into the battery compartment. If a battery pull tab is present, pull it to activate the battery.
5. חיבור אזעקה: Align the smoke alarm with the mounting bracket and twist clockwise until it locks into place.
6. הפעלה ובדיקה: Restore power to the circuit. The green LED should illuminate, indicating AC power. Press and hold the test button to ensure the alarm sounds.
7. Interconnect (if applicable): If installing multiple interconnected units, ensure all are properly wired and tested.

Image: Kidde 1275 Smoke Alarm, showing the unit with its quick connect wiring harness.

הוראות הפעלה

פעולה רגילה:

During normal operation, the green LED indicator will be steadily lit, confirming that the unit is receiving AC power. The red LED will flash approximately once every 30-40 seconds, indicating proper operation.

בדיקת האזעקה:

Test the smoke alarm weekly to ensure it is functioning correctly. Press and hold the "TEST/HUSH" button on the alarm cover. The alarm will sound a loud, pulsating horn. Release the button to stop the alarm. If the alarm does not sound, refer to the Troubleshooting section.

Hush Feature:

The Hush feature temporarily silences nuisance alarms (e.g., from cooking smoke) for approximately 8 minutes. To activate, press the "TEST/HUSH" button during an alarm. The red LED will flash every 10 seconds to indicate that the alarm is in Hush mode. After approximately 8 minutes, the alarm will automatically reset and return to normal operation. If smoke is still present, the alarm will sound again.

תַחזוּקָה

ניקוי רגיל:

Clean your smoke alarm regularly to prevent dust and debris from interfering with its operation. Use a soft brush attachment on your vacuum cleaner to gently remove dust from the alarm's cover and vents. Do not paint the alarm.

החלפת סוללה:

The 9V battery provides backup power. Replace the 9V battery at least once a year, or immediately when the alarm "chirps" approximately once every 30-40 seconds, indicating a low battery. To replace the battery:

1. סובב את האזעקה נגד כיוון השעון כדי להסירה מתושבת ההרכבה.
2. פתח את תא הסוללות.
3. Remove the old 9V battery and dispose of it properly.
4. Install a new 9V alkaline battery, ensuring correct polarity.
5. Close the battery compartment and reattach the alarm to the mounting bracket by twisting clockwise.
6. בדוק את האזעקה לאחר החלפת הסוללה.

Alarm Replacement:

Smoke alarms have a limited lifespan. It is recommended to replace your Kidde 1275 smoke alarm every 10 years from the date of manufacture. The manufacture date is printed on the back of the alarm.

פתרון בעיות

מפרטים

• מותג: ילד
• מספר דגם: 1275 (Mfr Part Number: MS66)
• מקור כוח: 120V AC Hardwired with 9V Battery Backup
• סוג חיישן: יינון
• ספירת יחידות: 2.0 Count (Twin Pack)
• קוֹטֶר: 6-Inch (approximate)
• הסמכות: רשימת UL
• UPC: 047871099696
• ASIN: B0027SH9YI

מידע על אחריות

The Kidde 1275 Hardwire Smoke Alarm comes with a אחריות לחמש שנים from the date of purchase. This warranty covers defects in materials and workmanship under normal use and service. For complete warranty details, including limitations and how to make a claim, please refer to the full owner's manual or contact Kidde customer support.

Support and General Safety Tips

For further assistance, technical support, or to report any issues with your Kidde smoke alarm, please contact Kidde customer service. You can find contact information on the Kidde webבאתר או במדריך למשתמש המלא.

For comprehensive information on fire preparedness and home safety, it is highly recommended to contact your local fire department. They can provide valuable resources and guidance tailored to your specific area.

Fire Preparedness Tips:

• Home Inventory: Create a video or photographic record of all your valuables for insurance purposes.
• Update Alarms: Consider upgrading to combination smoke and carbon monoxide alarms for dual protection.
• 10-Year Batteries: Opt for alarms with 10-year sealed batteries to avoid frequent battery changes and late-night chirps (Note: This specific model uses a 9V backup battery, which requires annual replacement).
• מטפי כיבוי אש: Keep fire extinguishers handy in key locations such as under the kitchen sink, in the attic, garage, and bedrooms.
• גלאי פחמן חד-חמצני: If you have a smoke detector, consider adding a plug-in carbon monoxide alarm for immediate installation and enhanced safety.
• Secure Documents: Store important papers in a fire-resistant safe.
