Easton X Nocks for 5mm Arrows Instruction Manual

מָבוֹא

This manual provides essential information for the proper installation, use, and maintenance of your Easton X Nocks. These nocks are designed for use with Easton 5mm AXIS-style and FMJ arrows. Please read this manual thoroughly before use to ensure optimal performance and safety.

המוצר נגמרview

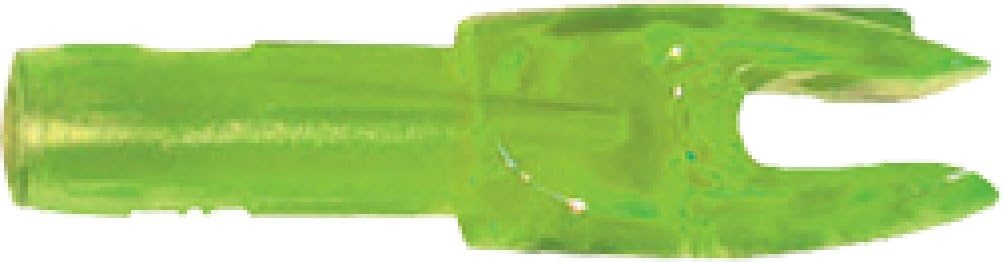

תמונה 1: A single green Easton X Nock. The image shows the nock from a side profile, highlighting its cylindrical base designed to fit into an arrow shaft and the bifurcated end where the bowstring is seated. The nock is translucent green.

The Easton X Nock is a precision-engineered component for archery arrows. It features a .098-inch throat, designed to securely hold the bowstring. Each nock weighs approximately 7 grains. This package contains 12 nocks.

• תְאִימוּת: Specifically designed for 5mm Easton AXIS and FMJ arrow shafts.
• גודל גרון: .098 inches for a secure string fit.
• מִשׁקָל: Approximately 7 grains per nock.
• חוֹמֶר: Durable Polypropylene.

התקנה והתקנה

1. Inspect Arrow Shaft: Ensure the arrow shaft's nock end is clean and free from debris or damage.
2. Orient Nock: Identify the correct orientation for the nock. The nock throat should align with the fletching, typically with the cock feather pointing away from the bowstring.
3. Insert Nock: Gently push the X Nock into the arrow shaft. It should fit snugly. Avoid excessive force, which could damage the nock or shaft.
4. אימות מקומות ישיבה: Ensure the nock is fully seated against the end of the arrow shaft. A slight twisting motion may help in seating.
5. בדוק התאמה: Once installed, gently pull on the nock to confirm it is securely in place. It should not easily come loose.

פֶּתֶק: If the nock is too loose or too tight, verify that the arrow shaft is compatible with Easton X Nocks. Forcing an incompatible nock can lead to damage or unsafe conditions.

הוראות הפעלה

The X Nocks function as the attachment point for the bowstring on your arrow. Proper use involves:

• לחיצה על החץ: Place the bowstring into the throat of the nock. The fit should be secure but allow for smooth release.
• String Alignment: Ensure the nock is correctly aligned on the bowstring, typically with the cock feather perpendicular to the bowstring for optimal flight.
• לְשַׁחְרֵר: Upon release, the nock guides the arrow off the string, contributing to consistent arrow flight.

Safety Warning: Always inspect nocks for damage before each shot. A damaged nock can lead to arrow derailment or injury.

תַחזוּקָה

• בדיקה רגילה: Before and after each use, inspect nocks for cracks, chips, or deformation.
• ניקוי: Clean nocks with a damp cloth to remove dirt or residue. Avoid harsh chemicals that may degrade the material.
• אִחסוּן: Store arrows with nocks in a cool, dry place, away from direct sunlight and extreme temperatures, to prevent material degradation.
• תַחֲלִיף: Replace any nock that shows signs of wear, damage, or an improper fit on the arrow shaft or bowstring.

פתרון בעיות

• Nock is too loose on shaft:

  Ensure the arrow shaft is a 5mm Easton AXIS or FMJ model. If it is, the shaft may be worn, or the nock may be defective. Try a new nock. If the issue persists, inspect the arrow shaft for damage.

• Nock is too tight on shaft:

  Verify the arrow shaft is a 5mm Easton AXIS or FMJ model. Do not force the nock, as this can cause damage. If the shaft is correct, the nock may be defective. Try a new nock.
• Bowstring does not fit securely in nock:

  Check the bowstring's serving for wear or incorrect thickness. The X Nock has a .098-inch throat. If the serving is too thick, it may need adjustment or replacement. If the serving is too thin, it may require additional serving material.

מפרטים

מידע על אחריות

Easton X Nocks are covered by a manufacturer's defect warranty. This warranty typically covers defects in materials and workmanship under normal use. For specific details regarding warranty claims, please refer to the official Easton Archery webאתר או צור קשר עם תמיכת הלקוחות שלהם.

תיאור אחריות: Manufacturers defect only.

תמיכה ויצירת קשר

For further assistance, technical support, or inquiries regarding your Easton X Nocks, please visit the official Easton Archery webלאתר או לפנות למחלקת שירות הלקוחות שלהם.

• Easton Archery Webאֲתַר: www.eastonarchery.com
• יַצרָן: Easton

מידע בטיחות חשוב

אזהרה הצעה 65:

מוצר זה מכיל כימיקלים הידועים למדינת קליפורניה כגורמים לסרטן ולפגמים מולדים או נזקי רבייה אחרים.

Always handle archery equipment with care and follow all safety guidelines for archery. Misuse can result in serious injury.
